TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

The DTC output mode is set by connecting terminals TC and CG of DLC3. The DTCs are displayed by a blinking of the absorber control indicator light.

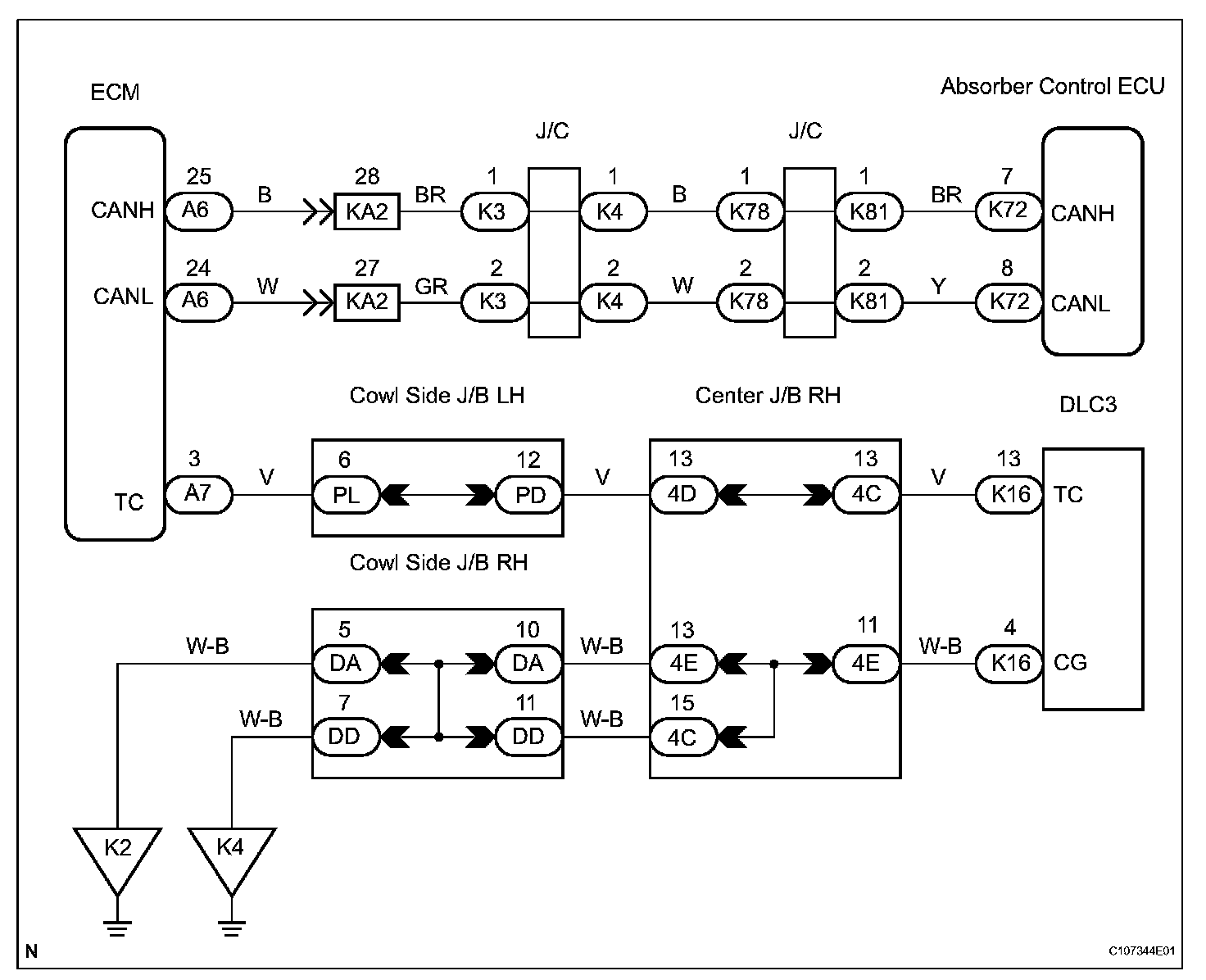

Wiring Diagram:

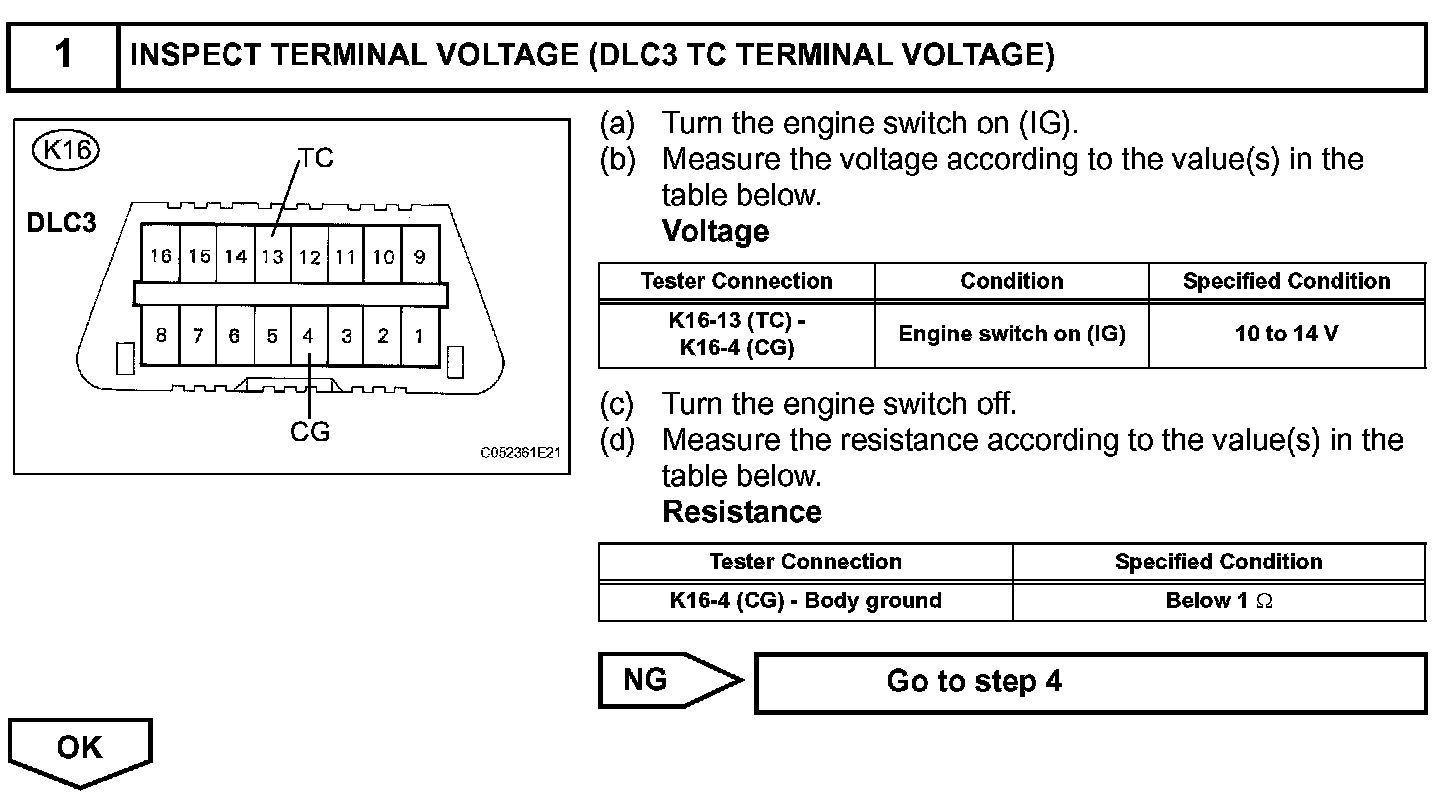

Step 1:

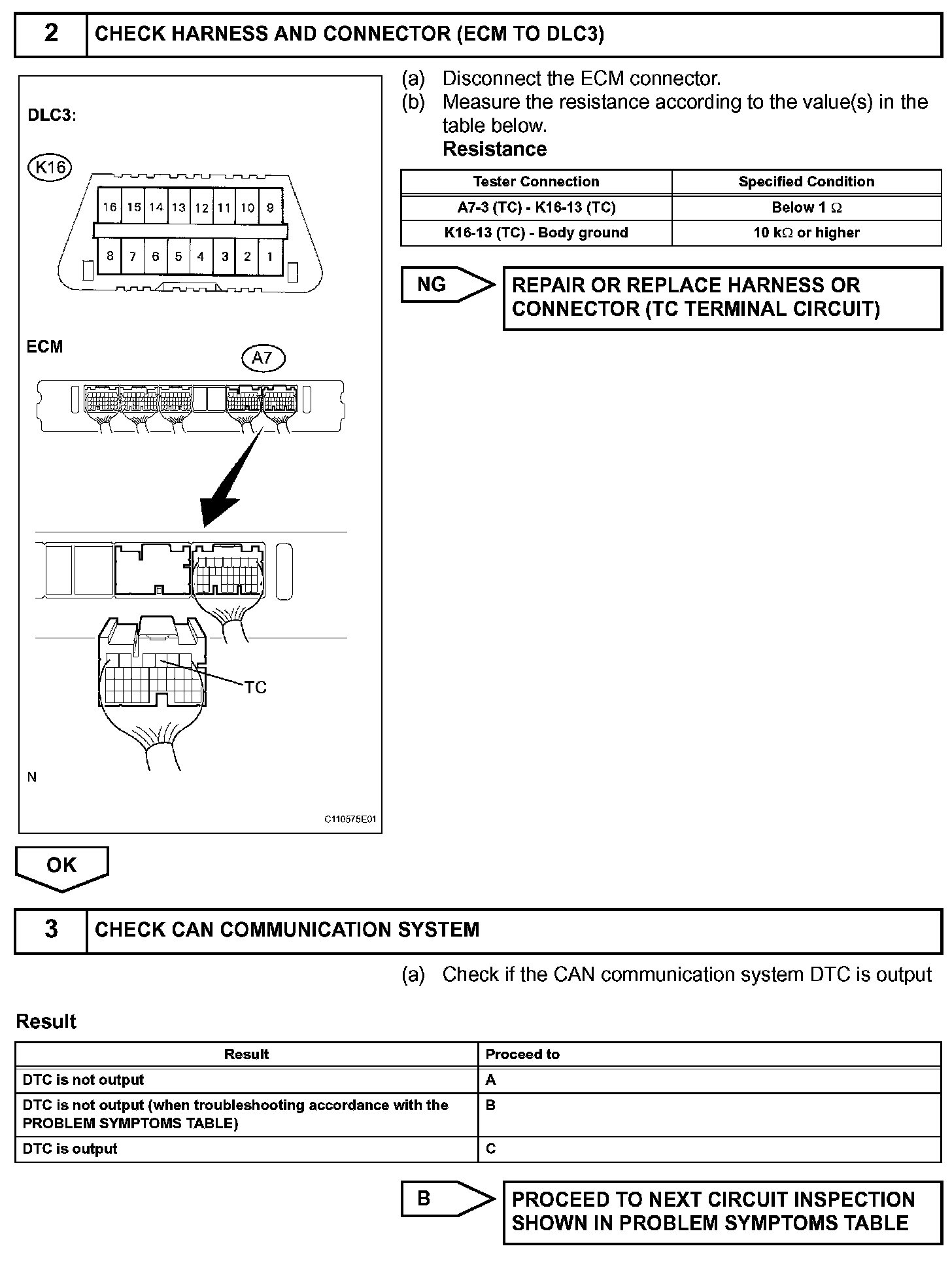

Step 2-3:

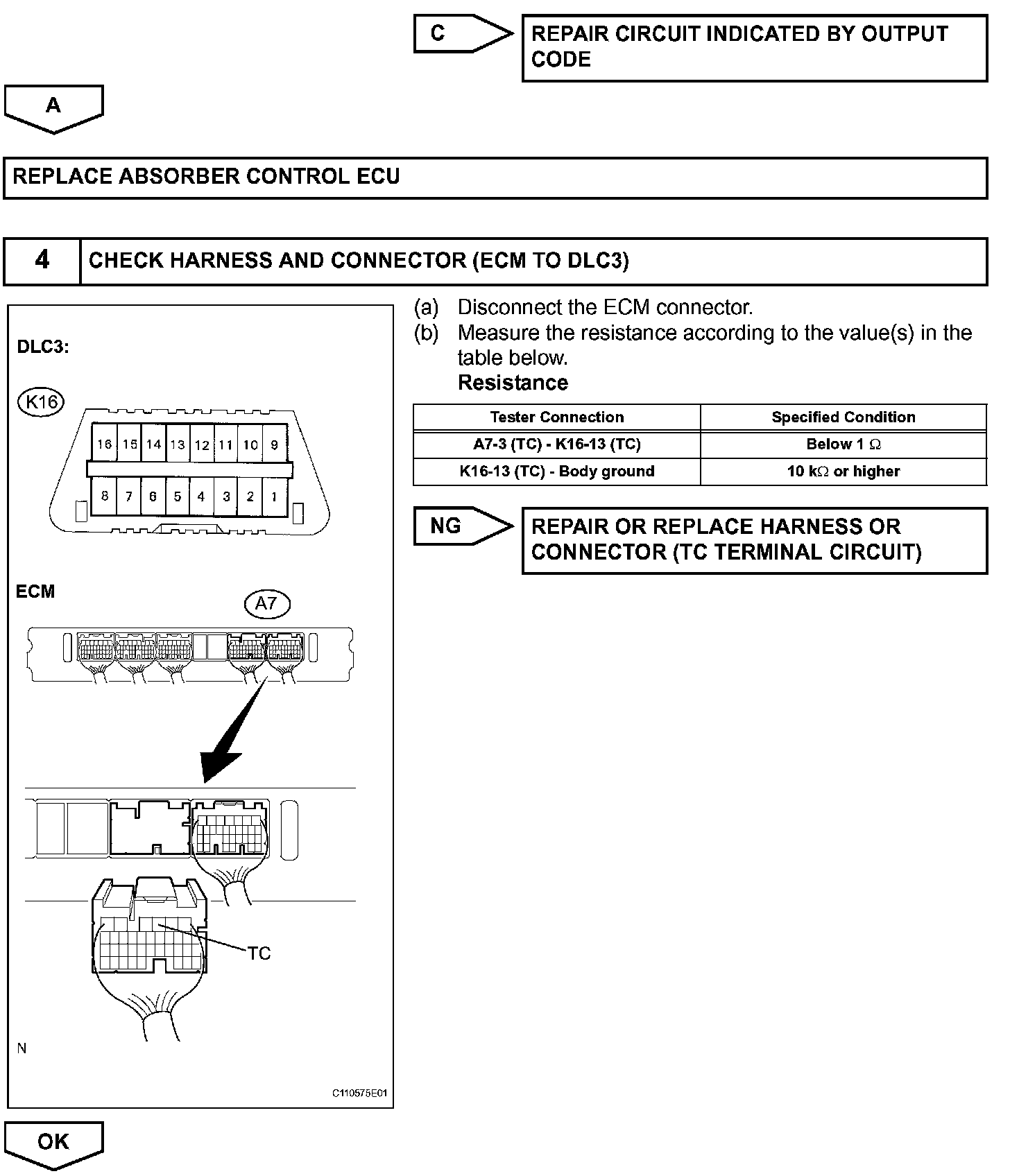

Step 3(Continued)-4:

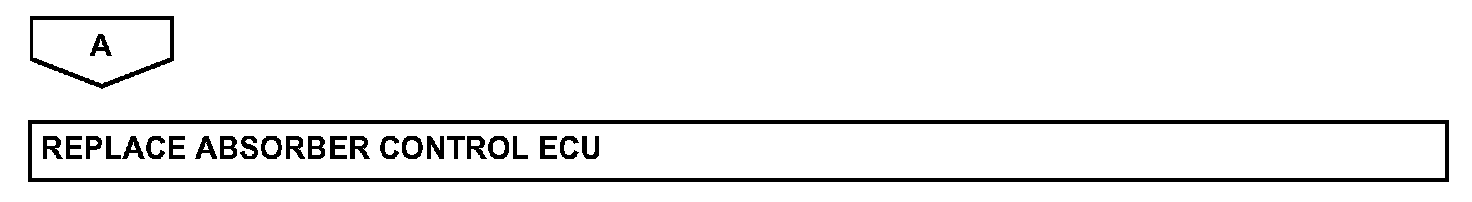

Step 5-7:

Step 7(Continued):

INSPECTION PROCEDURE

NOTE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.

HINT: Check the condition of each related circuit connector before troubleshooting.
