Rear Upper No. 2 Control Arm

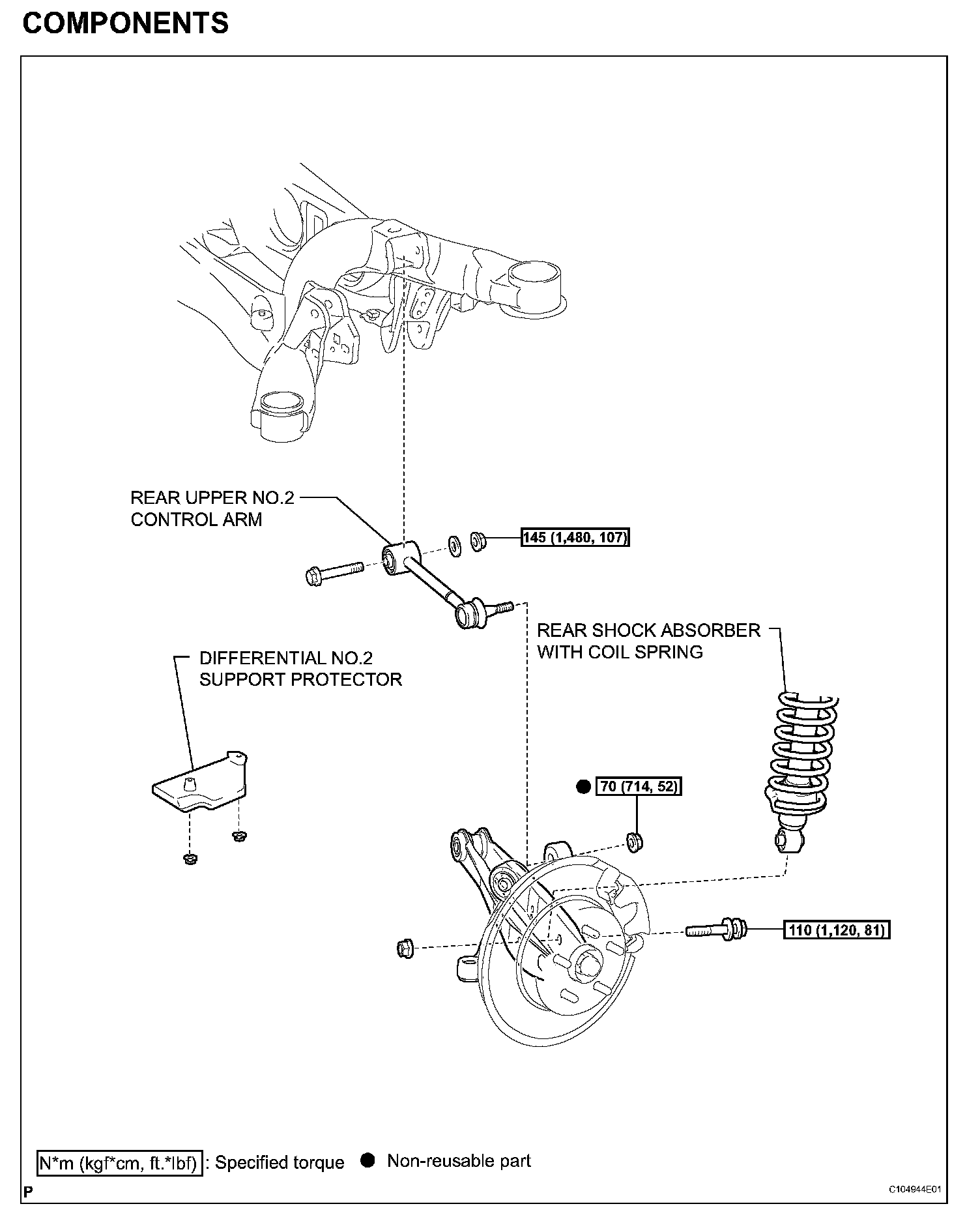

REAR UPPER NO. 2 CONTROL ARMCOMPONENTS:
REMOVAL
1. REMOVE REAR WHEEL
2. REMOVE DIFFERENTIAL NO.2 SUPPORT PROTECTOR
3. SEPARATE REAR SHOCK ABSORBER WITH COIL SPRING
4. REMOVE REAR UPPER NO.2 CONTROL ARM

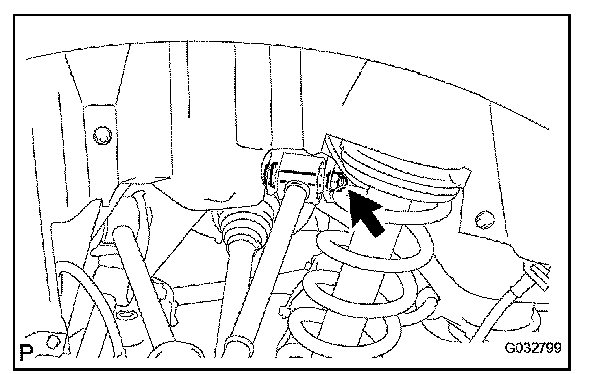

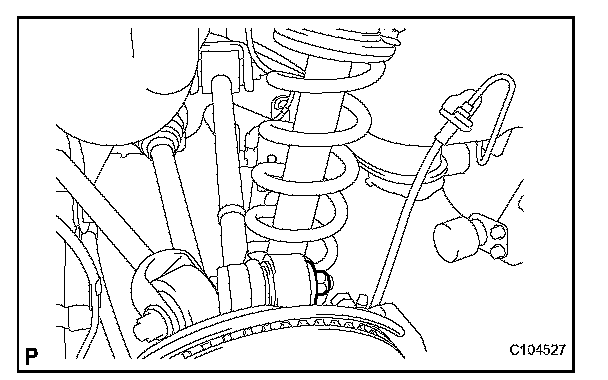

(a) Remove the nut on the axle carrier side.

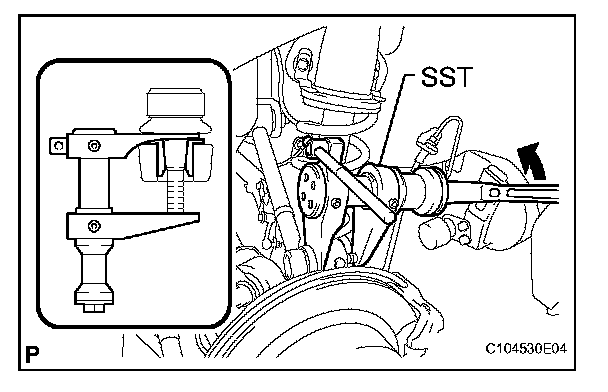

(b) SST, separate the rear upper No.2 control arm
NOTICE:
^ Securely tie string of the SST to the vehicle.
^ Do not damage the dust cover.
^ Securely set the SST on the spacer of the axle carrier.
^ If the spacer of the axle carrier comes off, replace the axle carrier with a new one.
(c) Remove the bolt, nut, washer, and rear upper No.2 control arm.
HINT:
Push the axle carrier downward.
INSPECTION
1. INSPECT REAR UPPER NO.2 CONTROL ARM

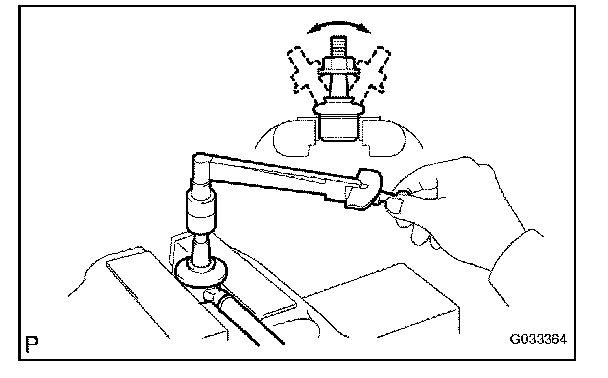

(a) Temporarily install the nut, and flip the ball joint stud back and forth 5 times as shown in the illustration.
(b) Use a torque wrench to turn the nut continuously at a rate of 3 to 5 seconds per turn. Take the torque reading on the 5th turn.
Turning torque: 3.4 N*m (35 kgf*cm, 2.5 in.*lbf) or less
If the value is not within the specified range, replace the rear upper No.2 control arm with a new one.
(c) Check the dust boot for cracks or grease leakage.
INSTALLATION
1. TEMPORARILY TIGHTEN REAR UPPER NO.2 CONTROL ARM

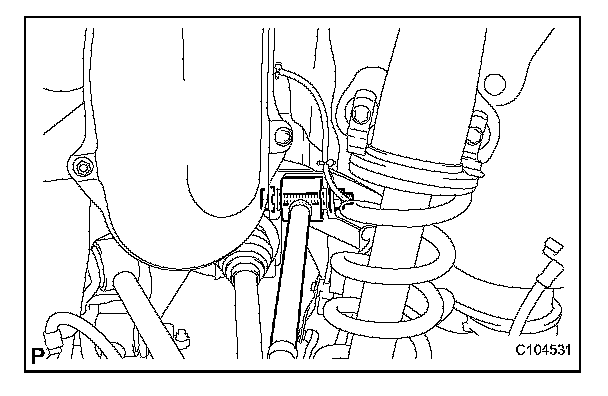

(a) Install the stud of the rear upper No.2 control arm, and temporarily tighten a new nut.

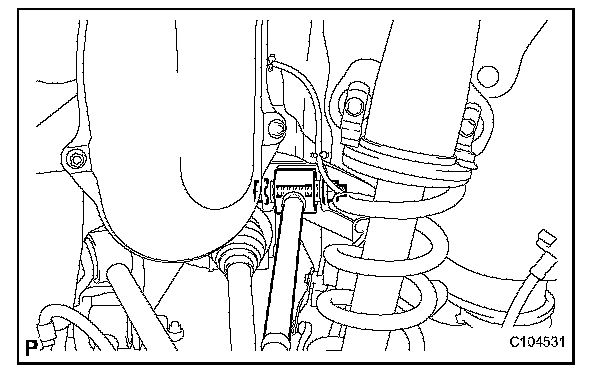

(b) Install the rear upper control arm, and temporarily tighten the bolt, nut and washer.
HINT:
Push the axle carrier downward.
(c) Fully tighten the nut of the rear upper No.2 control arm.
Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)
2. TEMPORARILY TIGHTEN REAR SHOCK ABSORBER WITH COIL SPRING
3. STABILIZE SUSPENSION

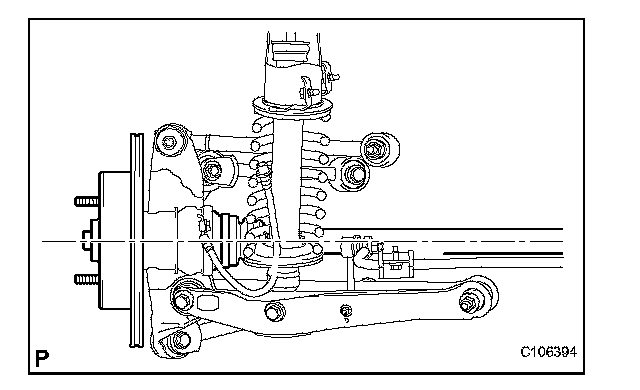

(a) Jack up the axle carrier, with a wooden block placed between the jack and axle carrier, to apply load to the suspension so that the rear drive shaft assembly becomes level.
4. FULLY TIGHTEN REAR UPPER NO.2 CONTROL ARM
(a) Fully tighten the nut on the rear suspension member side of the rear upper No.2 control arm.
Torque: 145 N*m (1,480 kgf*cm, 107 ft.*lbf)
5. FULLY TIGHTEN REAR SHOCK ABSORBER WITH COIL SPRING
6. INSTALL DIFFERENTIAL NO.2 SUPPORT PROTECTOR
7. INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
8. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
9. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT
10. HEADLIGHT AIMING ADJUSTMENT (LOW BEAM)
11. HEADLIGHT AIMING ADJUSTMENT (HIGH BEAM)
