PROBLEM SYMPTOMS TABLE
HINT:
Use the table to help determine the cause of the problem. Check each part in order. If necessary, repair or replace the faulty parts.

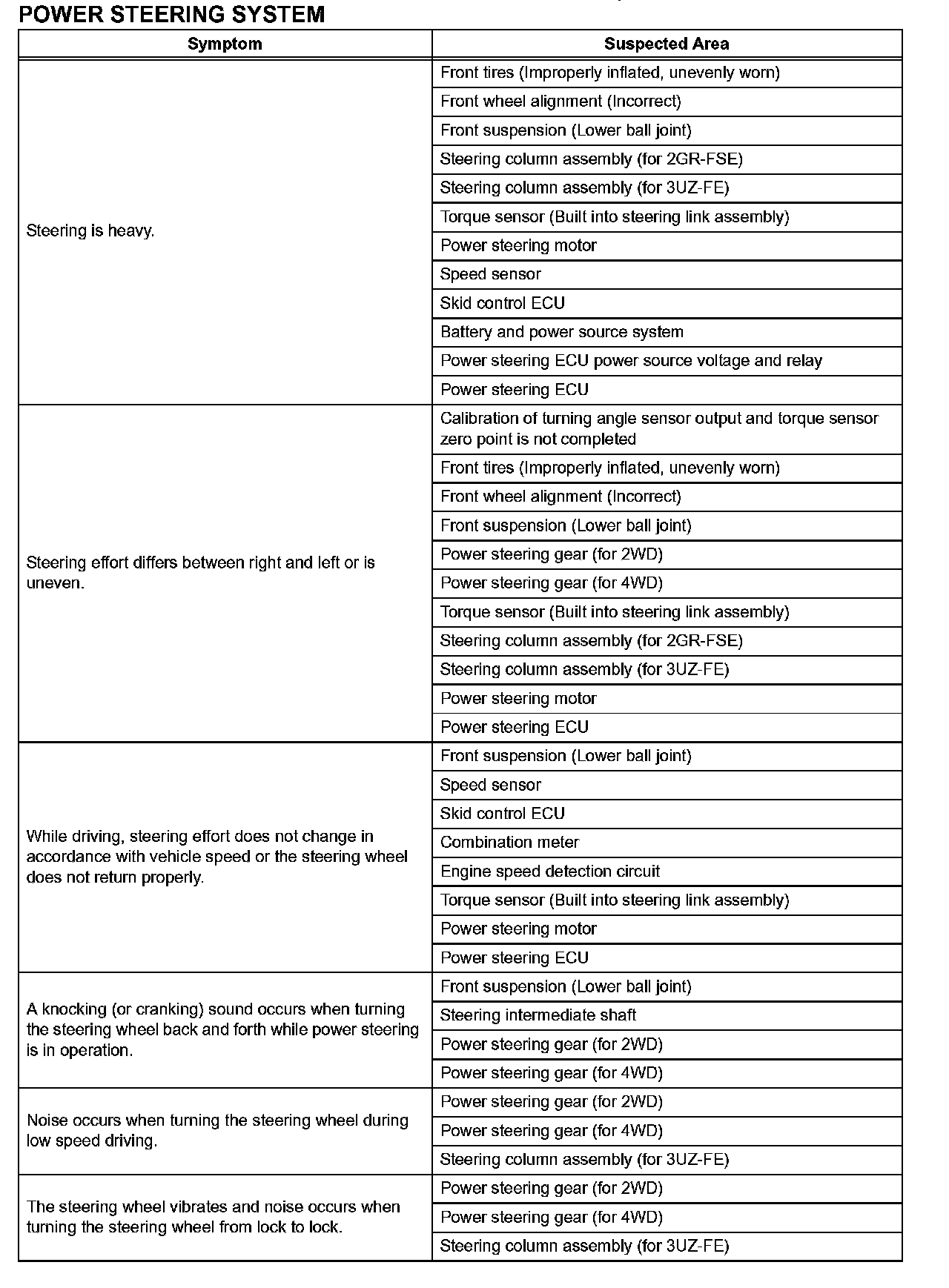

POWER STEERING SYSTEM:
