Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Problem Symptoms Table >> Electronic Power Steering System

Electronic Power Steering System

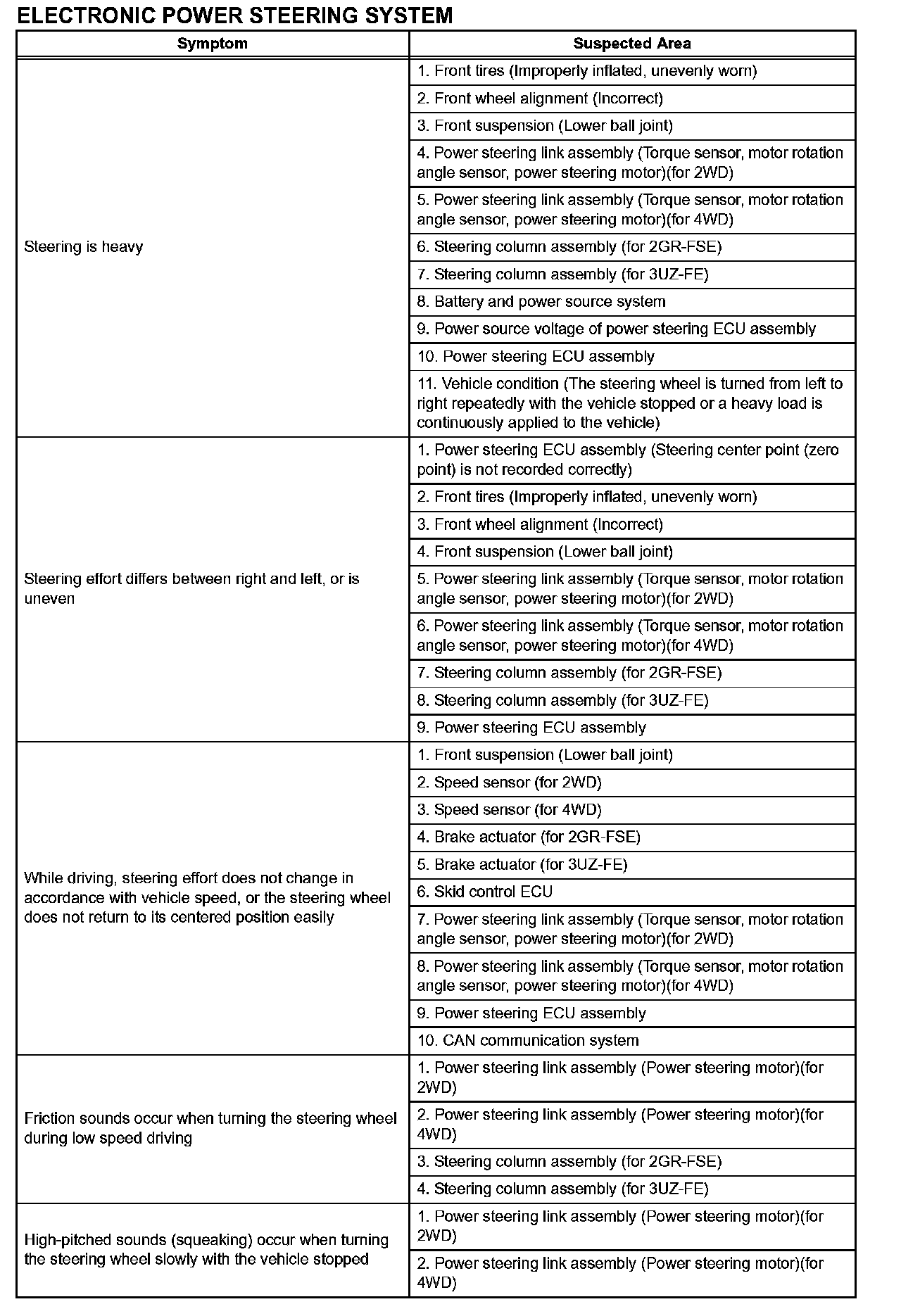

ELECTRONIC POWER STEERING SYSTEM (Part 1):

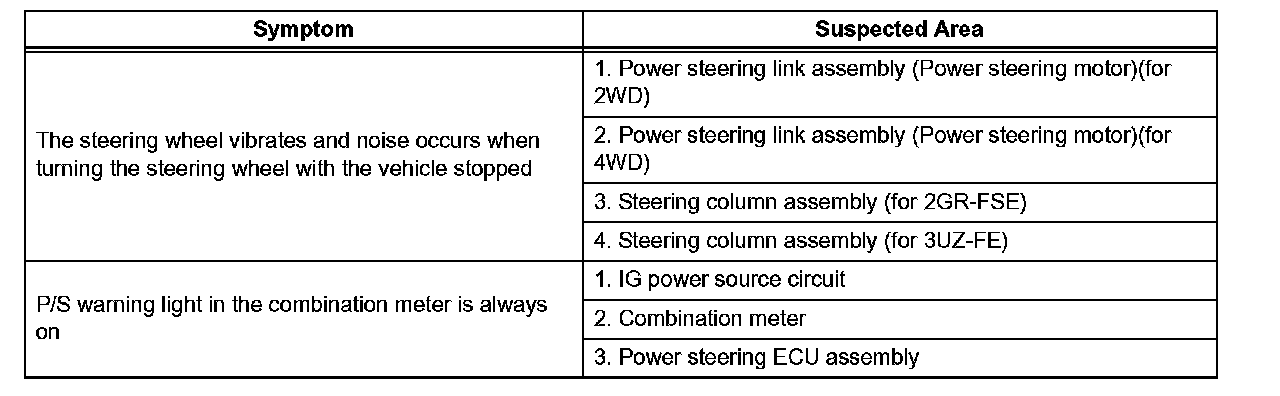

ELECTRONIC POWER STEERING SYSTEM (Part 2):
