Variable Gear Ratio Steering System

TERMINALS OF ECU

HINT:

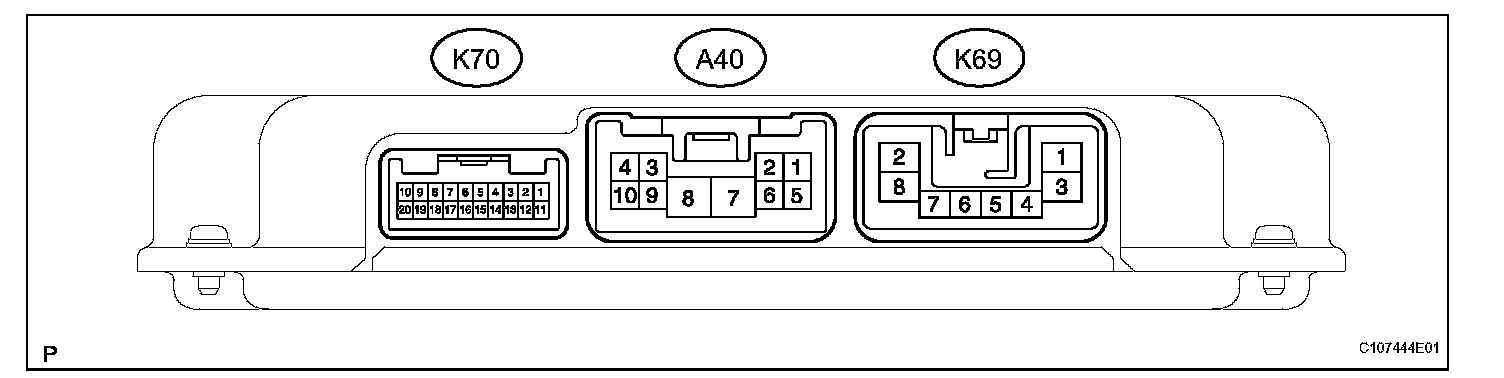

Inspect the connectors from the back side while they are connected.

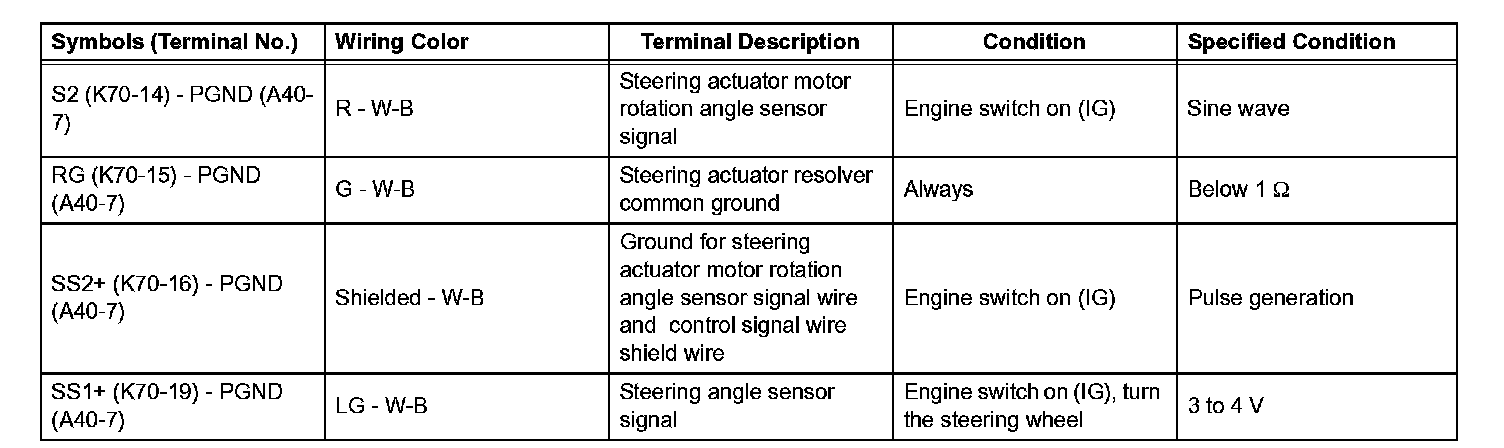

Part 1:

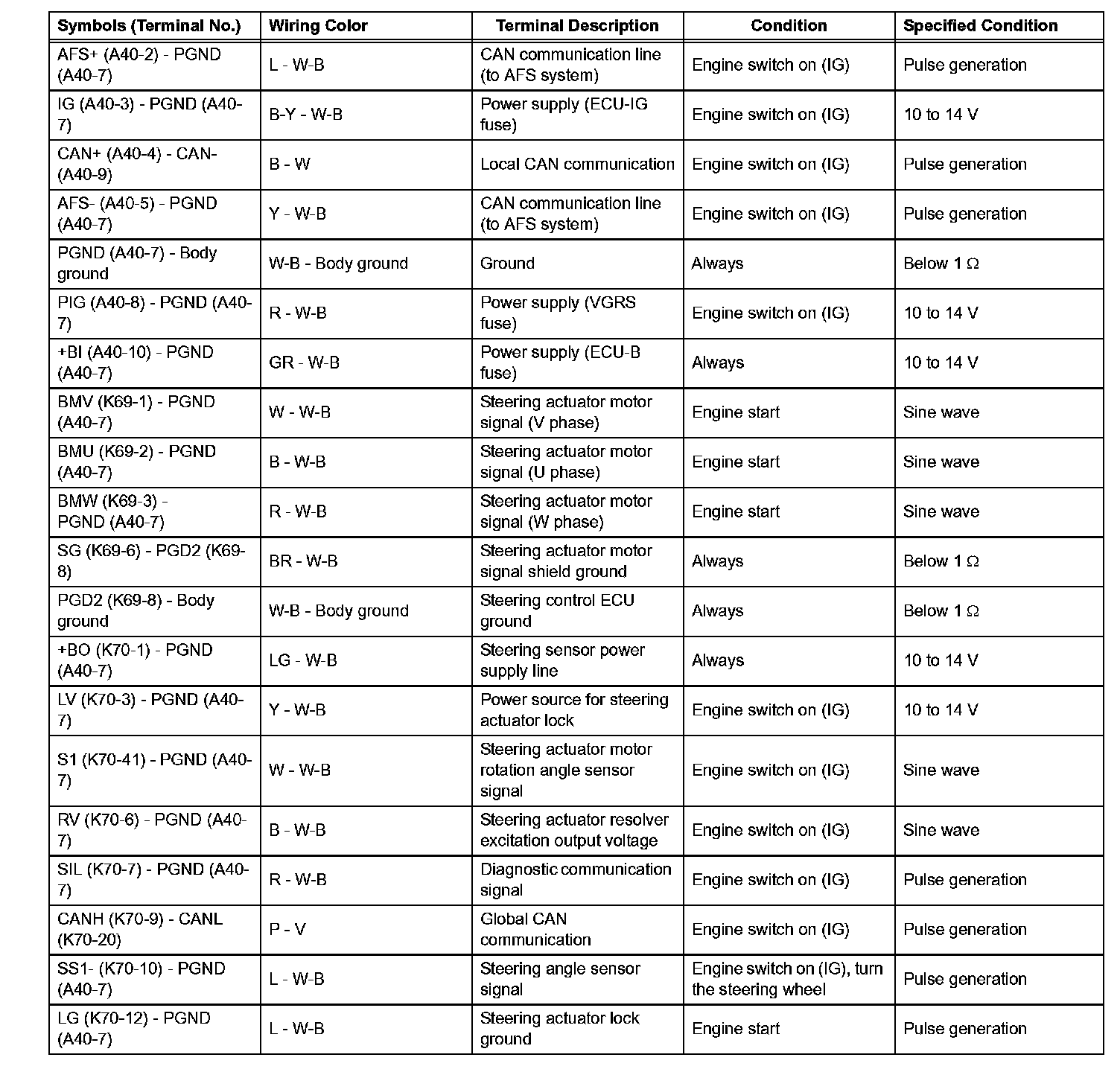

Part 2:
