Steering Column - Variable Gear Ratio Steering System

HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
The intelligent tester can be used in steps 3, 4, 5, 7 and 11.

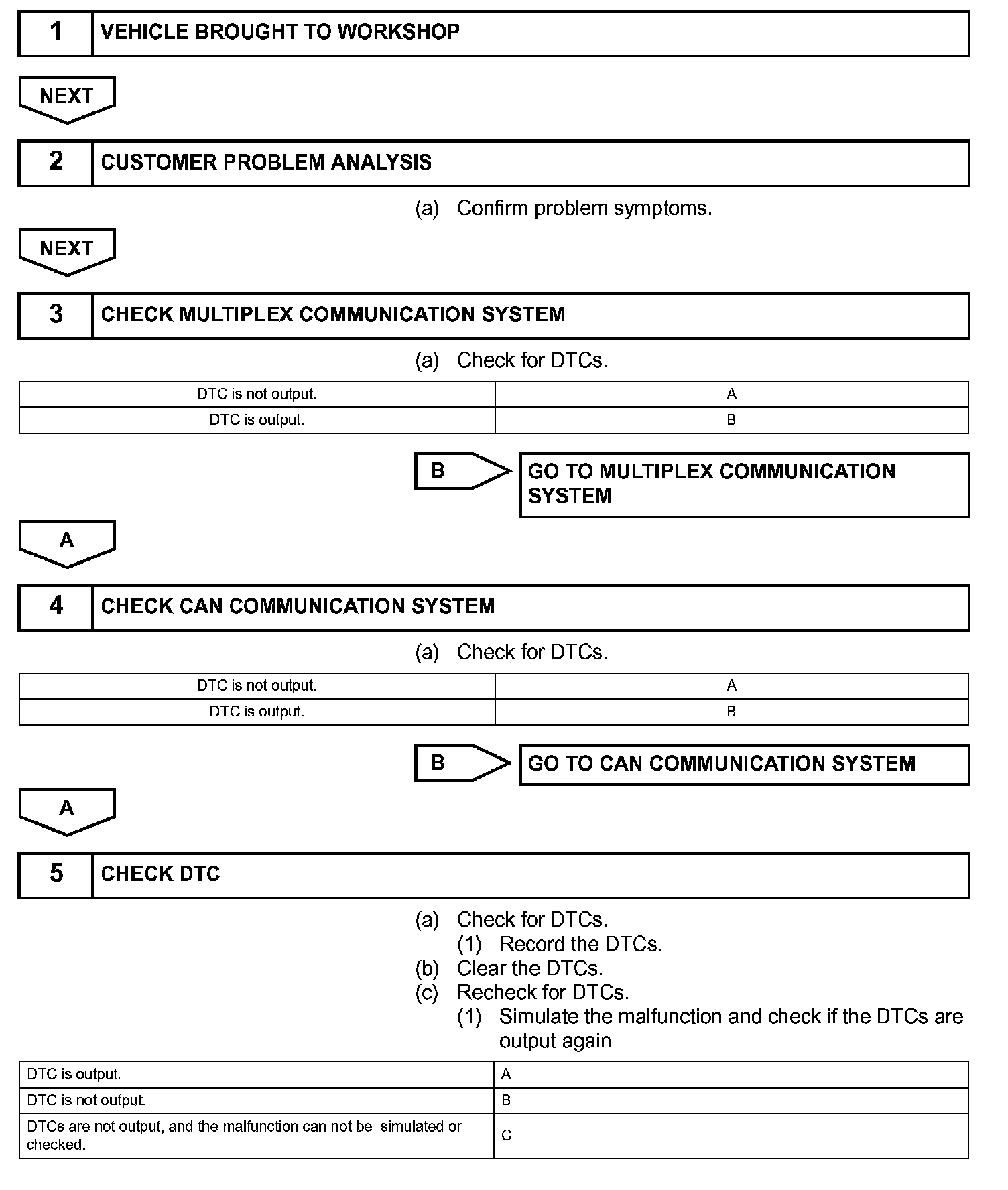

Steps 1-5(Part 1):

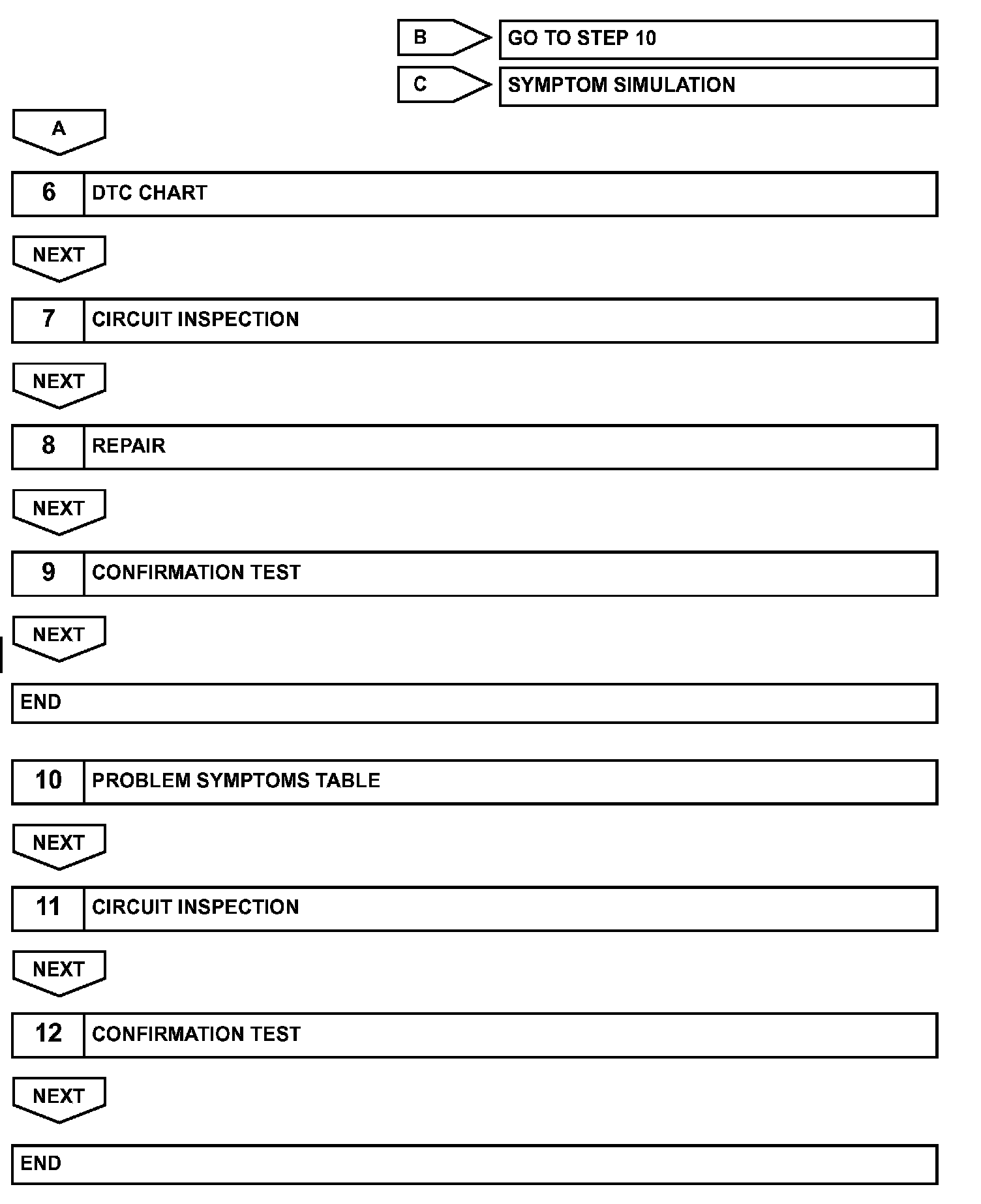

Steps 5(Part 2)-12:
