Power Steering - Electronic Power Steering System

HOW TO PROCEED WITH TROUBLESHOOTING
Perform troubleshooting according to the following flowchart.

HINT:
^ For further details, see the procedure given.
^ The intelligent tester can be used at steps 2, 3, 6, 9 and 12.

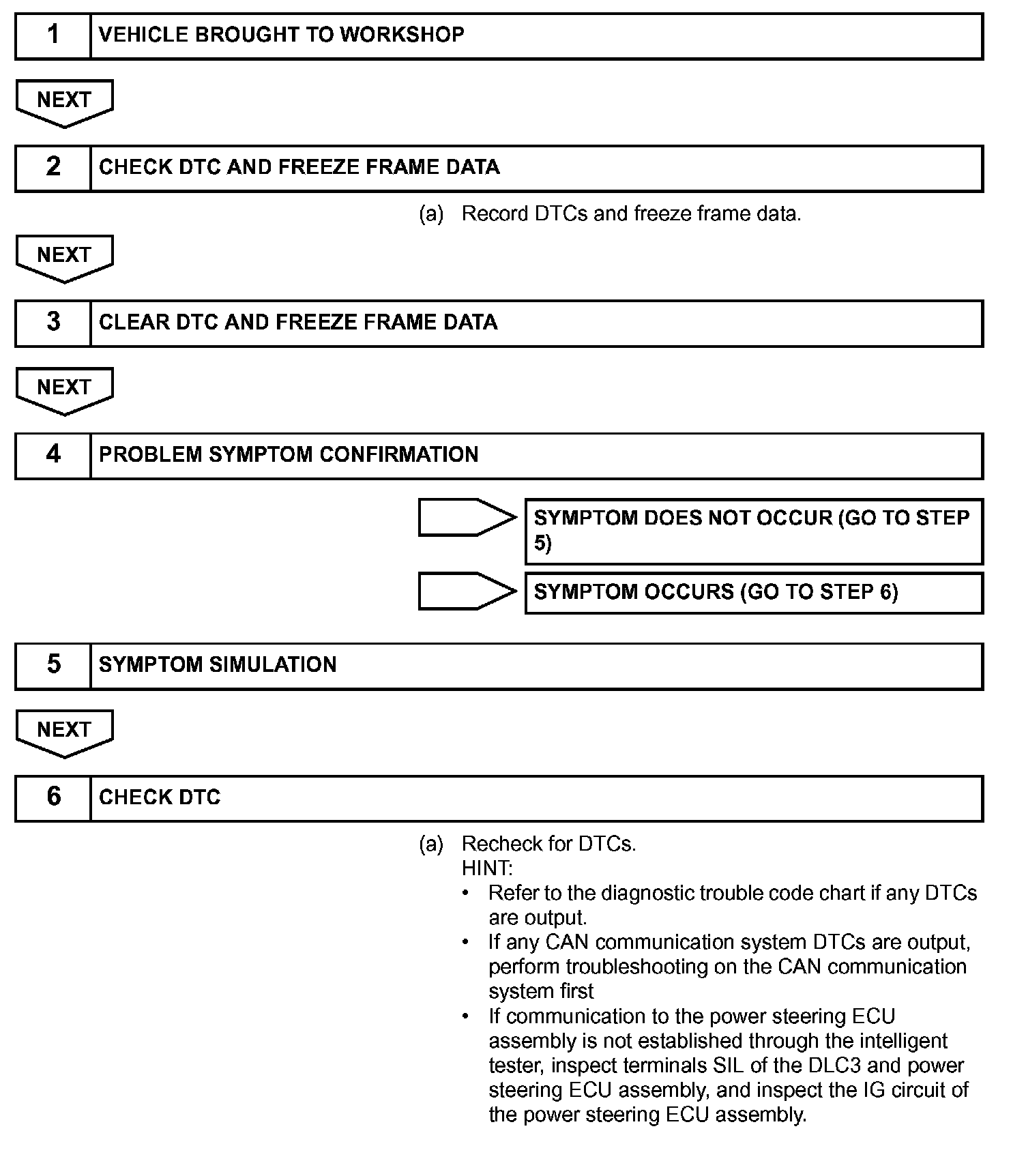

Steps 1-6(Part 1):

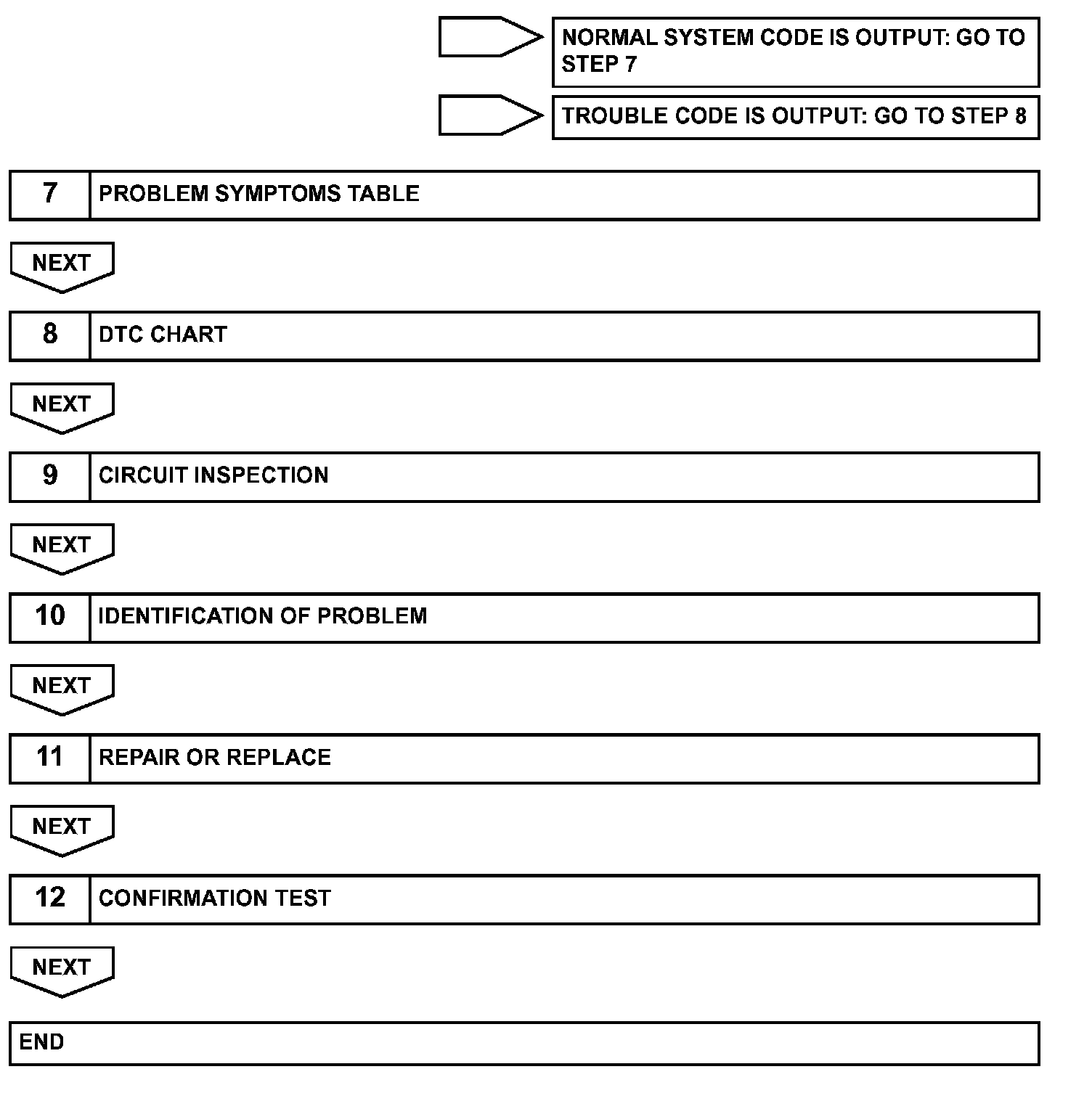

Steps 6(Part 2)-12:
