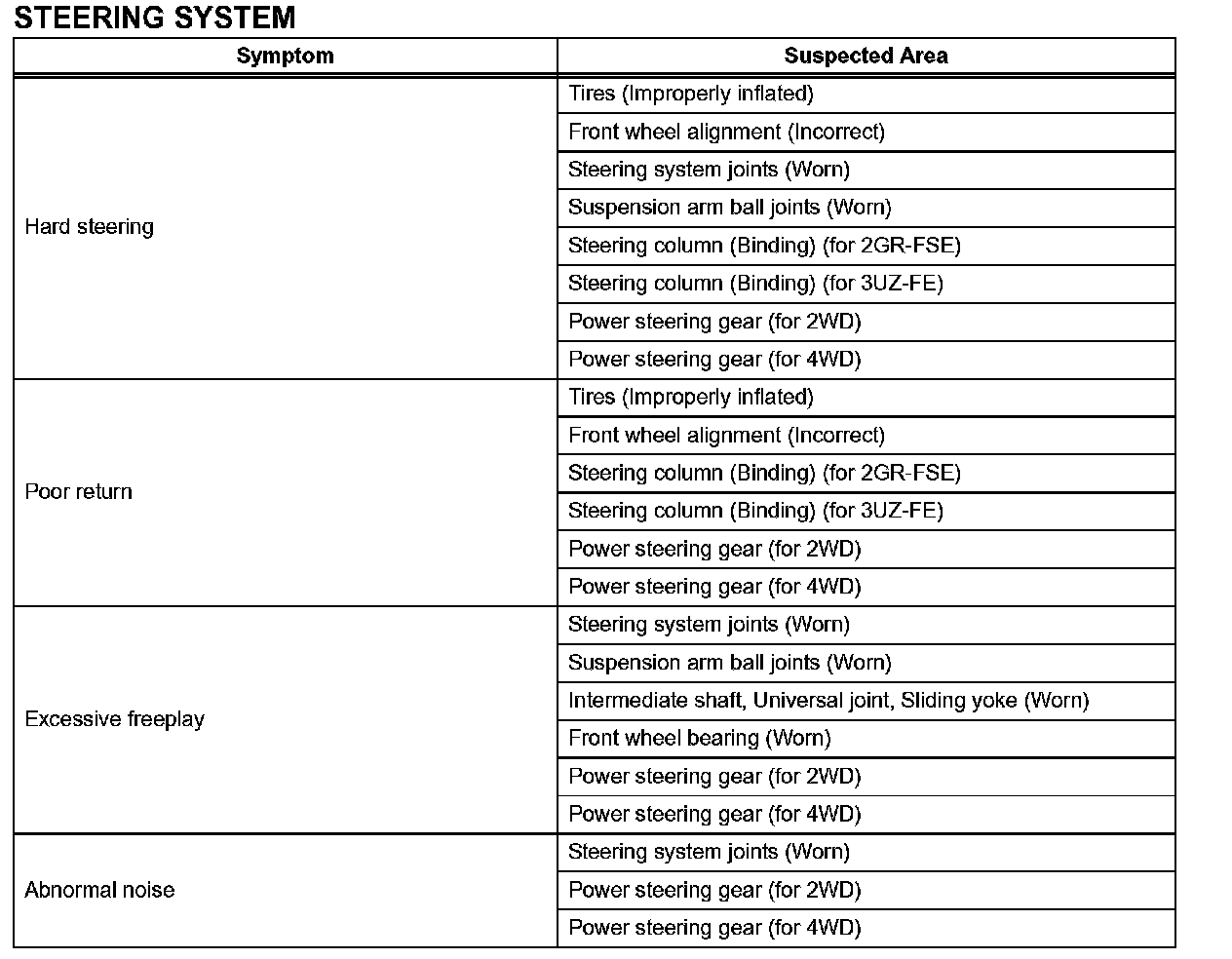

PROBLEM SYMPTOMS TABLE
HINT:
Use the table to help determine the cause of the problem. If necessary, repair or replace the faulty parts.
STEERING SYSTEM:
