Data List/Active Test

DATA LIST / ACTIVE TEST
1. DATA LIST
(a) Connect the intelligent tester to the DLC3.
(b) Turn the engine switch on (IG) and turn the intelligent tester on.
(c) Select the following items from the data list.

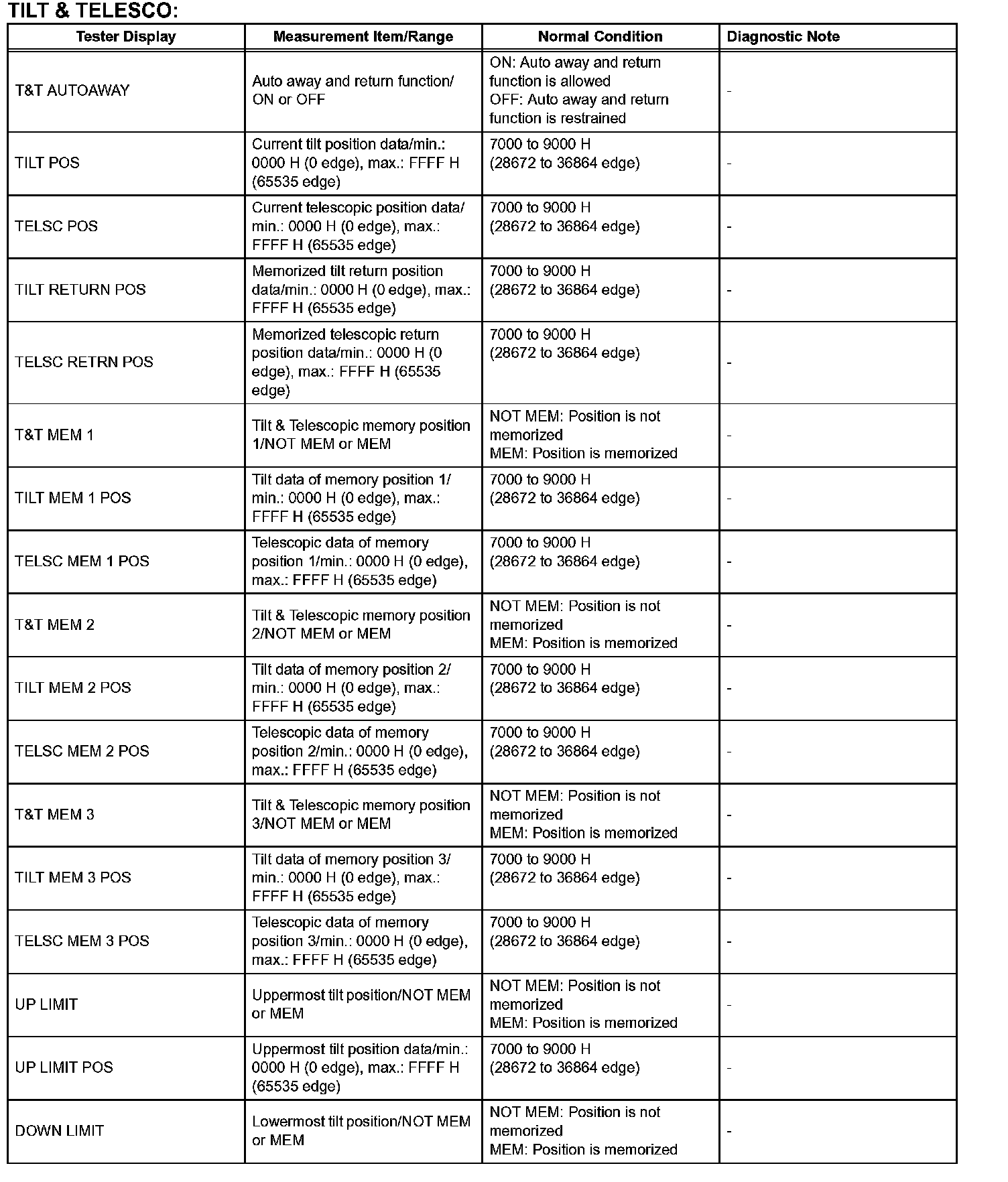

TILT & TELESCO (Part 1):

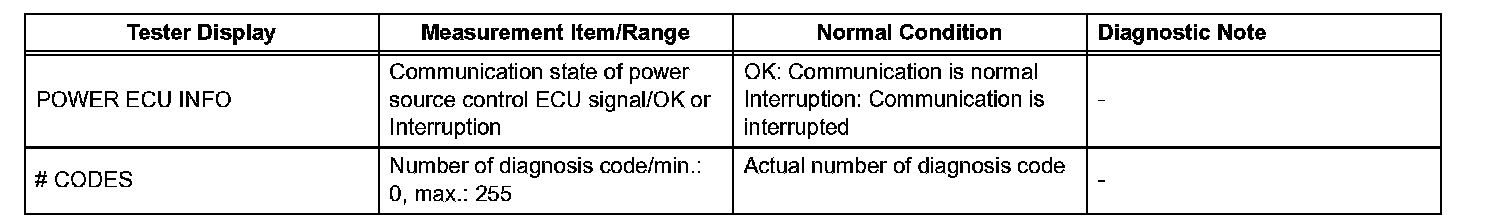

TILT & TELESCO (Part 2):

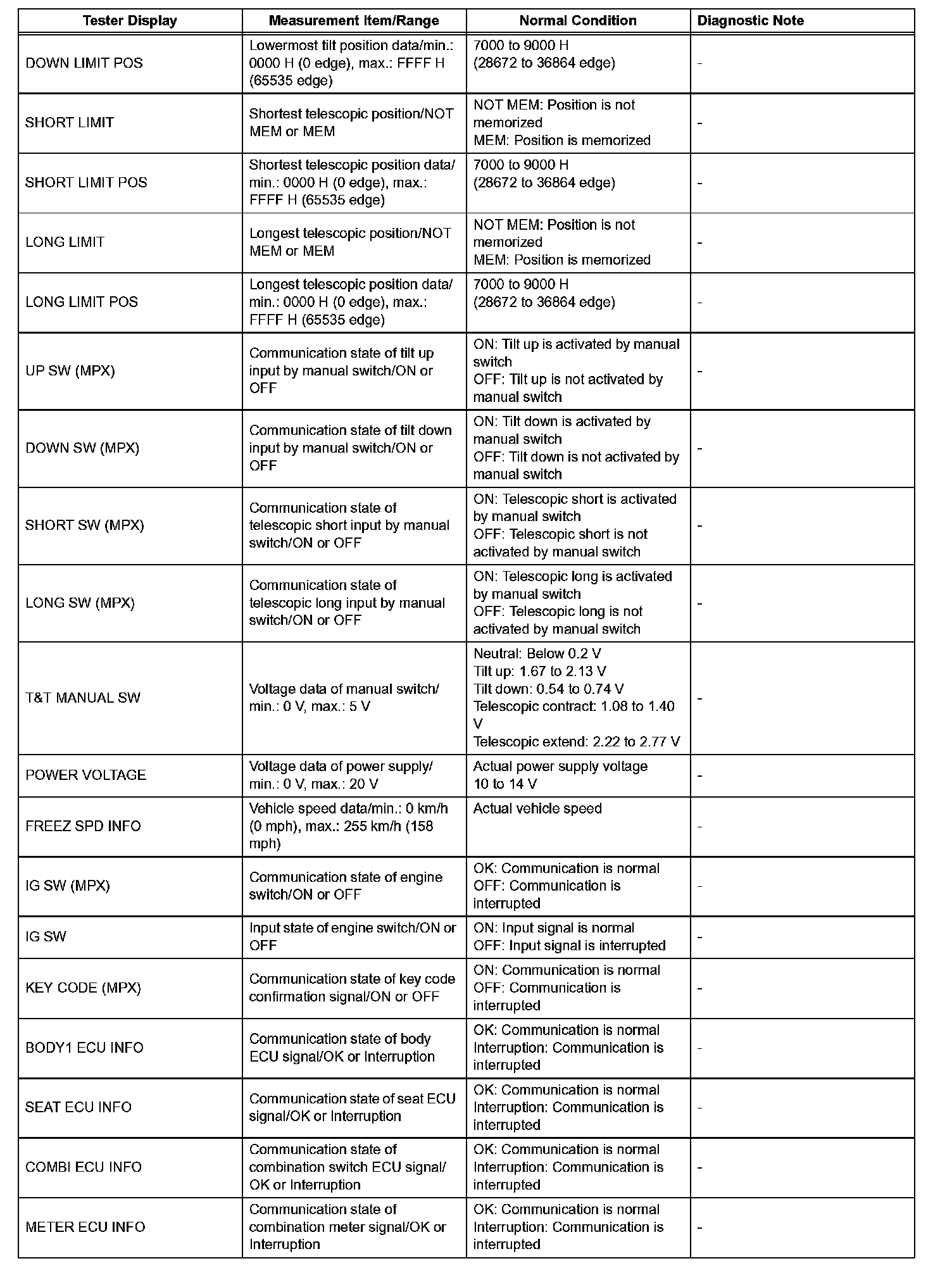

TILT & TELESCO (Part 3):

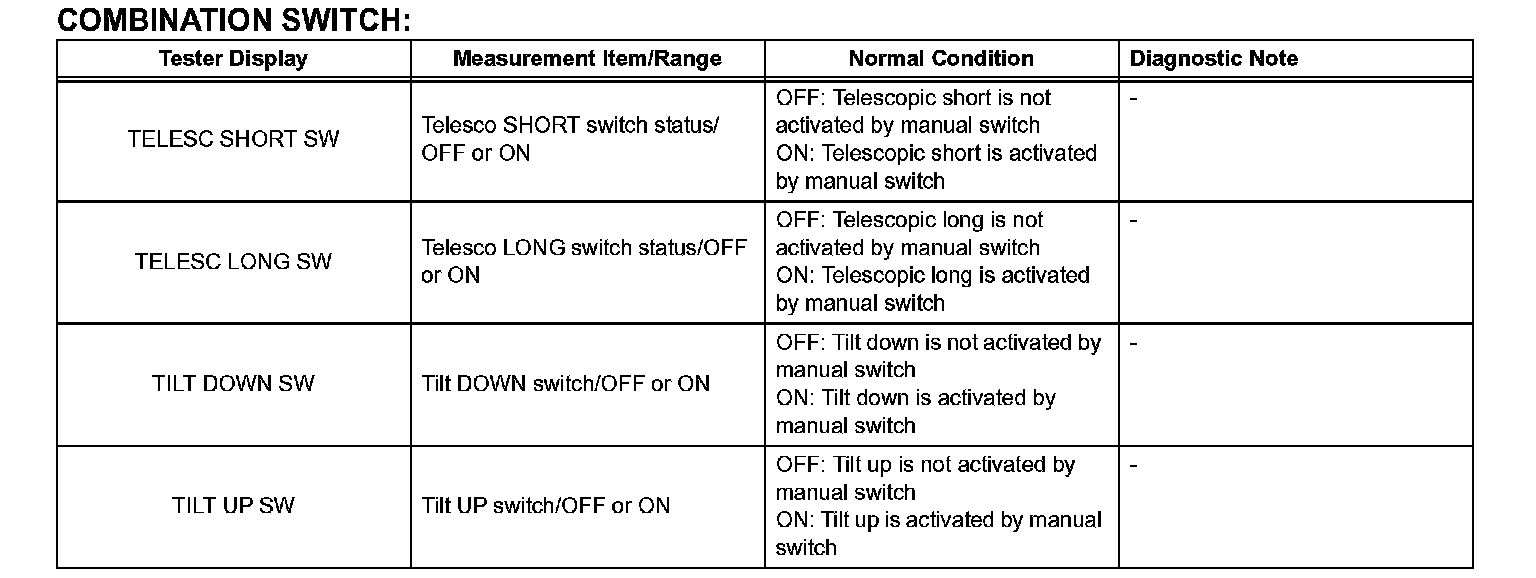

COMBINATION SWITCH:

2. ACTIVE TEST
(a) Connect the intelligent tester to the DLC3.
(b) Turn the engine switch on (IG) and turn the intelligent tester on.
(c) Select the following items from the active test.

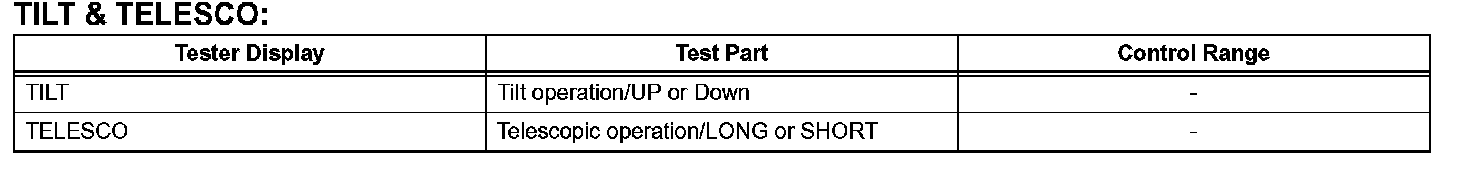

TILT & TELESCO:
