Actuator Power Source Circuit

Actuator Power Source Circuit

DESCRIPTION
This is the power source for the motors.

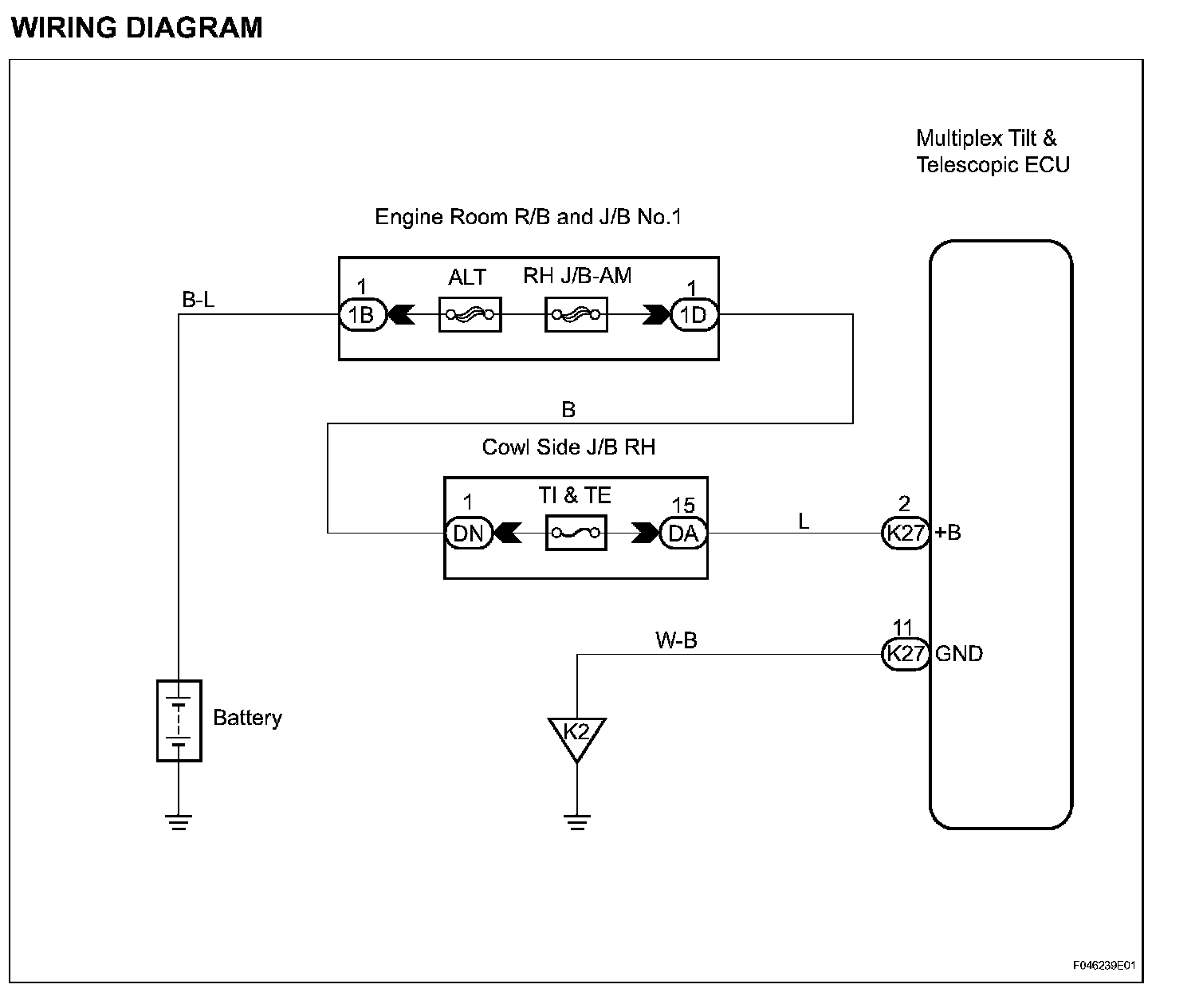

WIRING DIAGRAM:

INSPECTION PROCEDURE

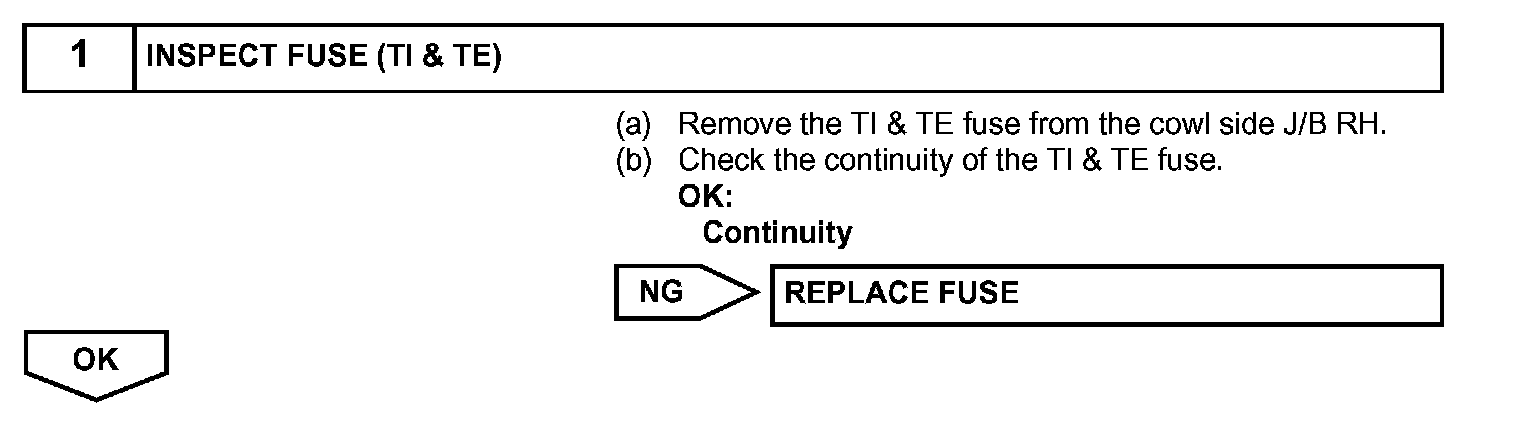

Step 1:

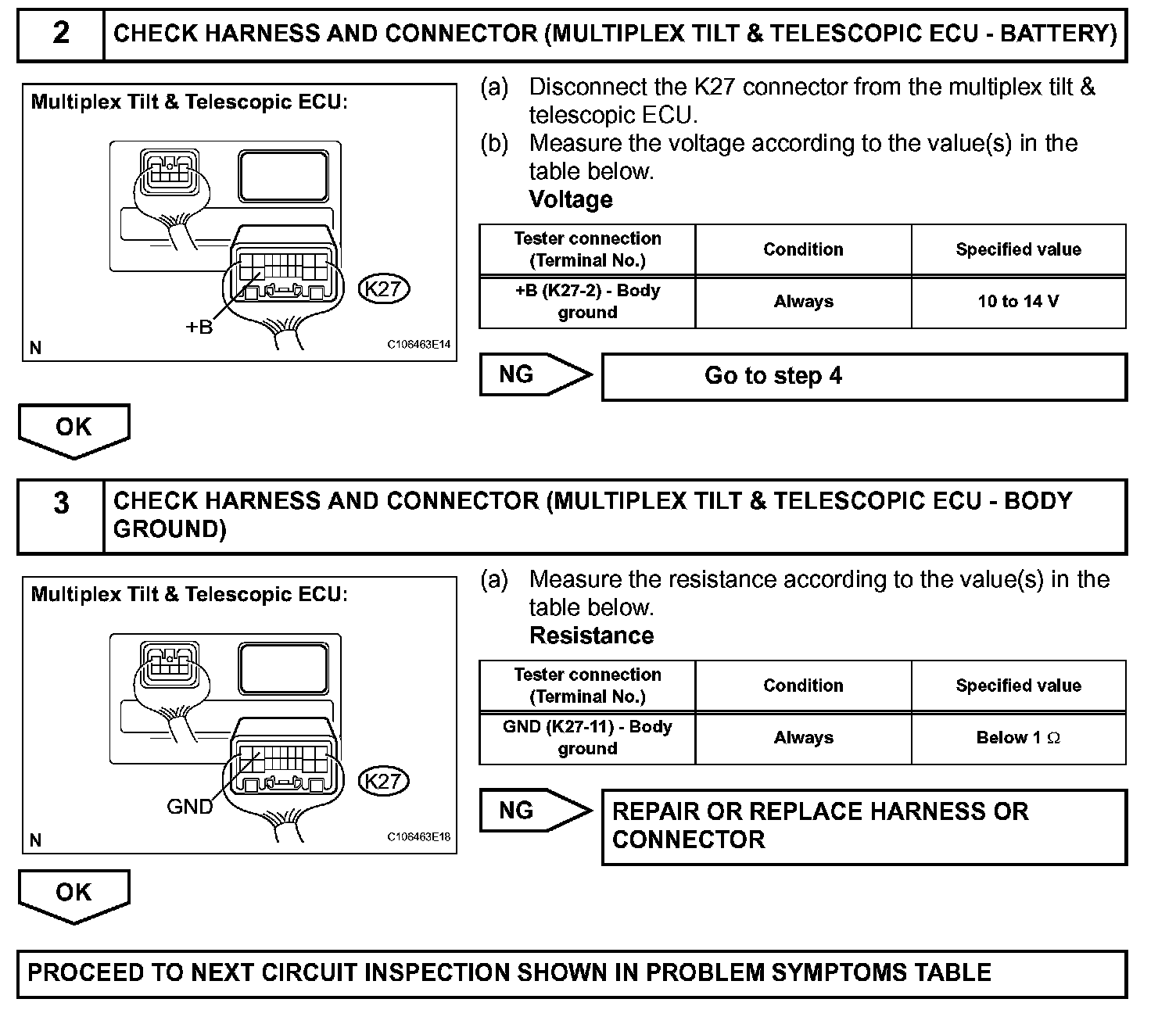

Steps 2-3:

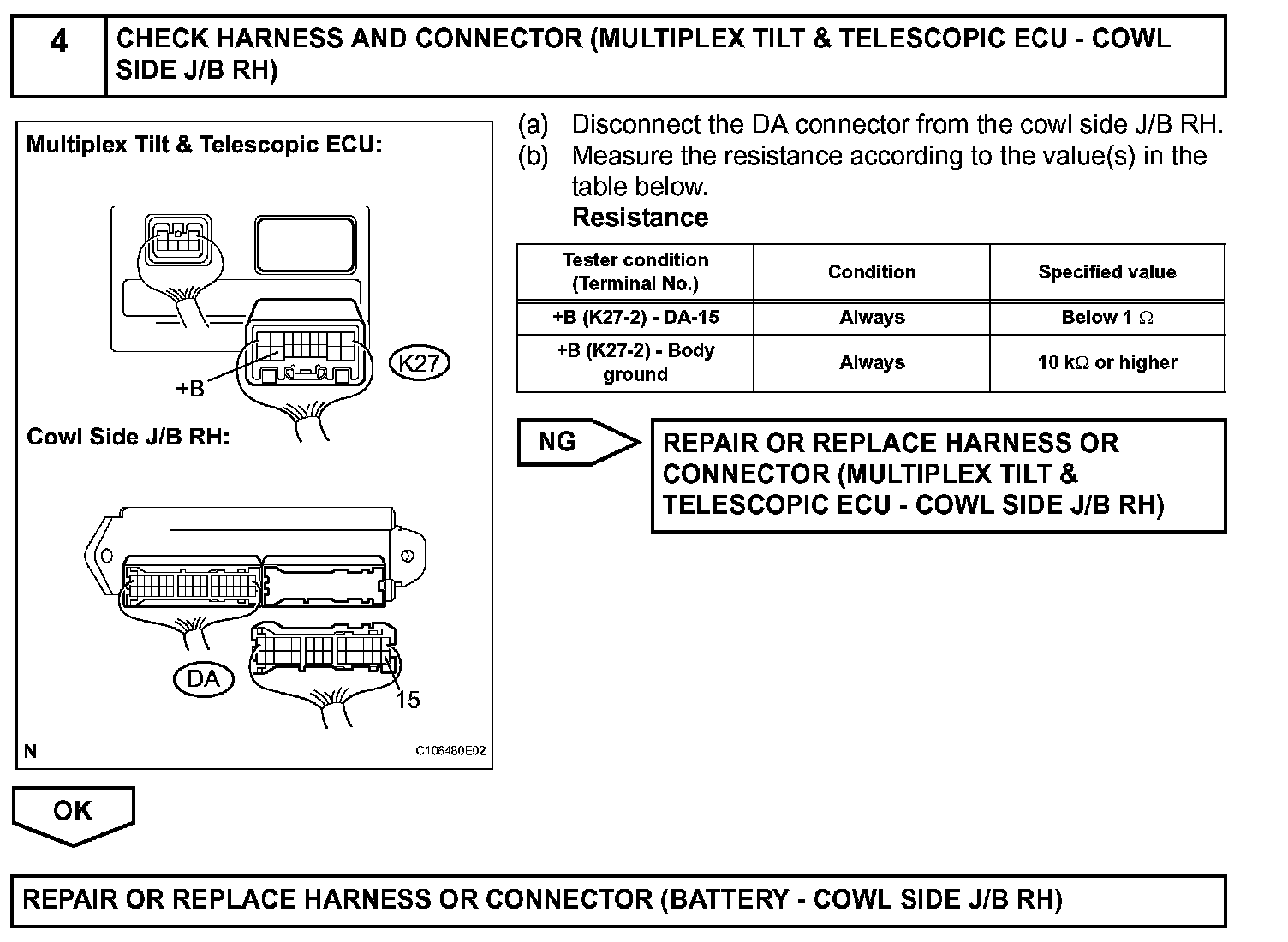

Step 4:
