Engine Switch Indicator Circuit
Engine Switch Indicator CircuitDESCRIPTION

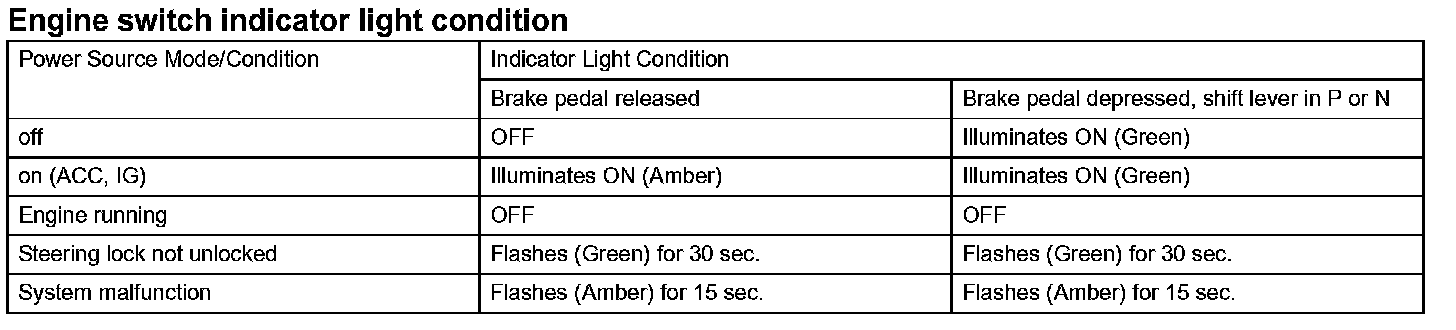

Engine start conditions or system malfunctions can be checked by the status of the engine switch indicator light.

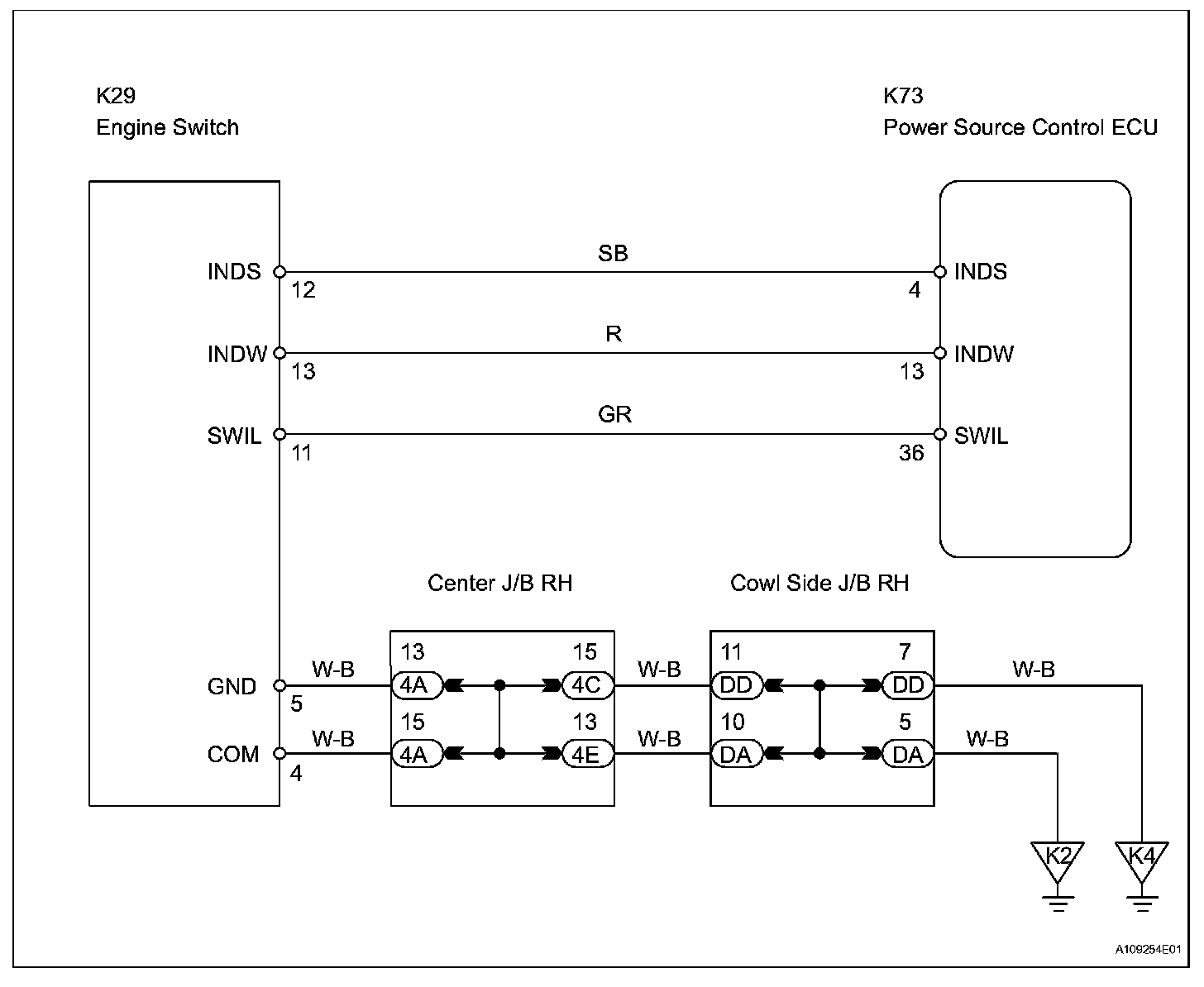

Wiring Diagram:
INSPECTION PROCEDURE
Step 1:

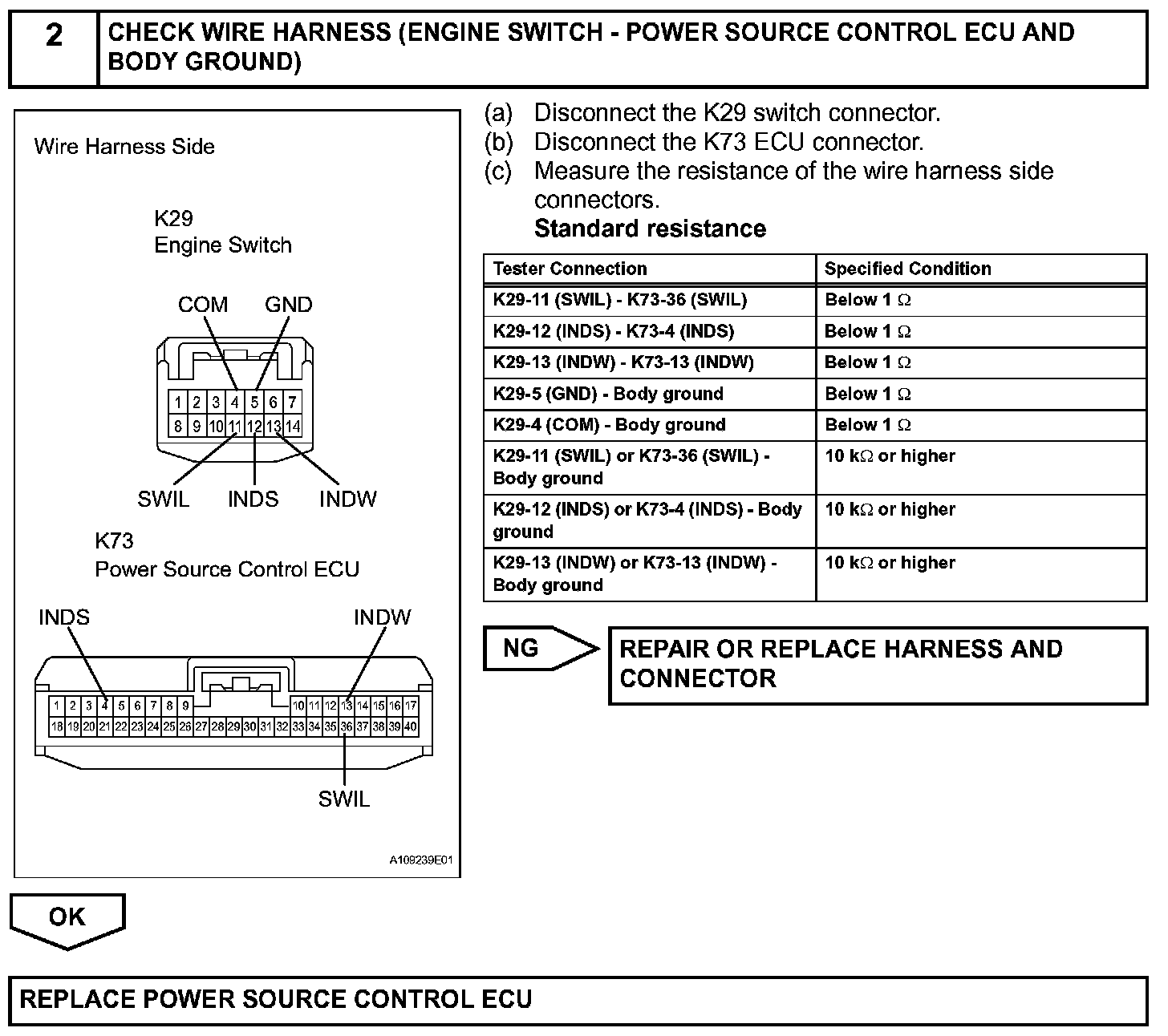

Step 2:
DESCRIPTION
Engine start conditions or system malfunctions can be checked by the status of the engine switch indicator light.
INSPECTION PROCEDURE
