GS 350 AWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>

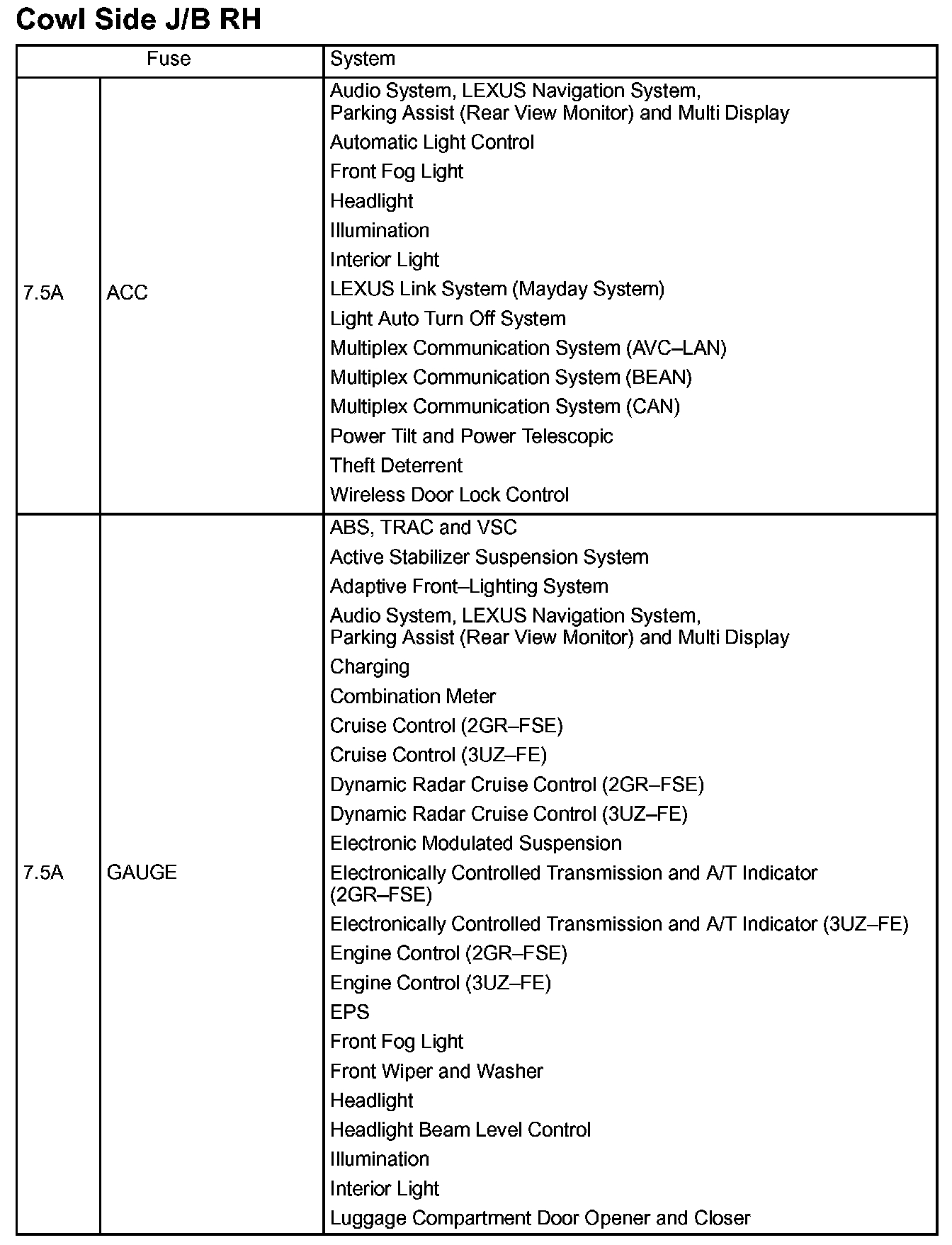

Cowl Side J/B RH
Cowl Side J/B RH

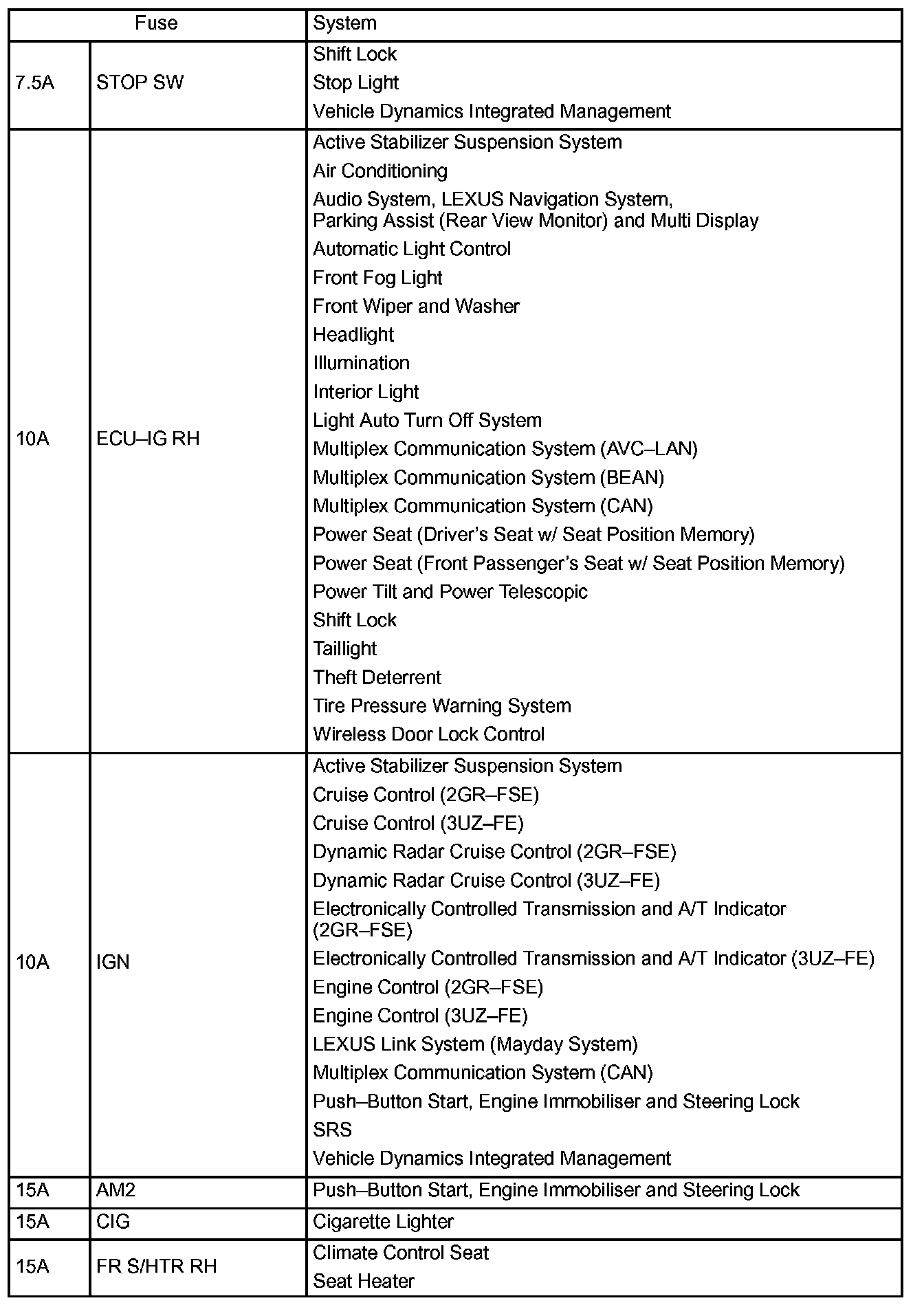

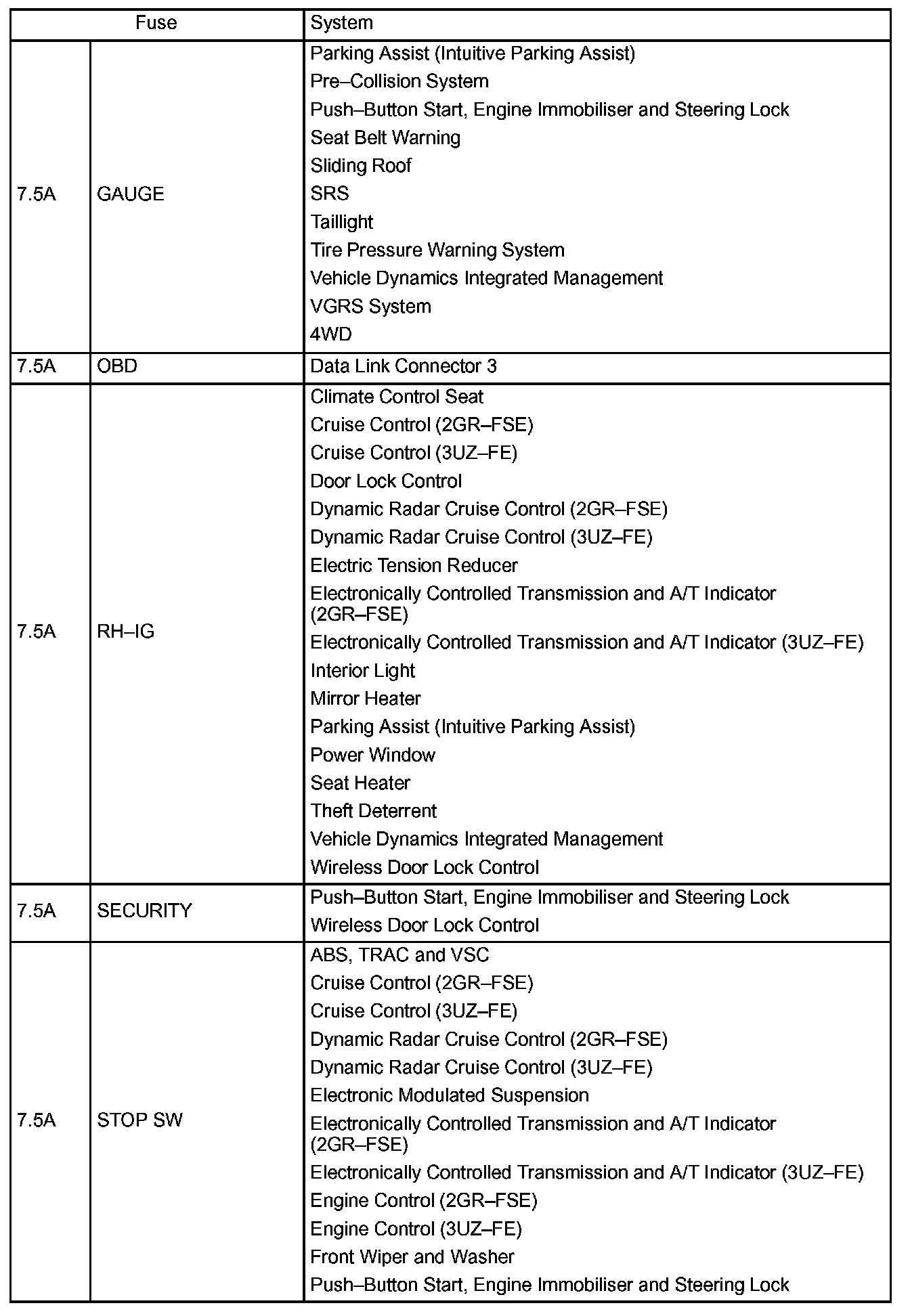

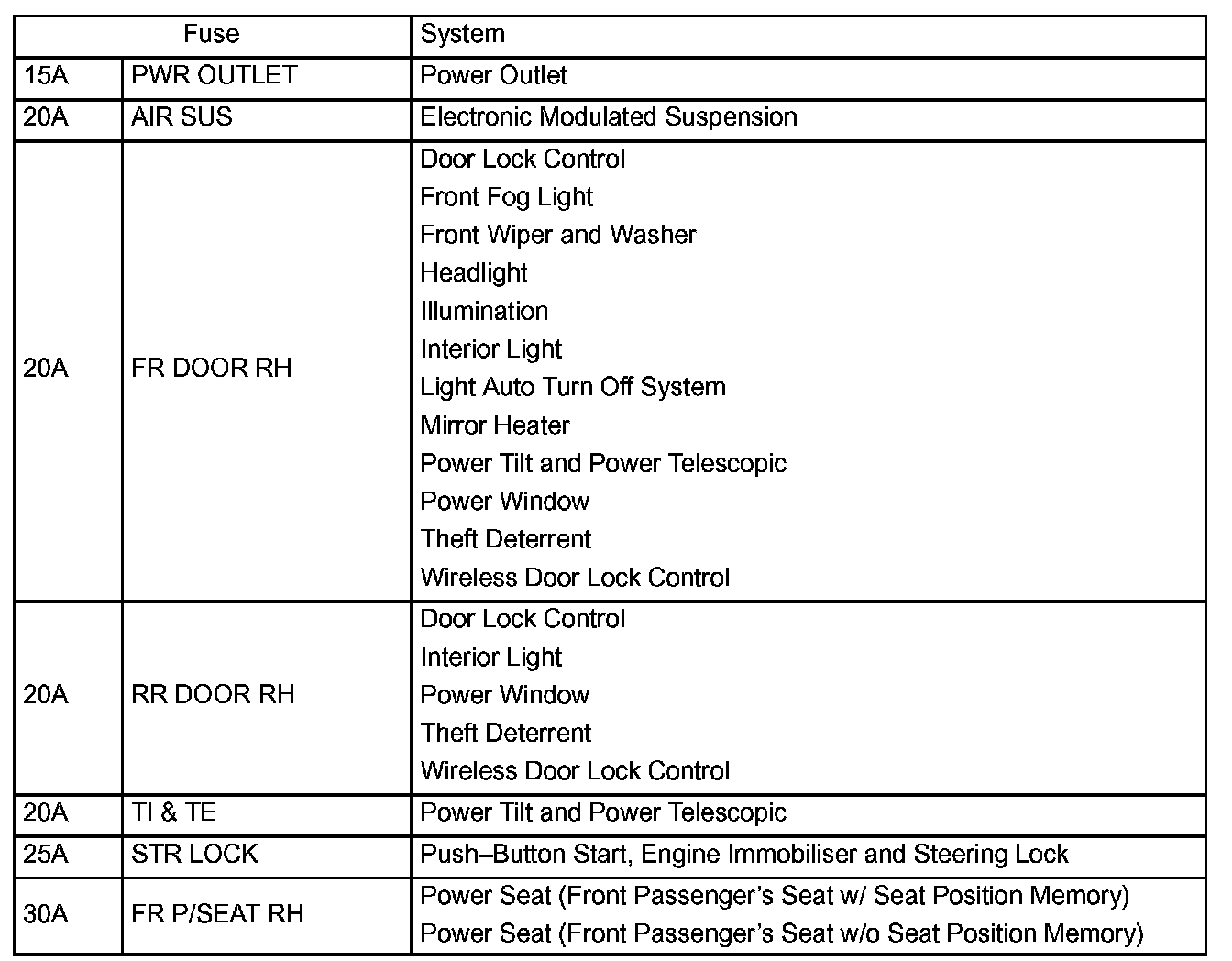

Cowl Side J/B RH Part 1:
Cowl Side J/B RH Part 2:
Cowl Side J/B RH Part 3:
Cowl Side J/B RH Part 4:
