Suspension Mode Switch: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
3. REMOVE CONSOLE UPPER PANEL ASSEMBLY
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
6. REMOVE CONSOLE BOX PLATE
7. REMOVE ABSORBER CONTROL SWITCH

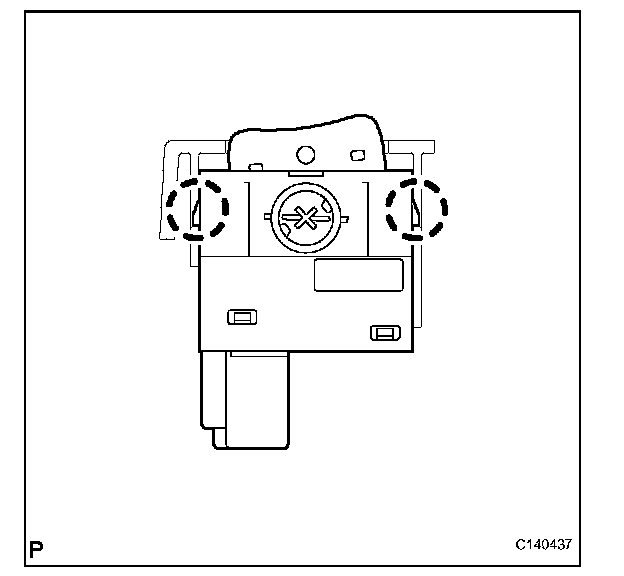

a. Detach the 2 claws and remove the absorber control switch from the console box plate.
INSTALLATION
1. INSTALL ABSORBER CONTROL SWITCH
2. INSTALL CONSOLE BOX PLATE
3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
5. INSTALL CONSOLE UPPER PANEL ASSEMBLY
6. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
