Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Steering and Suspension >> Sensors and Switches - Suspension >> Acceleration Sensor >> Locations

Acceleration Sensor: Locations

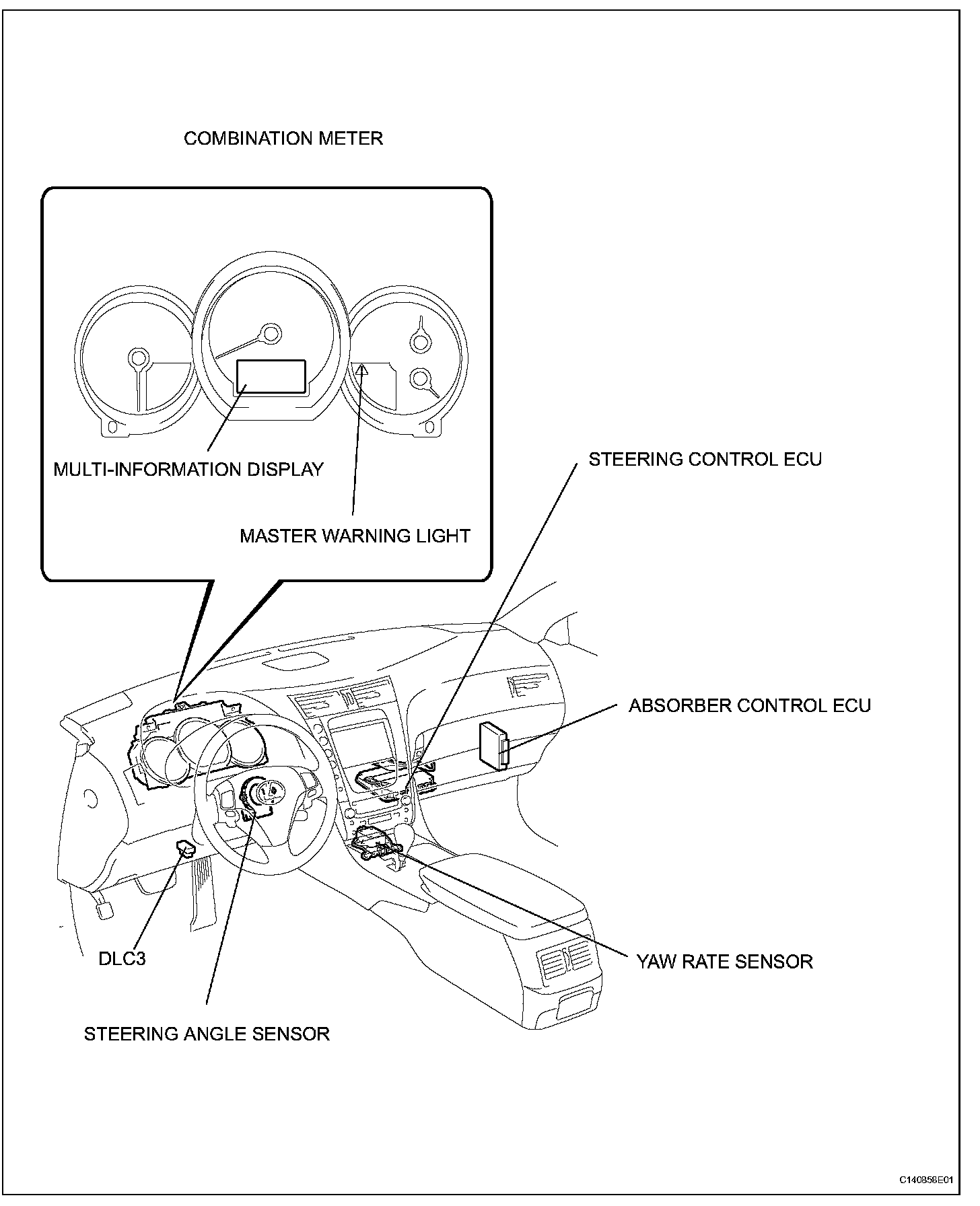

Adaptive Variable Suspension System:

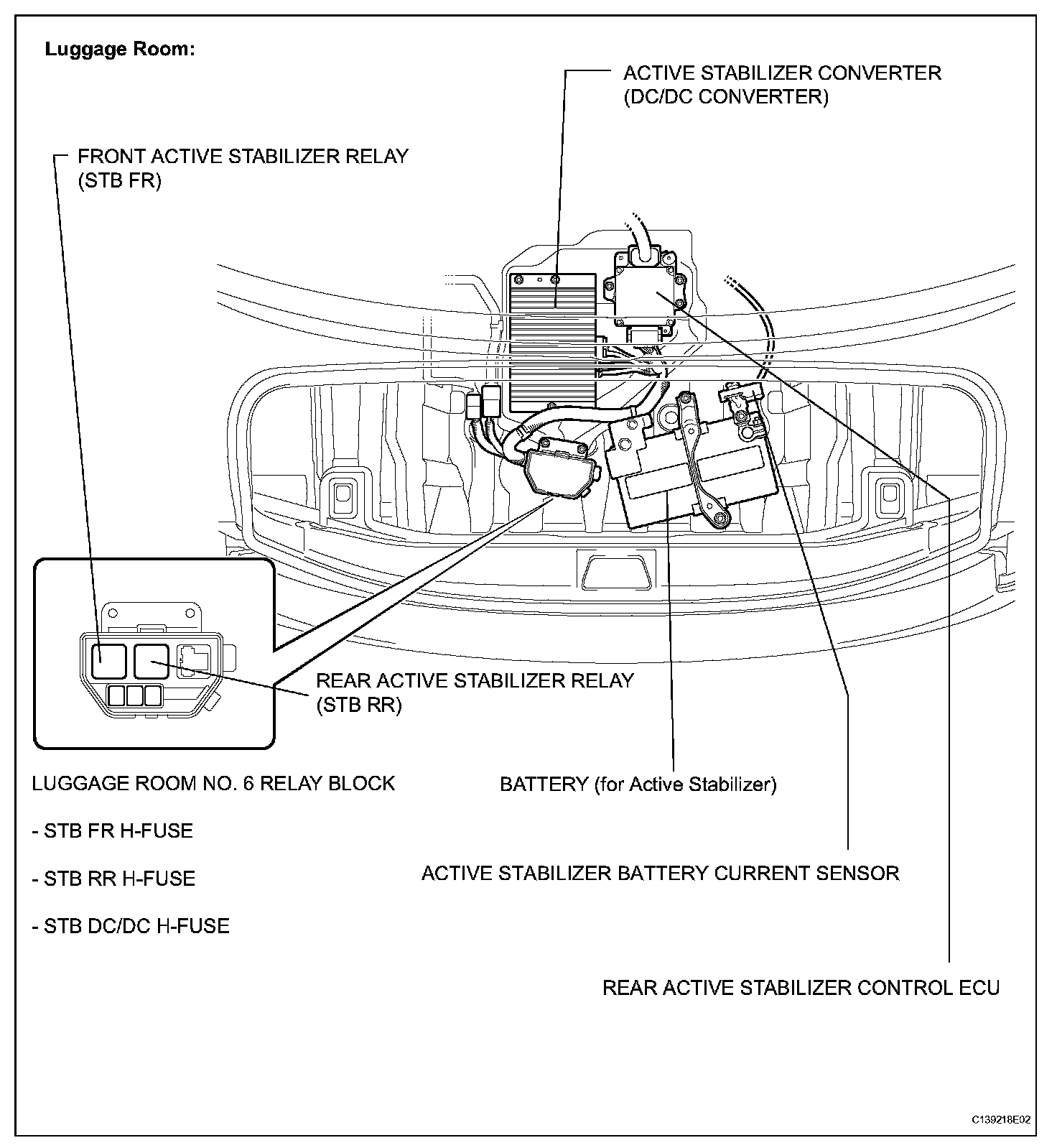

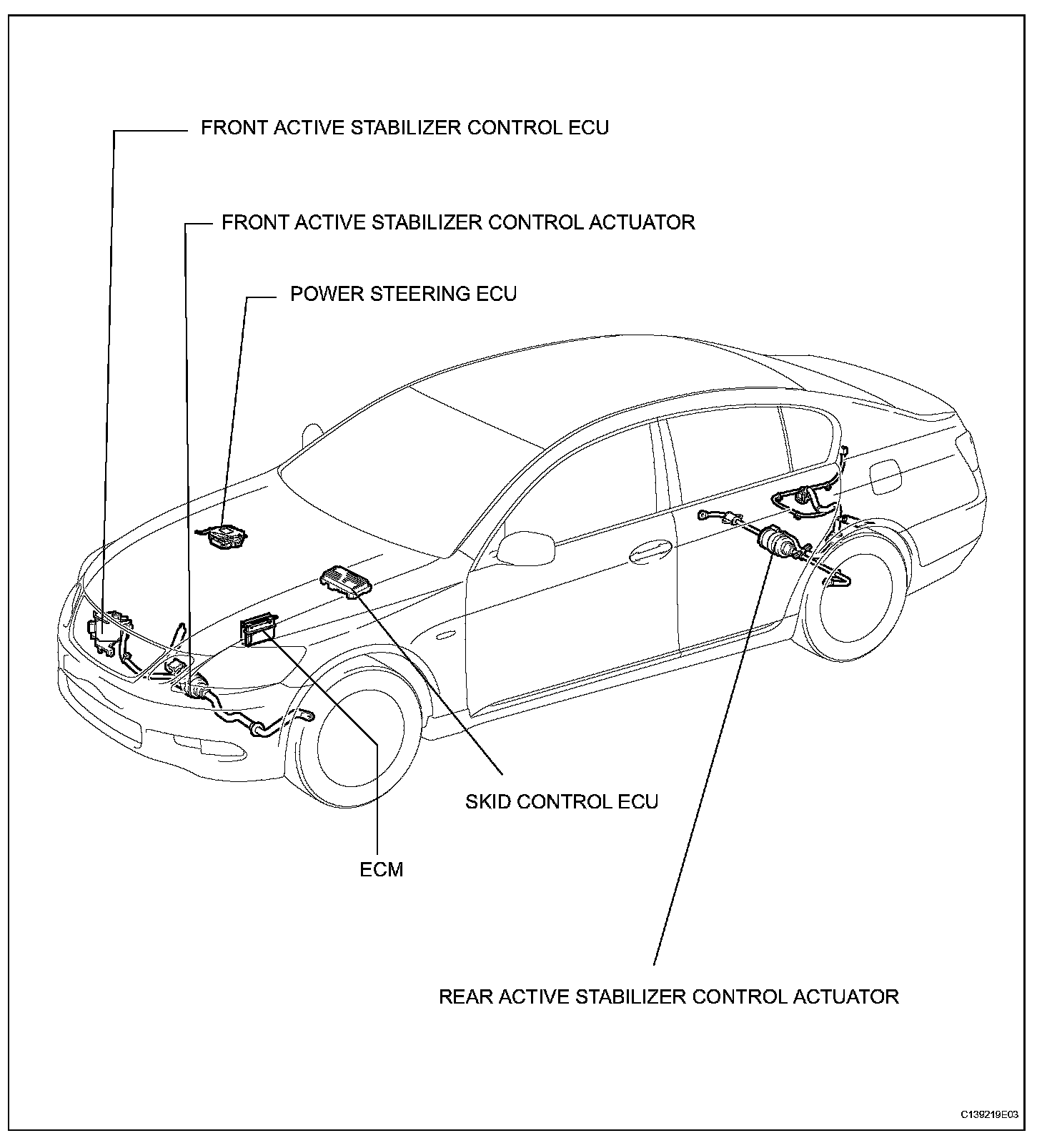

Active Stabilizer Suspension System:



Active Stabilizer Suspension System:



Active Stabilizer Suspension System:
