FRONT AIRBAG SENSOR

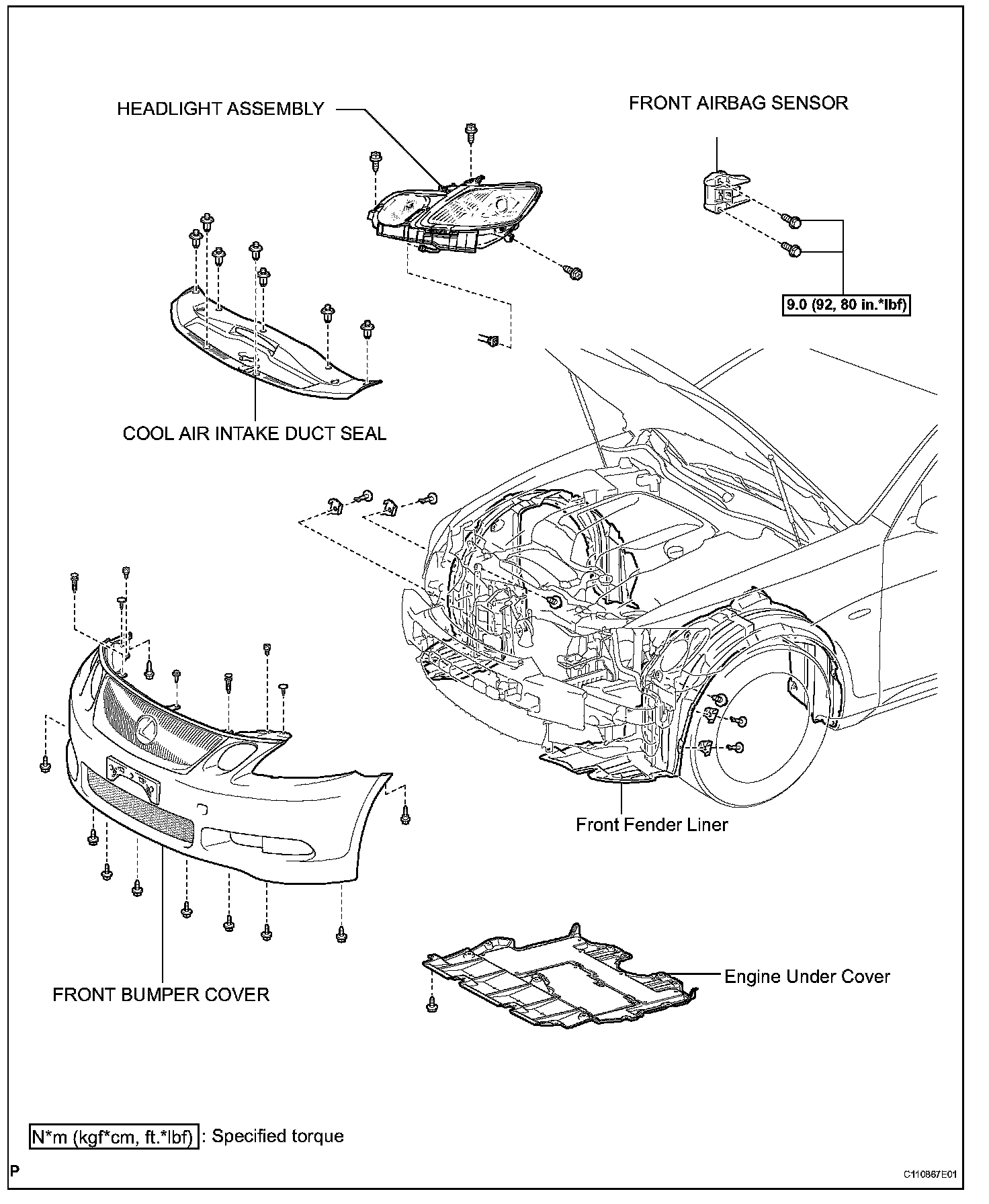

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE FRONT BUMPER COVER
4. REMOVE HEADLIGHT ASSEMBLY




5. REMOVE FRONT AIRBAG SENSOR

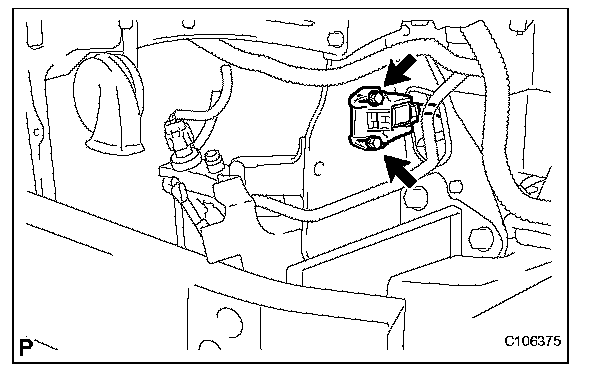

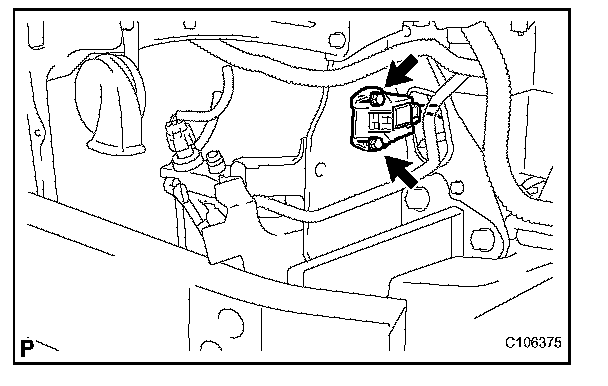

a. Remove the 2 bolts and front airbag sensor from the body.
b. Disconnect the connector.

INSTALLATION

1. INSTALL FRONT AIRBAG SENSOR
a. Check that the engine switch is off.
b. Check that the battery negative (-) terminal is disconnected.

CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.




c. Connect the connector.
d. Install the front airbag sensor with the 2 bolts.

Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

NOTE:
- If the front airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the front airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

e. Check that there is no looseness in the installation parts of the front airbag sensor.

2. INSTALL HEADLIGHT ASSEMBLY
3. INSTALL FRONT BUMPER COVER
4. INSTALL COOL AIR INTAKE DUCT SEAL
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
7. INSPECT SRS WARNING LIGHT
8. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT

9. PREPARATION FOR HEADLIGHT AIMING
a. Preparation for headlight aiming.

10. HEADLIGHT AIMING INSPECTION
11. HEADLIGHT AIMING ADJUSTMENT
12. ADJUST FOG LIGHT AIMING
