Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Ignition Switch >> Locations

Ignition Switch: Locations

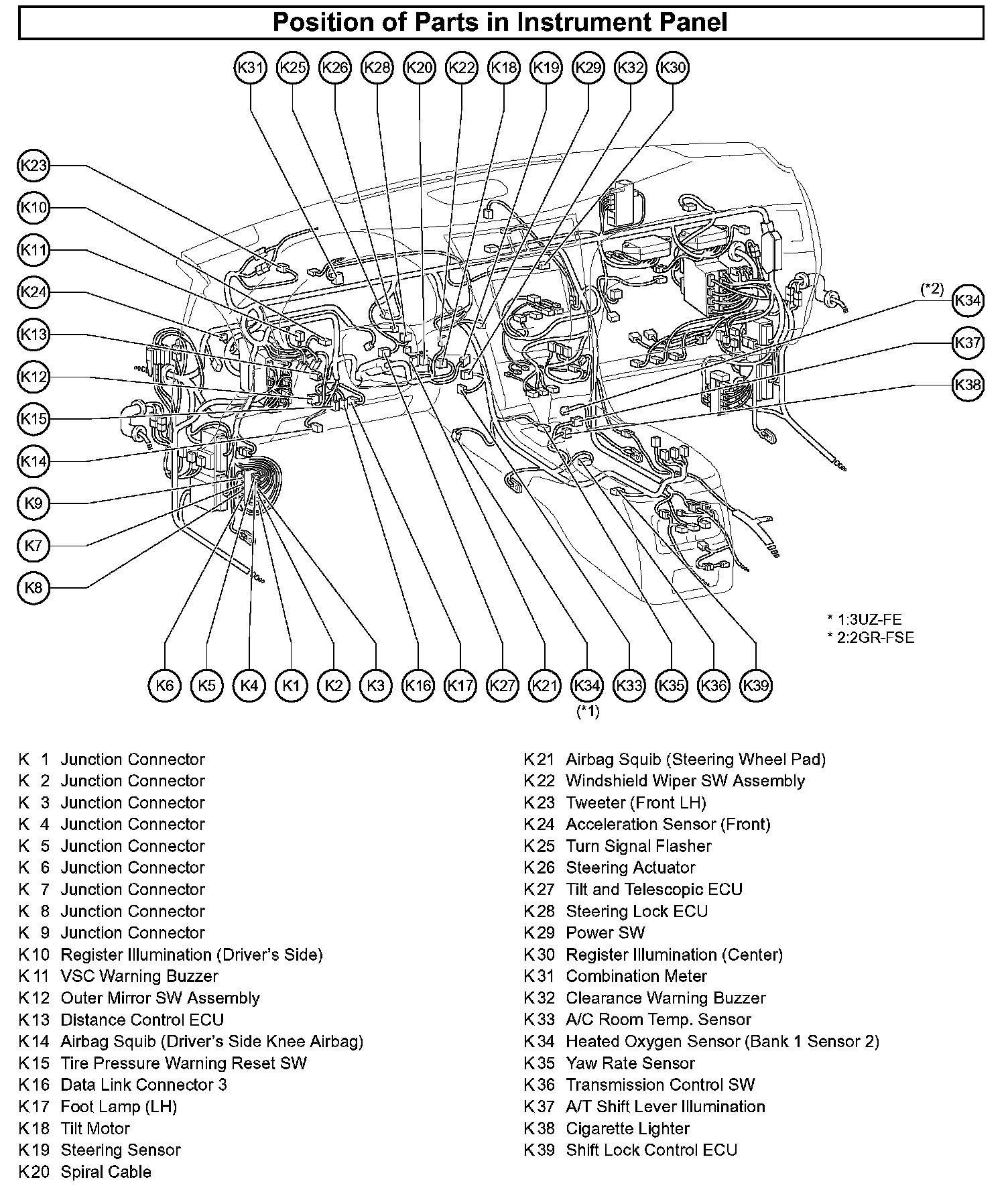

Ac - Ya:

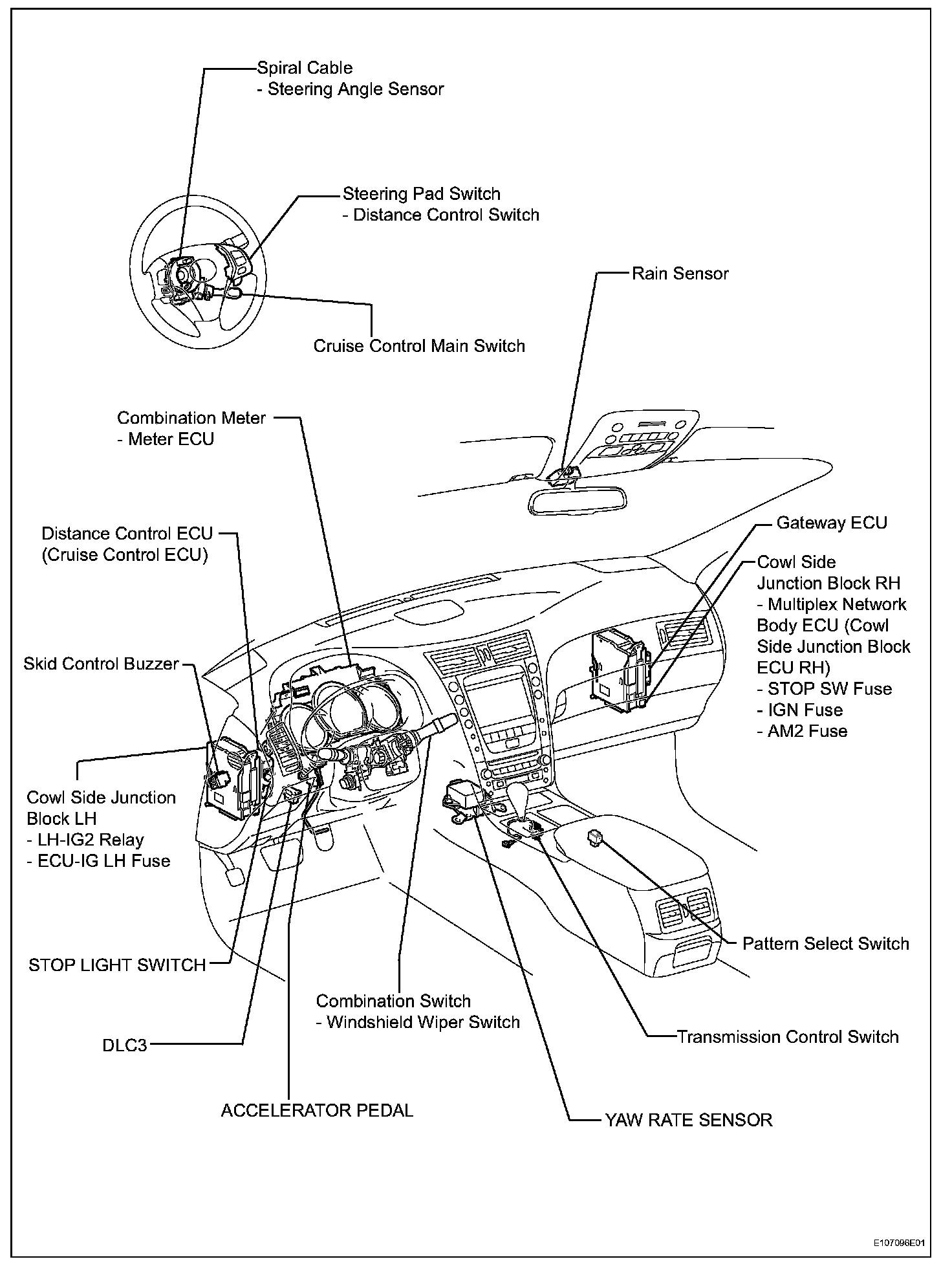

Dynamic Radar Cruise Control System:

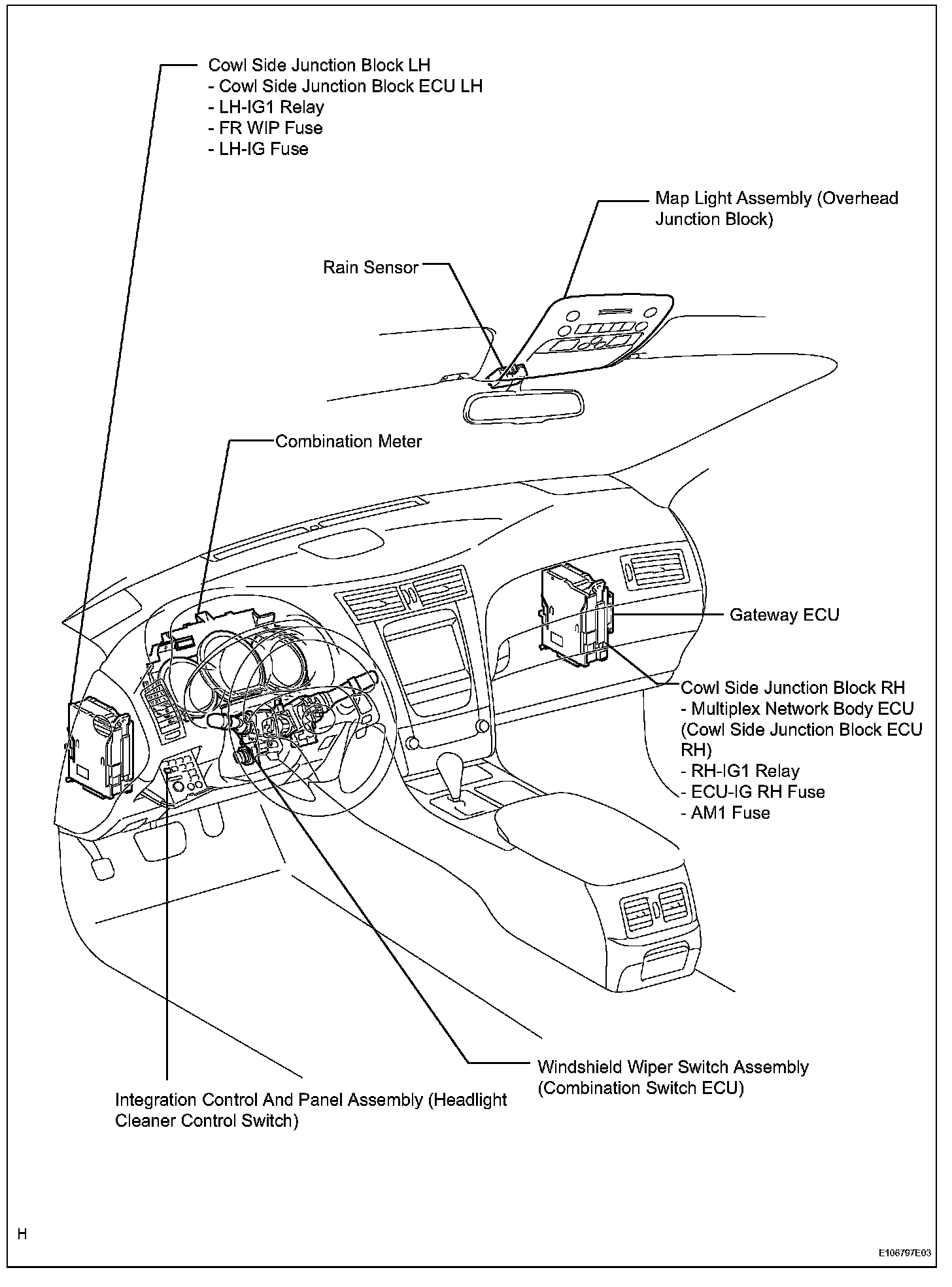

Wiper And Washer System:
