Turn Signal Switch: Testing and Inspection

ON-VEHICLE INSPECTION

1. CHECK TURN SIGNAL FLASHER ASSEMBLY

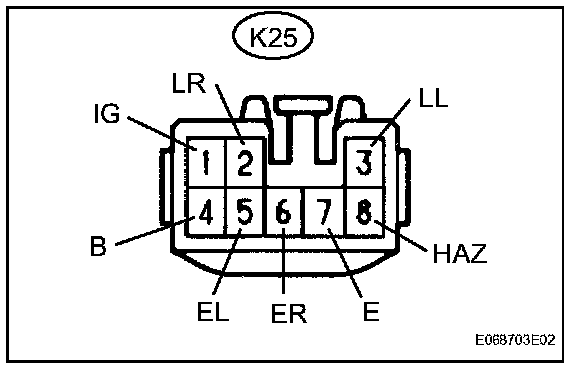

a. Disconnect the K25 connector.

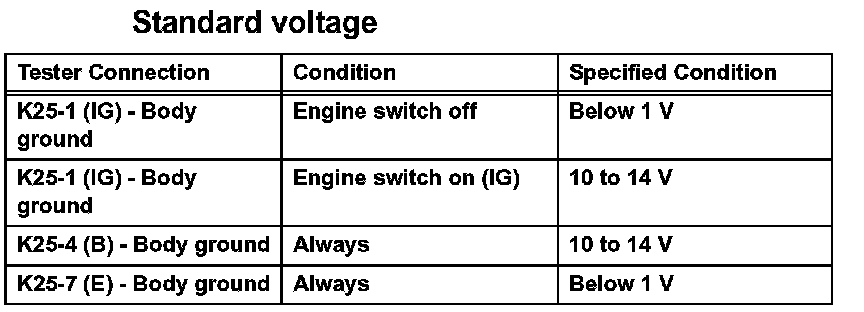

b. Measure the voltage of the wire harness side connector.
c. Reconnect the connector.

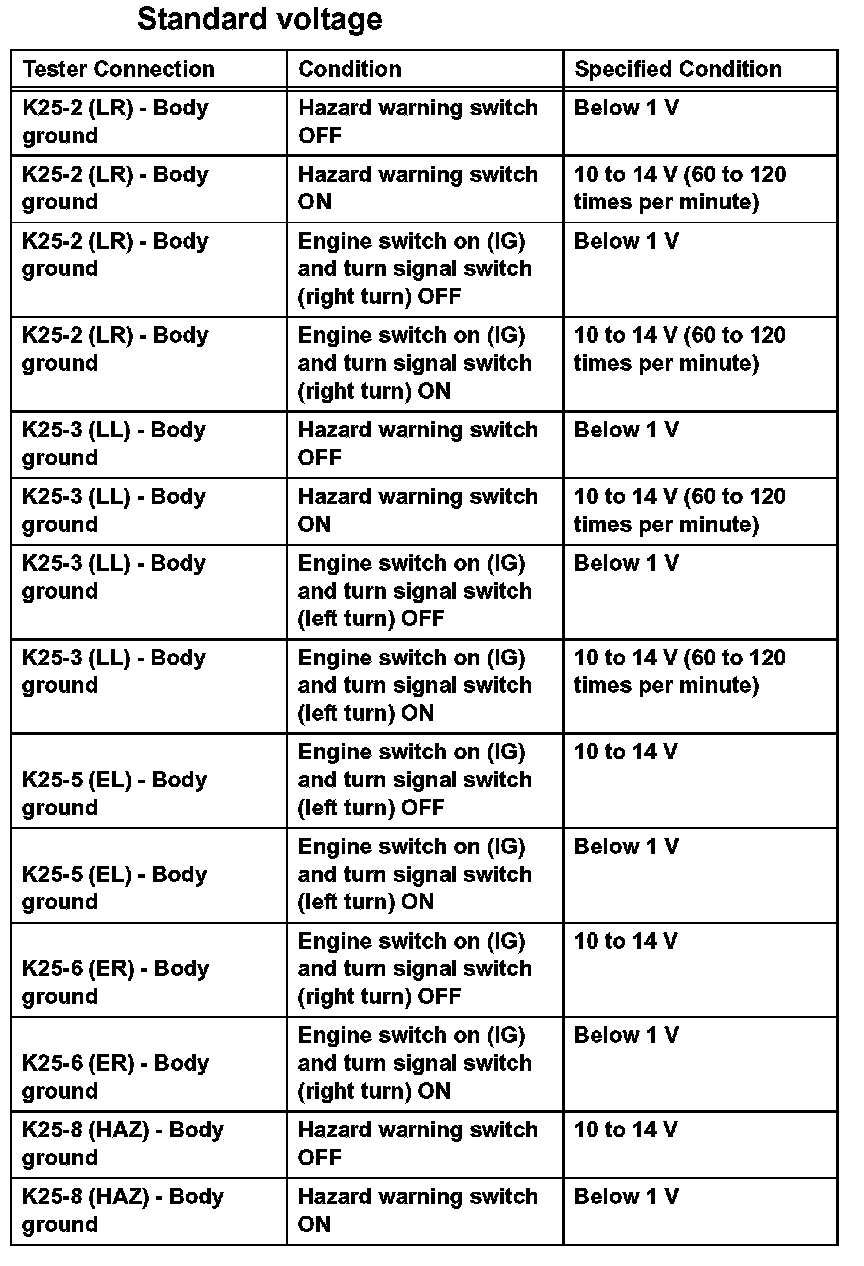

d. Measure the voltage of the connector.

If the result is not as specified, replace the flasher assembly.
