On-Vehicle Inspection
STOP LIGHT SWITCHON-VEHICLE INSPECTION
1. INSPECT STOP LIGHT SWITCH ASSEMBLY

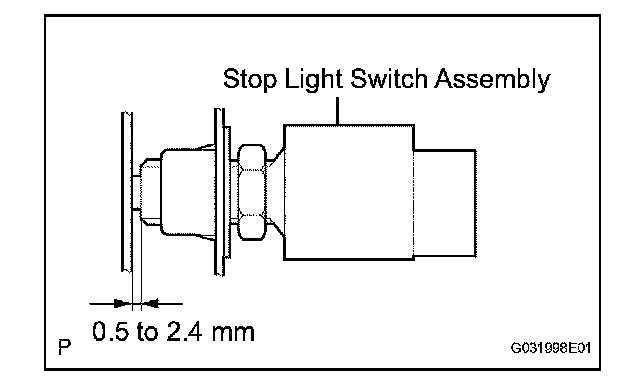

(a) Check the protrusion of the stop light switch assembly shaft.
Protrusion of the stop light switch assembly shaft: 0.5 to 2.4 mm (0.020 to 0.095 in.)
If the protrusion is off the specified value, adjust it.
NOTICE: Do not depress the brake pedal.
