Rear Speed Sensor
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
1. REMOVE REAR WHEEL

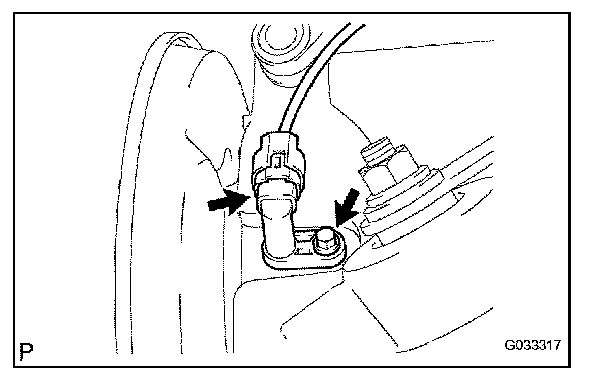

2. REMOVE SPEED SENSOR REAR LH
a. Disconnect the speed sensor rear LH connector.
b. Remove the bolt and speed sensor rear LH.
NOTE: Prevent foreign matter from attaching to the sensor tip.
INSTALLATION

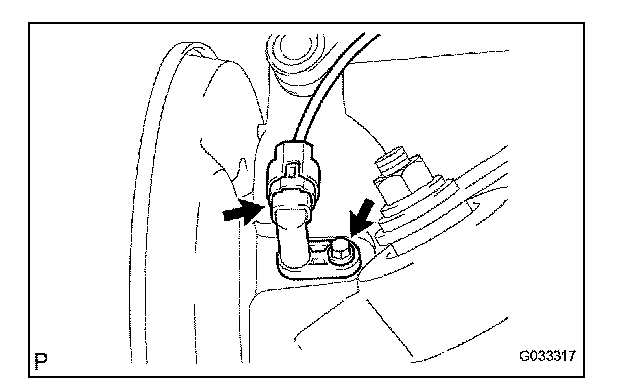

1. INSTALL SPEED SENSOR REAR LH
a. Install the speed sensor rear with the bolt.
Torque: 8.5 N.m (87 kgf.cm, 75 in.lbf)
NOTE: Prevent foreign matter from attaching to the sensor tip.
b. Connect the speed sensor connector.
2. INSTALL REAR WHEEL
a. Install the rear wheel.
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
3. INSPECT SPEED SENSOR SIGNAL
