Front Speed Sensor (For 4WD)
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
1. REMOVE FRONT WHEEL

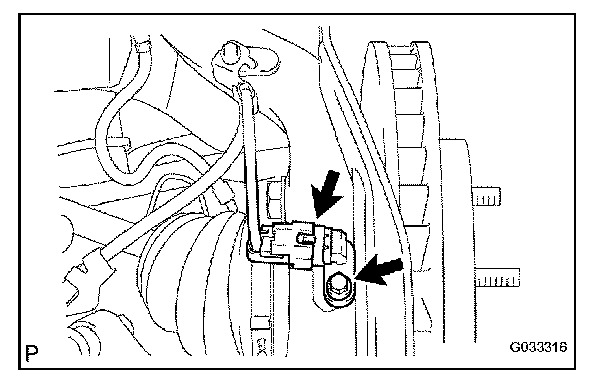

2. REMOVE SPEED SENSOR FRONT LH
a. Disconnect the speed sensor front LH connector.
b. Remove the bolt and speed sensor front LH.
NOTE: Prevent foreign matter from attaching to the sensor tip.
INSTALLATION

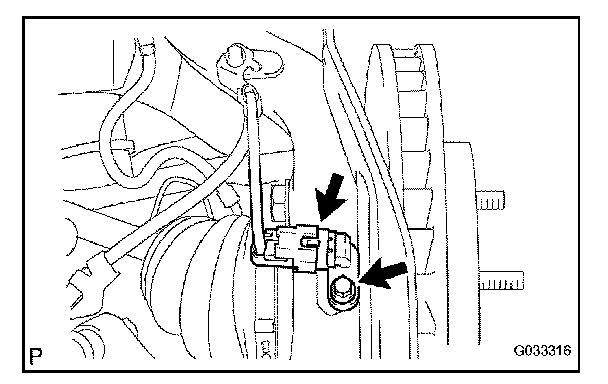

1. INSTALL SPEED SENSOR FRONT LH
a. Install the speed sensor front LH with the bolt.
NOTE: Prevent foreign matter from attaching to the sensor tip.
b. Connect the speed sensor front LH connector.
2. INSTALL FRONT WHEEL
3. INSPECT SPEED SENSOR SIGNAL
