Acceleration/Deceleration Sensor: Service and Repair

REMOVAL

1. REMOVE CONSOLE UPPER PANEL GARNISH FRONT
2. REMOVE FRONT CONSOLE UPPER PANEL ASSEMBLY
3. REMOVE CONSOLE BOX PLATE
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
6. REMOVE CONSOLE BOX REGISTER ASSEMBLY
7. REMOVE CONSOLE BOX

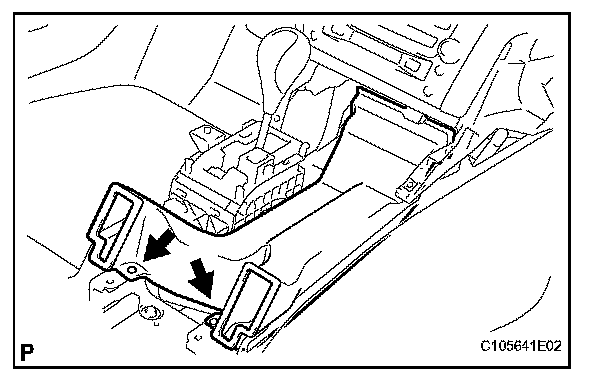

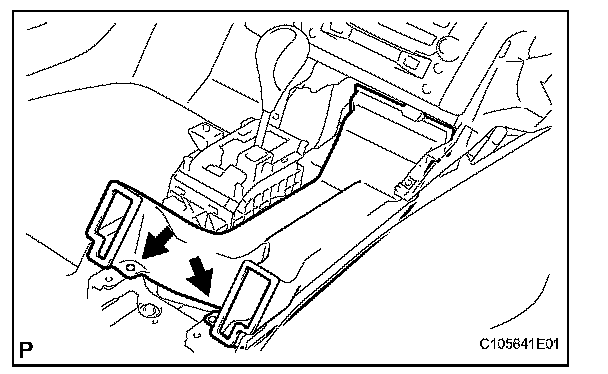

8. REMOVE CONSOLE BOX NO.2 DUCT




a. Remove the 2 clips and the console box No.2 duct.

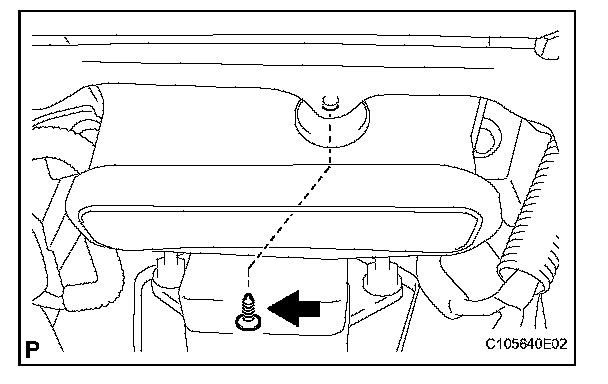

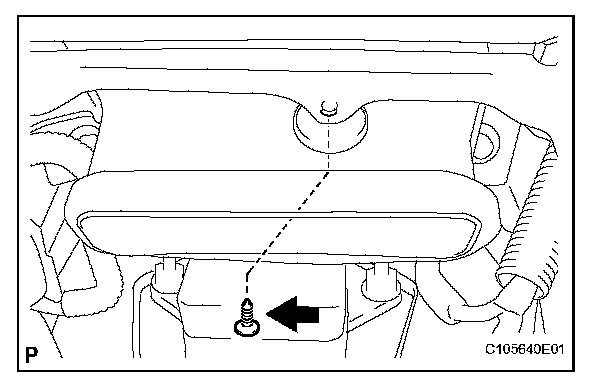

9. REMOVE CONSOLE BOX NO.1 DUCT




a. Remove the clip and the console box duct No. 1.

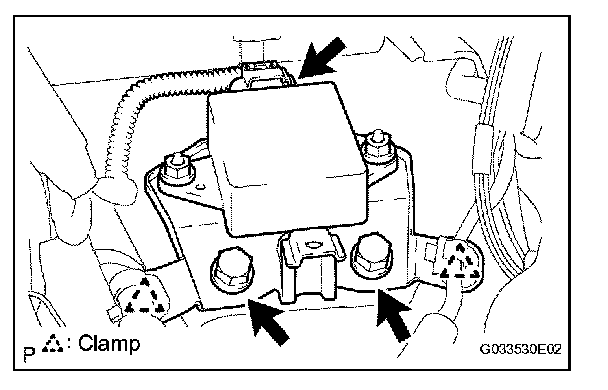

10. REMOVE YAW RATE SENSOR
a. Disconnect the yaw rate sensor connector.
b. Separate the 2 wire harness clamps.




c. Remove the 2 bolts and yaw rate sensor.

NOTE: Do not remove the sensor from the bracket.

INSTALLATION

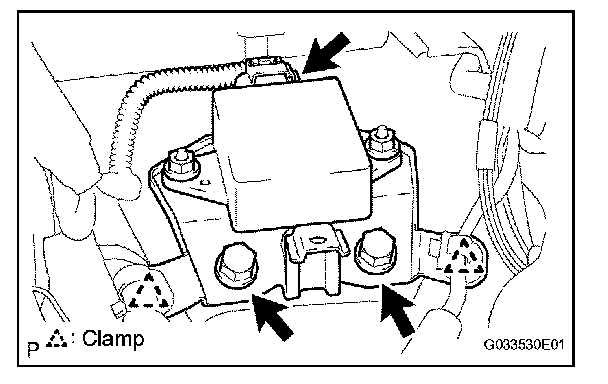

1. INSTALL YAW RATE SENSOR




a. Install the yaw rate sensor with the 2 bolts.

Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)

NOTE:
- Do not damage the yaw rate sensor.
- Make sure that the yaw rate sensor is installed securely.

b. Install the 2 wire harness clamps.
c. Connect the yaw rate sensor connector.

2. INSTALL CONSOLE BOX NO.1 DUCT




a. Install the console box No. 1 duct with the clip.

3. INSTALL CONSOLE BOX NO.2 DUCT




a. Install the console box No.2 duct with the 2 clip.

4. INSTALL CONSOLE BOX
5. INSTALL CONSOLE BOX REGISTER ASSEMBLY
6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
7. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
8. INSTALL CONSOLE BOX PLATE
9. INSTALL FRONT CONSOLE UPPER PANEL ASSEMBLY
10. INSTALL CONSOLE UPPER PANEL GARNISH FRONT
11. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION. Vehicle Stability Control System
12. INSPECT VSC SENSOR SIGNAL
