Memory Positioning Switch: Service and Repair

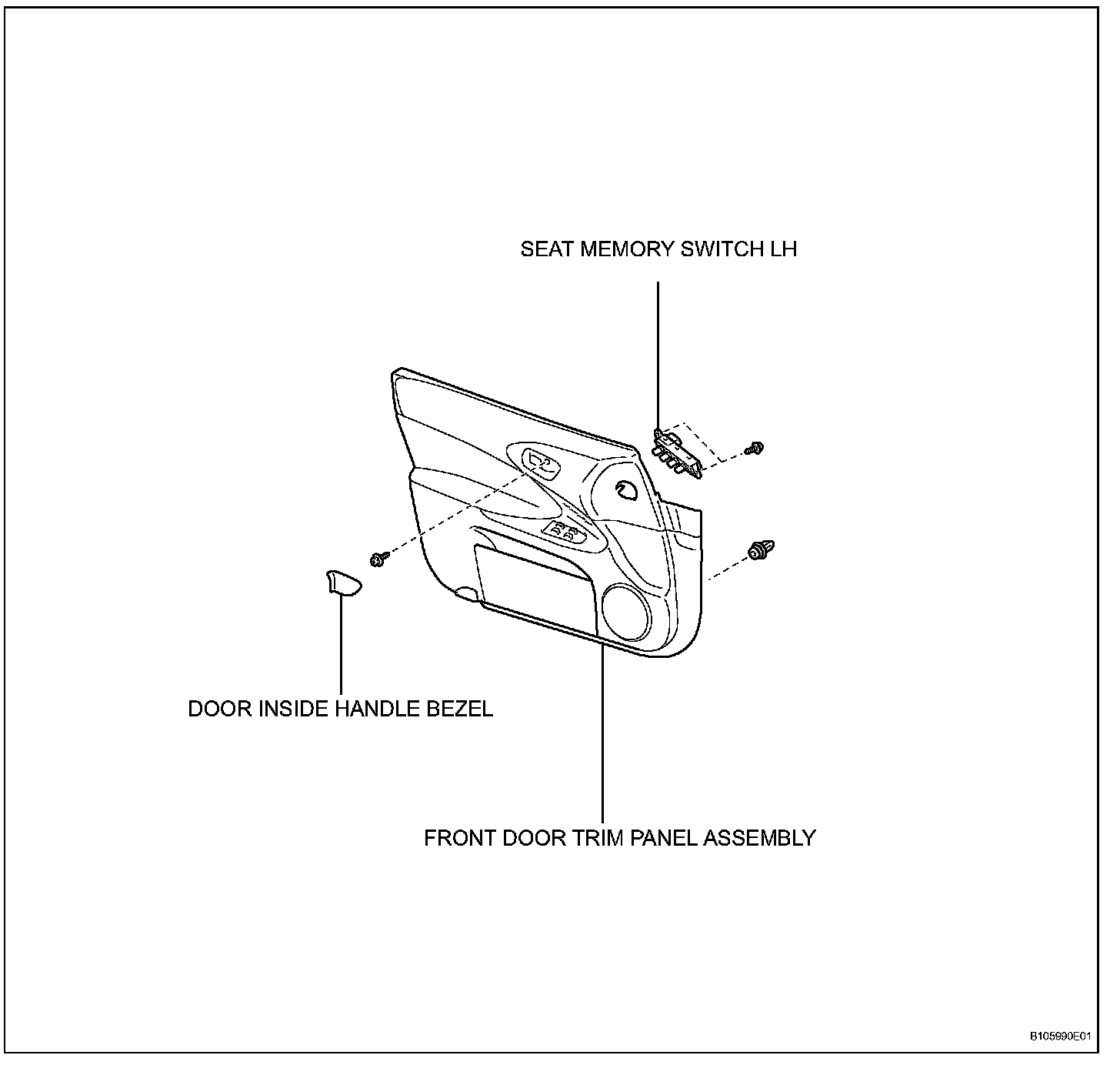

SEAT MEMORY SWITCH





REMOVAL

HINT: Use the same procedures for the RH and LH side.





1. REMOVE DOOR INSIDE HANDLE BEZEL

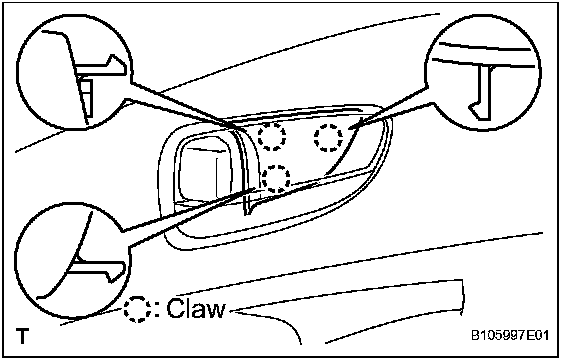

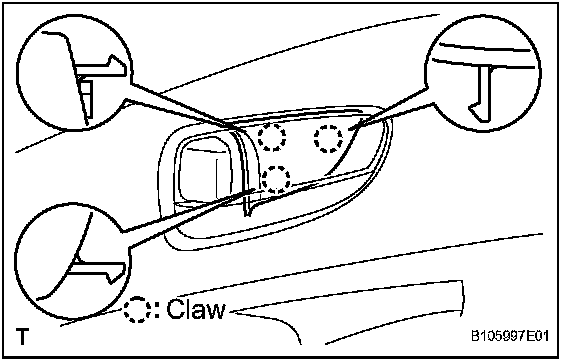

a. Using a screwdriver, detach the 3 claws and remove the bezel.

HINT: Tape the screwdriver tip before use.

2. REMOVE FRONT DOOR TRIM PANEL ASSEMBLY

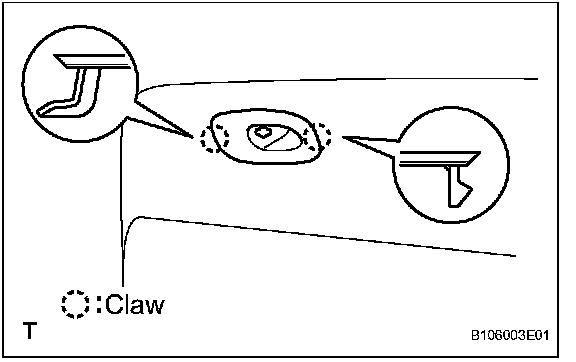

a. Detach the 2 claws and remove the trim lower cover.





b. Remove the screw.

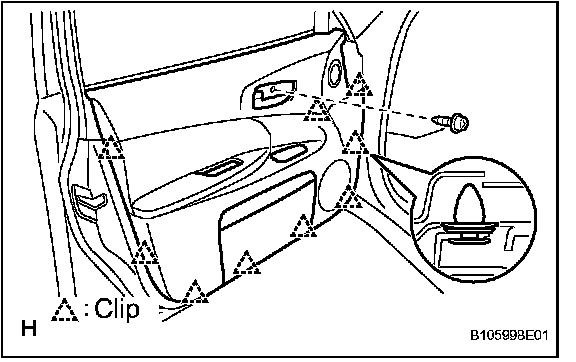

c. Using a clip remover, detach the 9 clips and remove the trim cover.

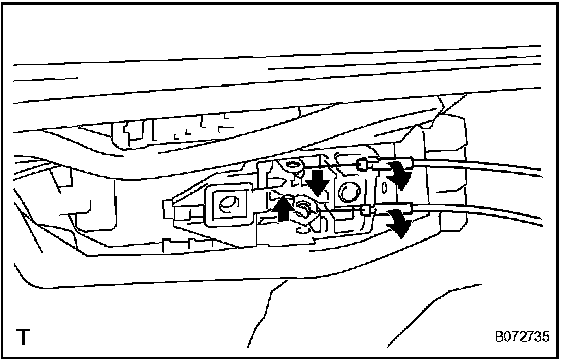

d. Disconnect the 2 cables from the inside handle.





3. REMOVE SEAT MEMORY SWITCH LH
a. Disconnect the connector.

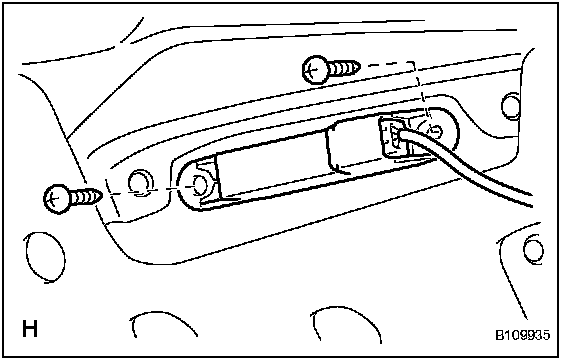

b. Remove the 2 screws and memory switch.

INSTALLATION

HINT:
- Use the same procedures for the RH and LH side.
- A bolt without a torque specification is shown in the standard bolt chart.





1. INSTALL SEAT MEMORY SWITCH

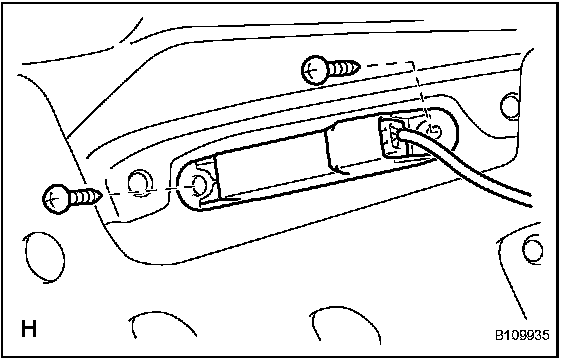

a. Install the switch with the 2 screws.
b. Connect the connector.

2. INSTALL FRONT DOOR TRIM COVER LH





a. Connect the 2 cables to the inside handle.
b. Attach the 9 clips and install the trim cover.

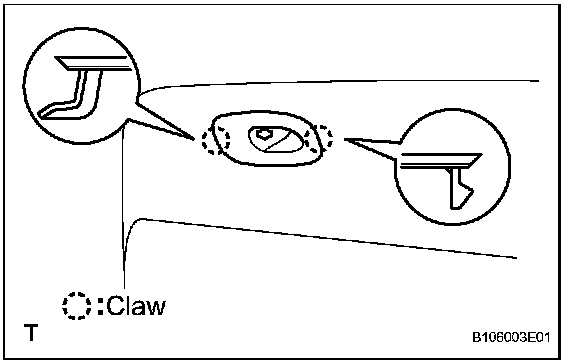

c. Attach the 2 claws to install the trim lower cover.
d. Install the screw.





3. INSTALL DOOR INSIDE HANDLE BEZEL
a. Attach the 3 claws to install the bezel.
