Steering Pad Switch

INSPECTION

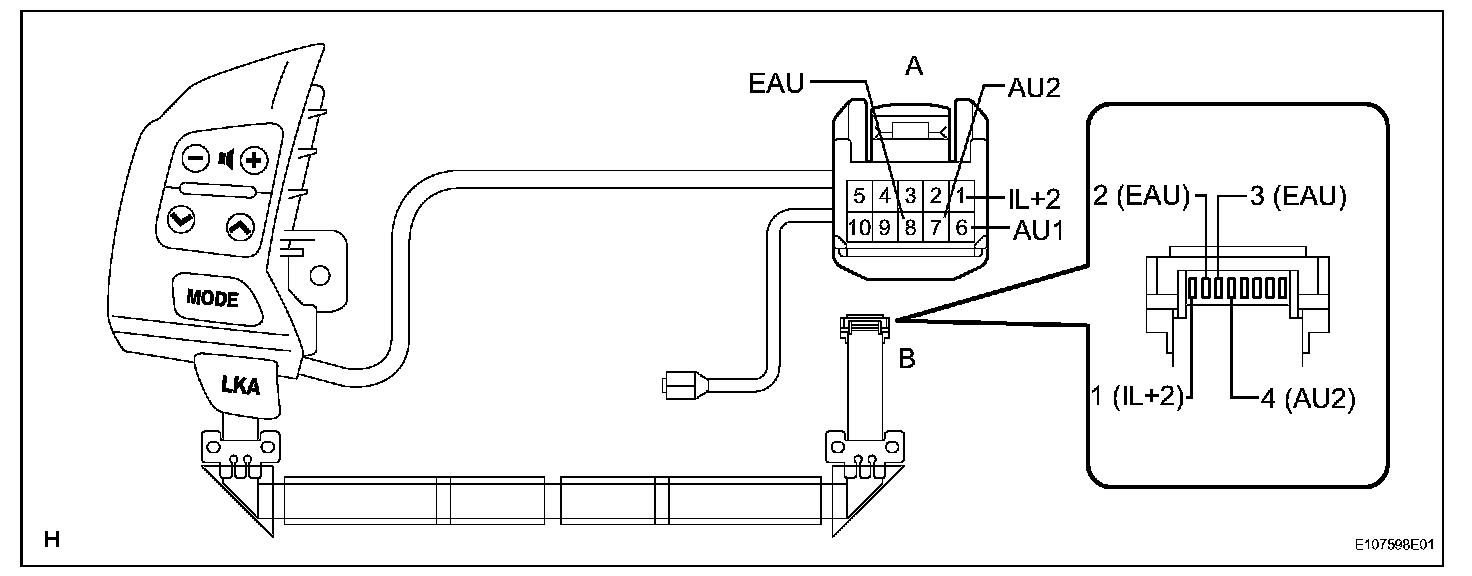

1. INSPECT STEERING PAD SWITCH LH

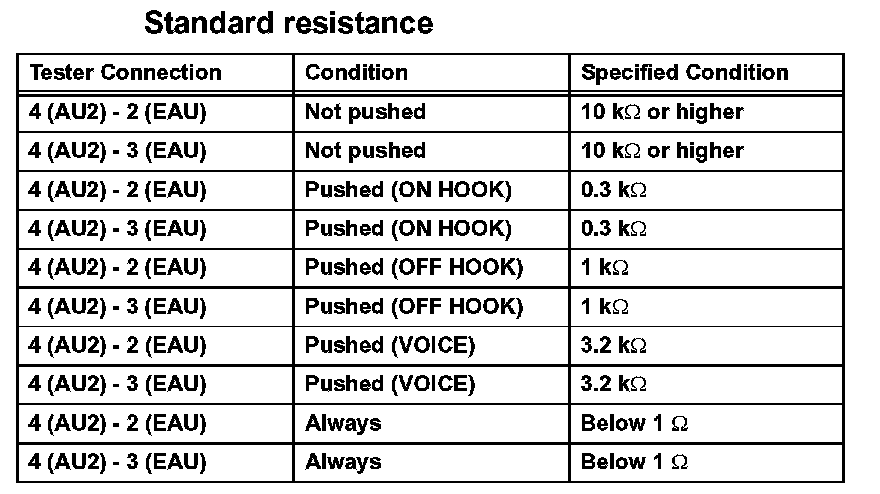

a. Measure the resistance of the switch connector.

HINT: Before the inspection, check that the steering pad switch cable is not malfunctioning.

If the result is not as specified, replace the switch.

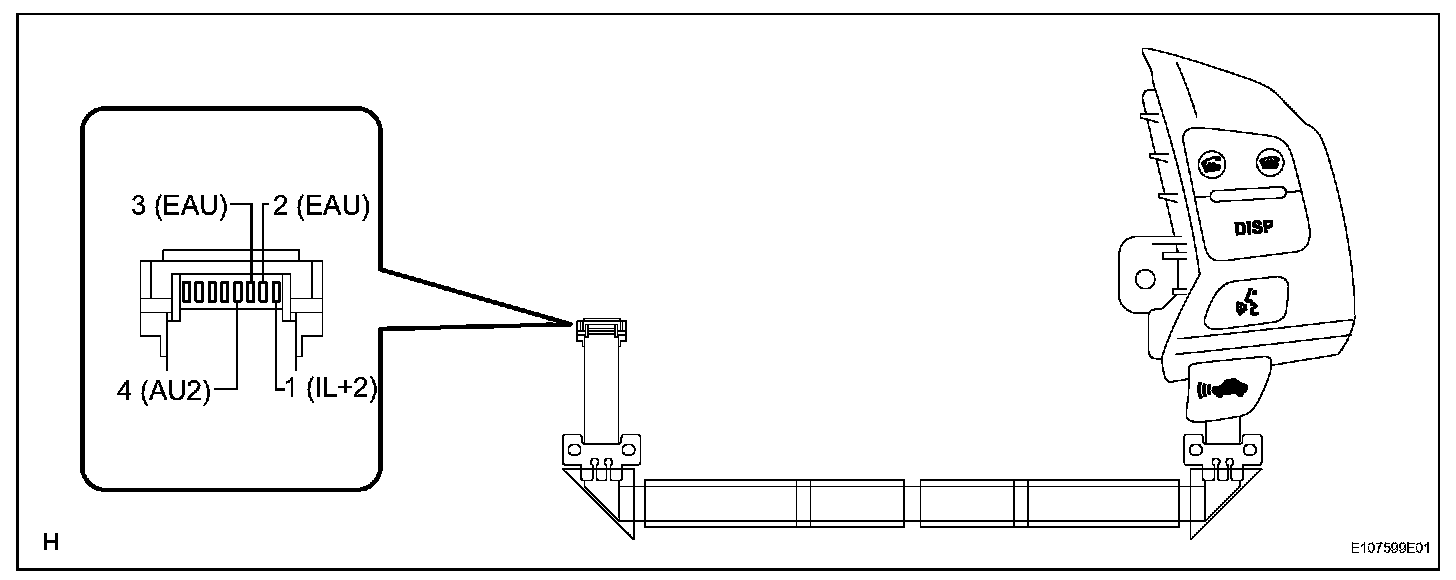

2. INSPECT STEERING PAD SWITCH RH

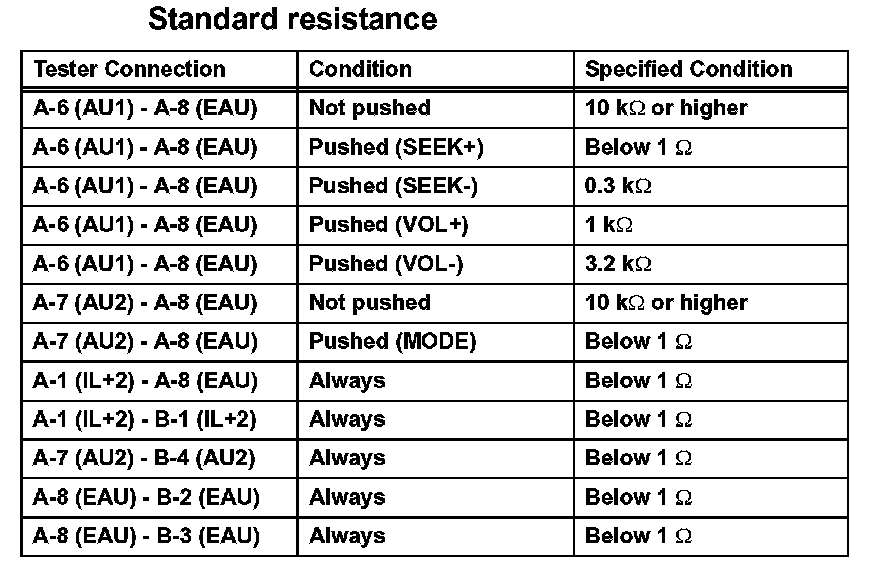

a. Measure the resistance of the cable connector.

HINT: Before the inspection, check that the steering pad switch cable is not malfunctioning.

If the result is not as specified, replace the switch.
