CHILD RESTRAINT SEAT TETHER ANCHOR

REMOVAL

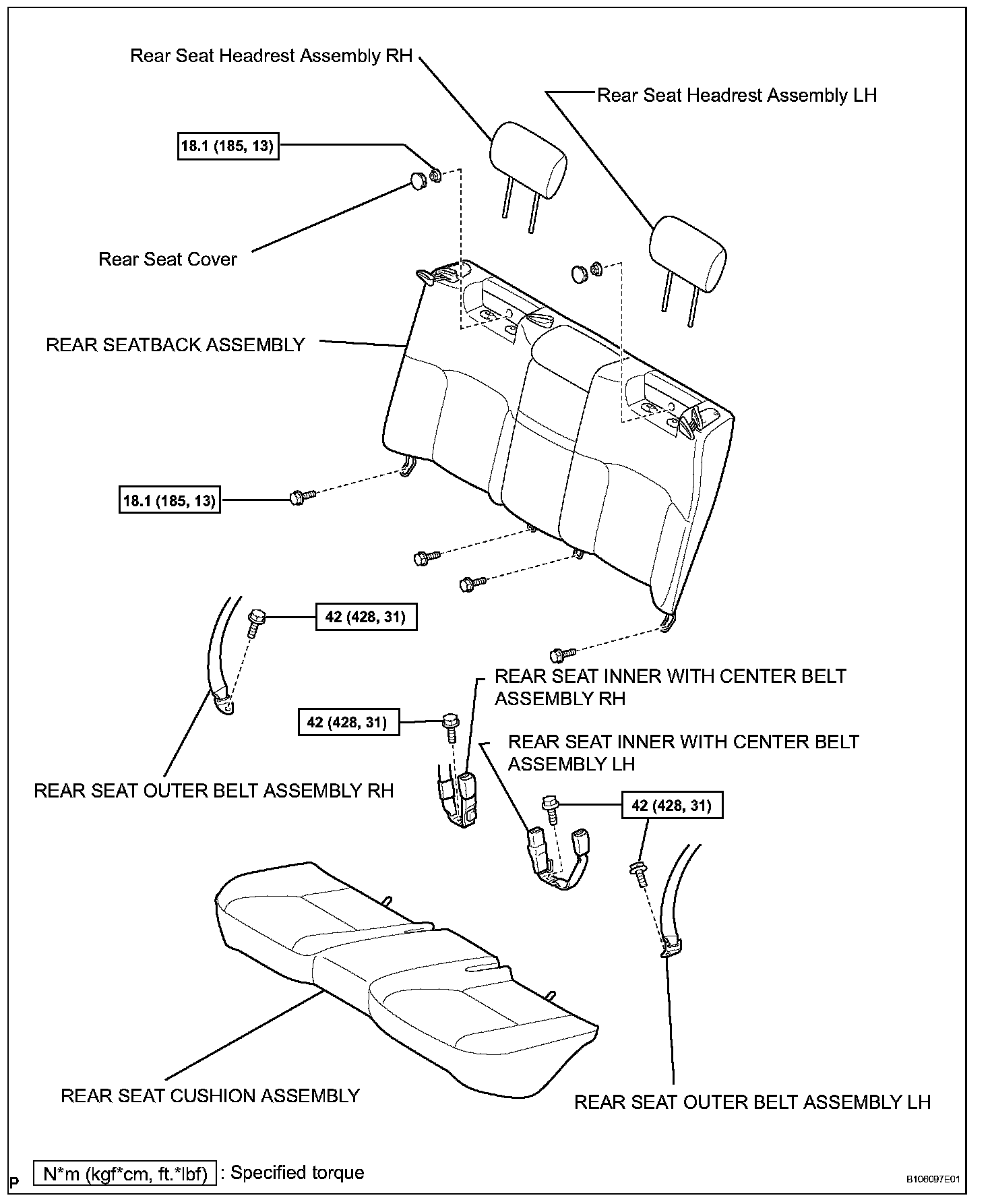

1. REMOVE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT HEADREST ASSEMBLY RH &LH
3. REMOVE REAR SEATBACK ASSEMBLY
4. REMOVE REAR SEAT BELT OUTER ANCHOR
5. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
6. REMOVE REAR DOOR SCUFF PLATE
7. REMOVE REAR SEAT SIDE GARNISH
8. REMOVE ROOF SIDE GARNISH INNER

9. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER

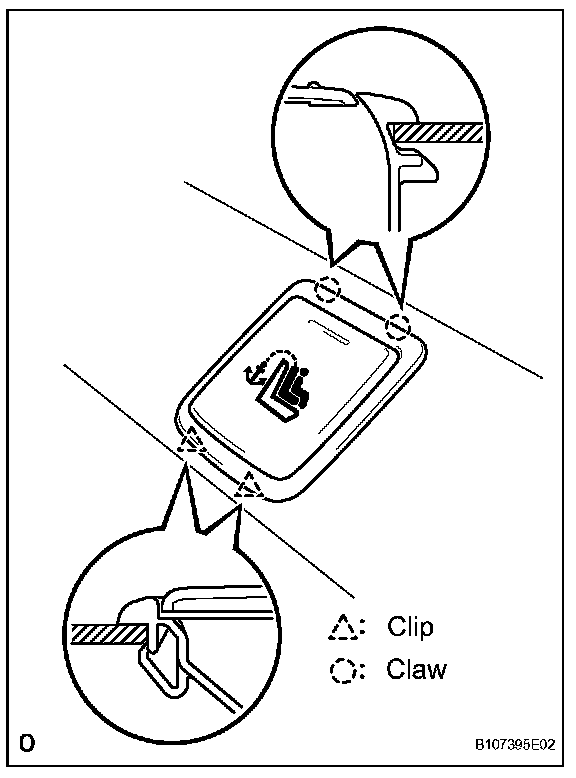

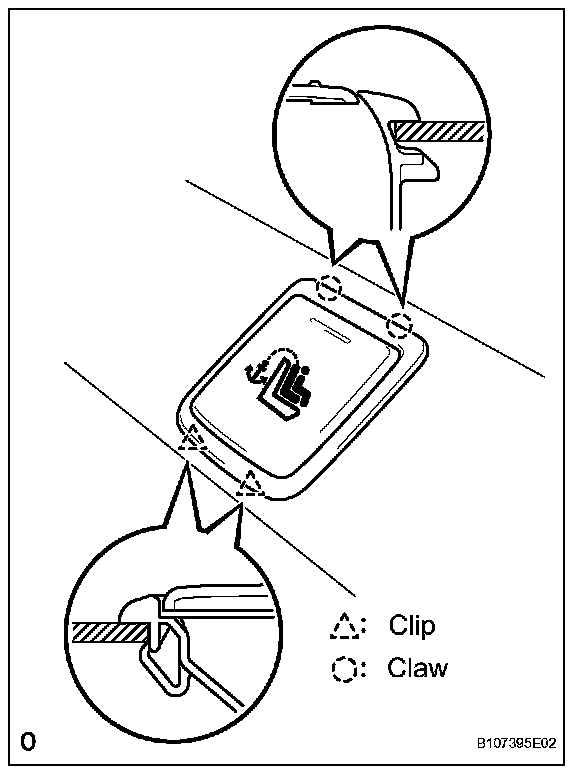

a. Detach the 2 clips and 2 claws, and remove the anchor cover.

10. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

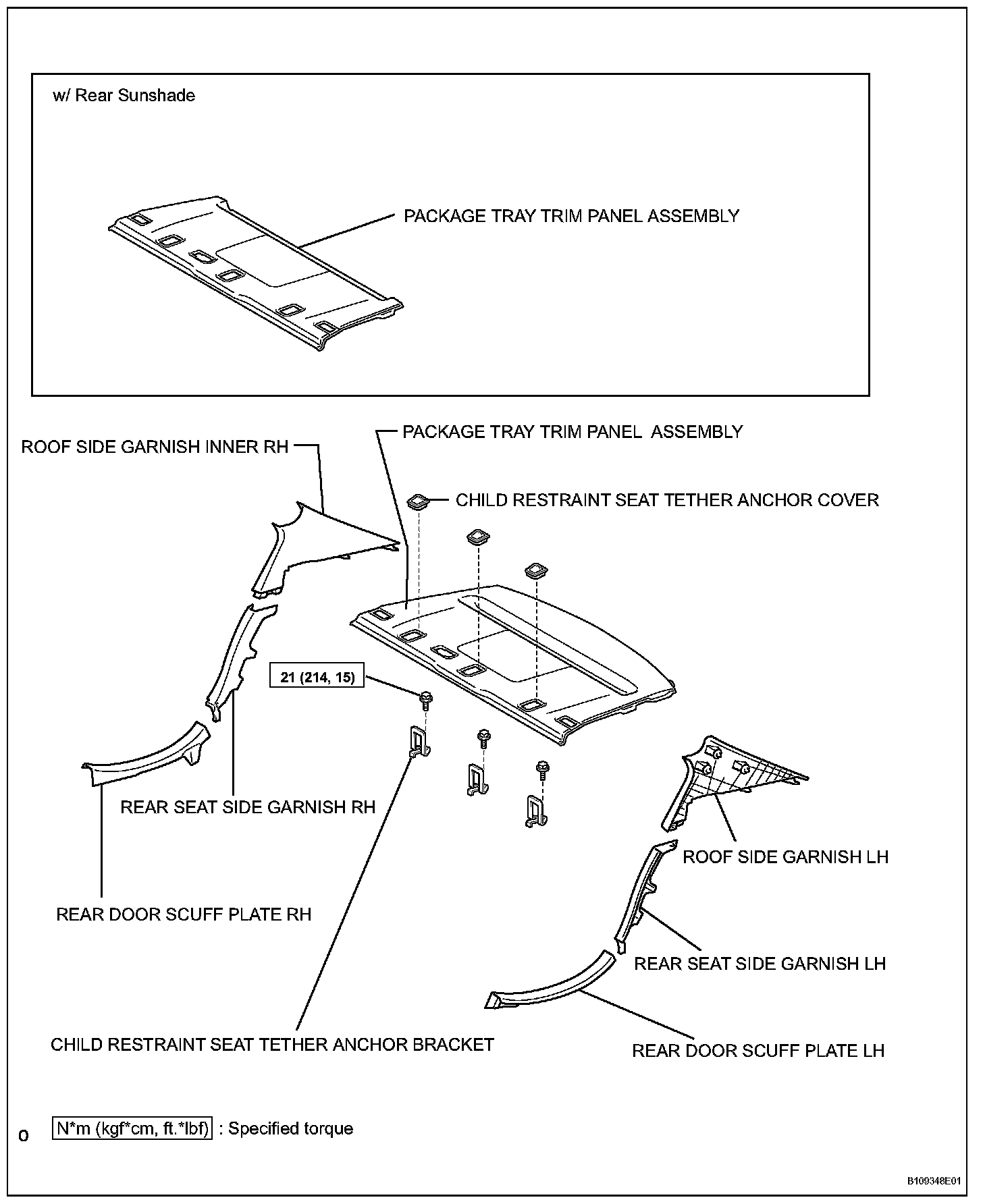

12. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

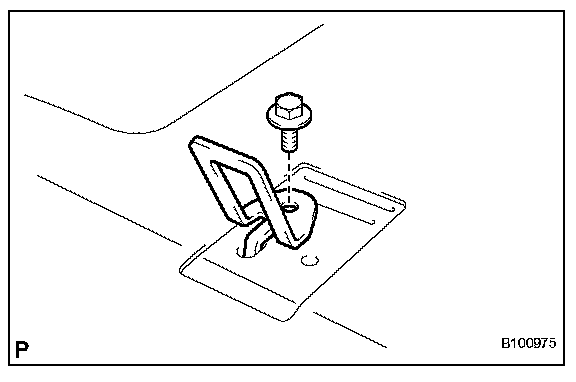

a. Remove the bolt and anchor bracket

INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
a. Align the claw with the positioning hole and install the anchor bracket with the bolt.

Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

4. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

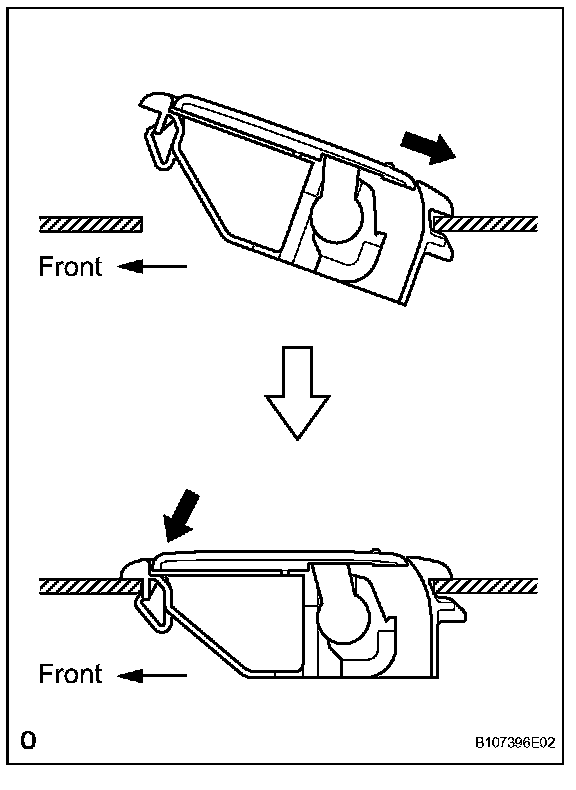

a. Install the tether anchor cover to the package tray trim panel as shown in the illustration.

5. INSTALL ROOF SIDE GARNISH INNER
6. INSTALL REAR SEAT SIDE GARNISH
7. INSTALL REAR DOOR SCUFF PLATE
8. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
9. INSTALL REAR SEAT BELT OUTER ANCHOR
10. INSTALL REAR SEATBACK ASSEMBLY
11. INSTALL REAR SEAT HEADREST ASSEMBLY RH & LH
12. INSTALL REAR SEAT CUSHION ASSEMBLY
