Child Restraint Seat Anchor Bracket

Child Restraint Seat Anchor Bracket:

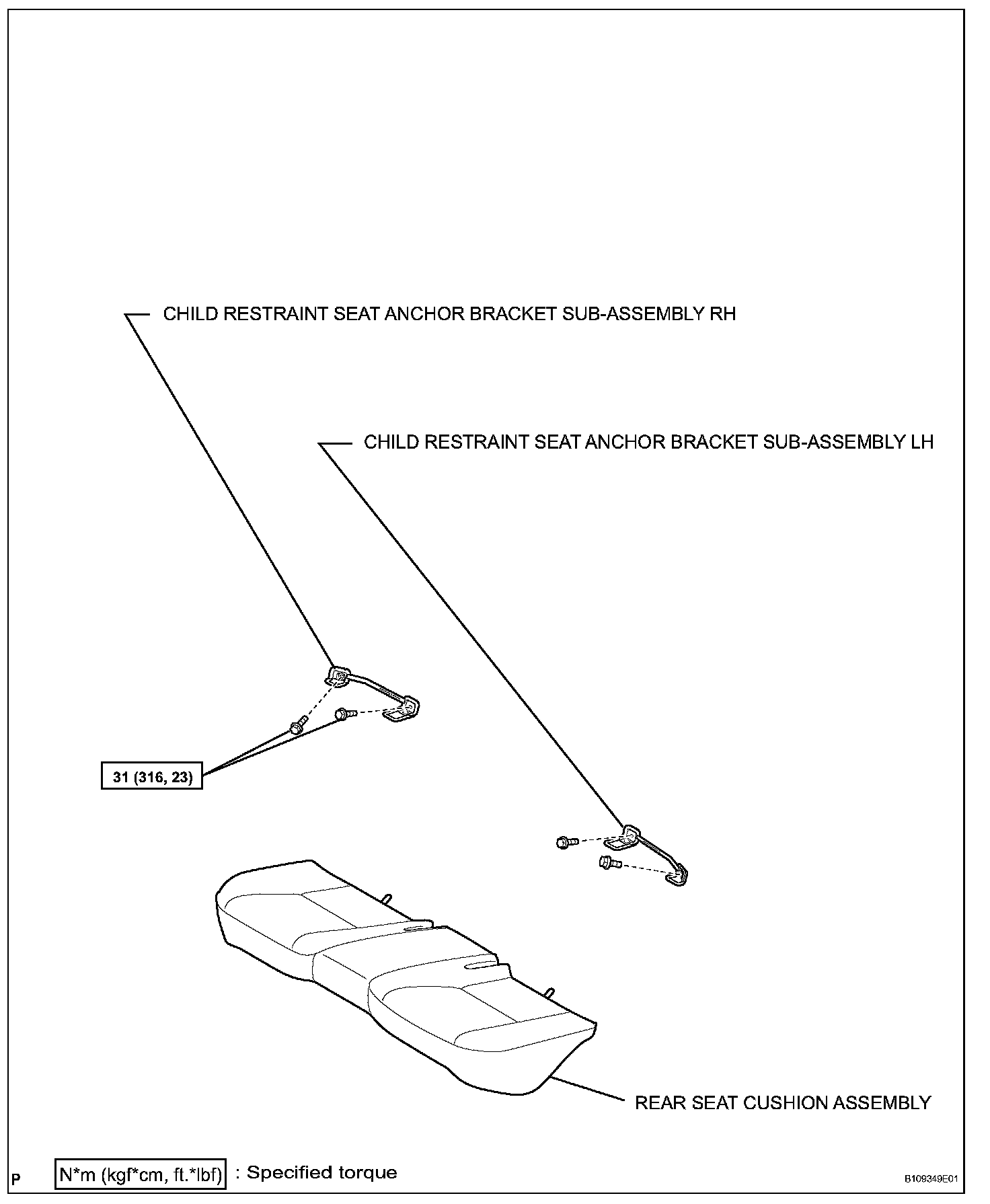

CHILD RESTRAINT SEAT ANCHOR BRACKET

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY




2. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

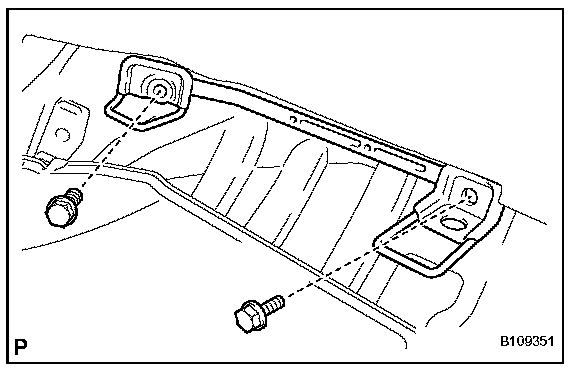

a. Remove the 2 bolts and anchor bracket.

INSTALLATION




1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

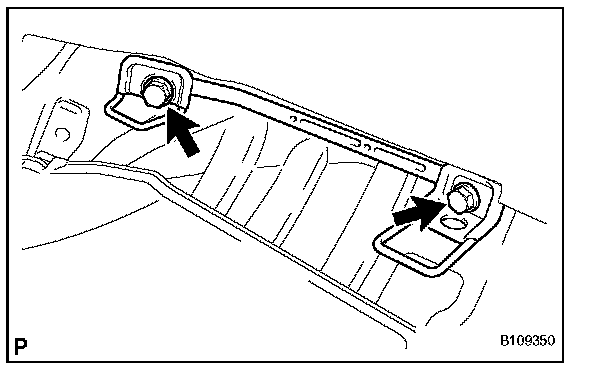

a. Instal the anchor bracket.

Torque: 31 N.m (316 kgf.cm, 23 ft.lbf)

2. INSTALL REAR SEAT CUSHION ASSEMBLY
