Front Seat Side Airbag Assembly

ON-VEHICLE INSPECTION

1. FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
a. Perform a diagnostic system check.

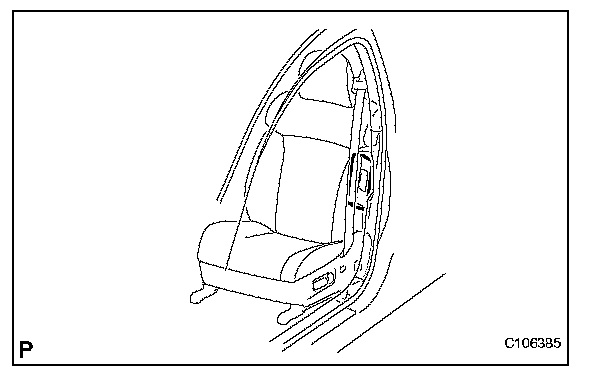

b. With the front seat airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat assembly with a new one:

Cuts, minute cracks or marked discoloration on the front seat back assembly around the front seat airbag assembly.

2. FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)
a. Perform a diagnostic system check.




b. With the front seat airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat airbag assembly with a new one:
- Cuts, minute cracks or marked discoloration on the front seat airbag assembly.
- Cracks or other damage to the wire harness or connector.

CAUTION: For removal and installation procedures of the front seat airbag assembly. Be sure to follow the correct procedure.
