Pinout Values and Diagnostic Parameters

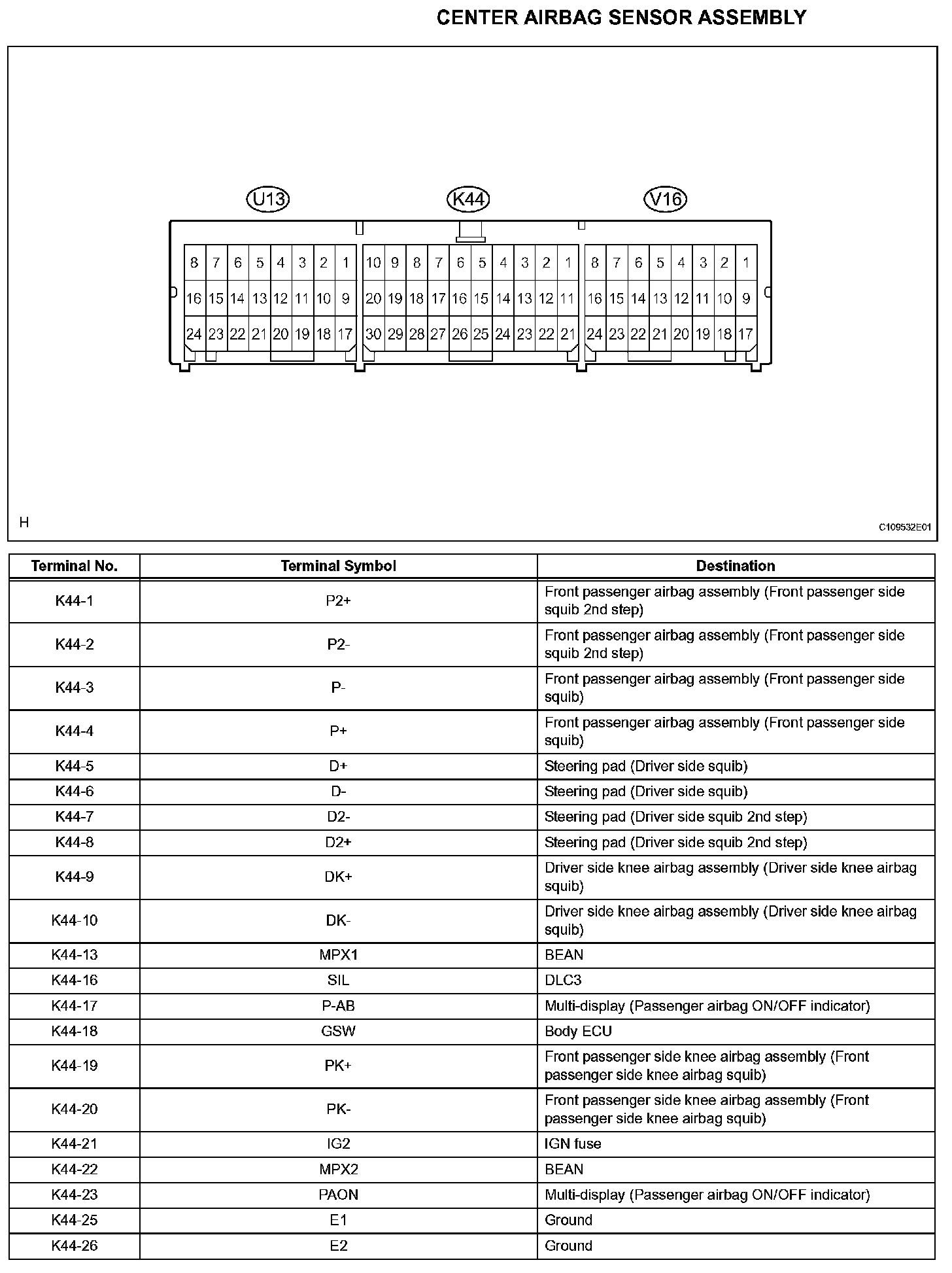

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (Part 1):

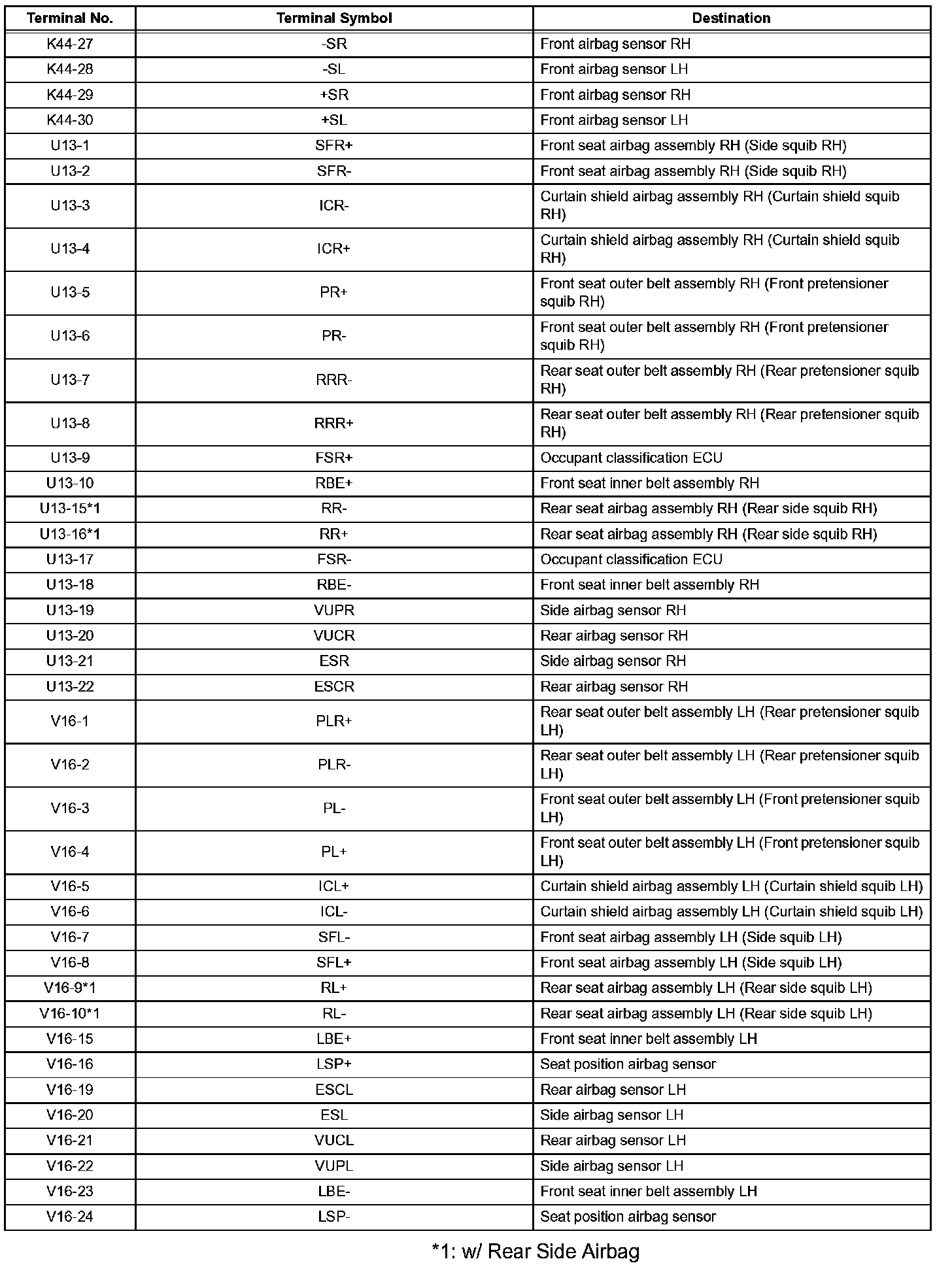

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (Part 2):
