Tire Pressure Monitor Receiver / Transponder: Service and Repair

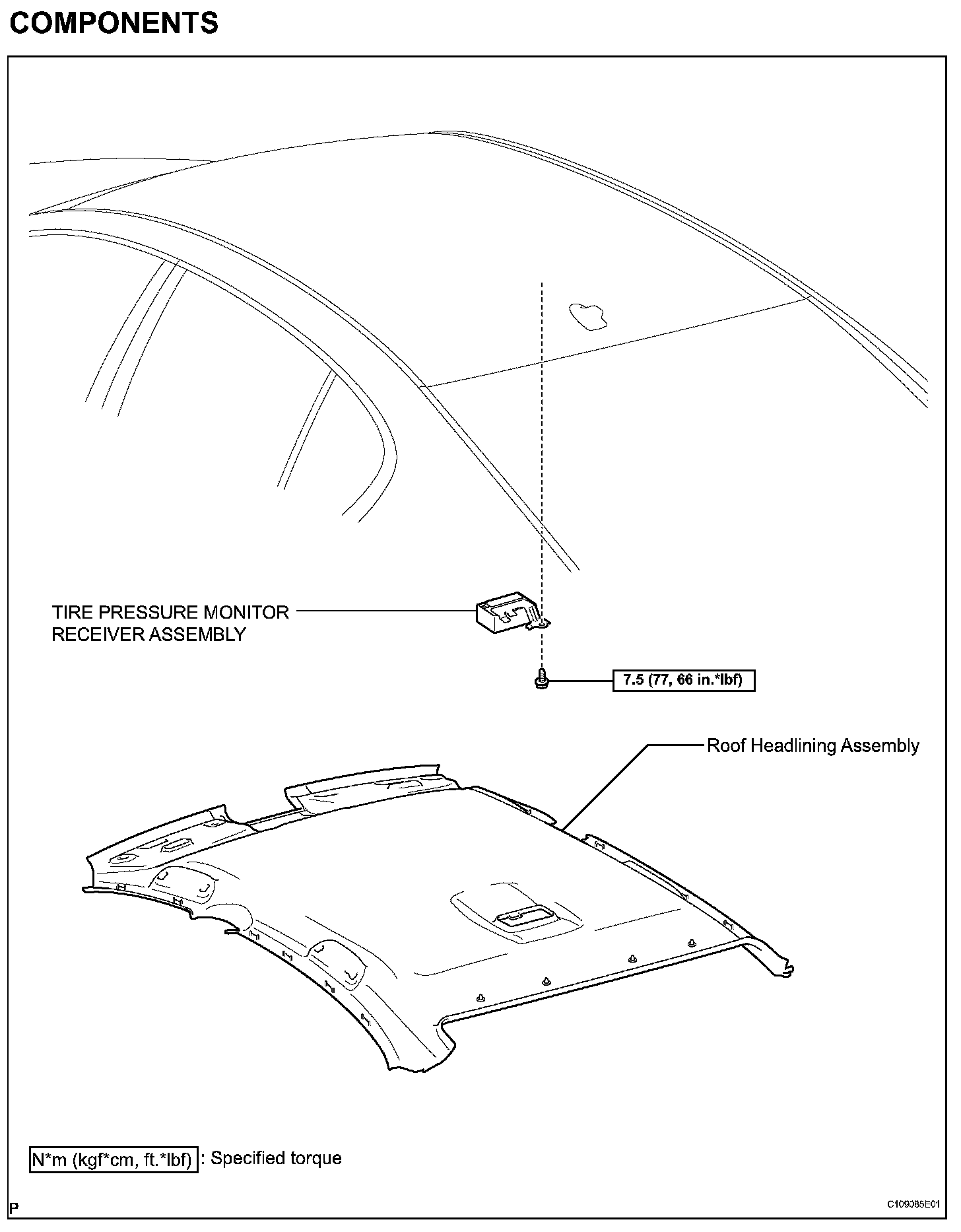

TIRE PRESSURE WARNING RECEIVERCOMPONENTS:
REPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(a) Disconnect the cable from the negative battery terminal.
2. REMOVE ROOF HEADLINING ASSEMBLY
HINT:
Refer to the instructions for removal of the roof headlining assembly.
3. REMOVE TIRE PRESSURE MONITOR RECEIVER ASSEMBLY
(a) Disconnect the connector.

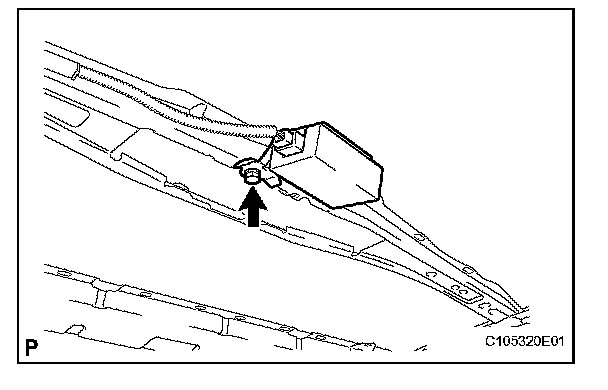

(b) Remove the bolt and the tire pressure monitor receiver assembly.
4. INSTALL TIRE PRESSURE MONITOR RECEIVER ASSEMBLY

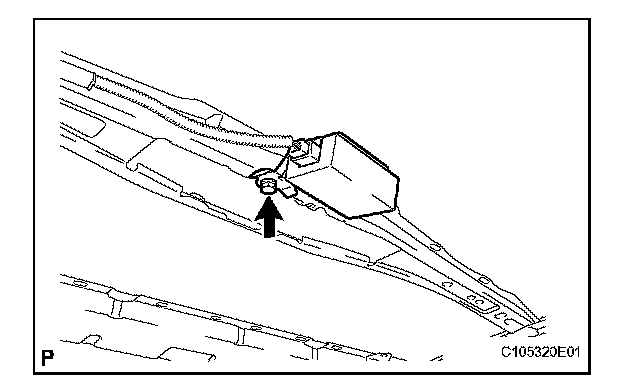

(a) Install the tire pressure monitor receiver assembly with the bolt.
Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)
(b) Connect the connector.
5. INSTALL ROOF HEADLINING ASSEMBLY
HINT:
Refer to the instructions for installation of the roof headlining assembly.
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. REGISTRATION TRANSMITTER ID
8. INSPECT TIRE PRESSURE WARNING SYSTEM
SST 09843-18040
9. PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal.
