Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Steering >> Power Steering Relay >> Testing and Inspection

Power Steering Relay: Testing and Inspection

ELECTRONIC POWER STEERING RELAY

ON-VEHICLE INSPECTION

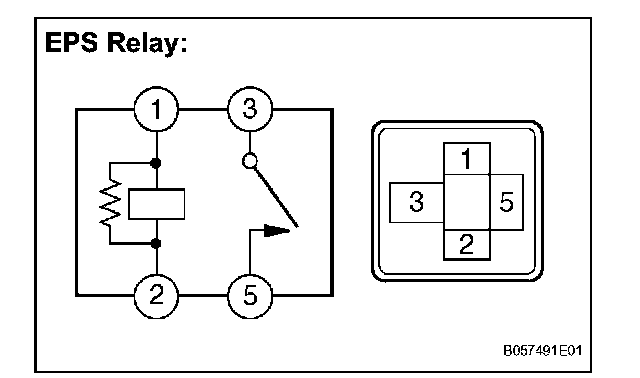

1. INSPECT ELECTRIC POWER STEERING RELAY
(a) Measure the resistance according to the value(s) in the table.

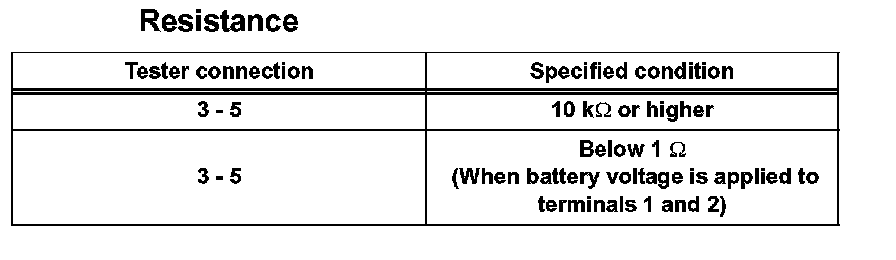

Resistance:
