Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Interior Lighting Relay >> Locations

Interior Lighting Relay: Locations

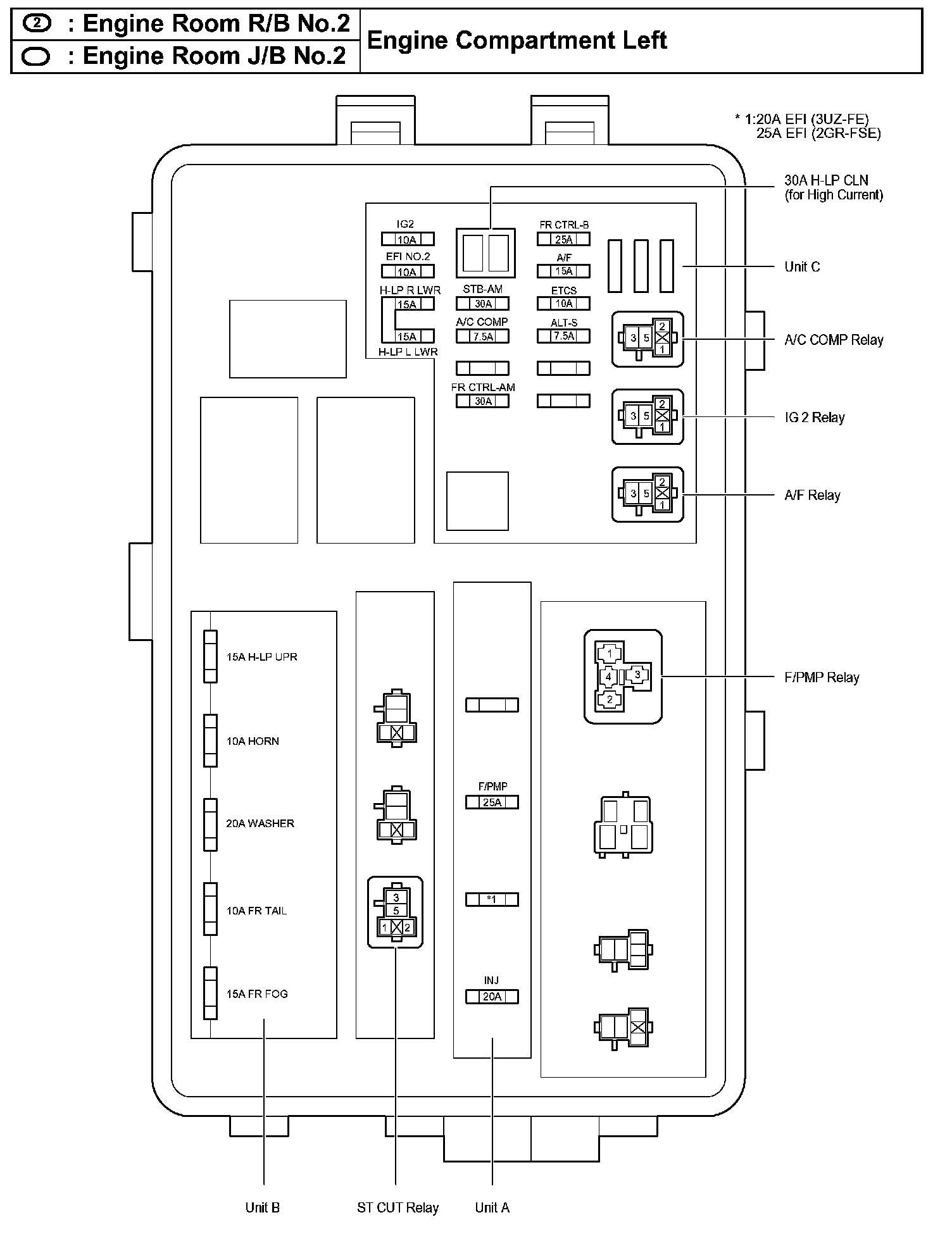

Engine Room R/B No.2, J/B No.2 - Engine Compartment Left:

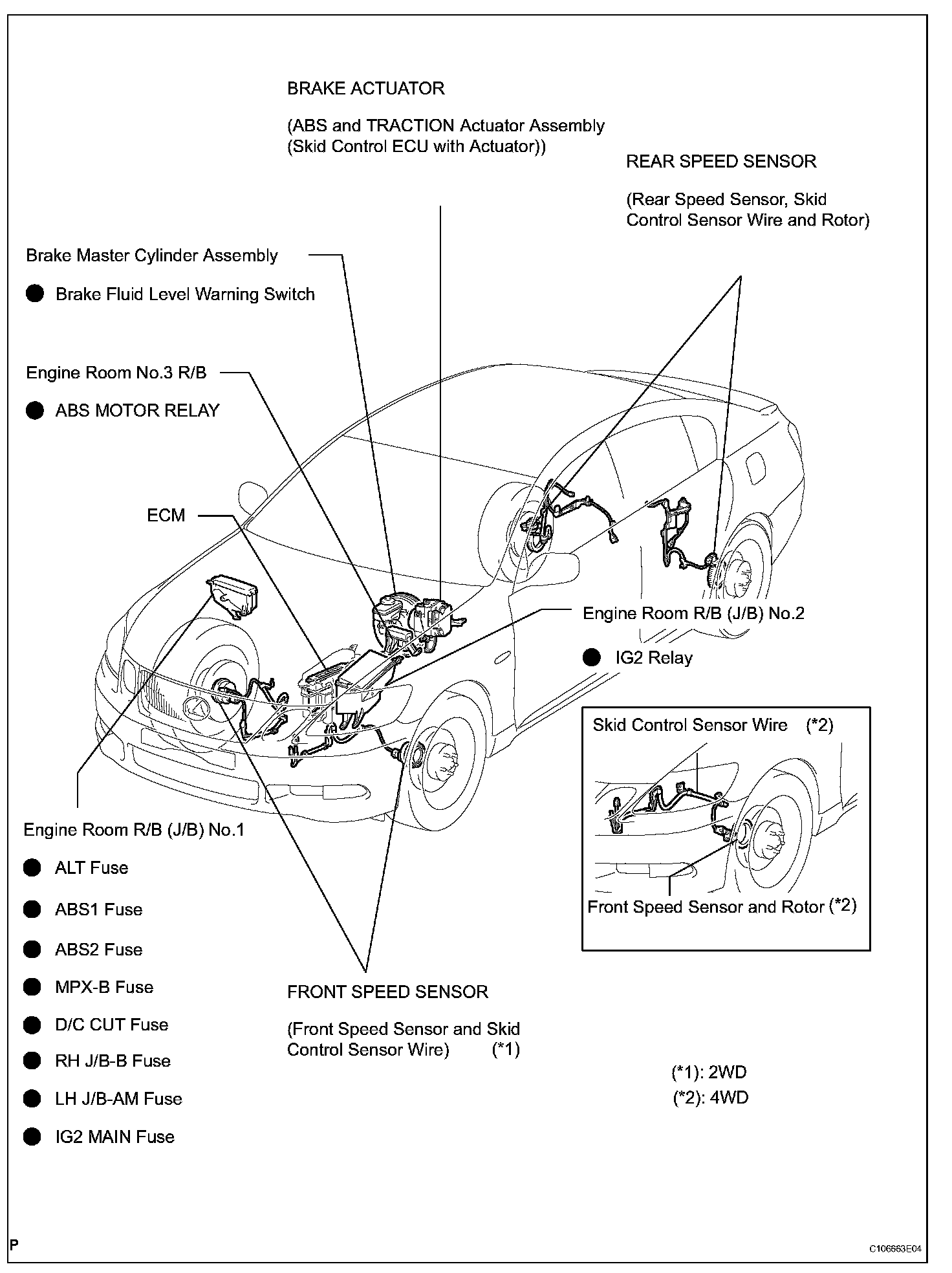

Vehicle Stability Control System:

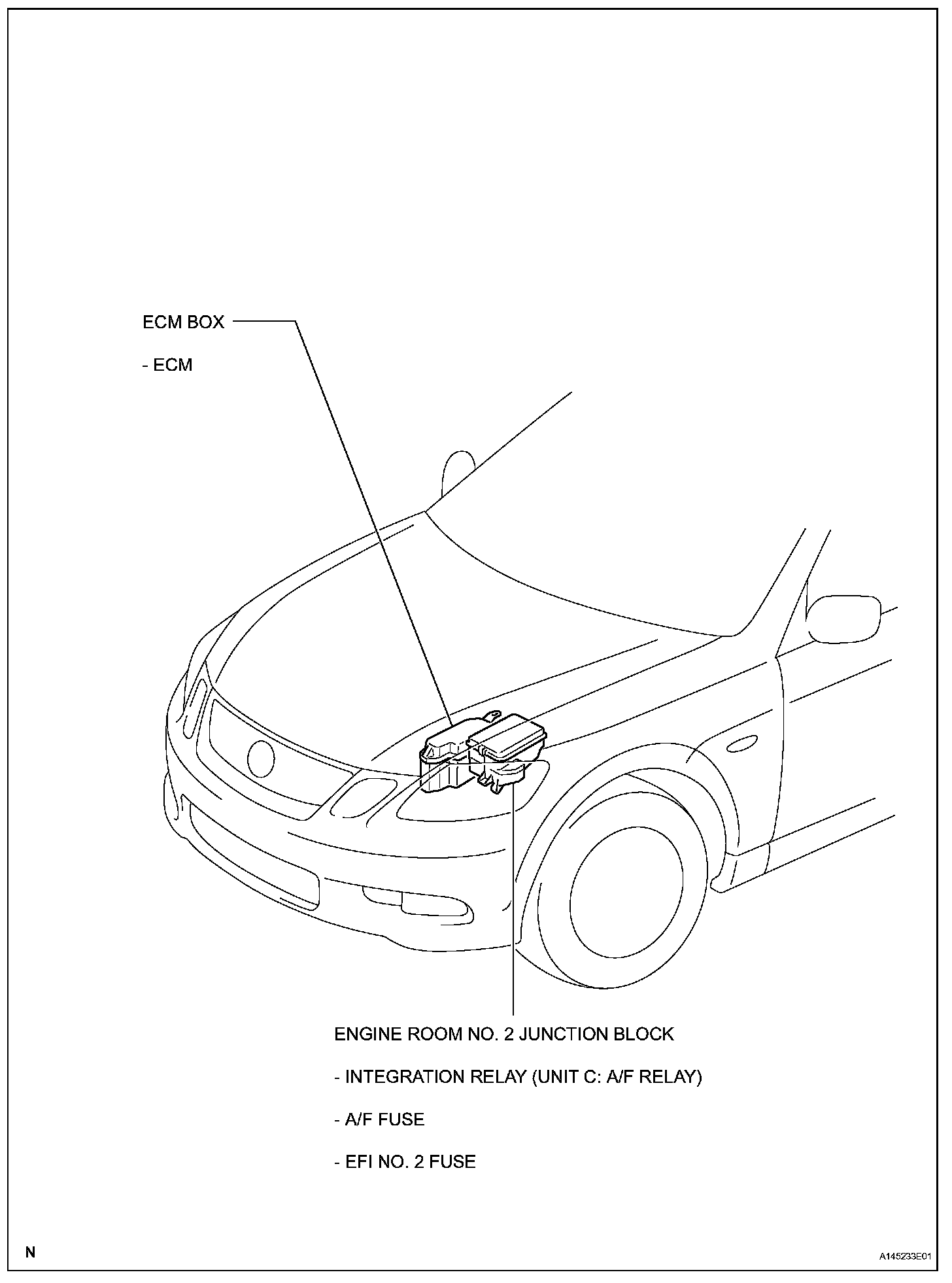

Emission Control System:

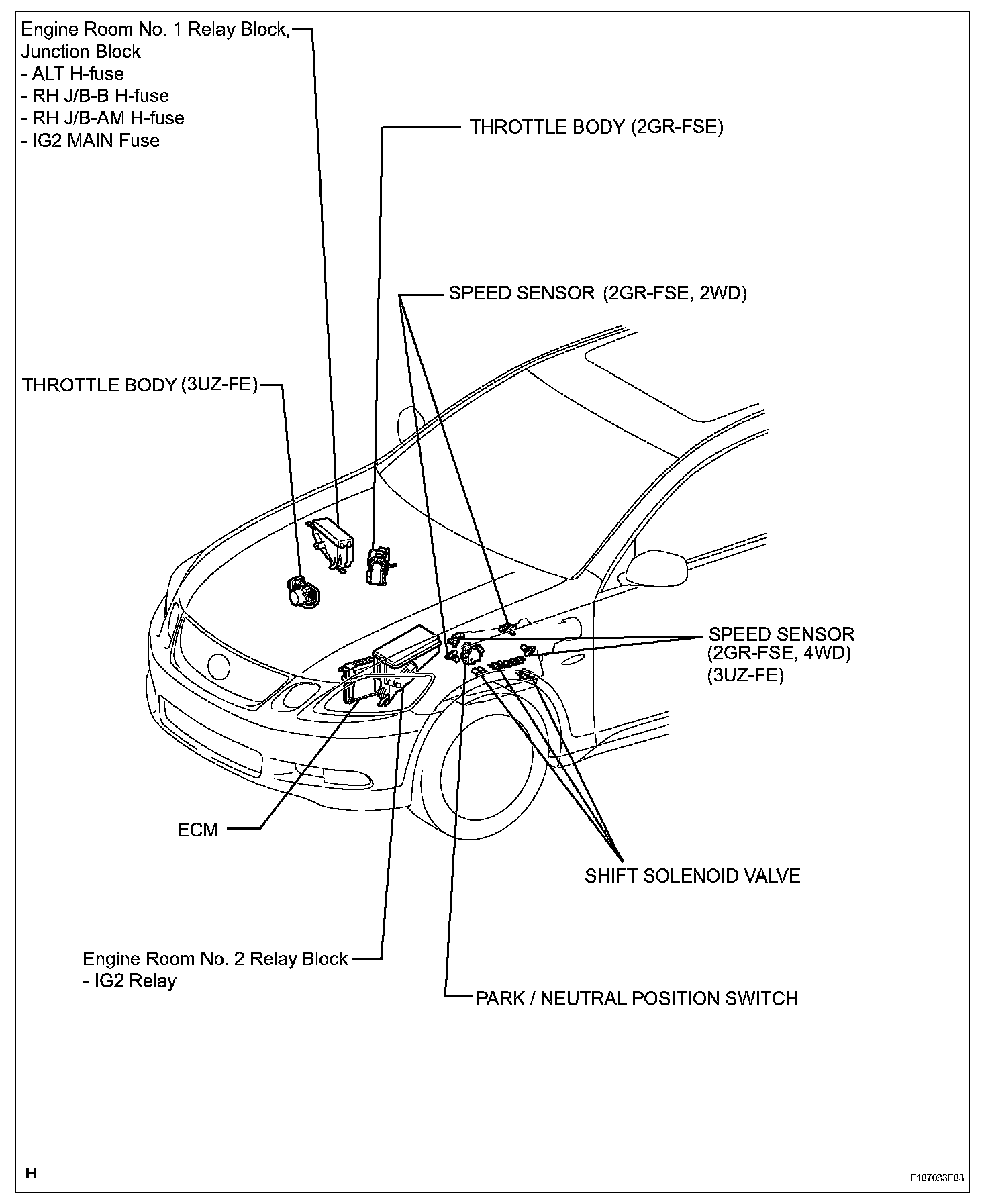

Fuel System:

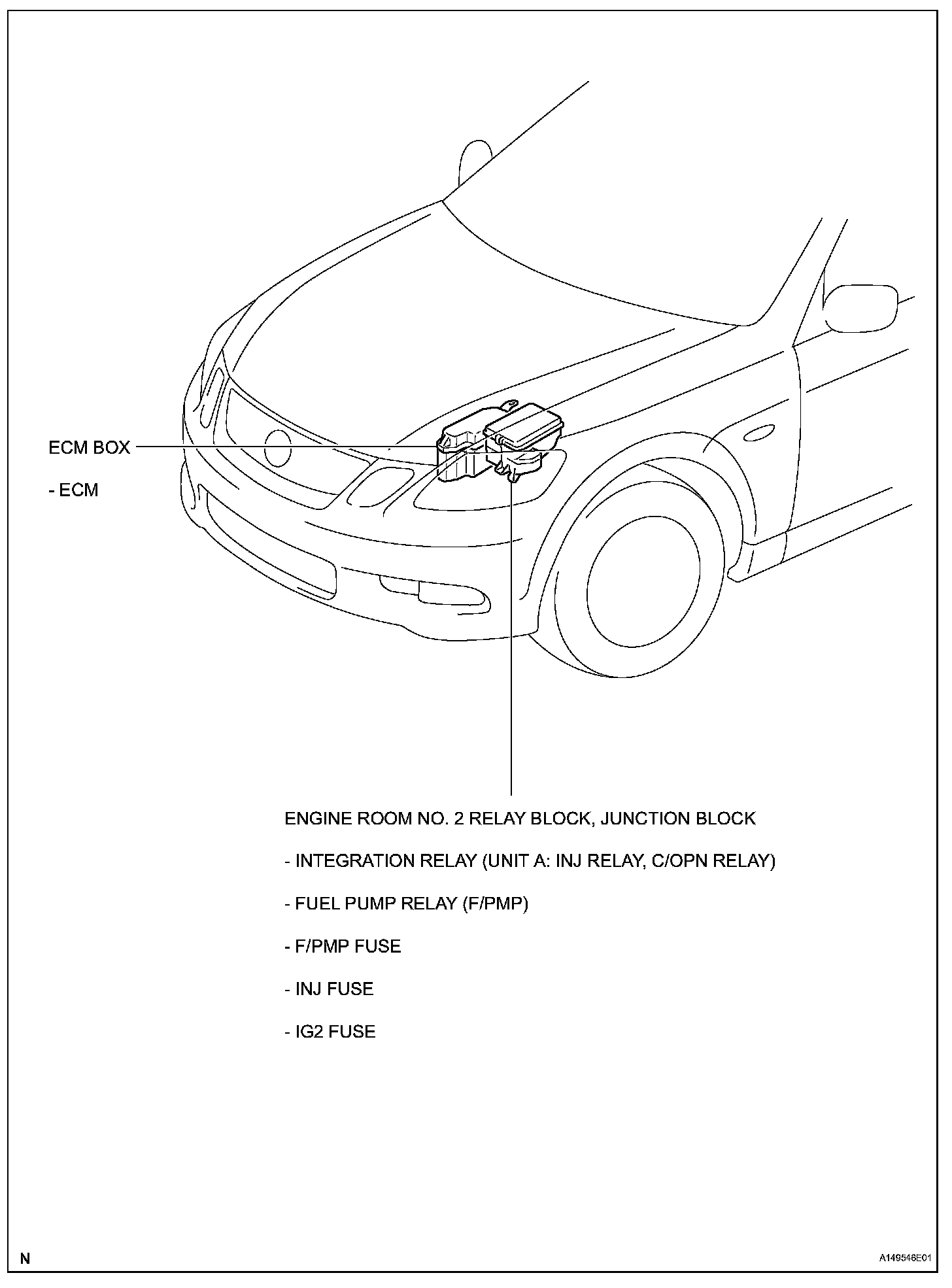

Cruise Control System:
