Radiator Cooling Fan Motor Relay: Testing and Inspection

COOLING FAN RELAY

ON-VEHICLE INSPECTION





1. CHECK COOLING FAN RELAY (FAN MAIN)
(a) Remove the relay from the engine room No. 1 relay block.

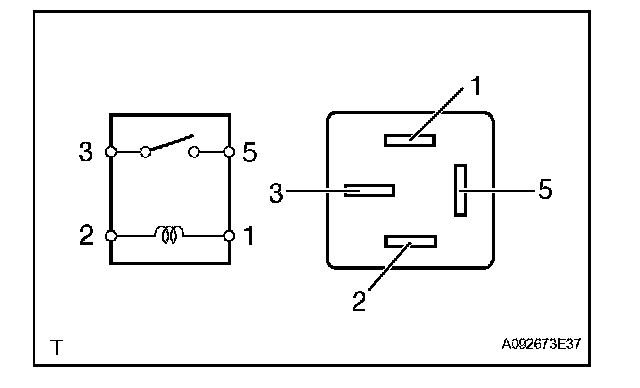

(b) Measure the resistance of the relay.

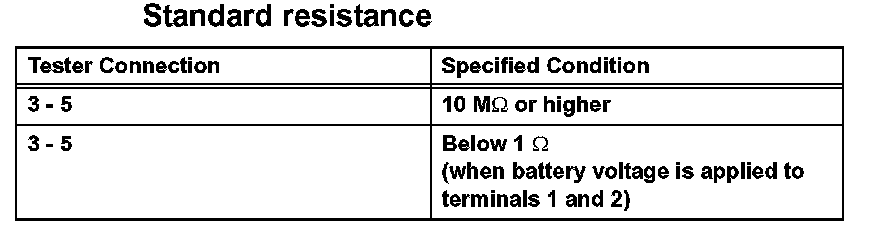

Standard resistance:

If the result is not as specified, replace the relay.
(c) Install the relay to the engine room No. 1 relay block.
