Shift Solenoid: Testing and Inspection

SHIFT SOLENOID VALVE

INSPECTION

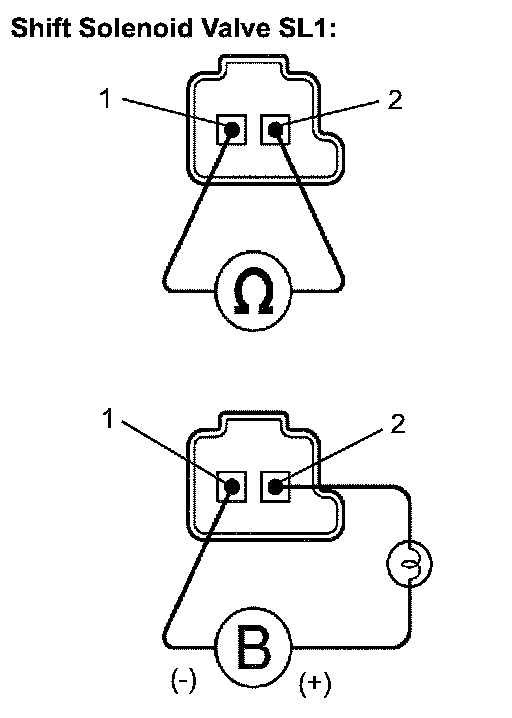

1. INSPECT SHIFT SOLENOID VALVE SL1

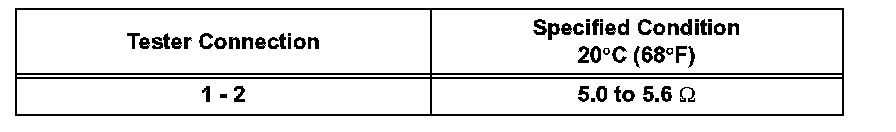

a. Measure the resistance according to the value(s) in the table.

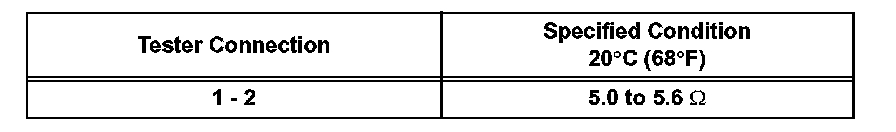

Standard Resistance:

b. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK: The solenoid makes an operating noise.

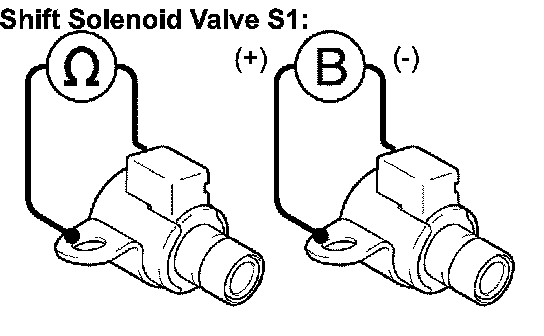

2. INSPECT SHIFT SOLENOID VALVE S1
a. Measure the resistance according to the value(s) in the table.

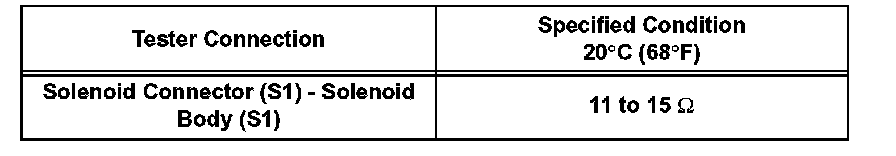

Standard Resistance:

b. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid makes an operating noise.

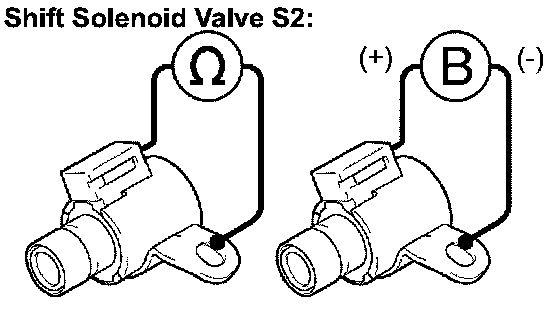

3. INSPECT SHIFT SOLENOID VALVE S2
a. Measure the resistance according to the value(s) in the table.

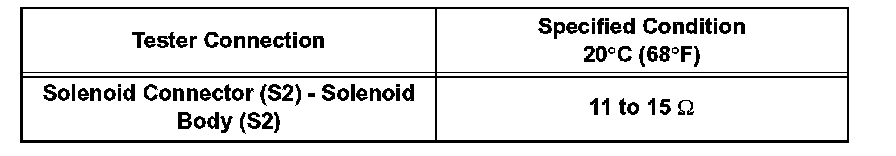

Standard Resistance:

b. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body
OK: The solenoid makes an operating noise.

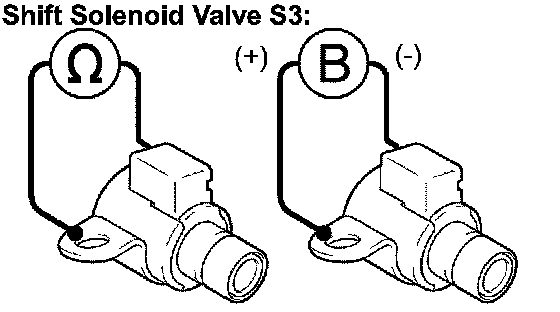

4. INSPECT SHIFT SOLENOID VALVE S3
a. Measure the resistance according to the value(s) in the table.

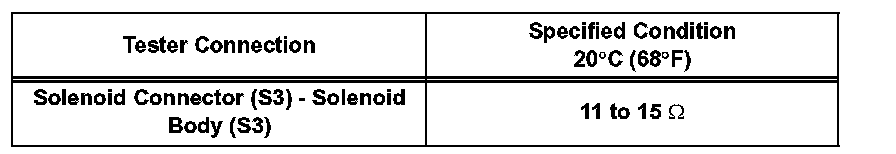

Standard Resistance:

b. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid makes an operating noise.

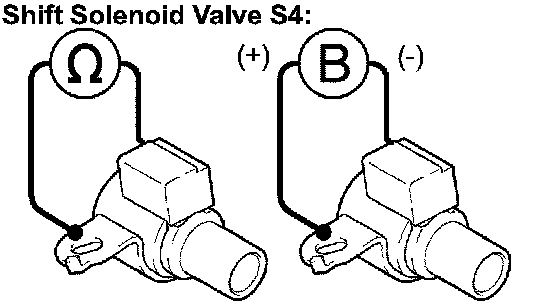

5. INSPECT SHIFT SOLENOID VALVE S4
a. Measure the resistance according to the value(s) in the table.

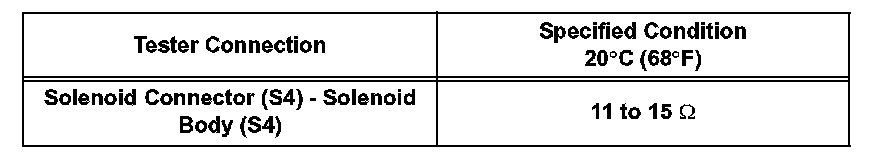

Standard Resistance:

b. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid makes an operating noise.

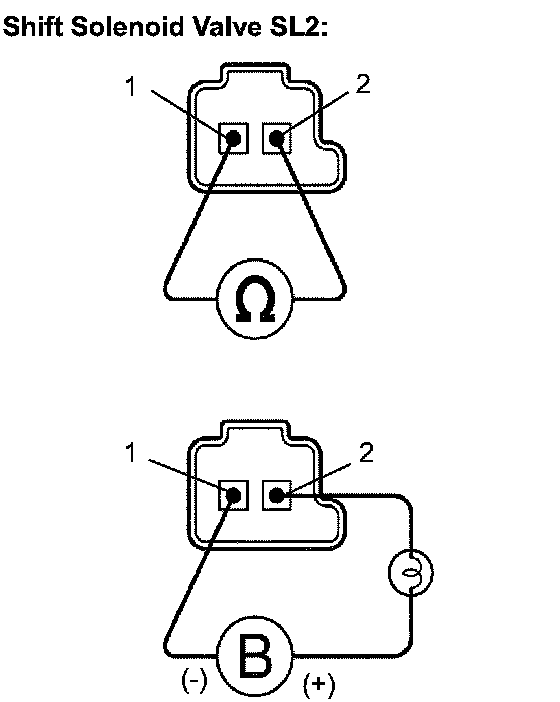

6. INSPECT SHIFT SOLENOID VALVE SL2
a. Measure the resistance according to the value(s) in the table.

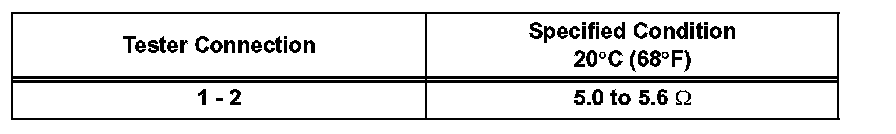

Standard Resistance:

b. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK: The solenoid makes an operating noise.

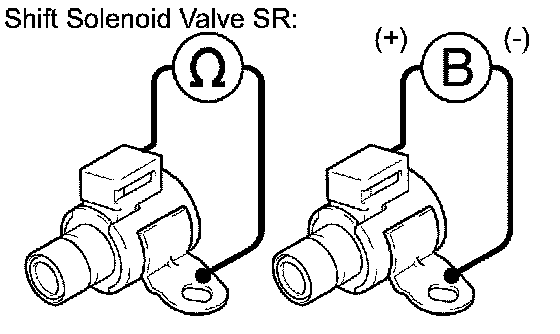

7. INSPECT SHIFT SOLENOID VALVE SR
a. Measure the resistance according to the value(s) in the table.

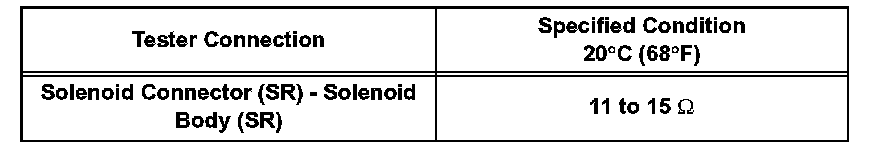

Standard Resistance:

b. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid makes an operating noise.

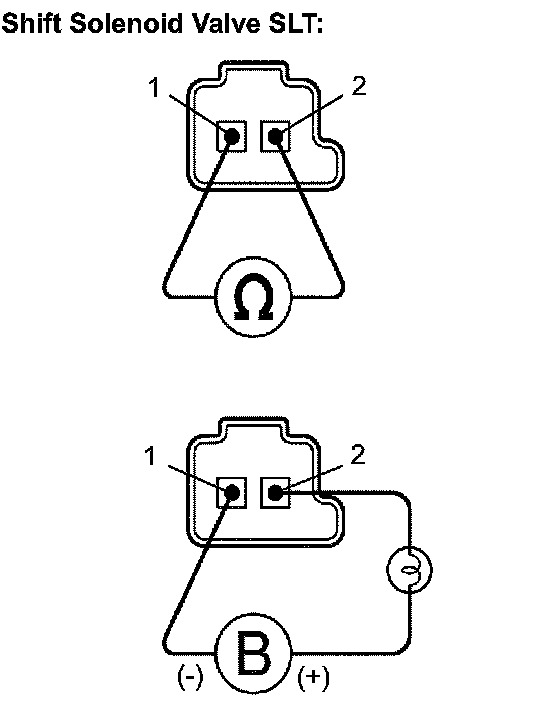

8. INSPECT SHIFT SOLENOID VALVE SLT
a. Measure the resistance according to the value(s) in the table.

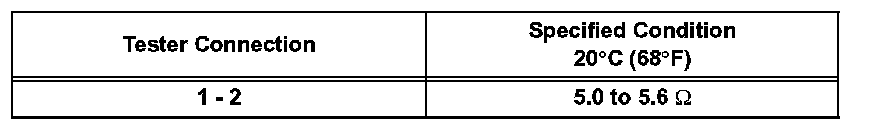

Standard Resistance:

b. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK: The solenoid makes an operating noise.

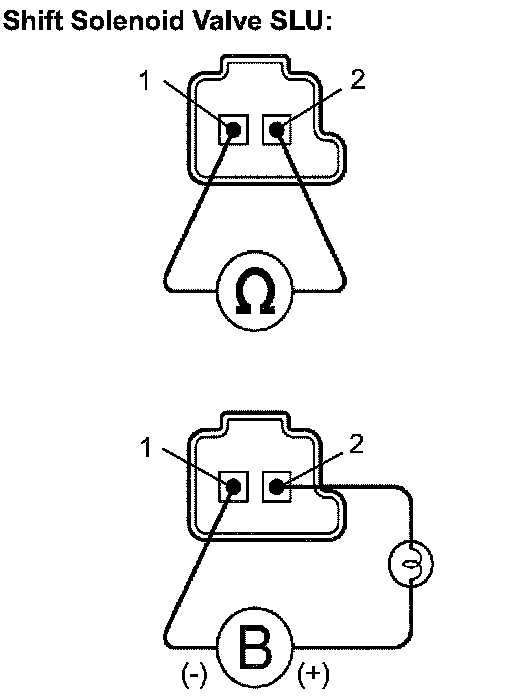

9. INSPECT SHIFT SOLENOID VALVE SLU
a. Measure the resistance according to the value(s) in the table.

Standard Resistance:

b. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK: The solenoid makes an operating noise.
