Fuel Injector (For Direct Injection)

INSPECTION

1. INSPECT FUEL INJECTOR ASSEMBLY

NOTE: This inspection aims at inspecting the fuel injectors for opens or shorts, because the fuel injectors of this vehicle are a high-pressure type and cannot be inspected for fuel injection volume.

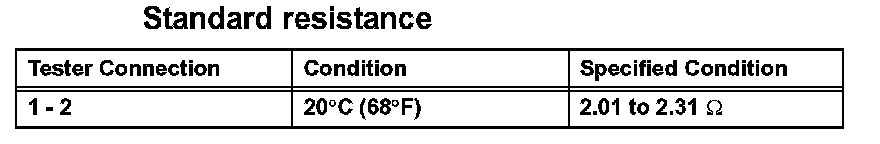

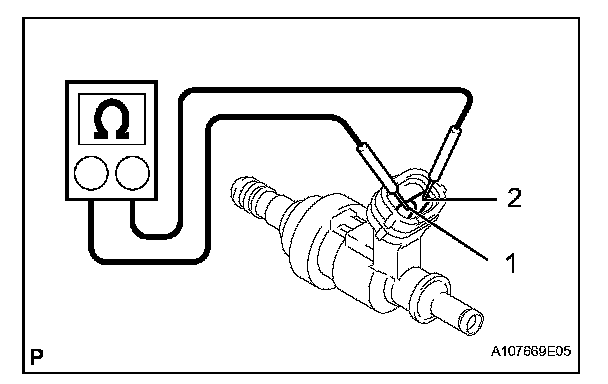

a. Check the resistance of the injector.

If the result is not as specified, replace the injector.
