Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

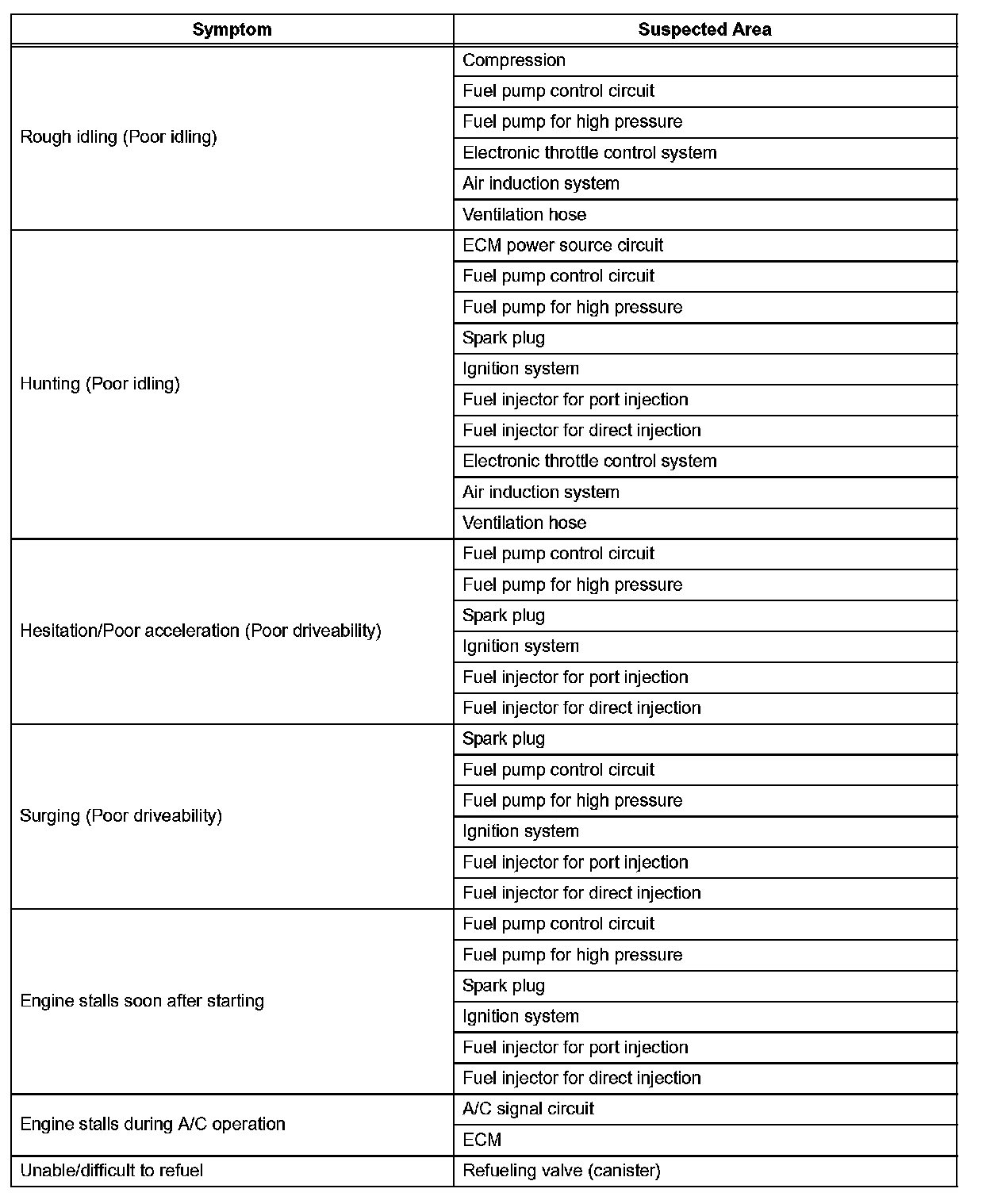

Problem Symptom Table-SFI System (Part 1):

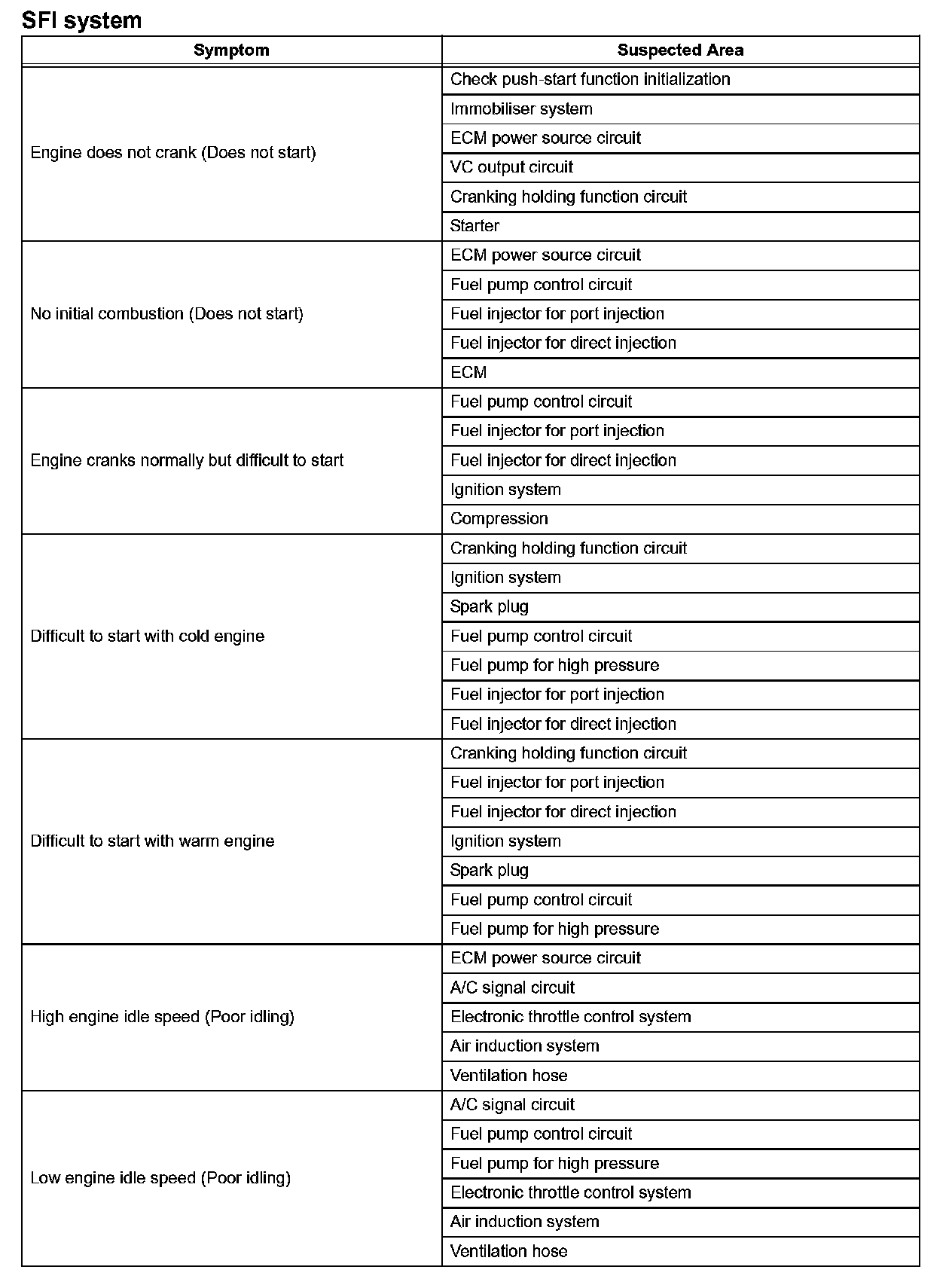

Problem Symptom Table-SFI System (Part 2):

HINT: Use the table given to help determine the cause of the problem. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
