Power Steering ECU Communication Stop Mode
Power Steering ECU Communication Stop Mode
Power Steering ECU Communication Stop Mode

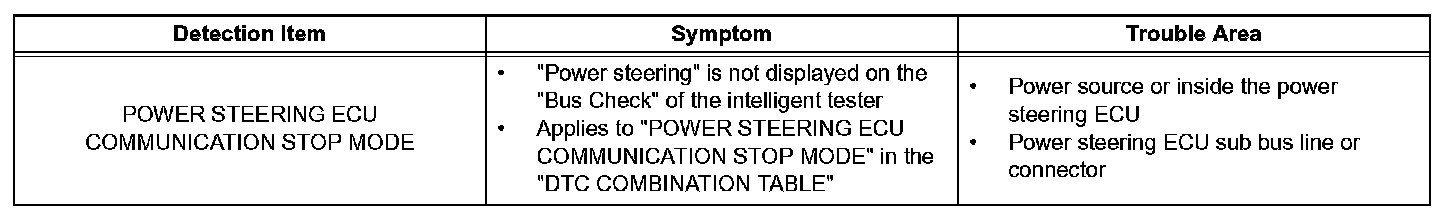

DESCRIPTION

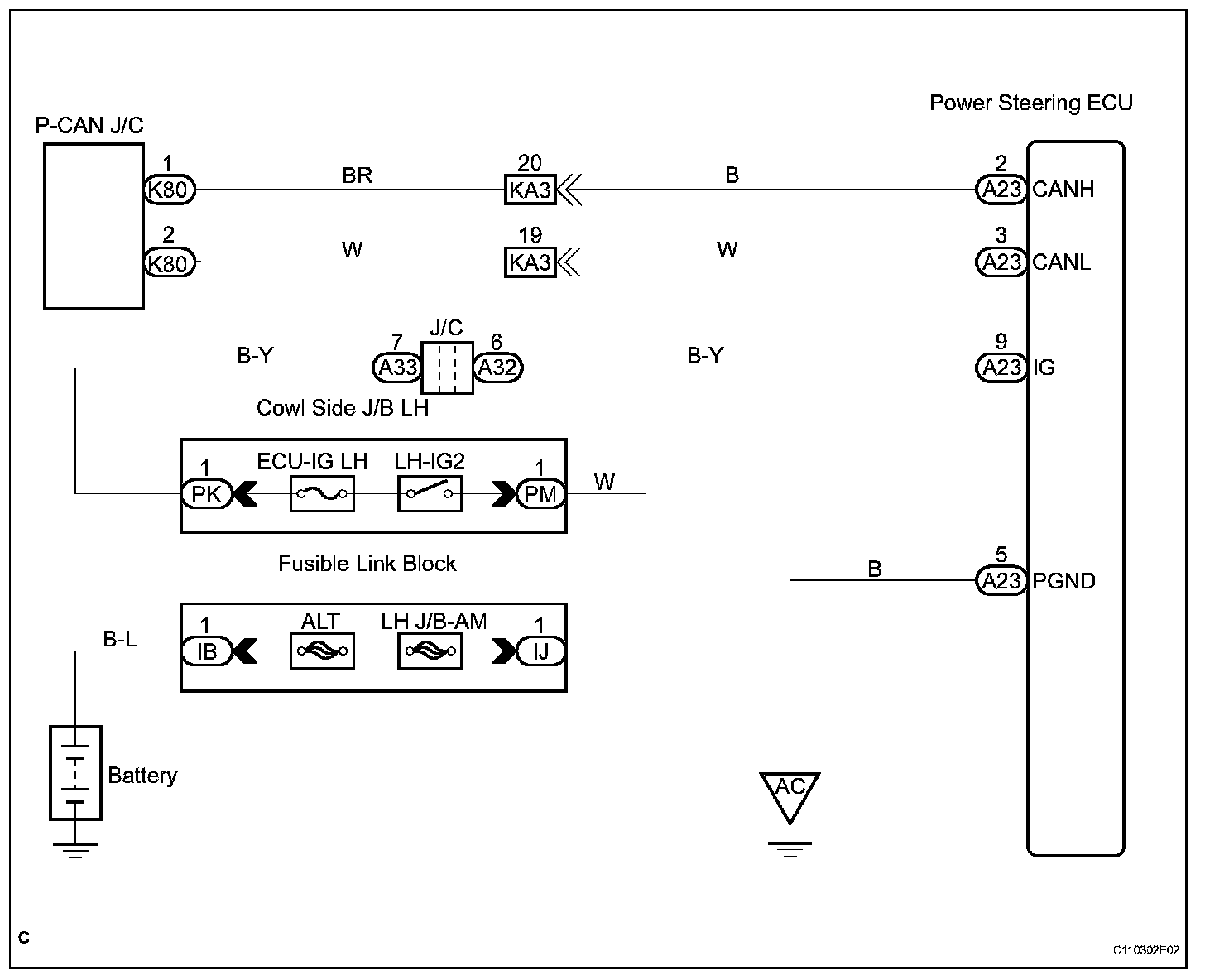

Wiring Diagram:

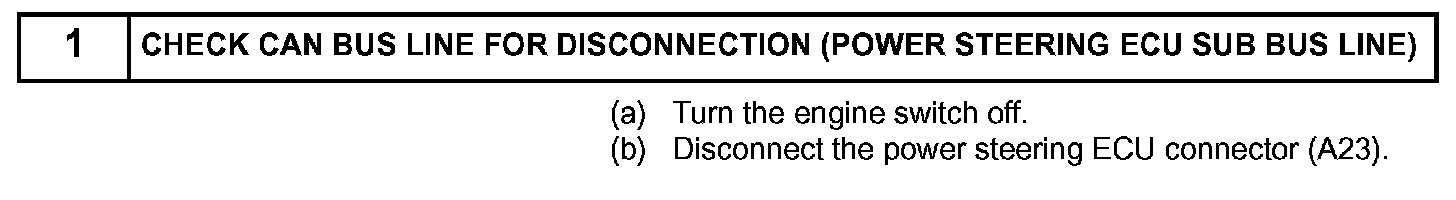

Step 1:

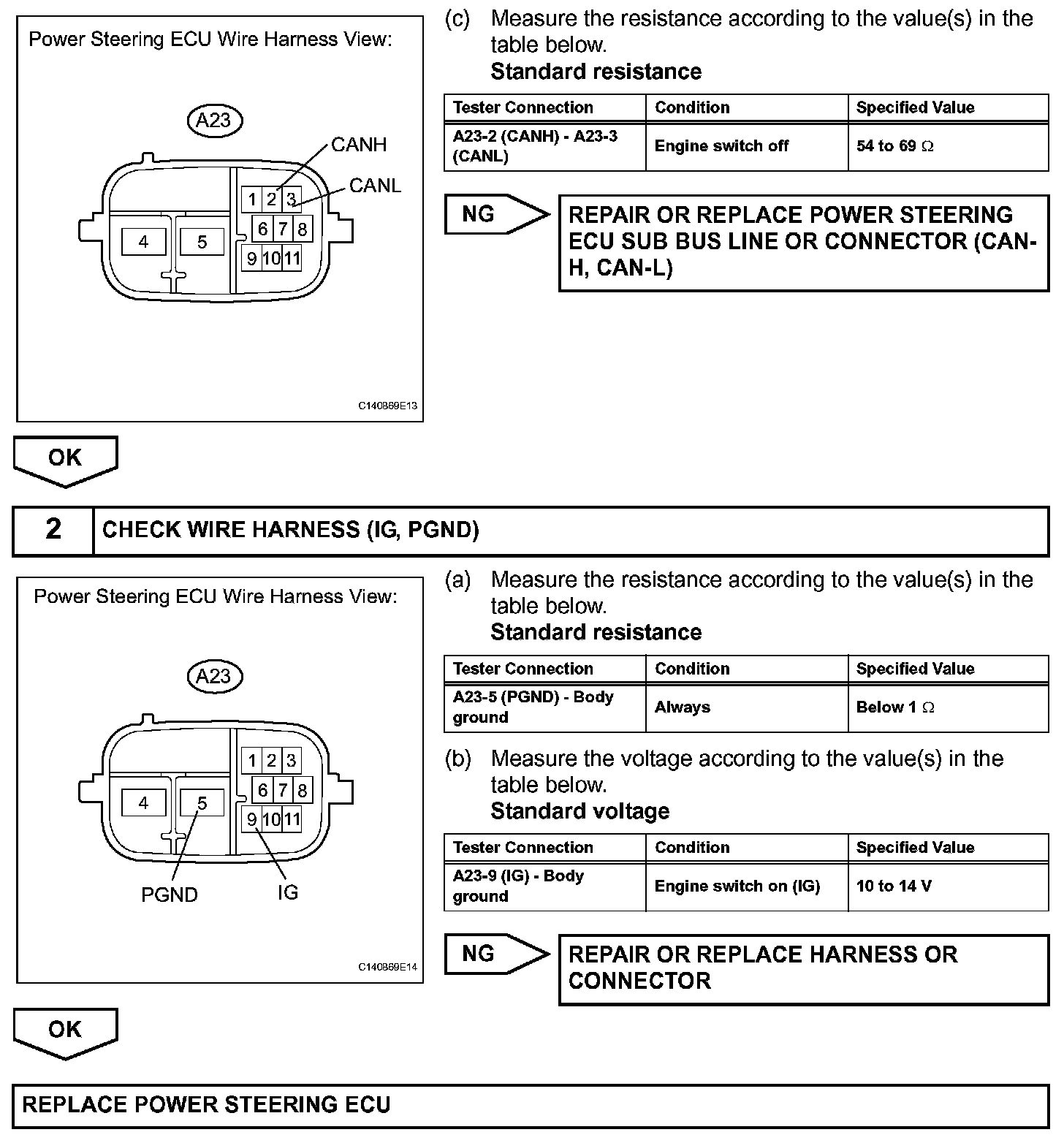

Step 1 (Continued)-2:
INSPECTION PROCEDURE
