Distance Control ECU Communication Stop Mode
Distance Control ECU Communication Stop Mode
Distance Control ECU Communication Stop Mode

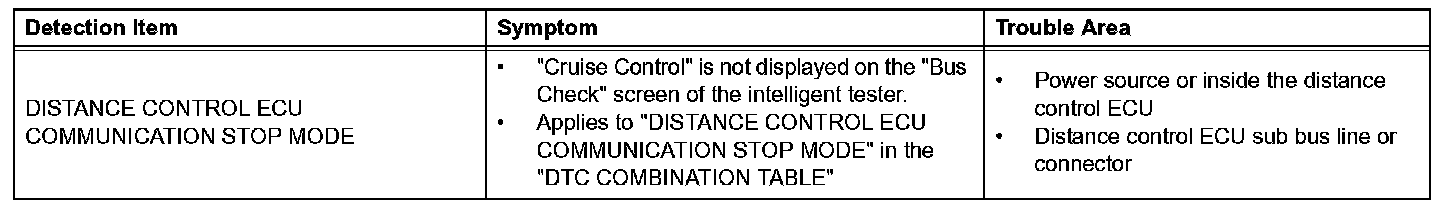

DESCRIPTION

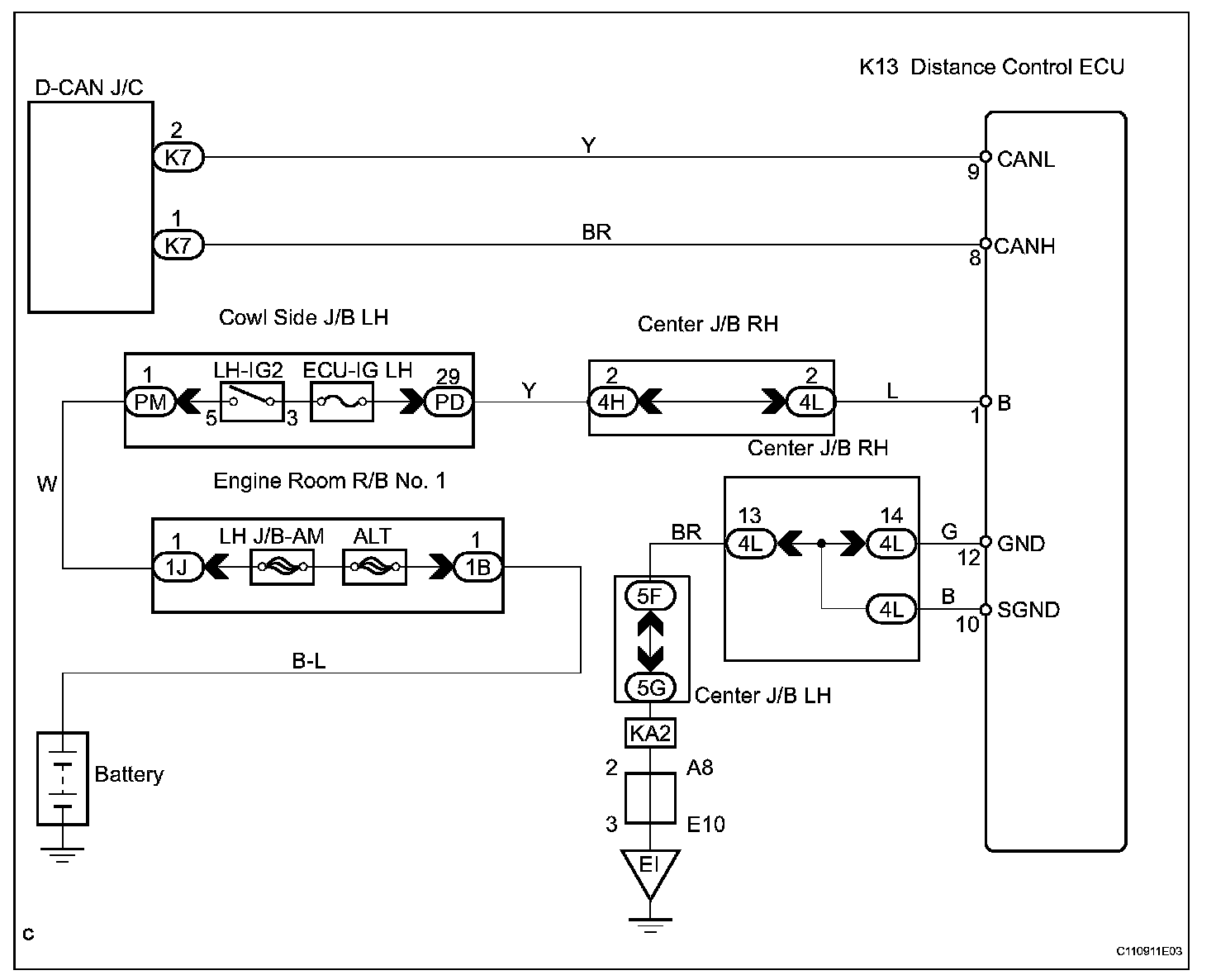

Wiring Diagram:

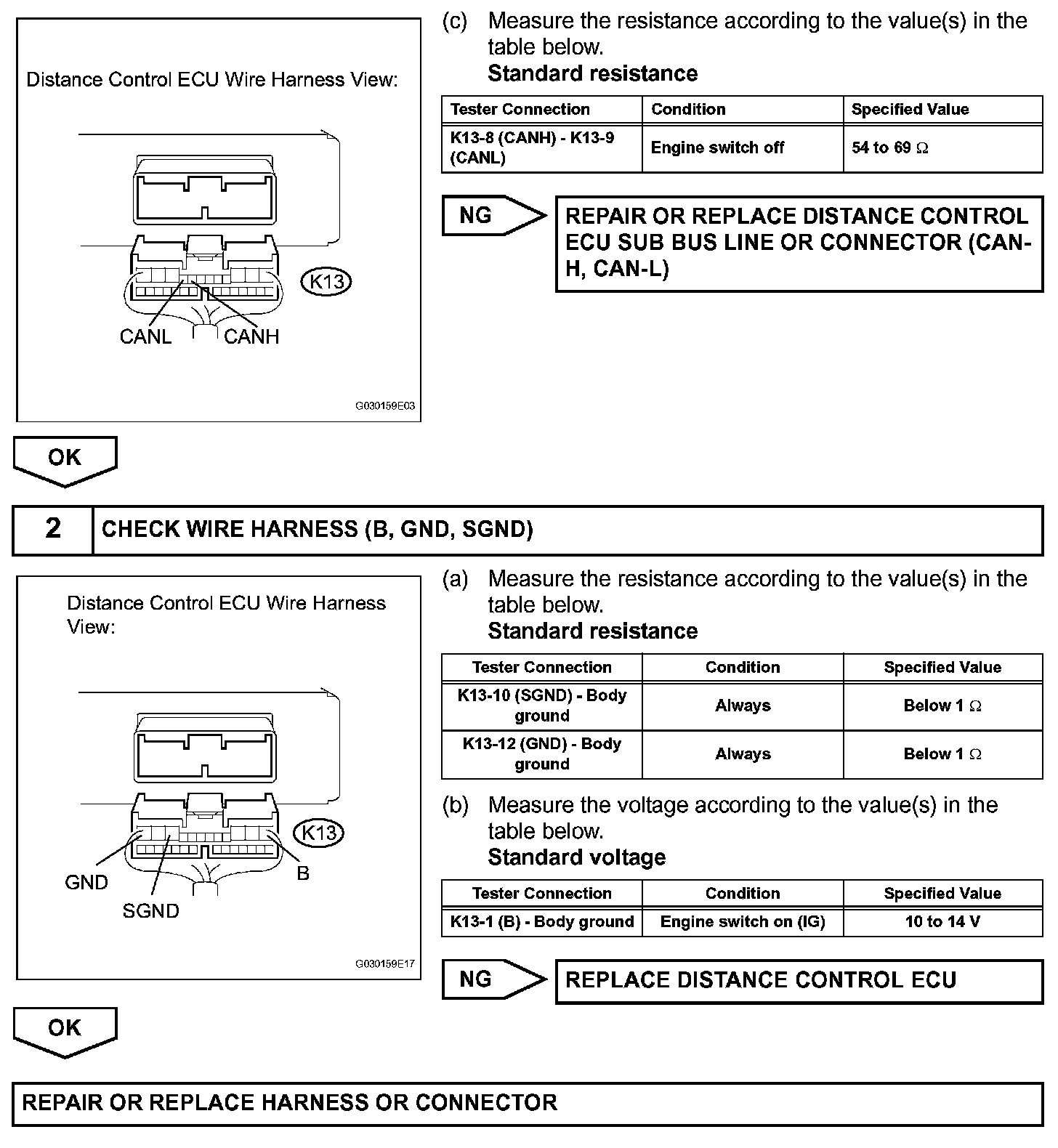

Step 1:
Step 1 (Continued)-2:
INSPECTION PROCEDURE
