Turn Signal Lamp Circuit

Turn Signal Light Circuit

DESCRIPTION

Receiving the signal of the turn signal switch from the cowl side junction block ECU LH, the cowl side junction block ECU LH makes the turn signal light come on.

The cowl side junction block ECU LH activates the flasher relay while the theft deterrent system gives the warning and turns on the turn signal light and the hazard warning light.

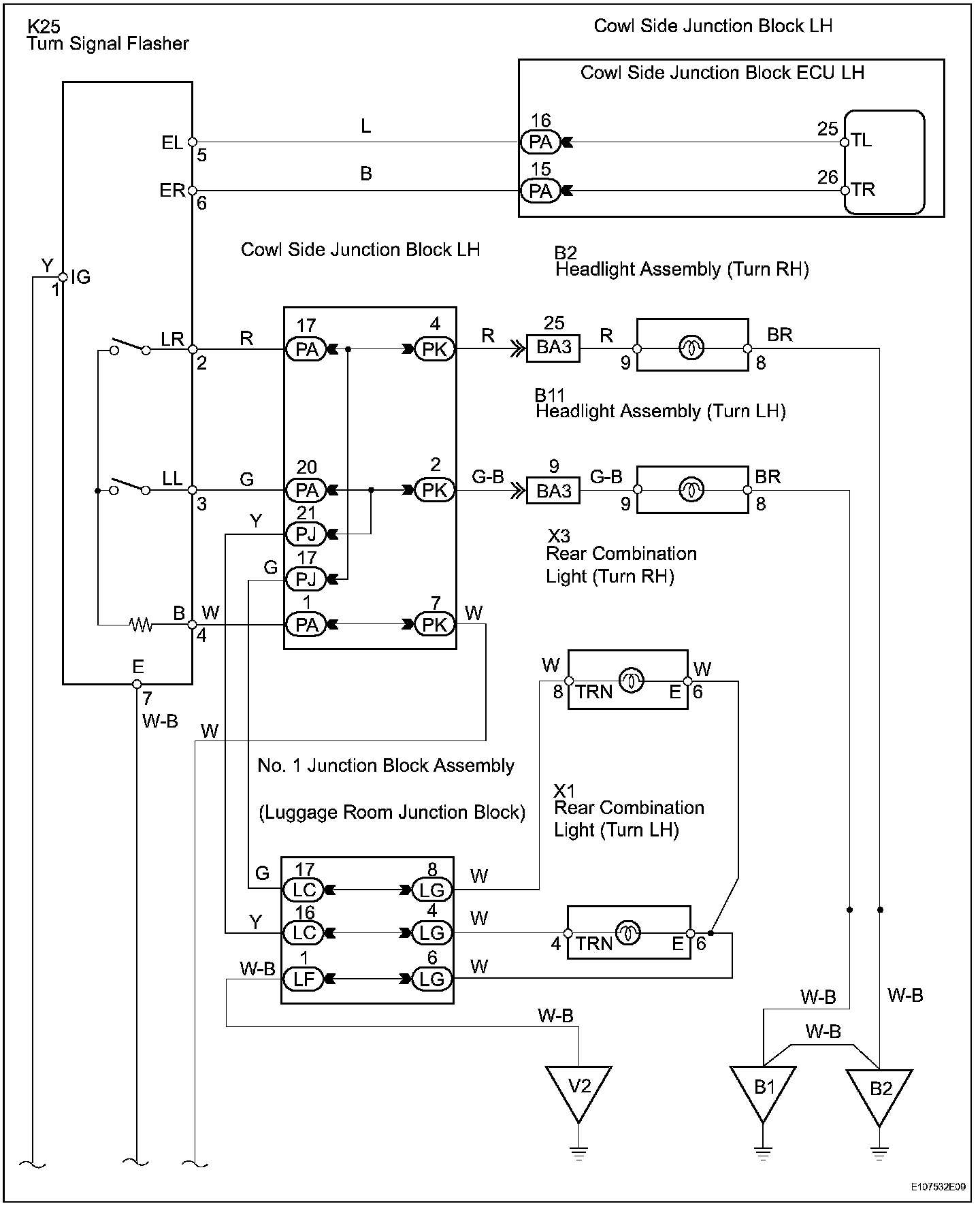

Wiring Diagram (Part 1):

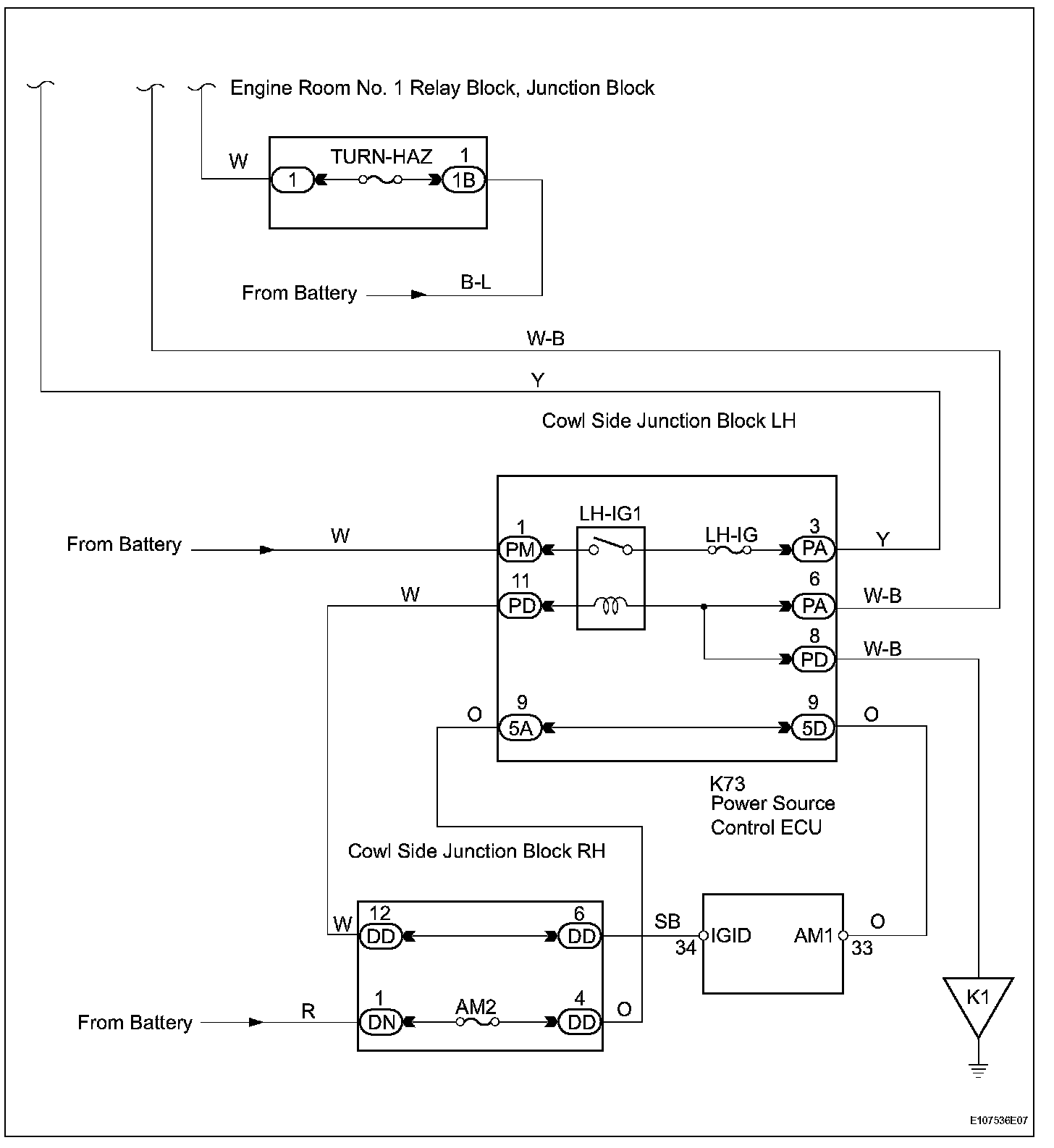

Wiring Diagram (Part 2):

INSPECTION PROCEDURE

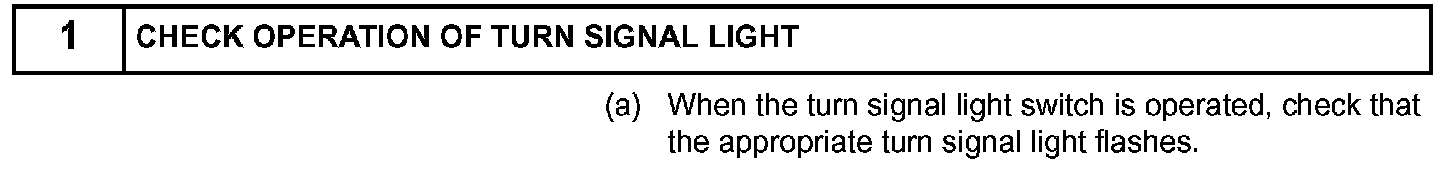

Step 1:

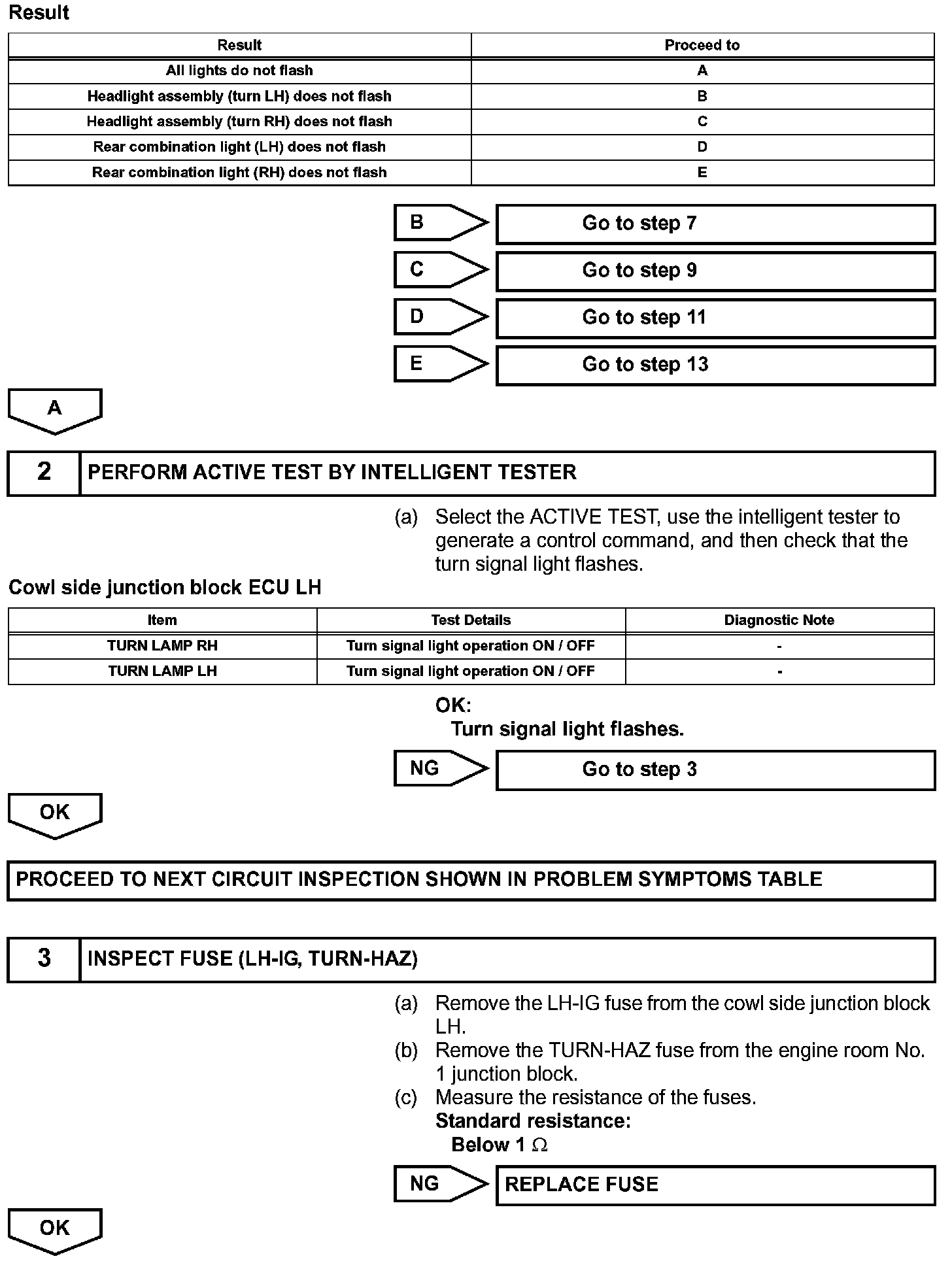

Step 1 (Continued)-3:

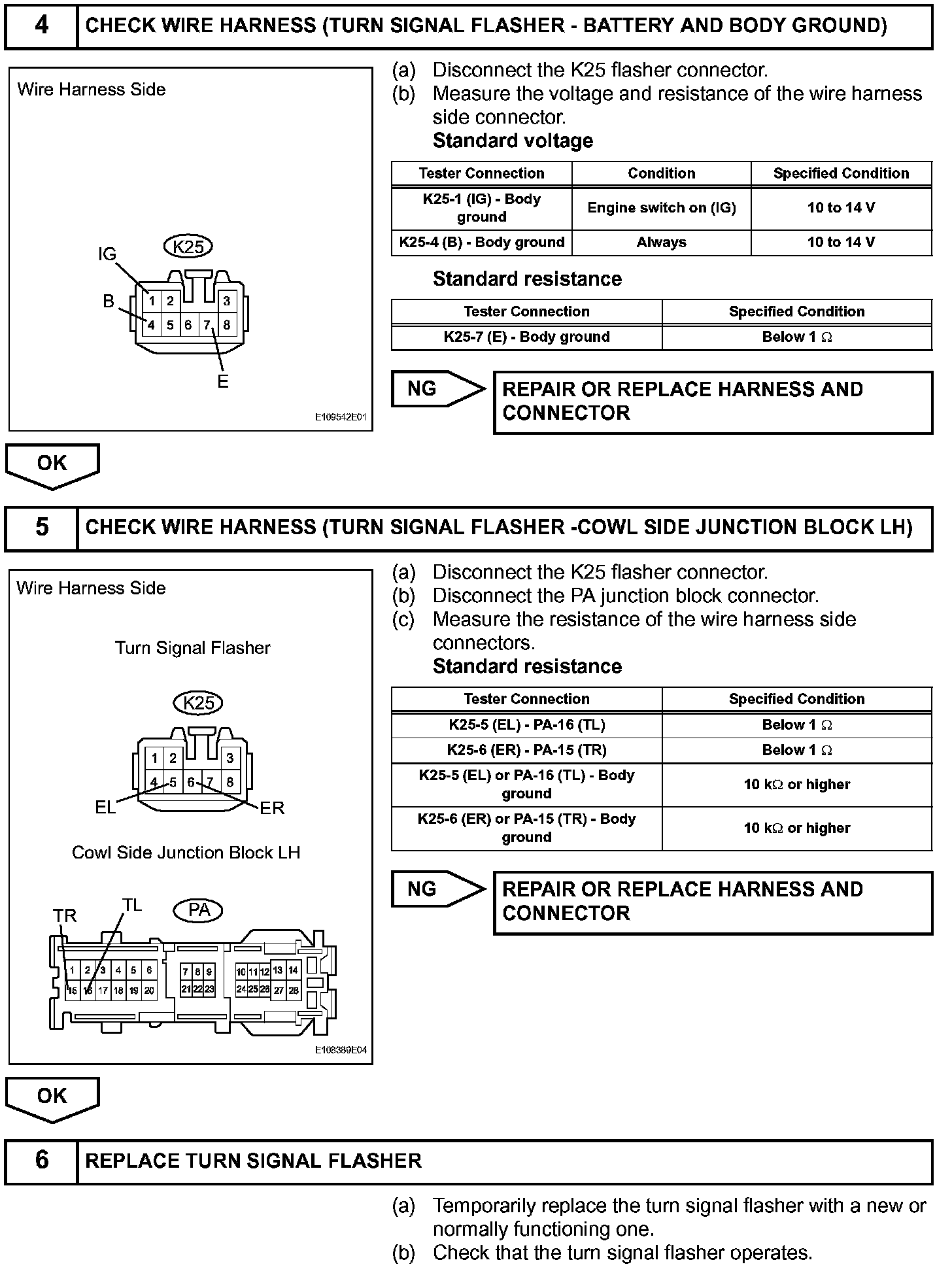

Step 4-6:

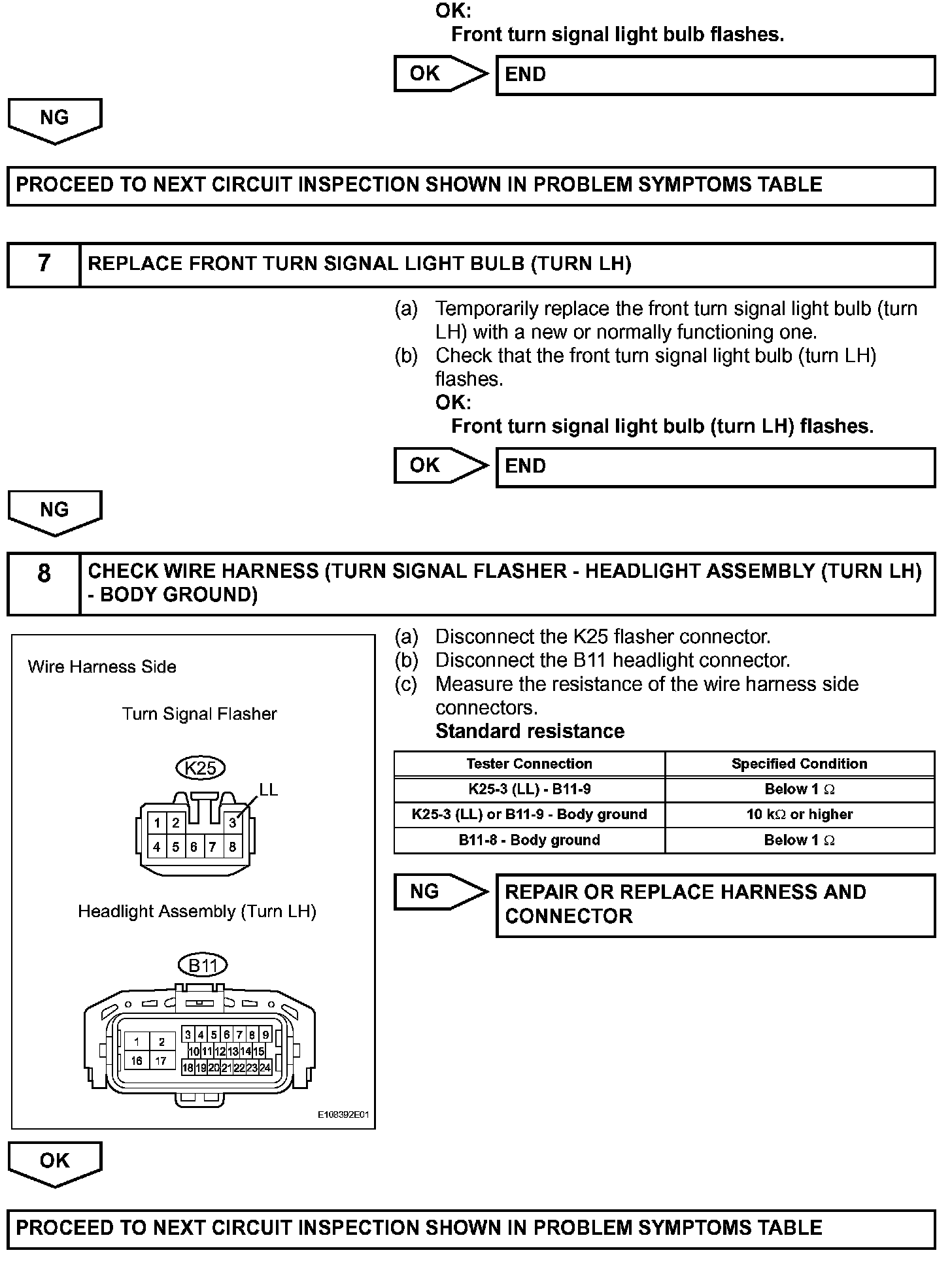

Step 6 (Continued)-8:

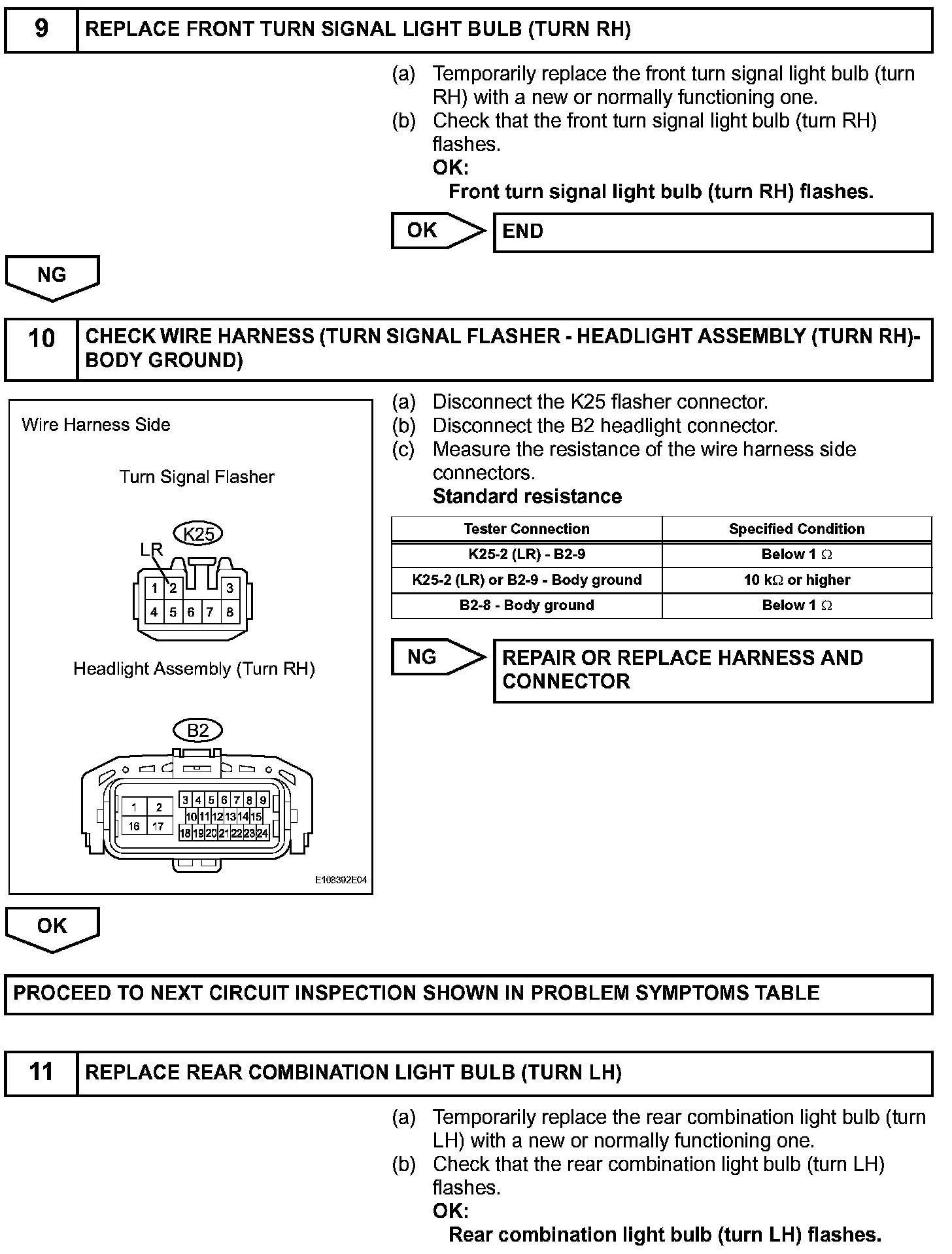

Step 9-11:

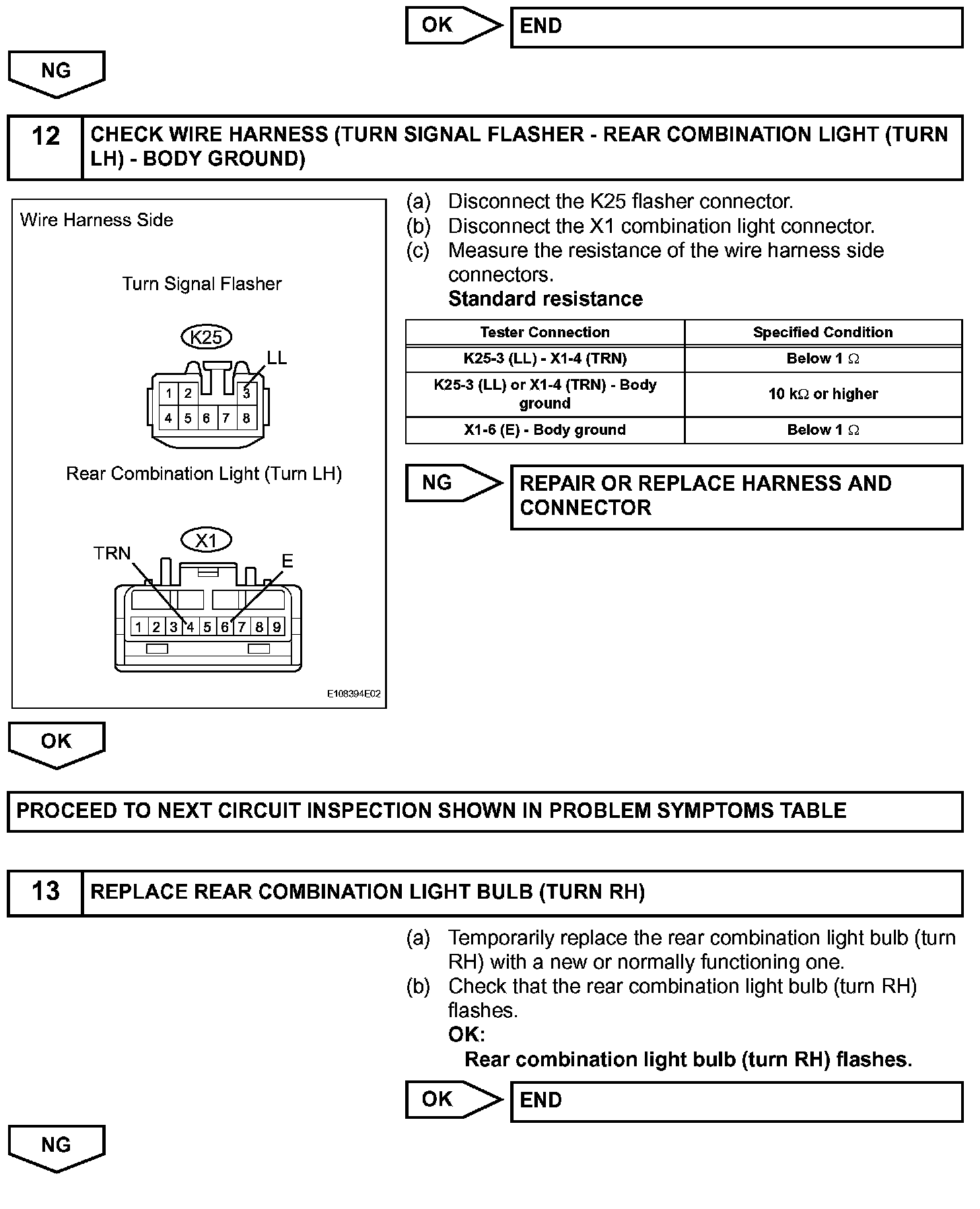

Step 11 (Continued)-13:

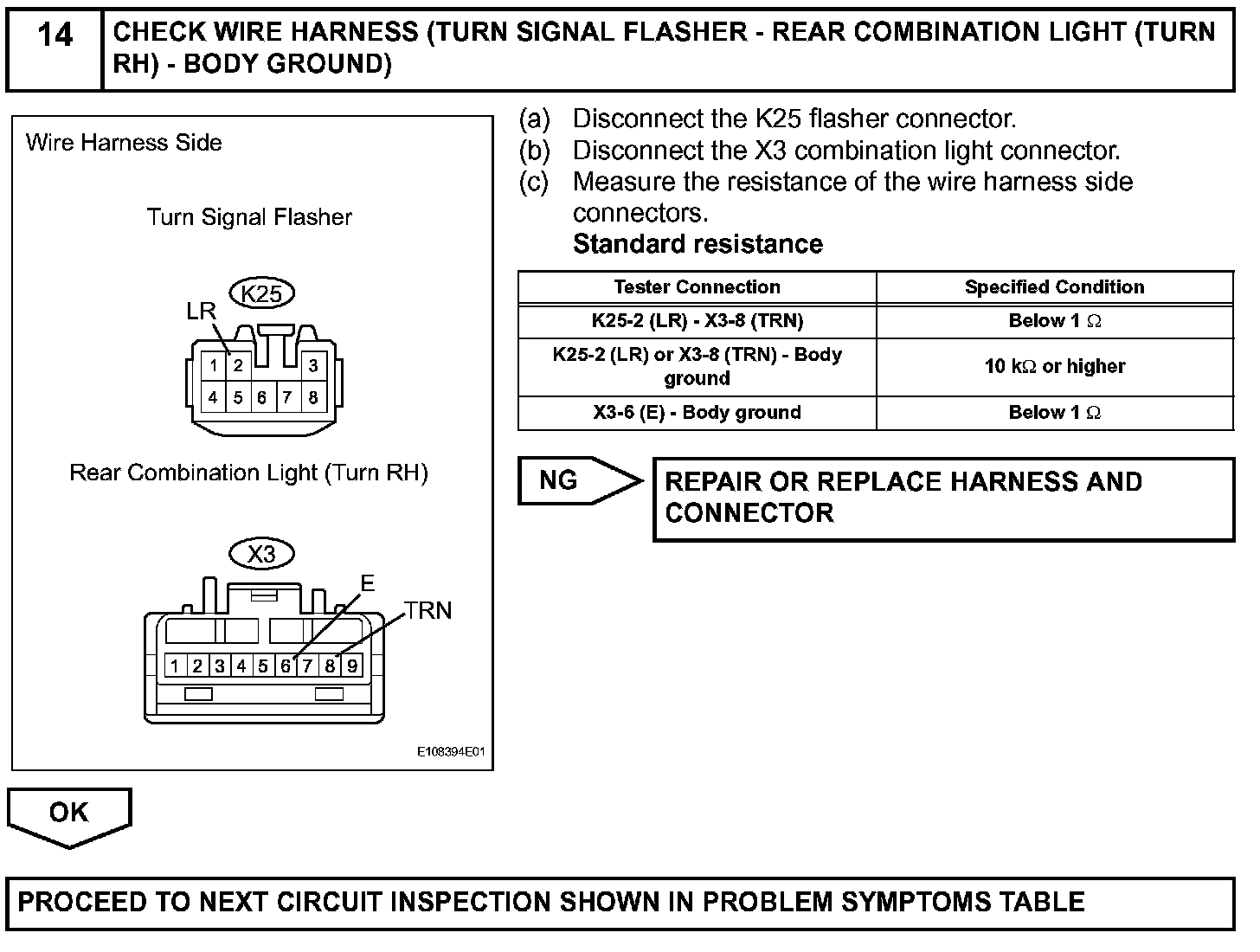

Step 14:
