Room Light Circuit
Room Light CircuitDESCRIPTION
The cowl side junction block ECU LH receives information regarding the door courtesy switch, door lock position switch, engine switch, and turns on the front room light.

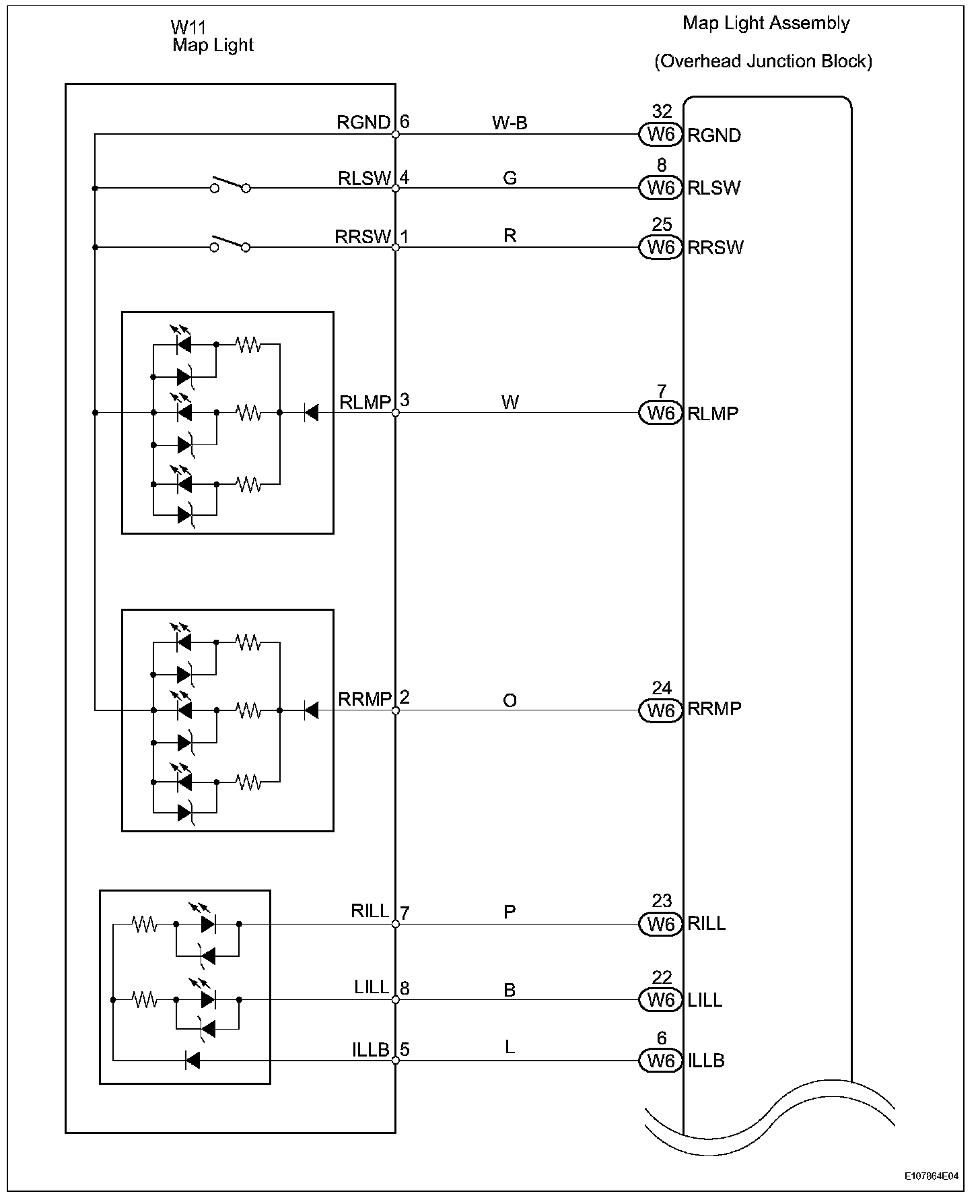

Wiring Diagram (Part 1):

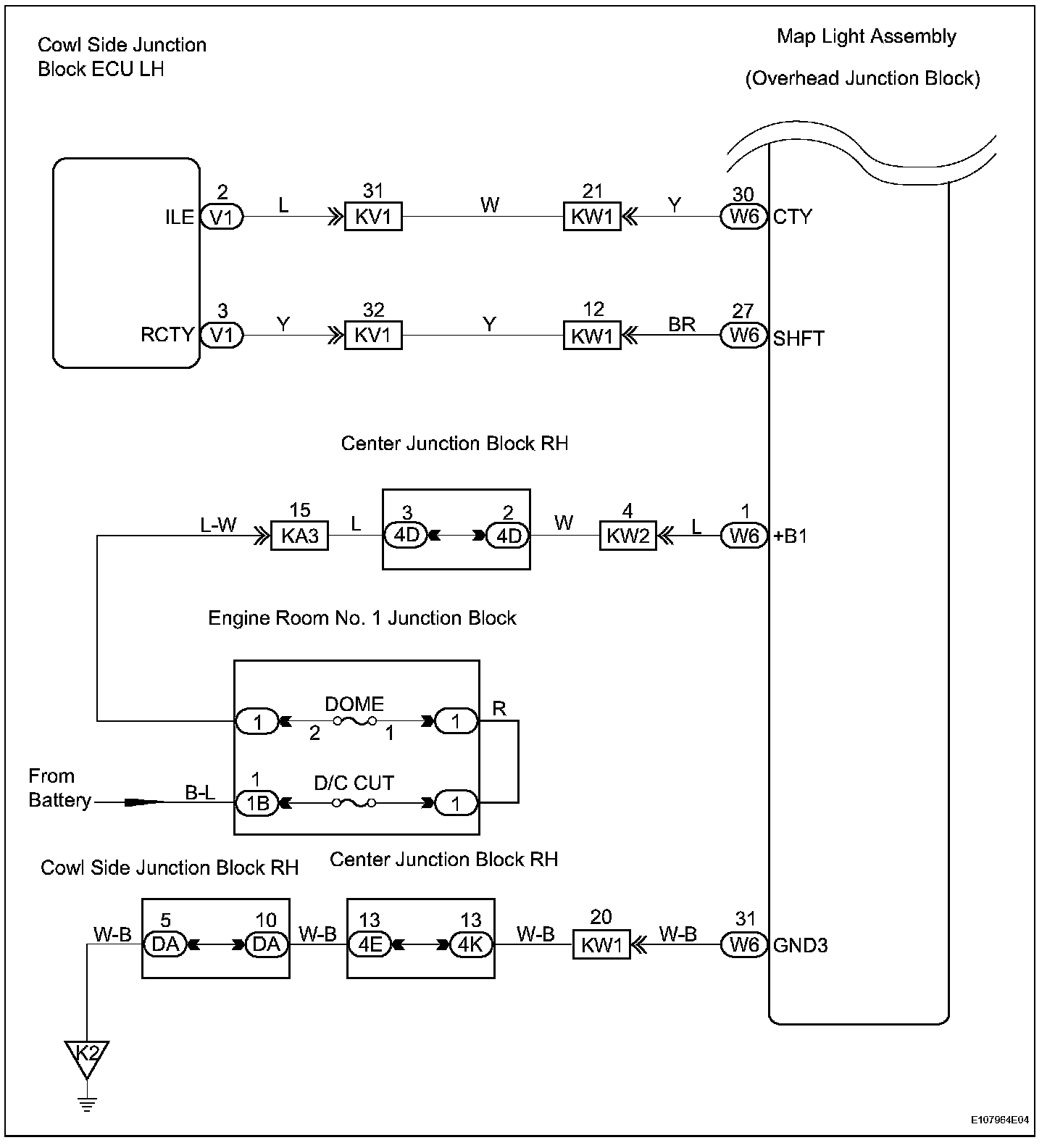

Wiring Diagram (Part 2):
INSPECTION PROCEDURE

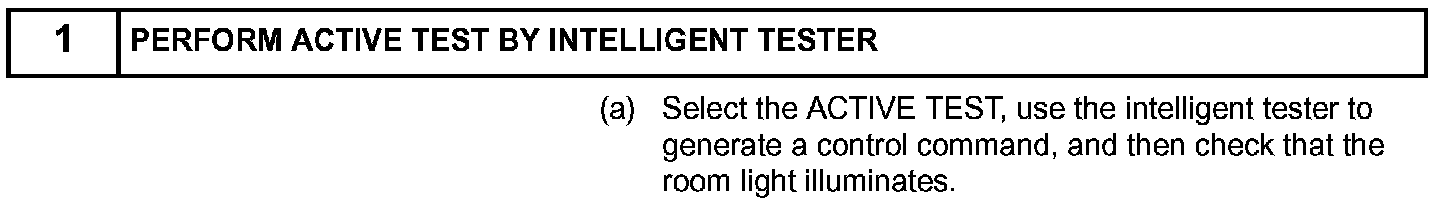

Step 1:

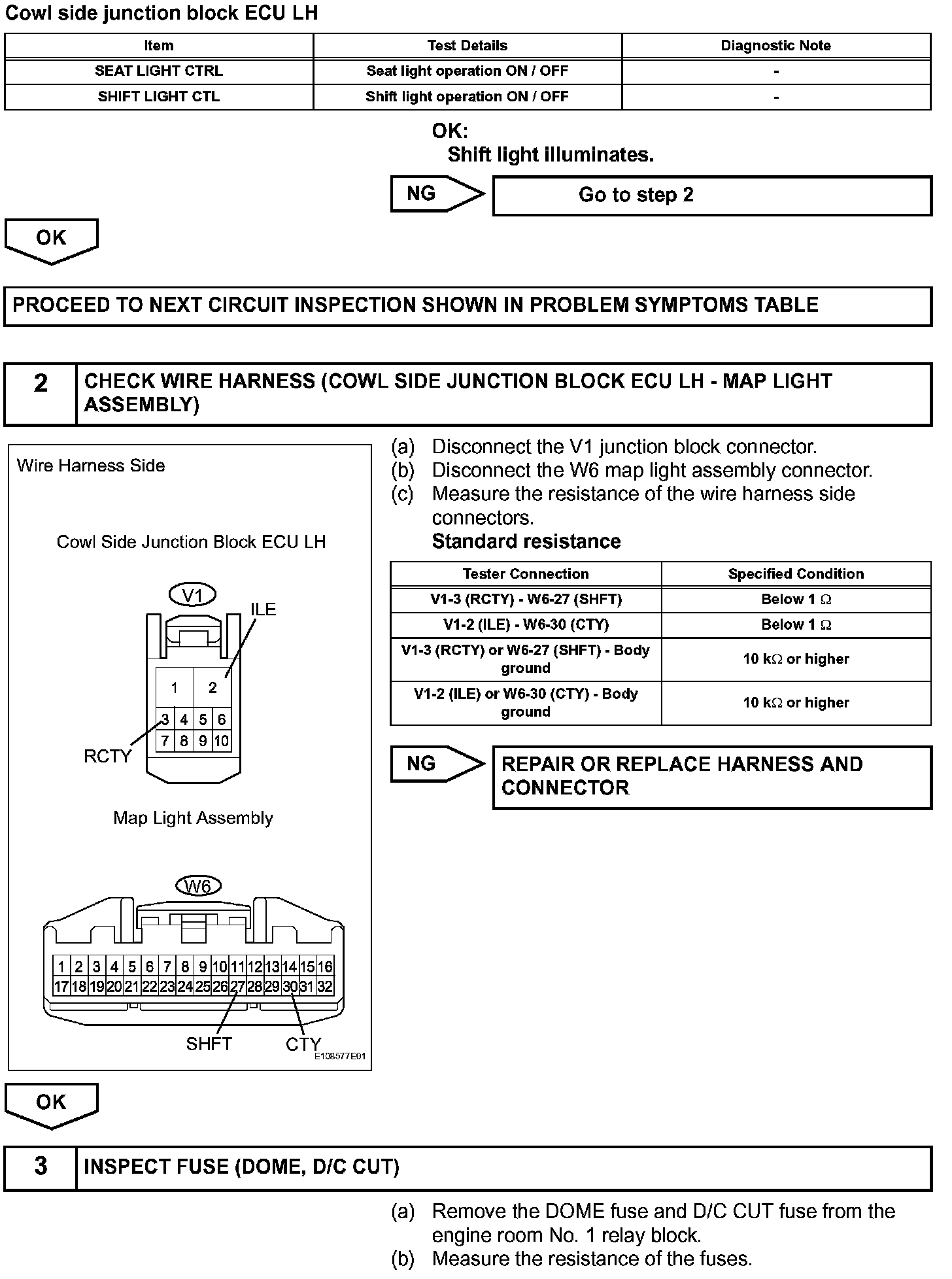

Step 1 (Continued)-3:
Step 3 (Continued)-5:

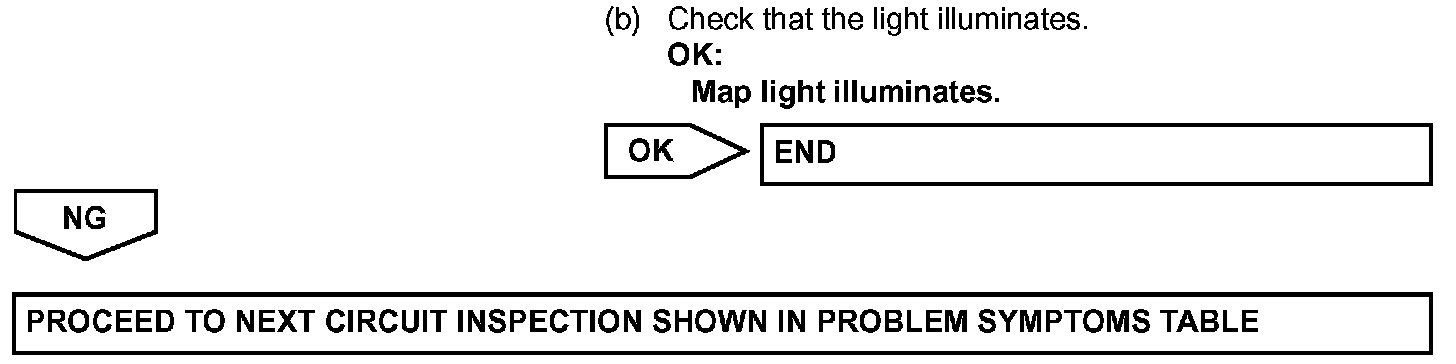

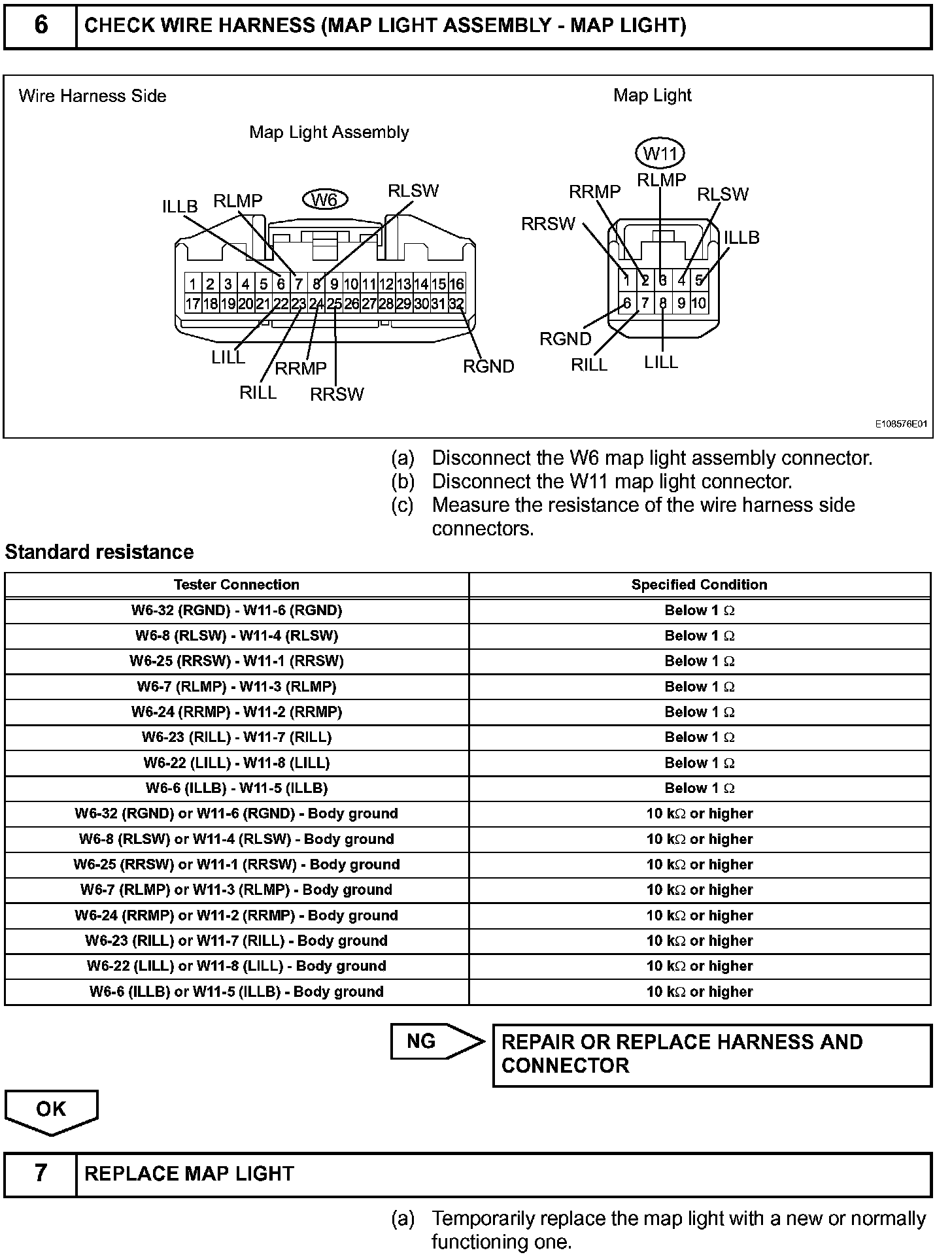

Step 6-7:
Step 7 (Continued):
