Inside Handle Illumination Light Circuit

Inside Handle Illumination Light Circuit

DESCRIPTION

The inside handle illumination light illuminates when the door is opened and turns off when the door is closed.

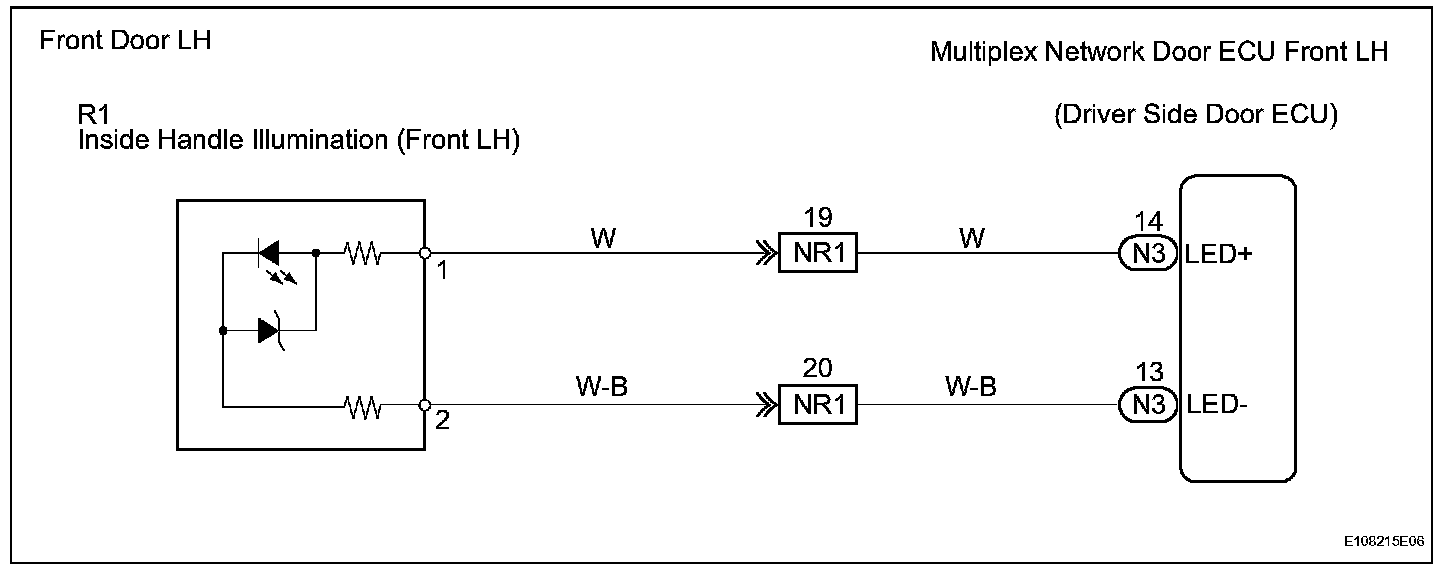

Wiring Diagram (Front Door LH):

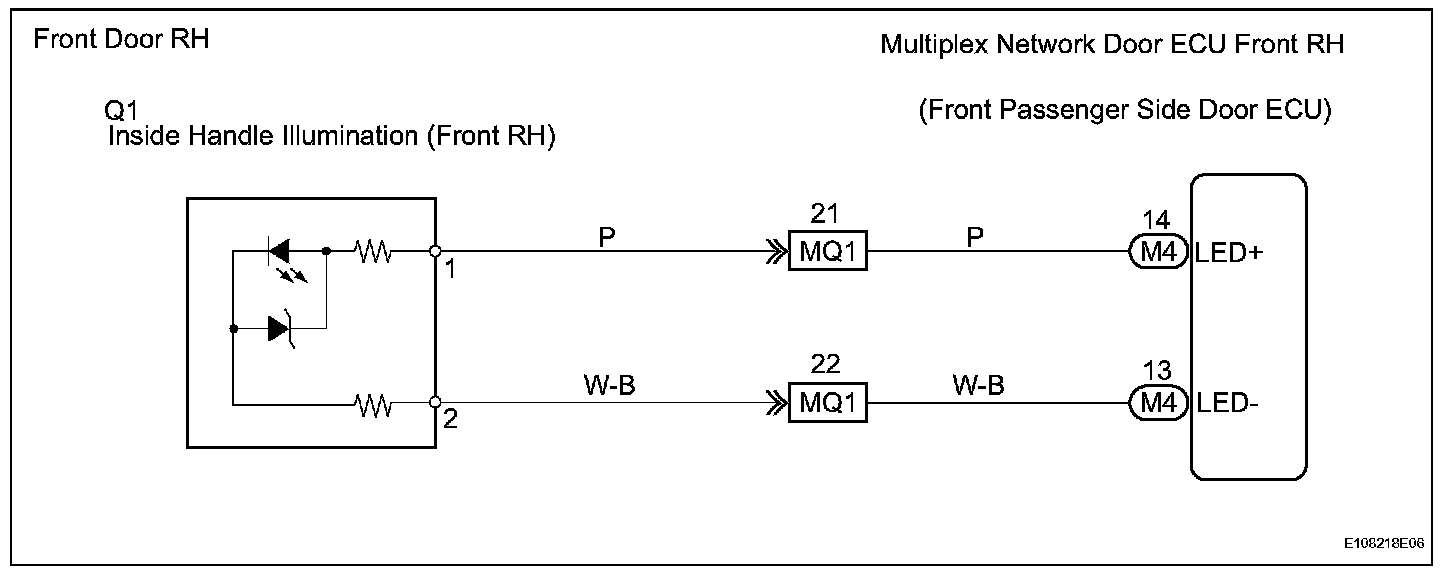

Wiring Diagram (Front Door RH):

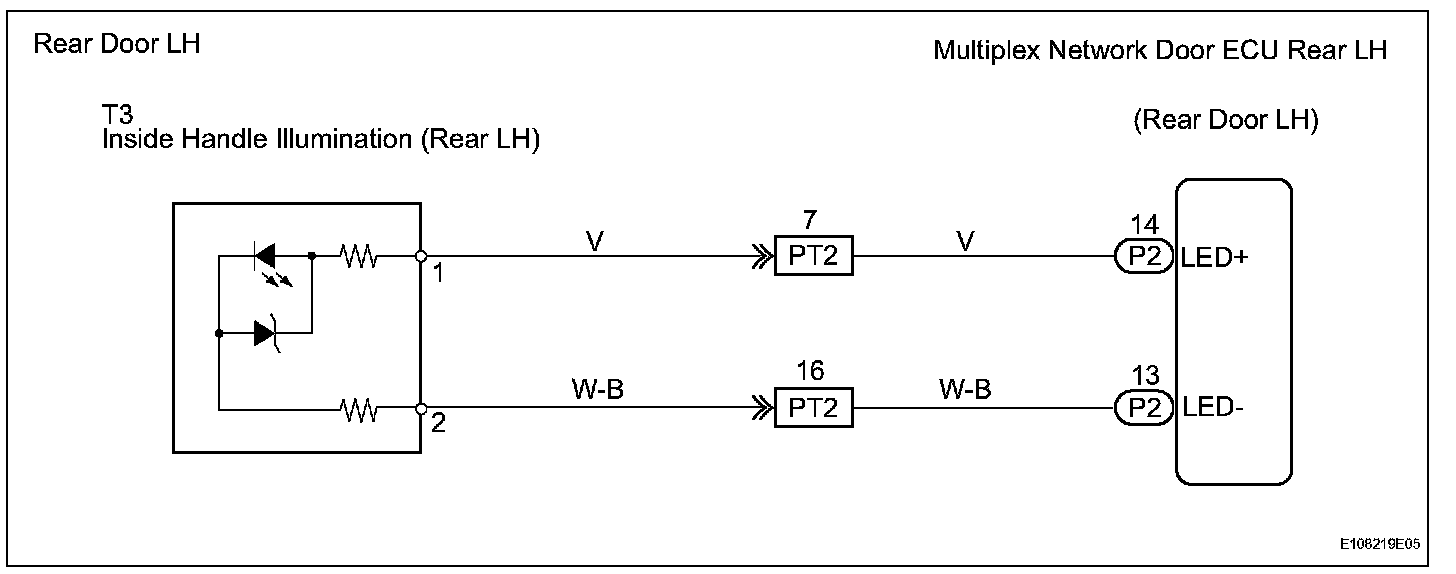

Wiring Diagram (Rear Door LH):

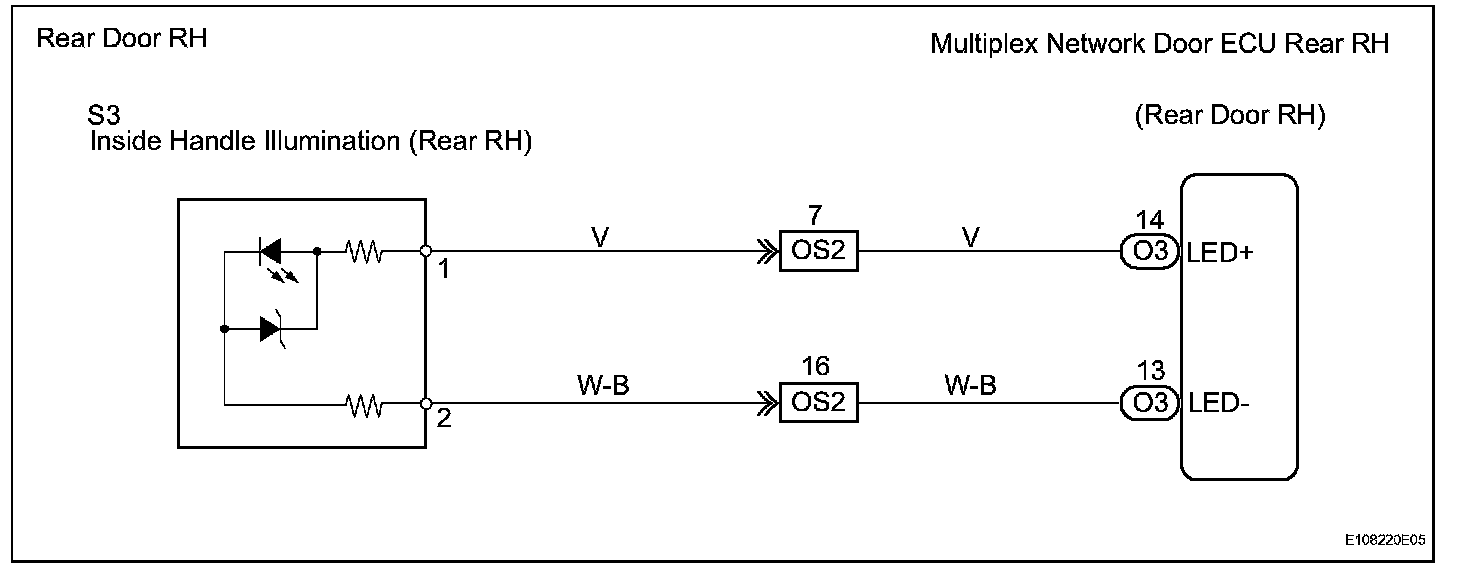

Wiring Diagram (Rear Door RH):

INSPECTION PROCEDURE

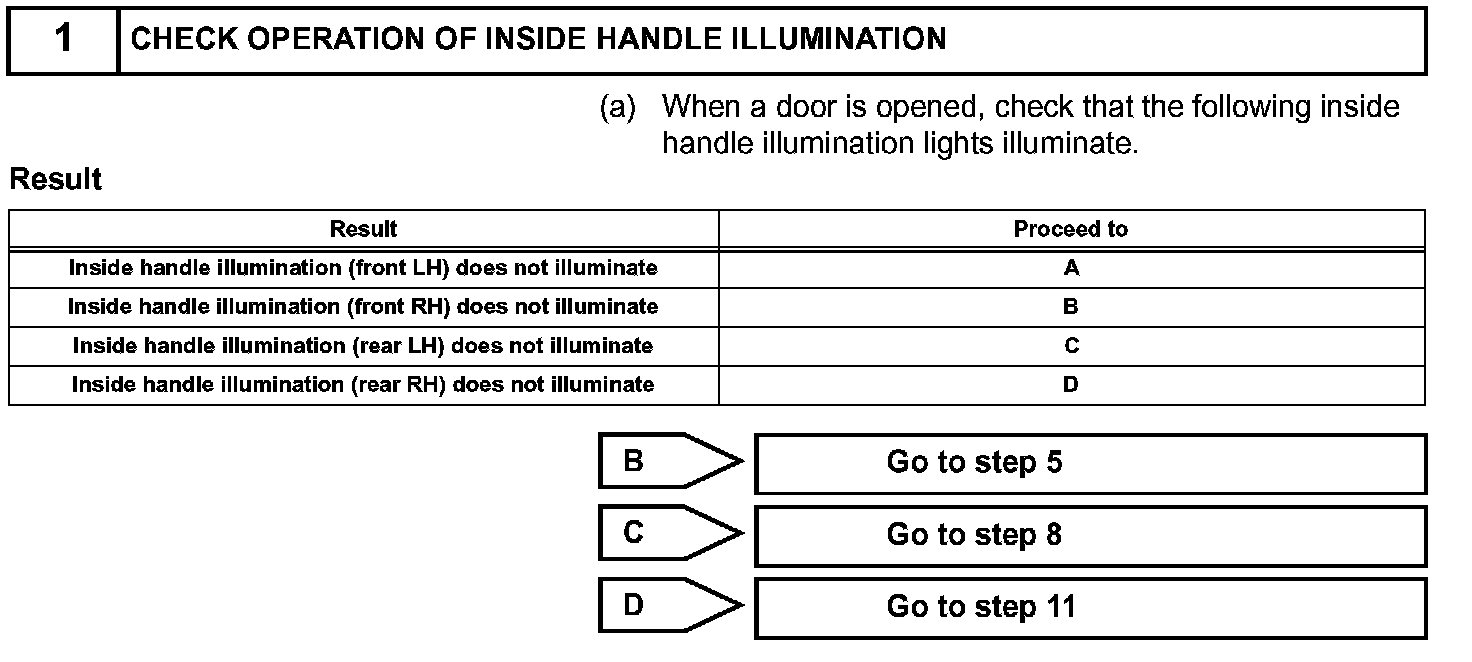

Step 1:

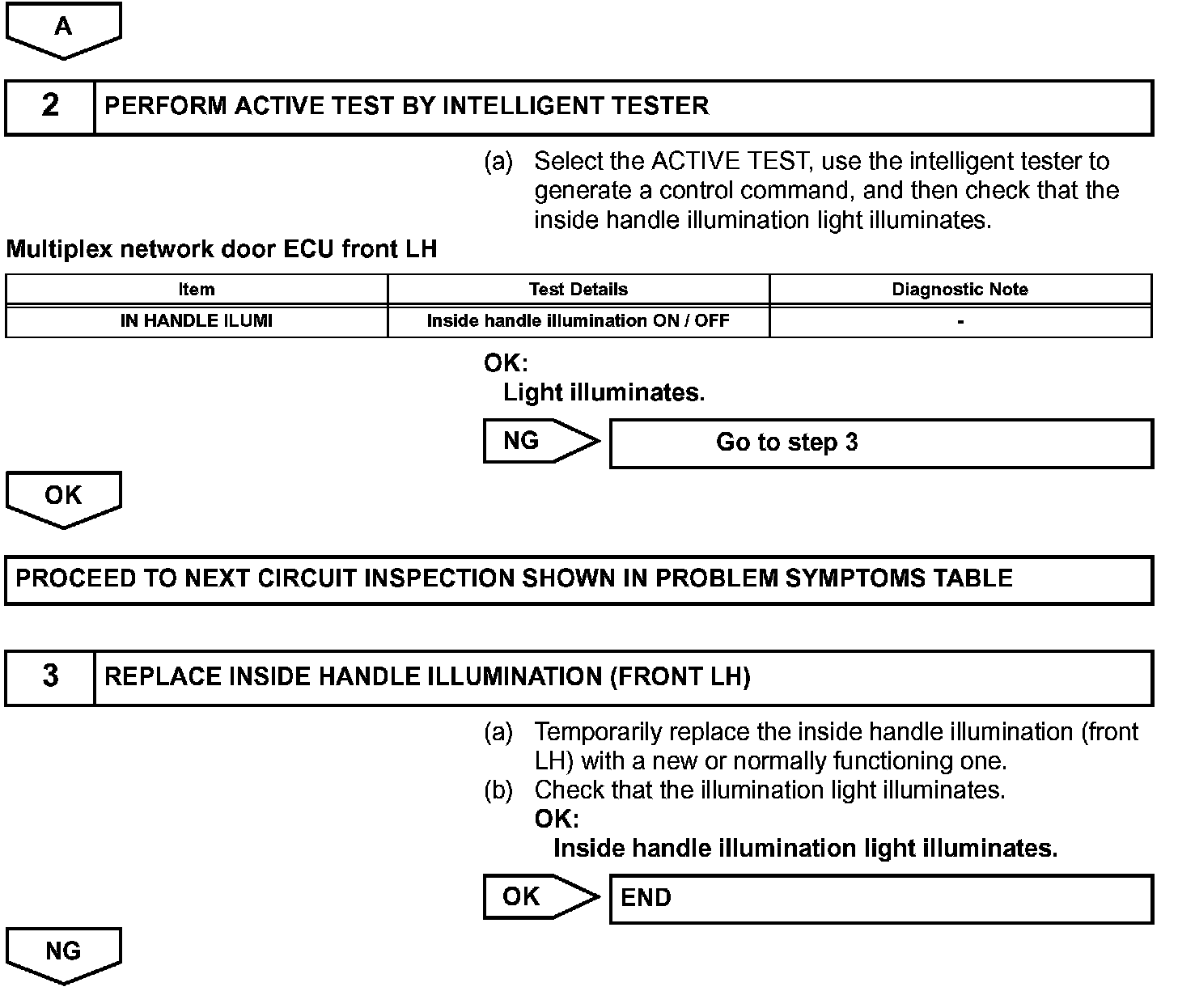

Step 1 (Continued)-3:

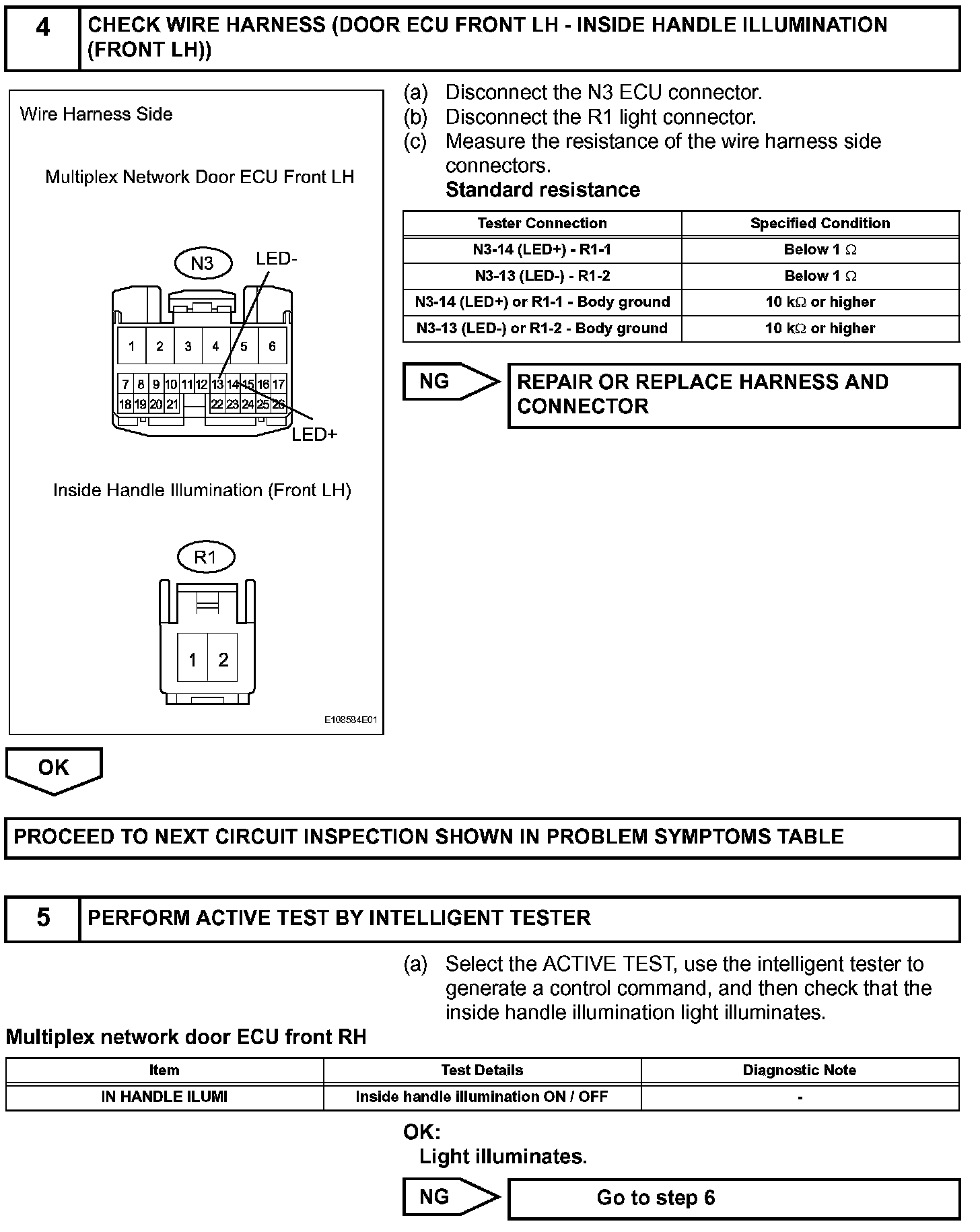

Step 4-5:

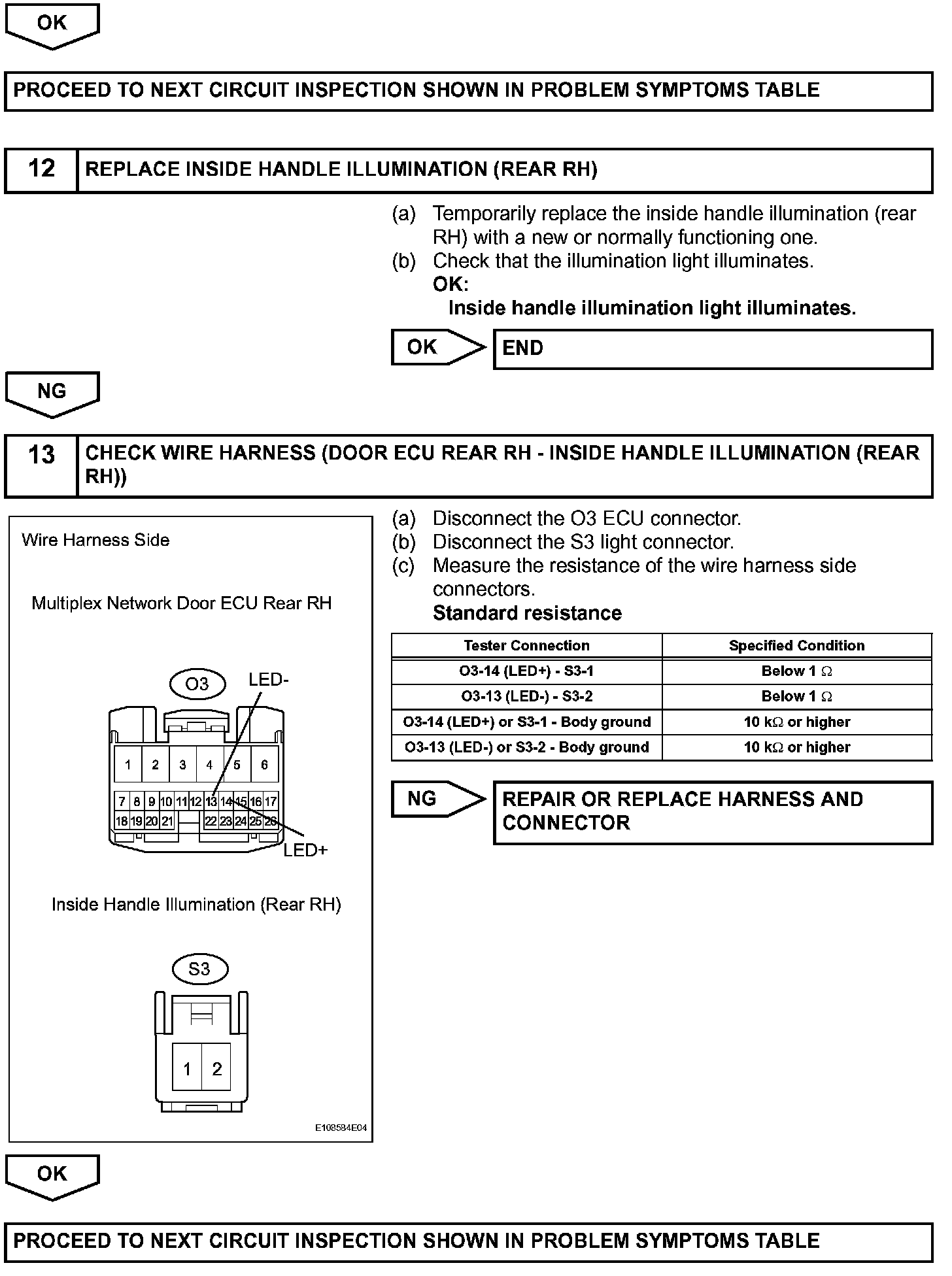

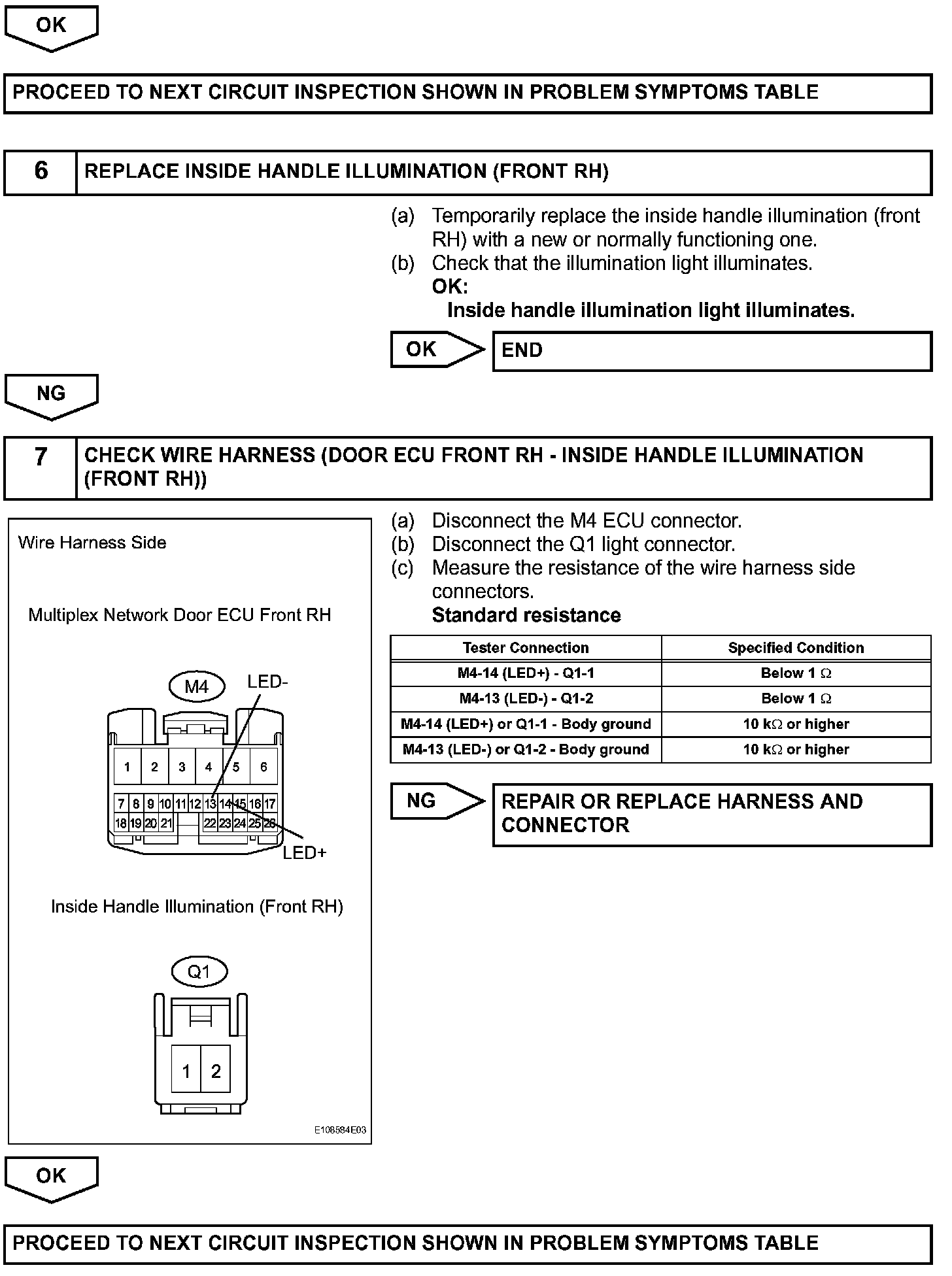

Step 5 (Continued)-7:

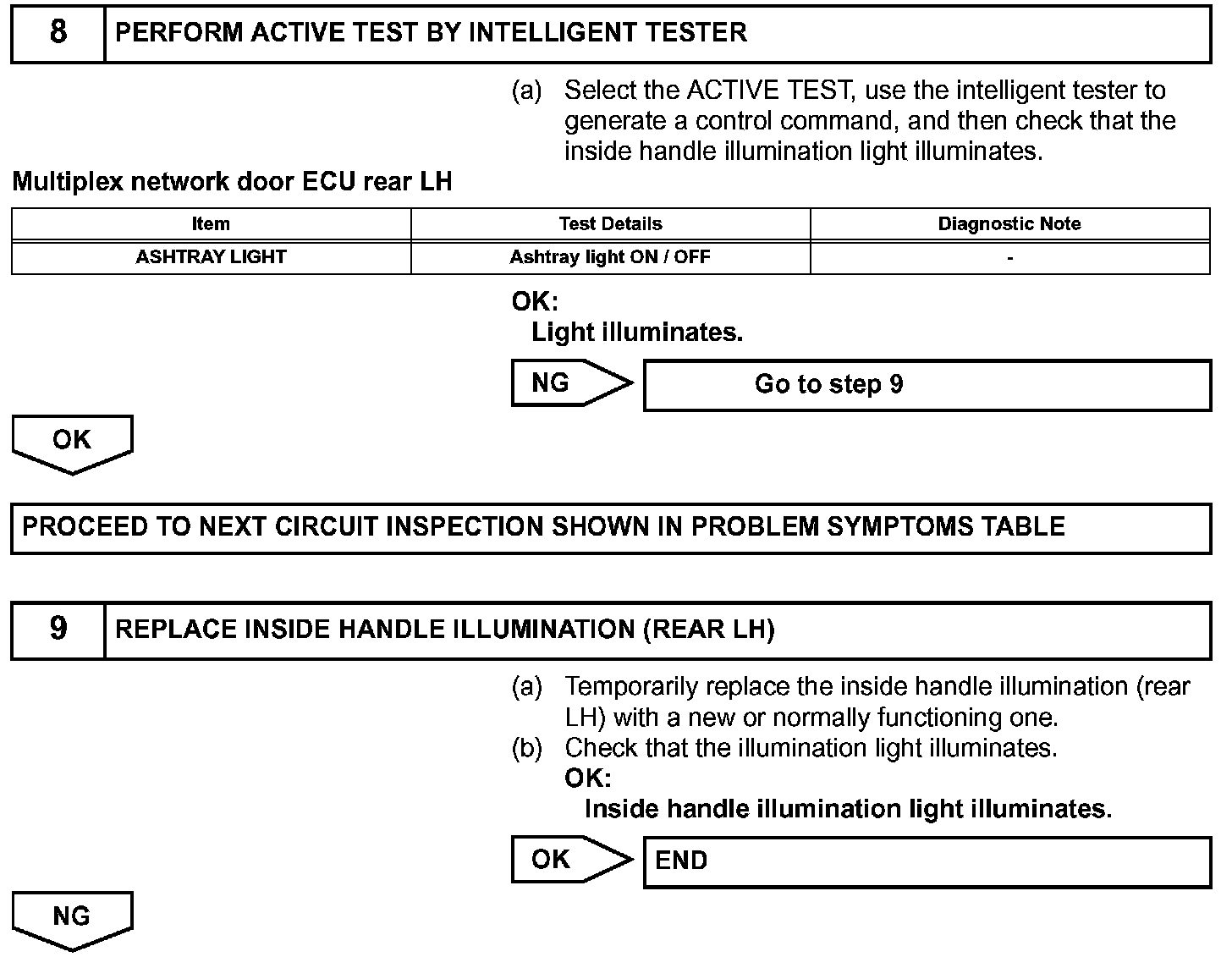

Step 8-9:

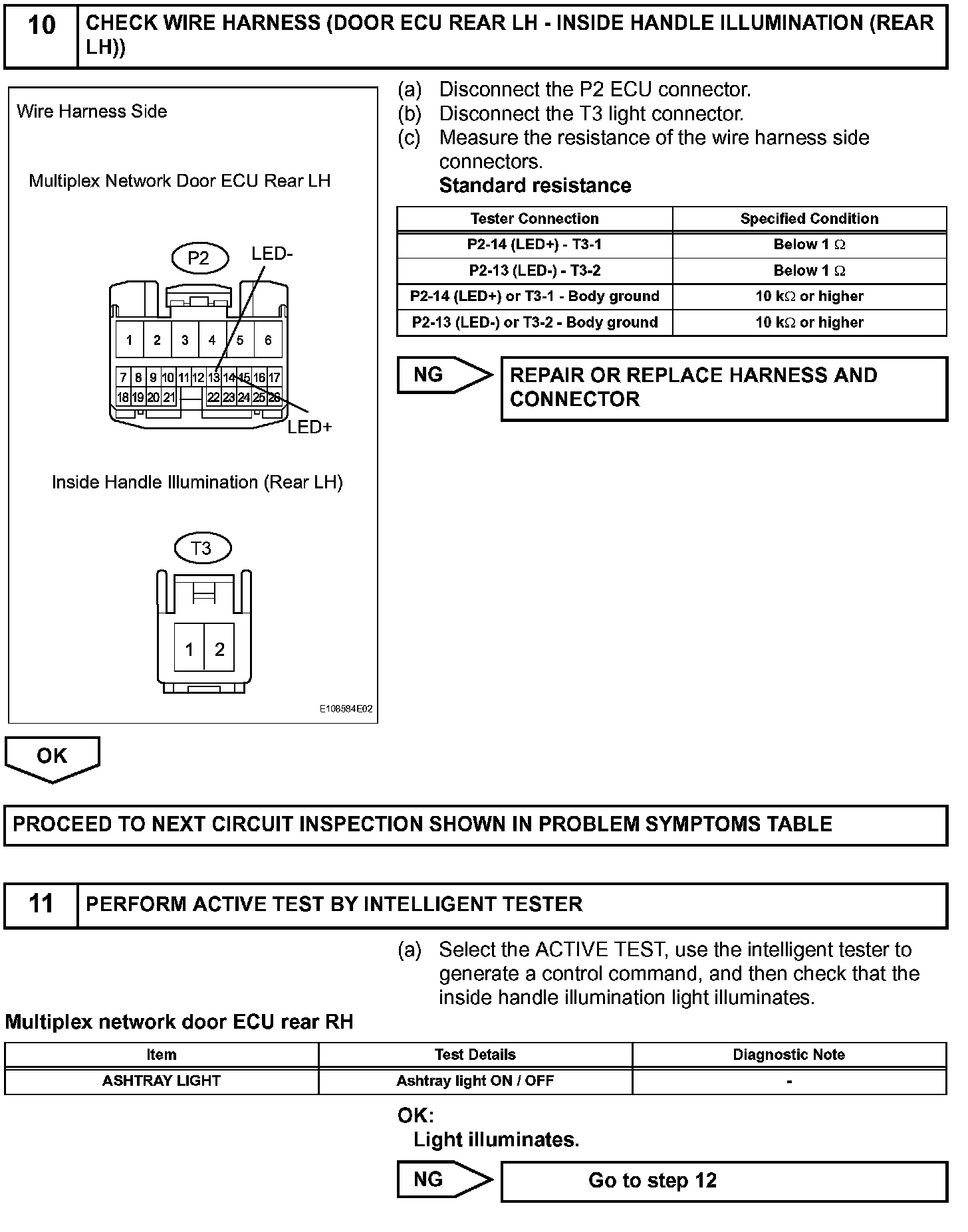

Step 10-11:

Step 11 (Continued)-13:
