Height Control Sensor Circuit
Height Control Sensor CircuitDESCRIPTION

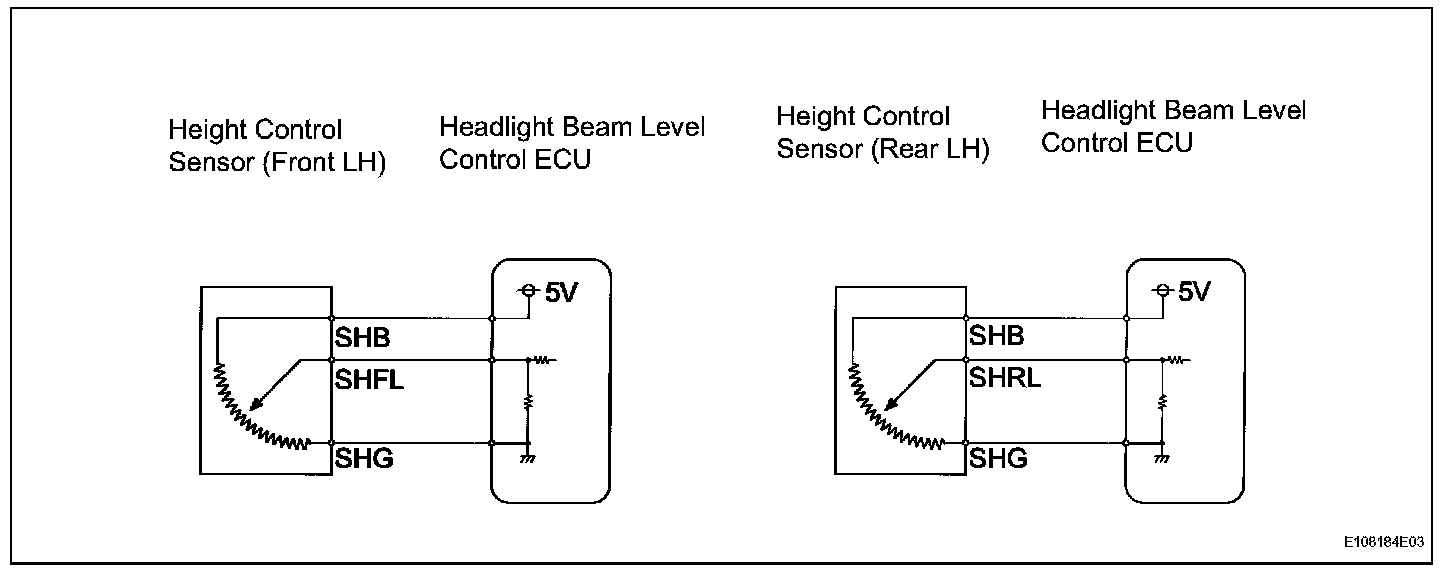

This circuit provides power to operate the height control sensor. The headlight beam level control ECU calculates a height value from the height control sensor signal and the voltage at the power source of the height control sensor. The voltage at the power source of the height control sensor is corrected when SHFL or SHRL is detected.

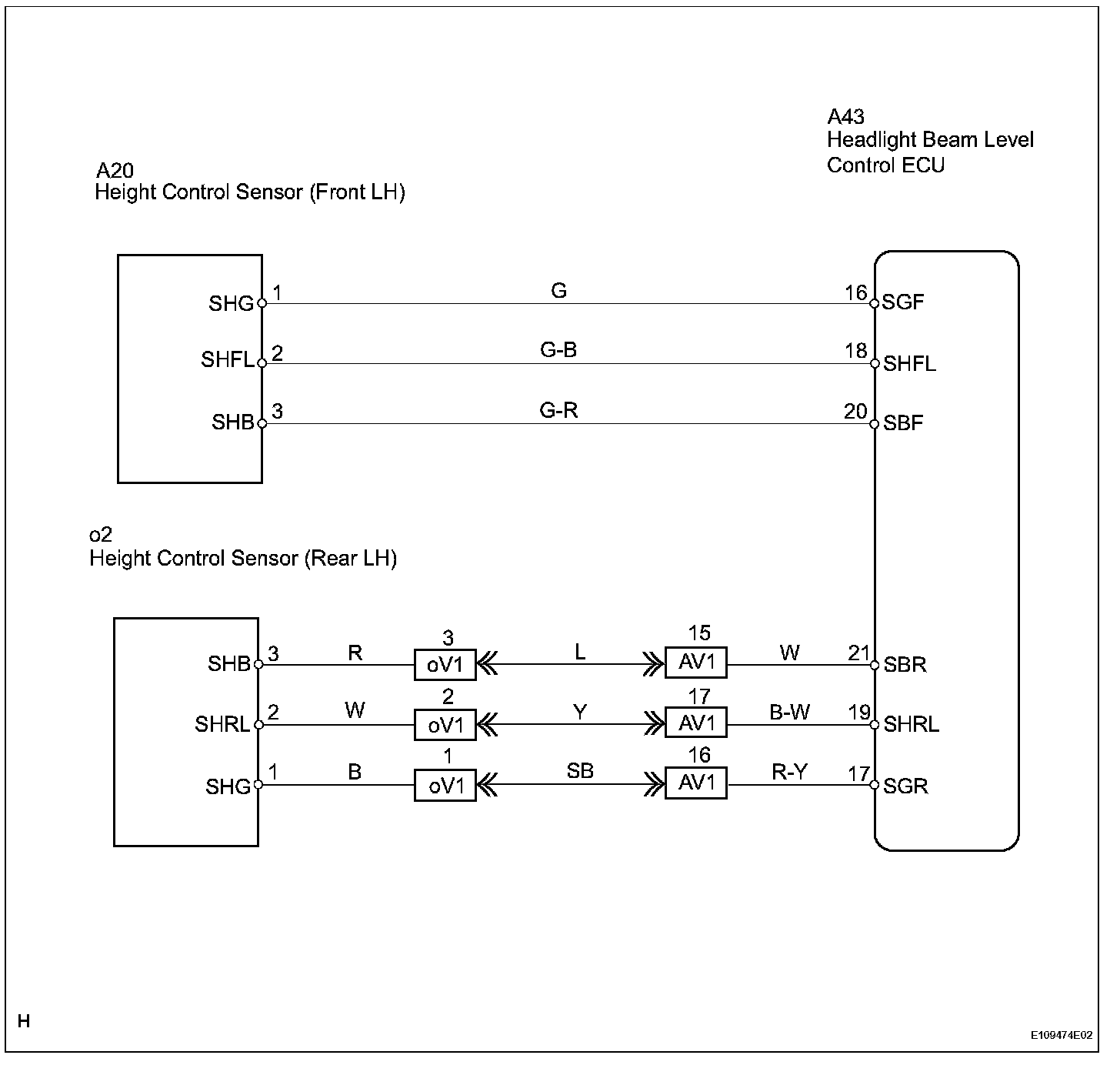

Wiring Diagram:
INSPECTION PROCEDURE

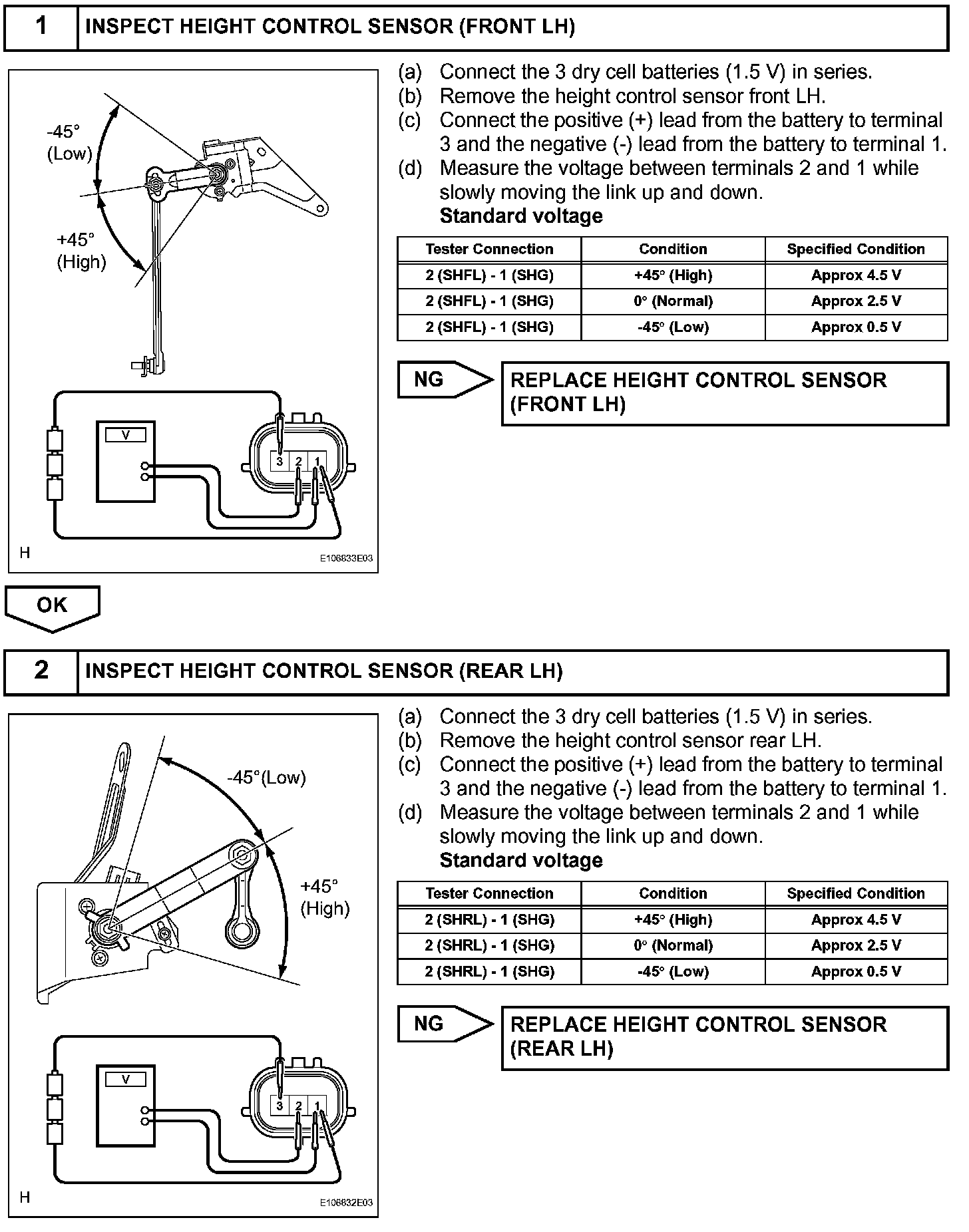

Step 1-2:

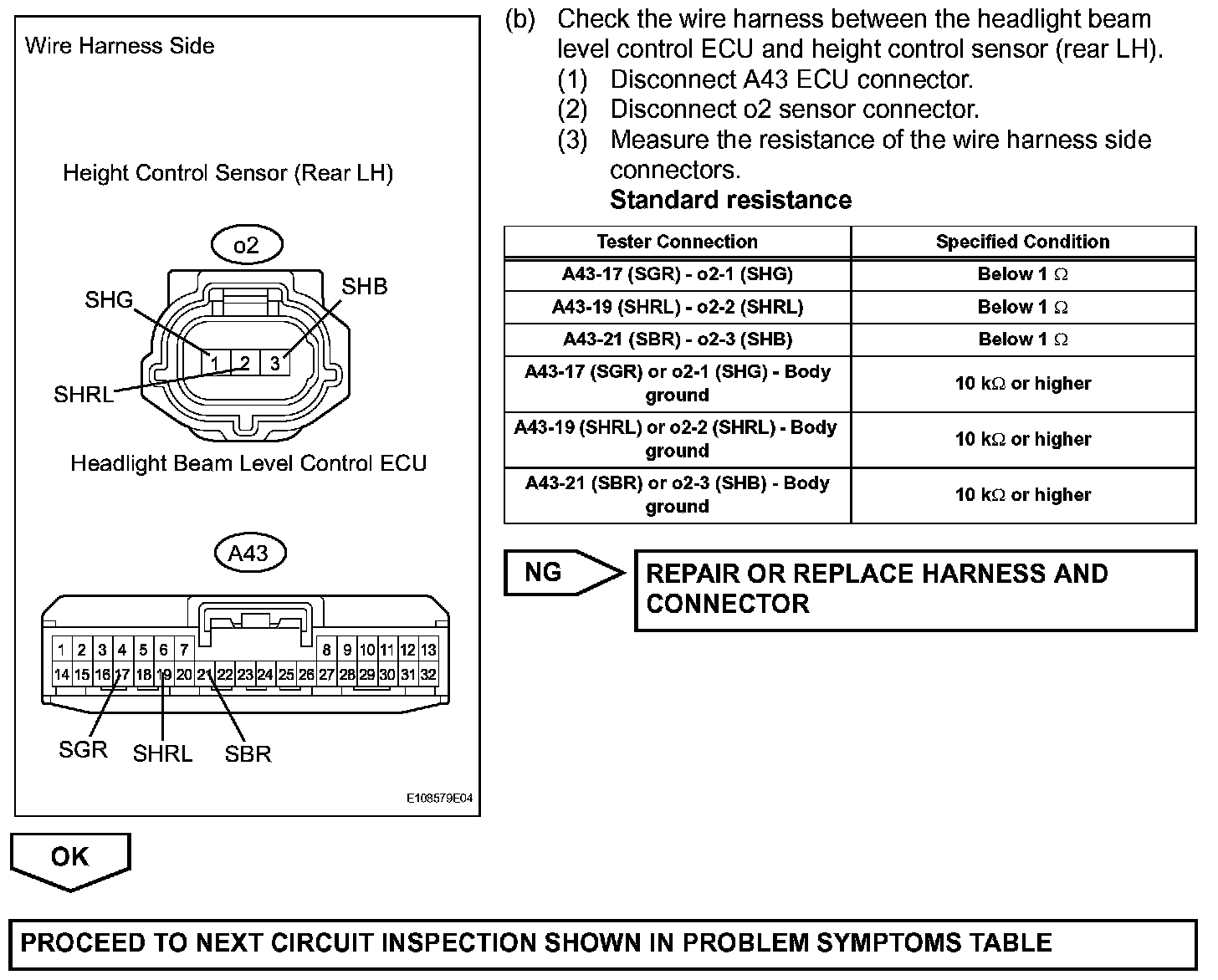

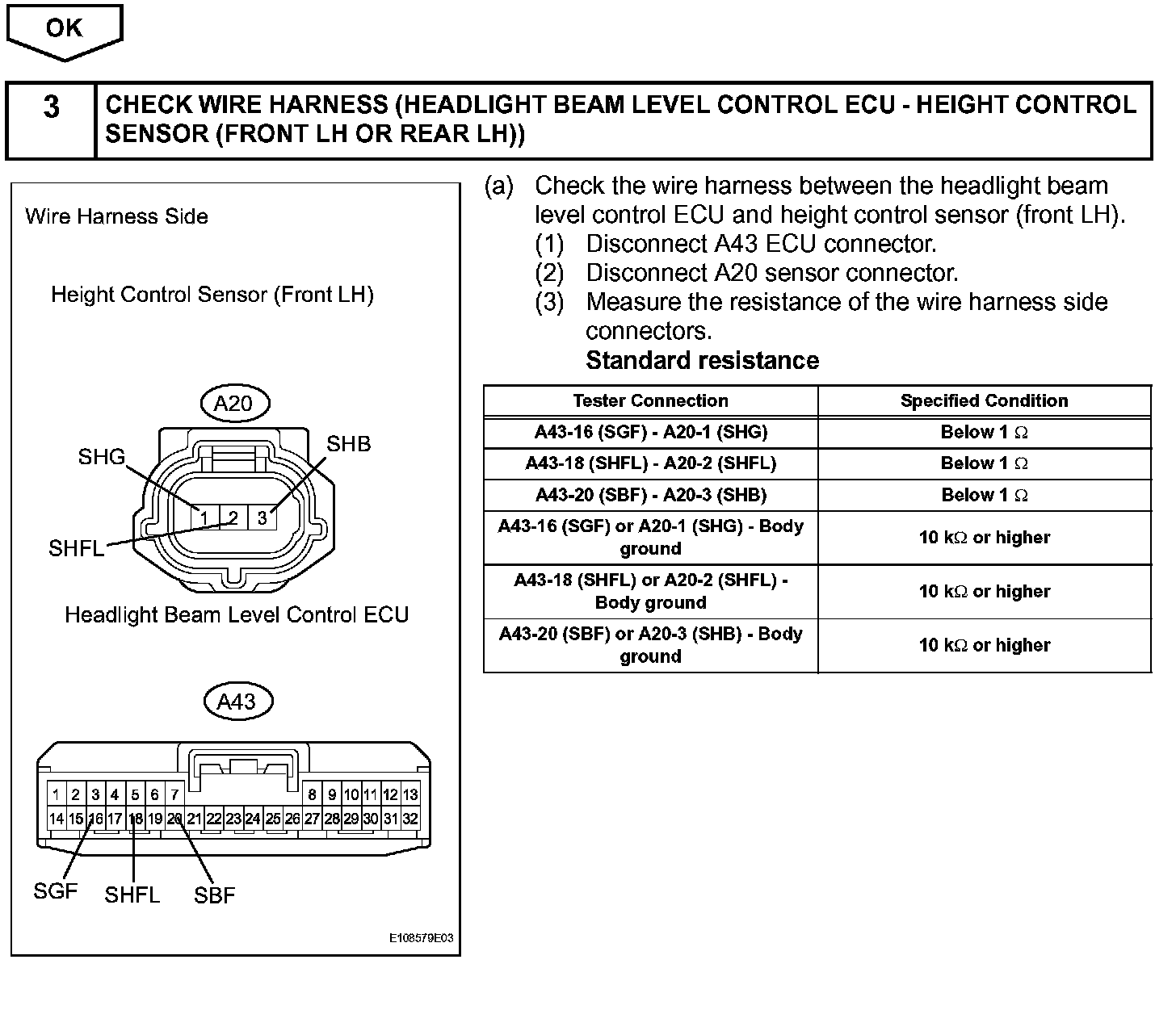

Step 2 (Continued)-3:
Step 3 (Continued):
