Headlight Signal Circuit

Headlight Signal Circuit

DESCRIPTION

The cowl side junction block ECU RH receives the HEAD position signal from the light control switch. It also receives the signal from the combination switch via the multiplex communication system.

Wiring Diagram:





INSPECTION PROCEDURE

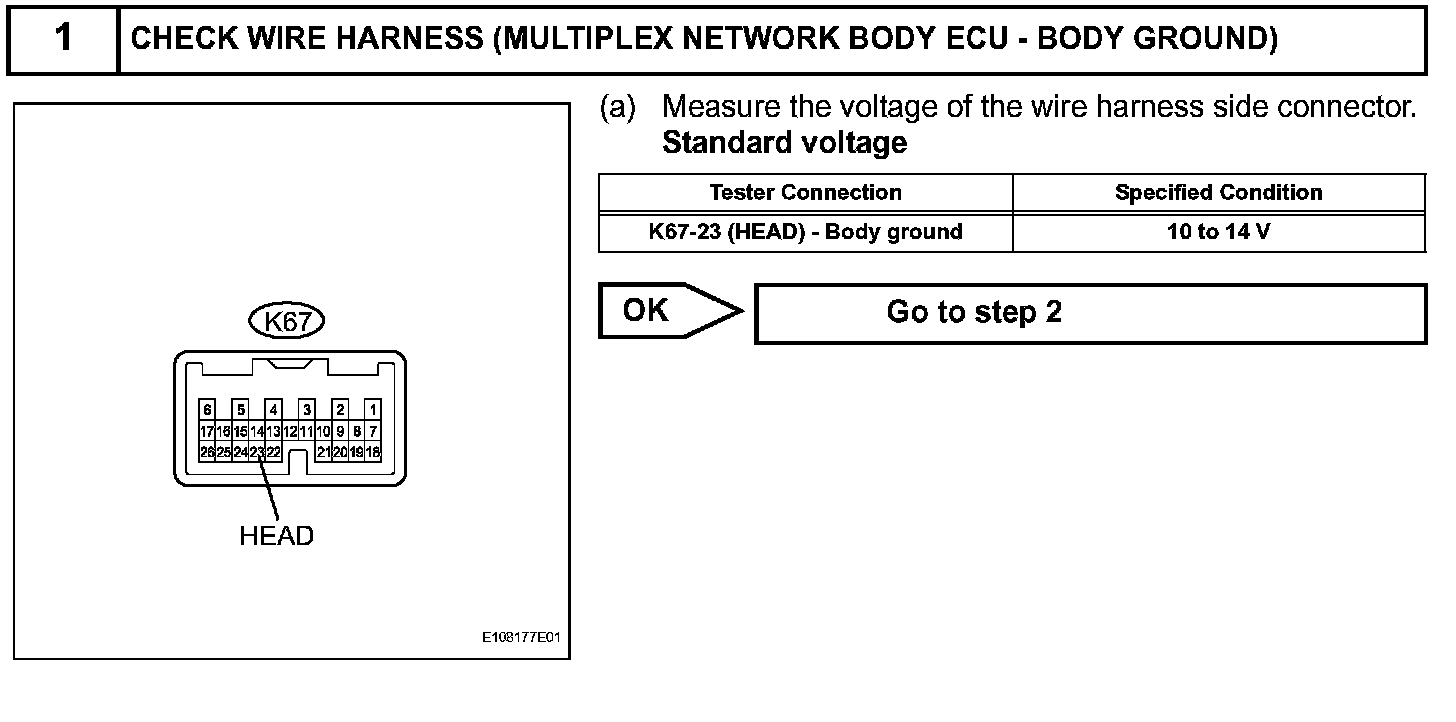

Step 1:

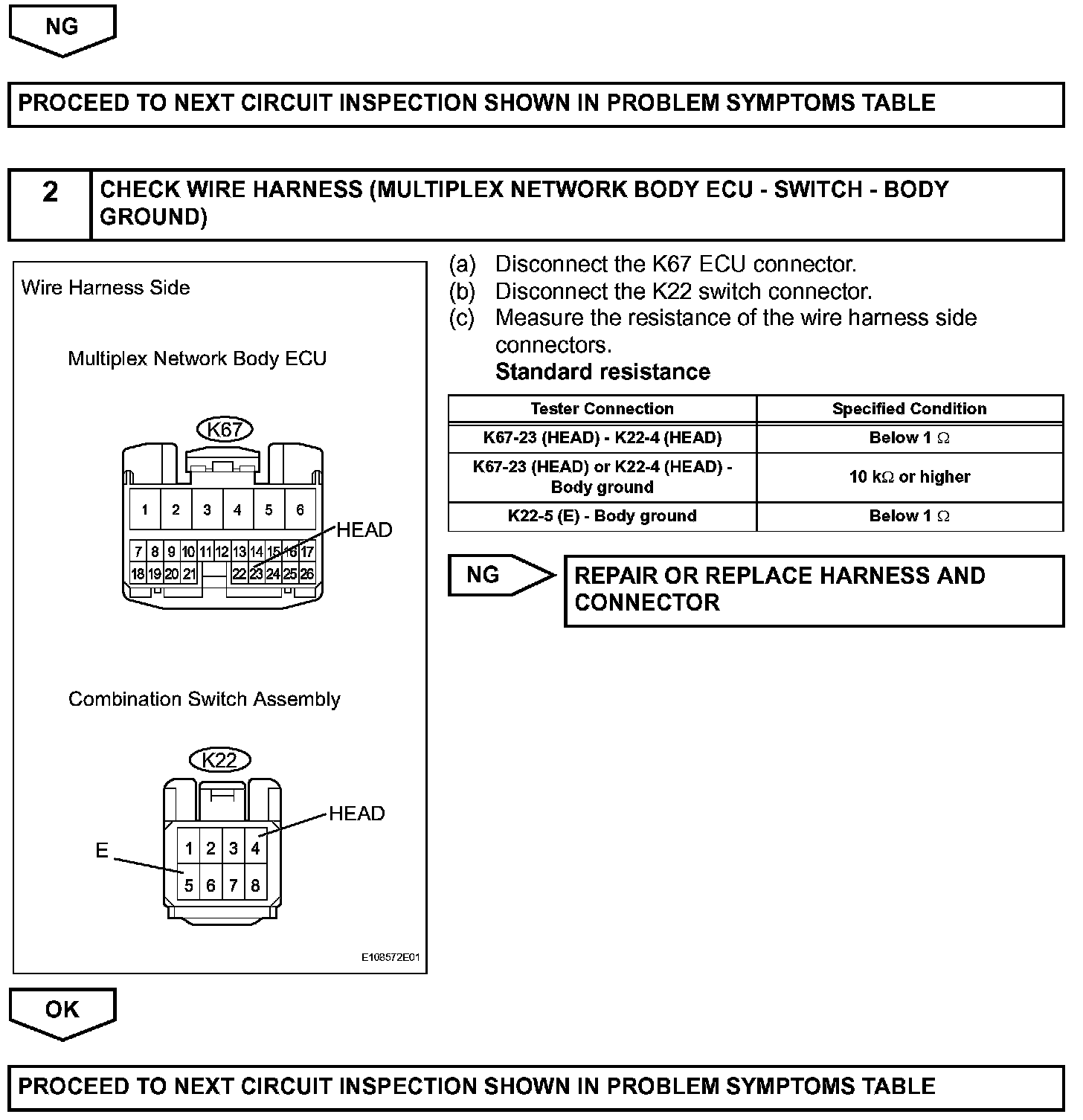

Step 1 (Continued)-2:
