Headlight Beam Level Control Actuator Circuit

Headlight Beam Level Control Actuator Circuit

DESCRIPTION

The headlight level control motor receives signals from the headlight beam level control ECU to operate. The headlight beam level control ECU receives signals regarding operating conditions of the headlight beam level control motor.

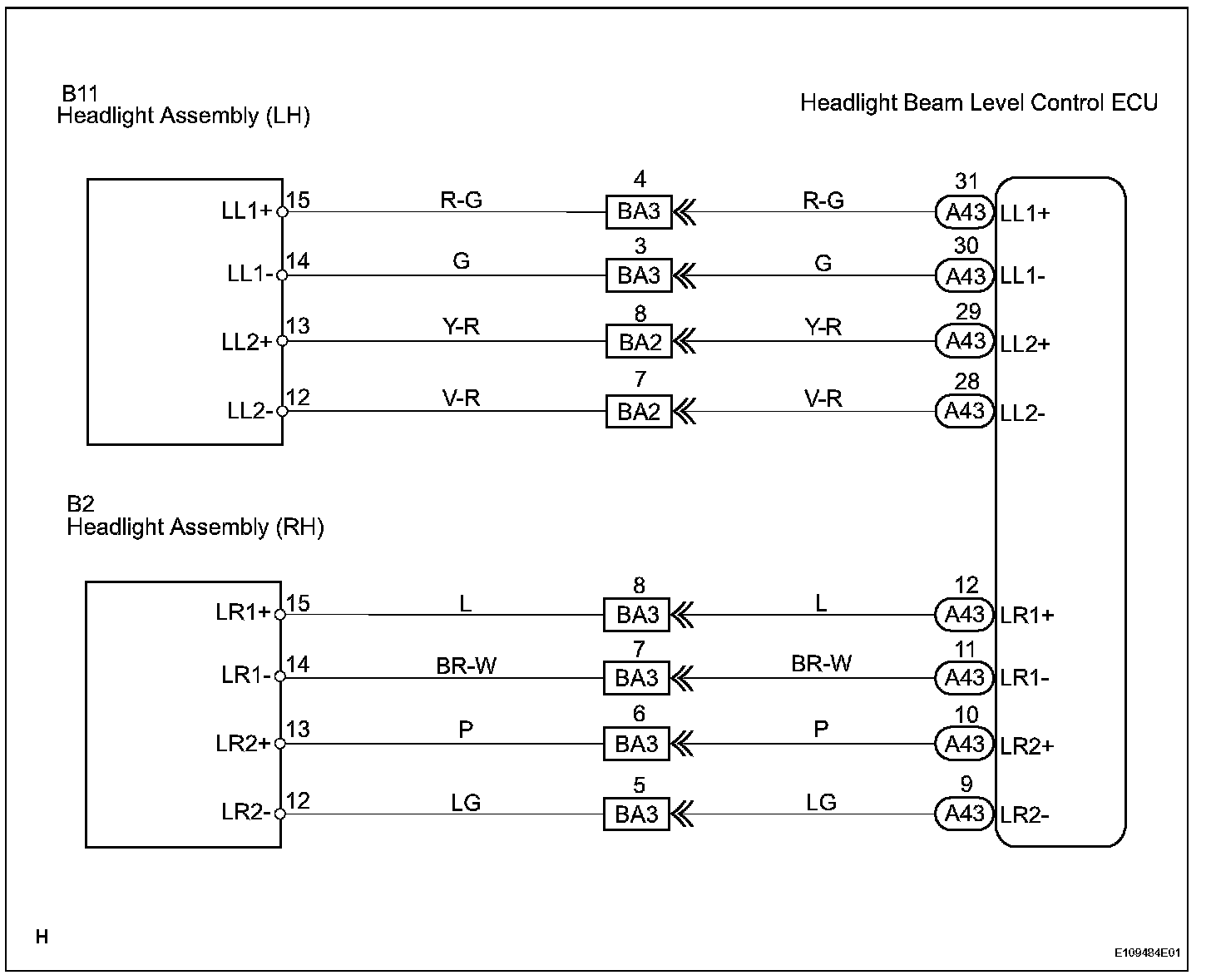

Wiring Diagram:





INSPECTION PROCEDURE

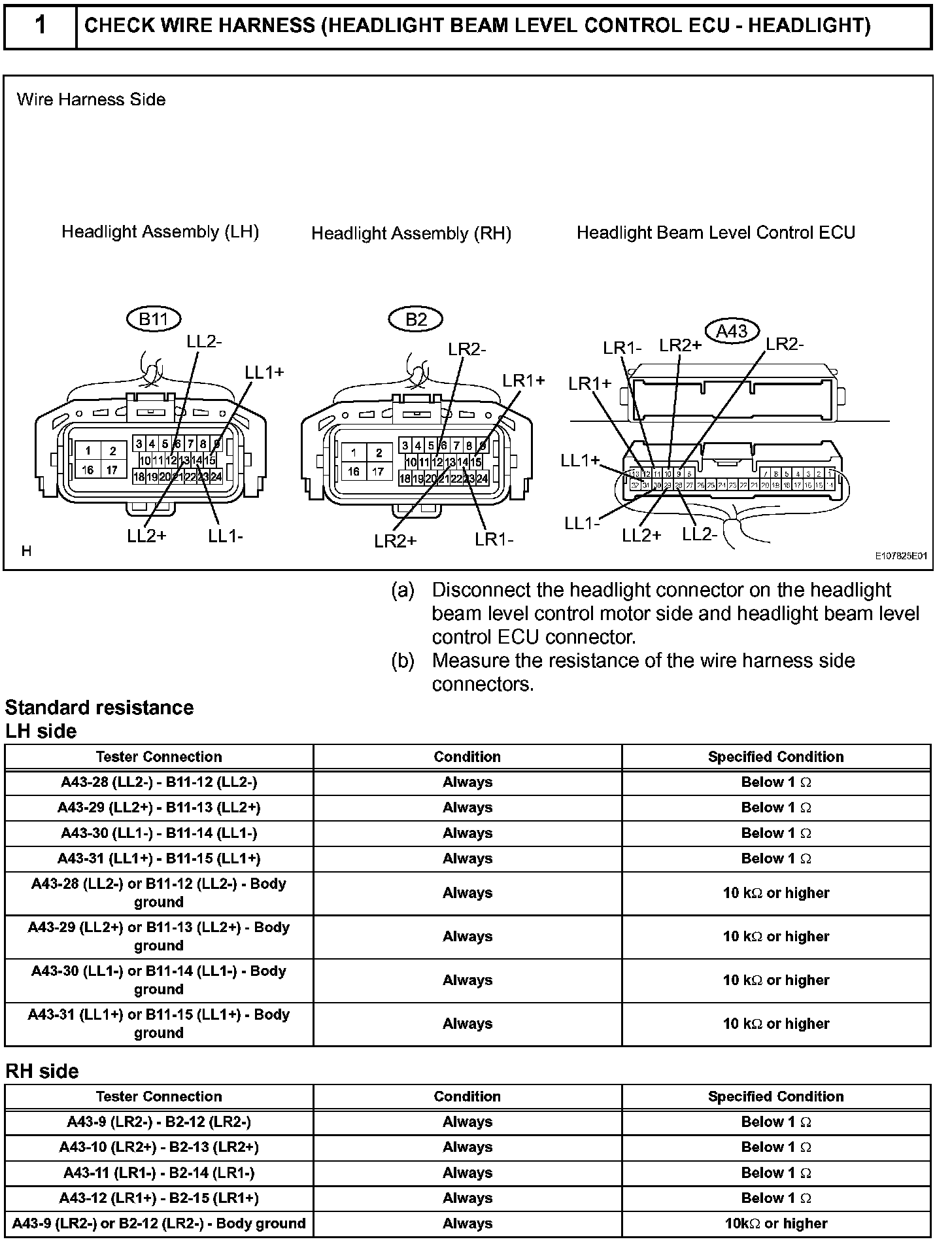

Step 1:

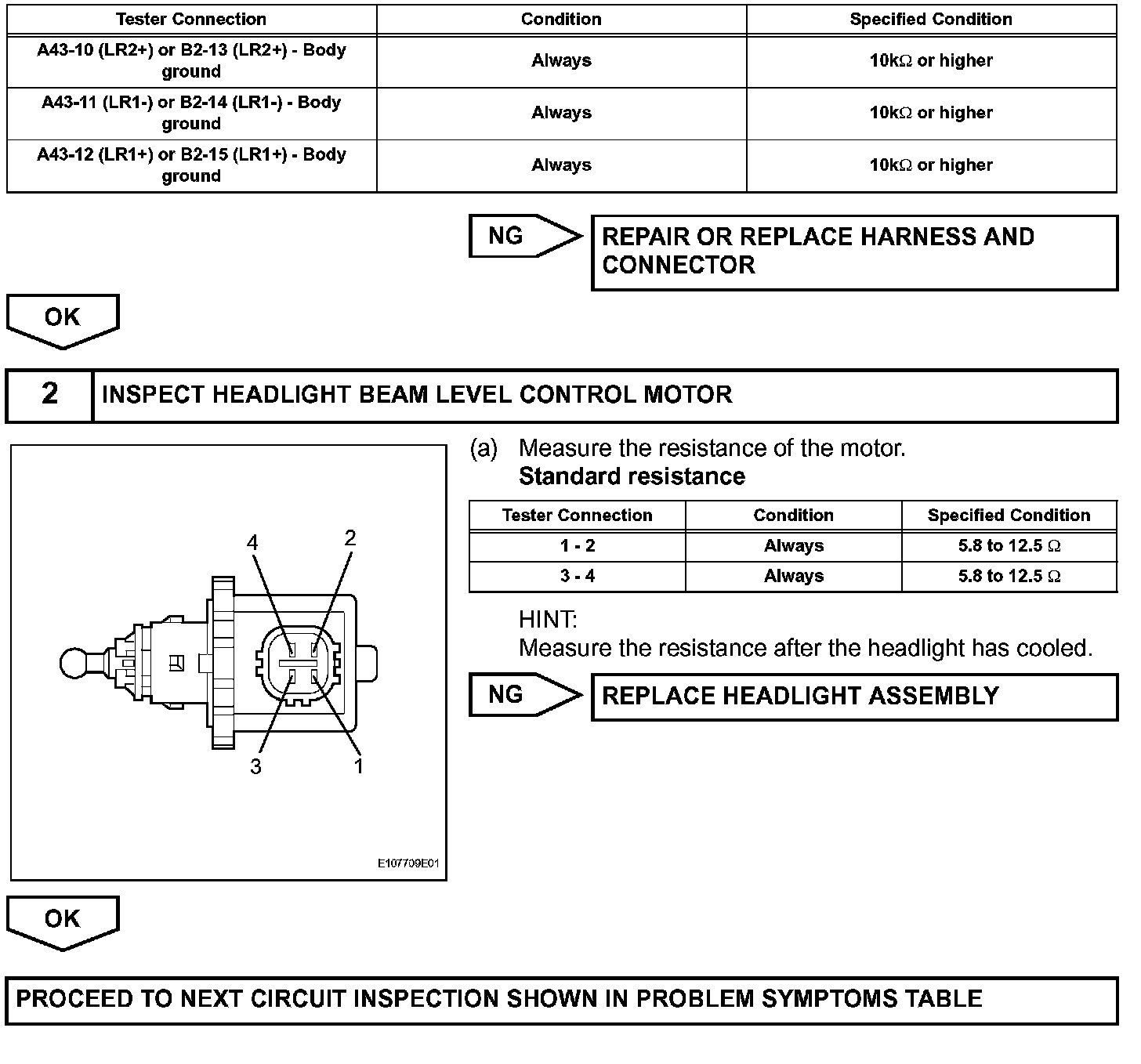

Step 1 (Continued)-2:
