Headlight (Hi-Beam) Circuit
Headlight (HI-BEAM) CircuitDESCRIPTION
The engine room No. 2 relay block receives headlight HI switch information from the combination switch, and turns on the headlights.

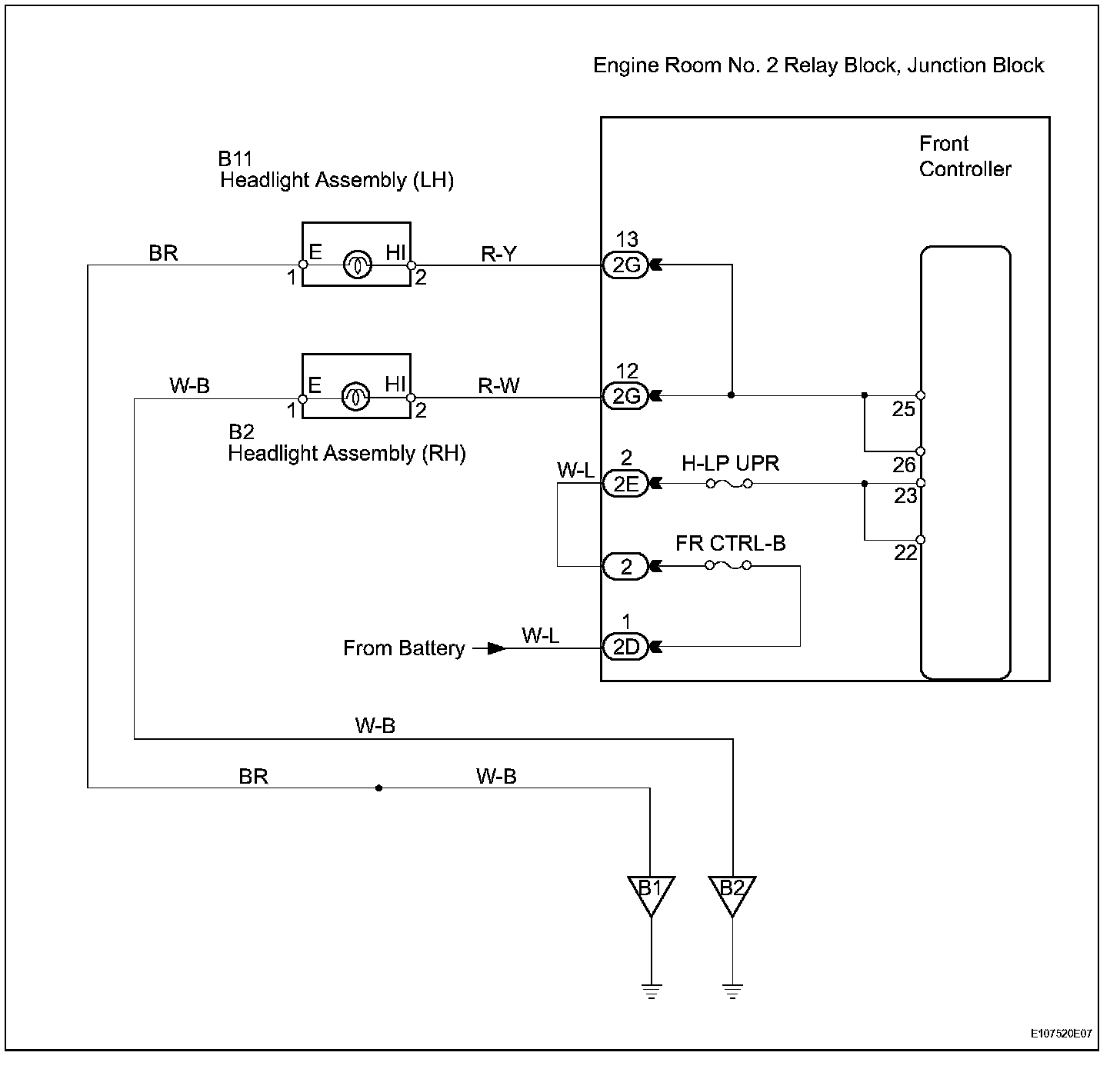

Wiring Diagram:
INSPECTION PROCEDURE

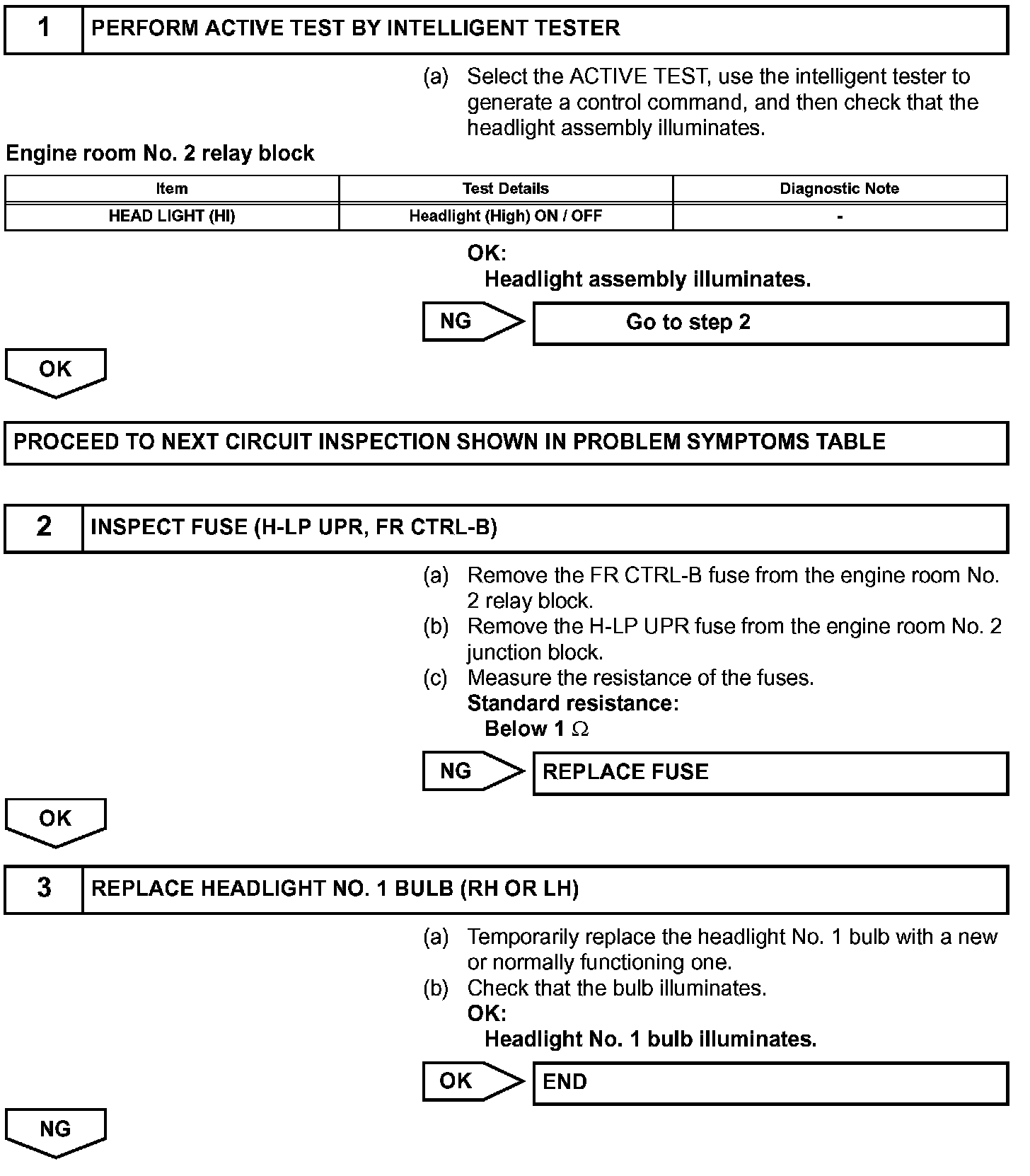

Step 1-3:

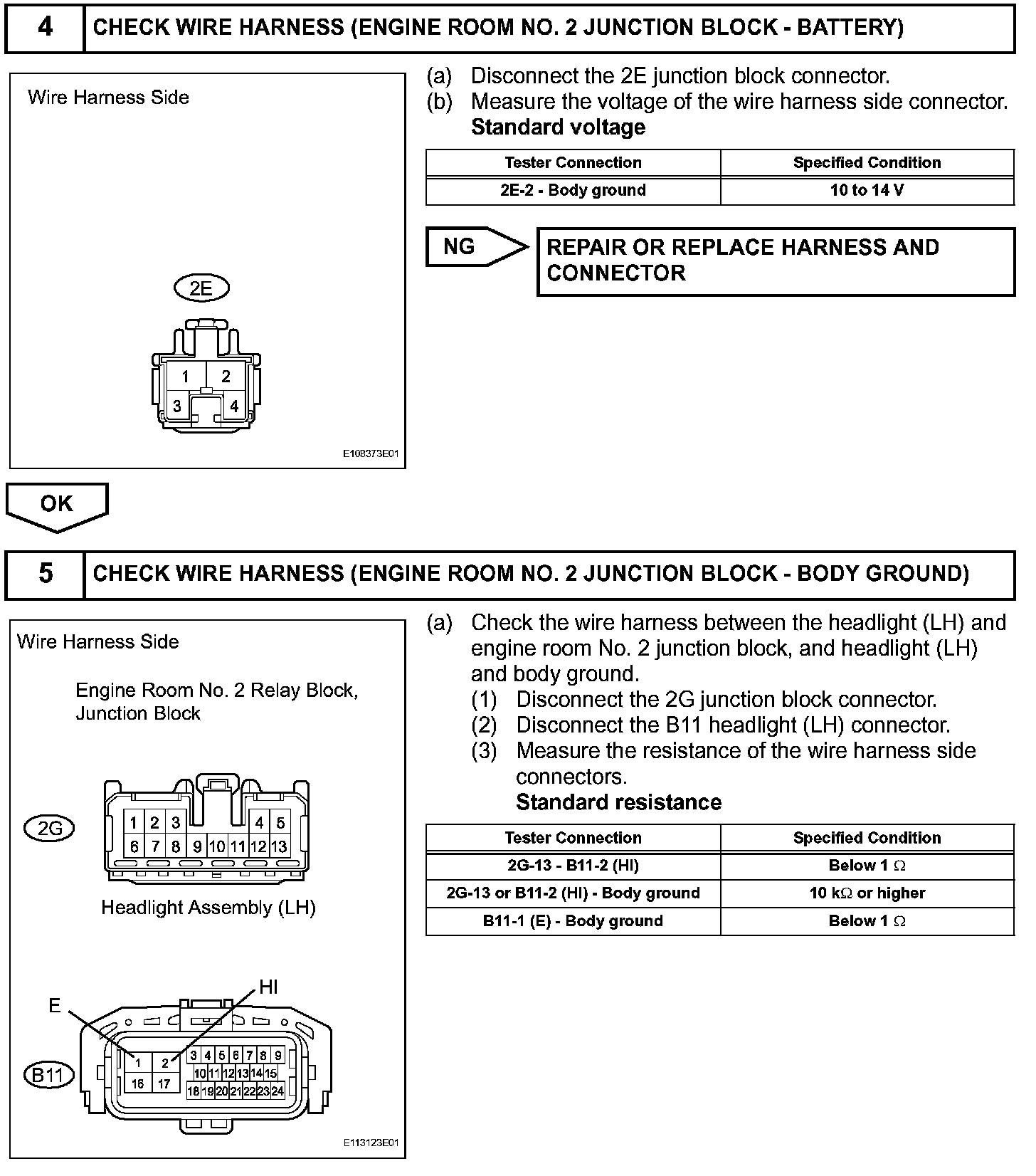

Step 4-5:

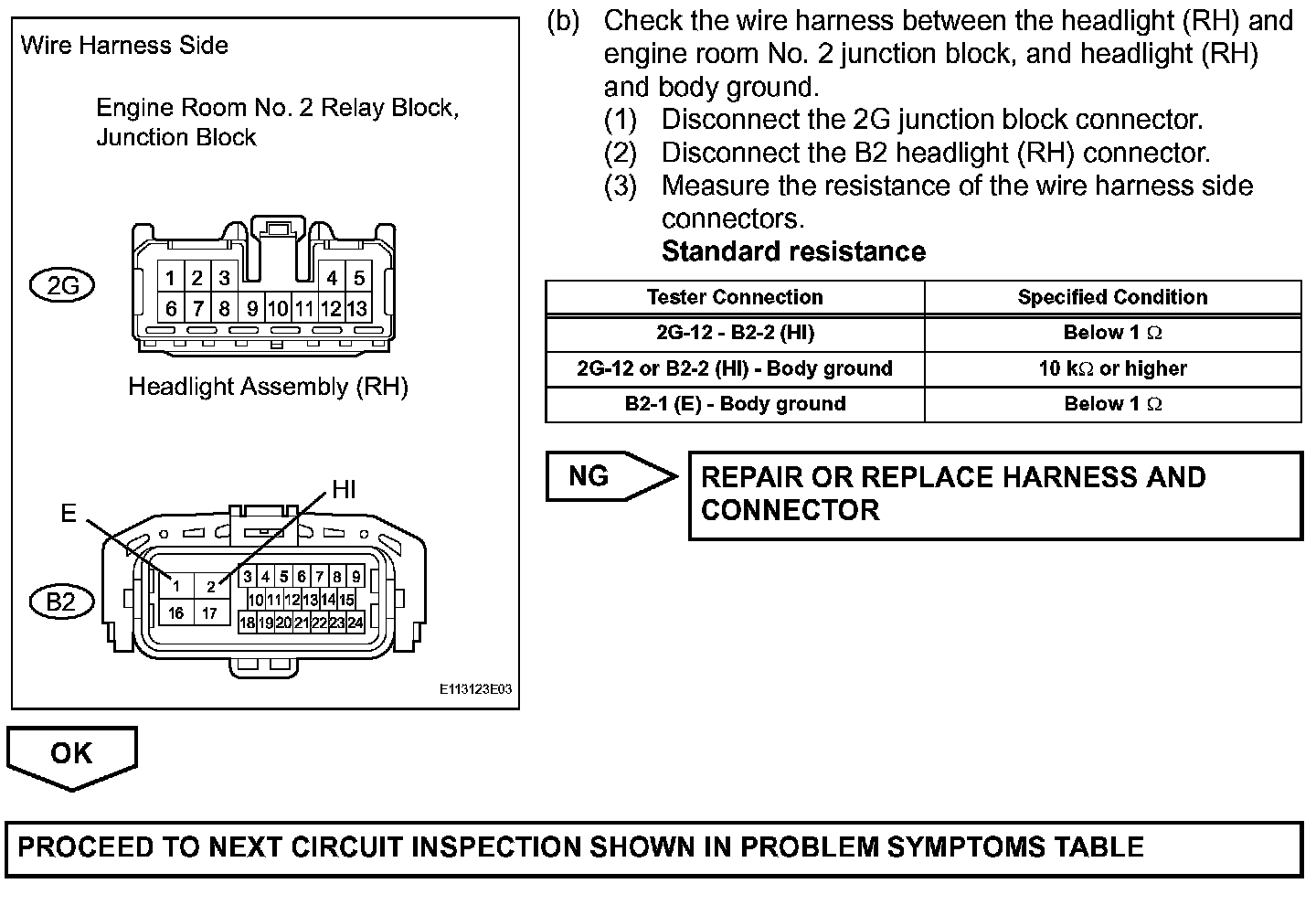

Step 5 (Continued):
