Hazard Warning Switch Circuit

Hazard Warning Switch Circuit

DESCRIPTION

The hazard warning switch sends a signal to the turn signal flasher.

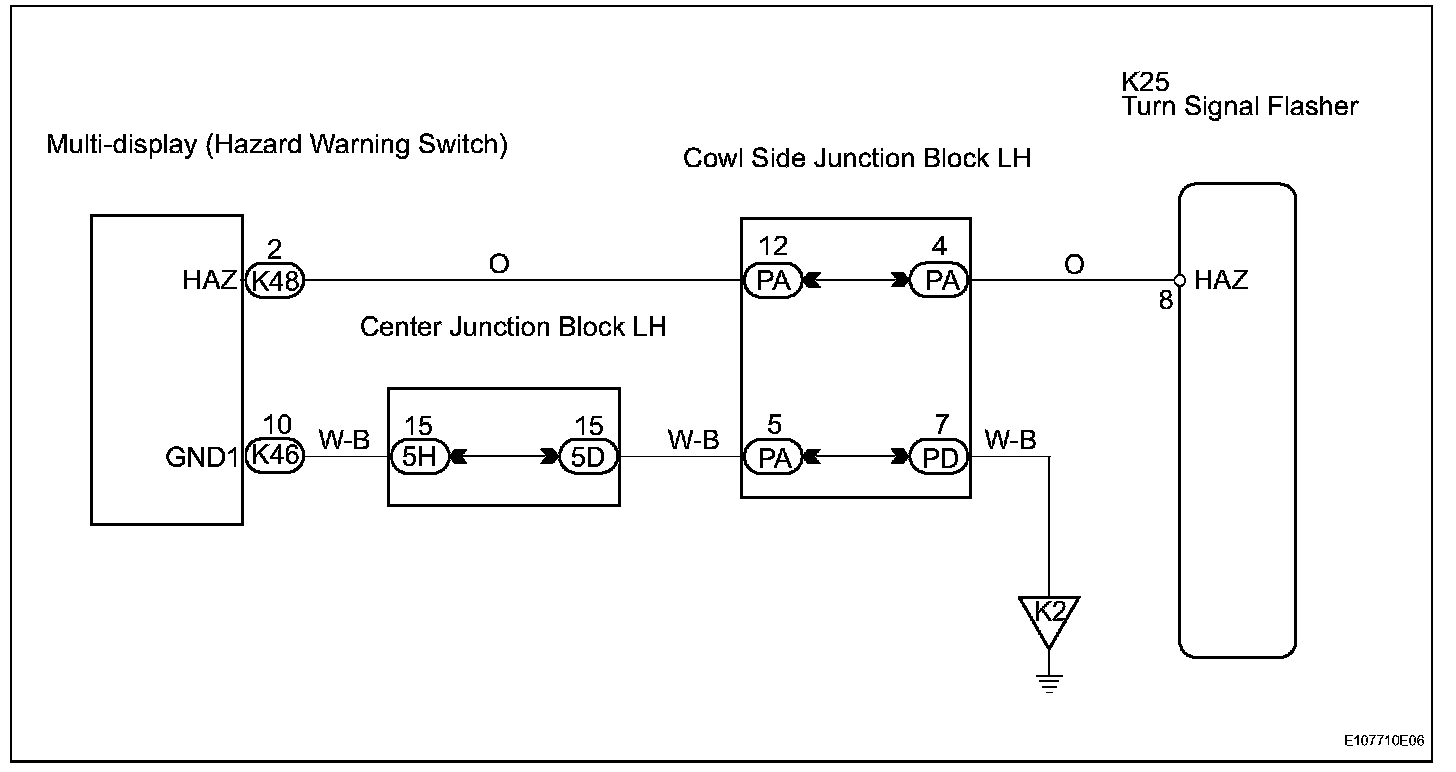

Wiring Diagram:





INSPECTION PROCEDURE

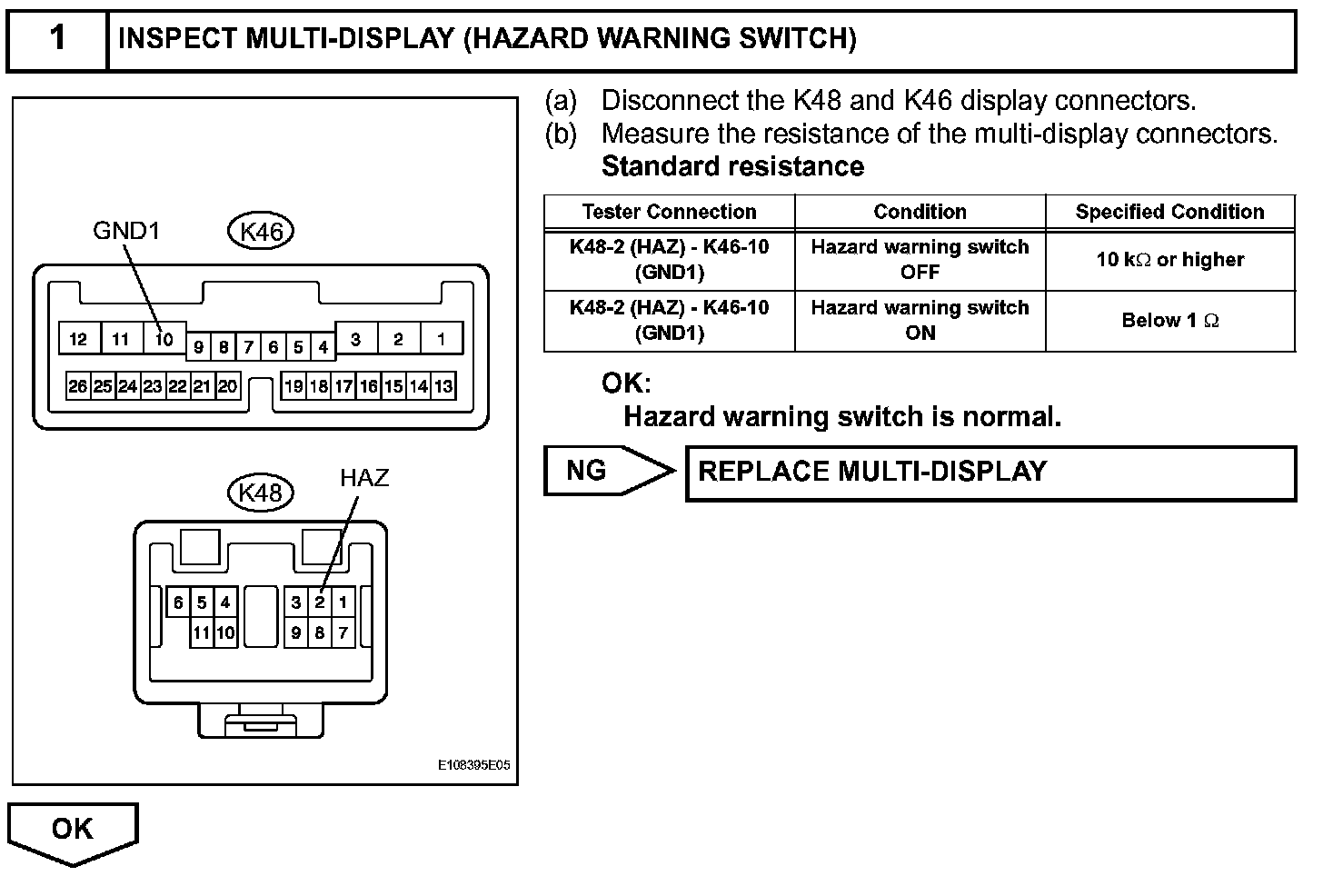

Step 1:

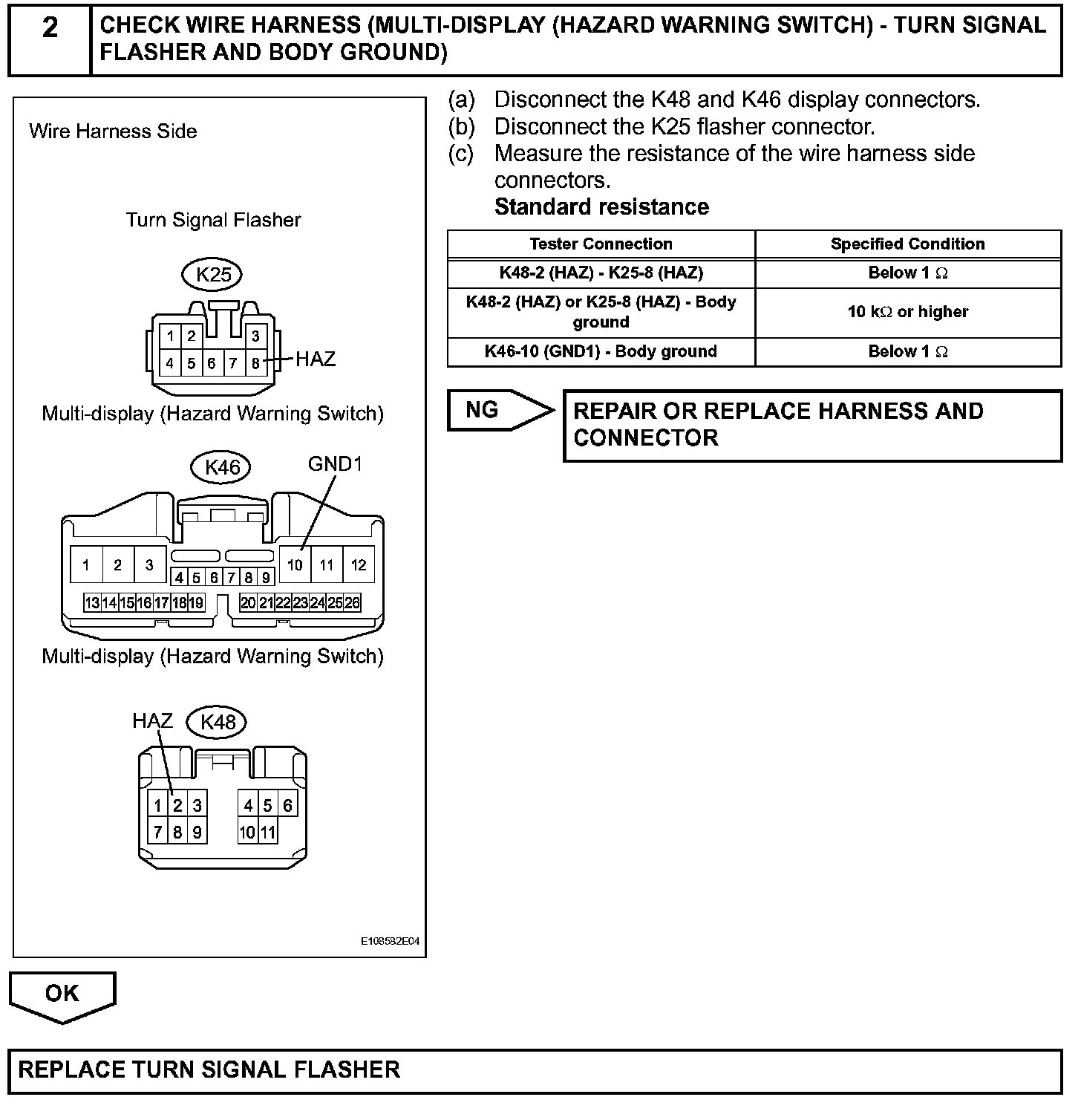

Step 2:
