Front Fog Lamp Circuit
Front Fog Light CircuitDESCRIPTION
The engine room No. 2 relay block receives fog light switch information from the combination switch, and turns on the fog light.

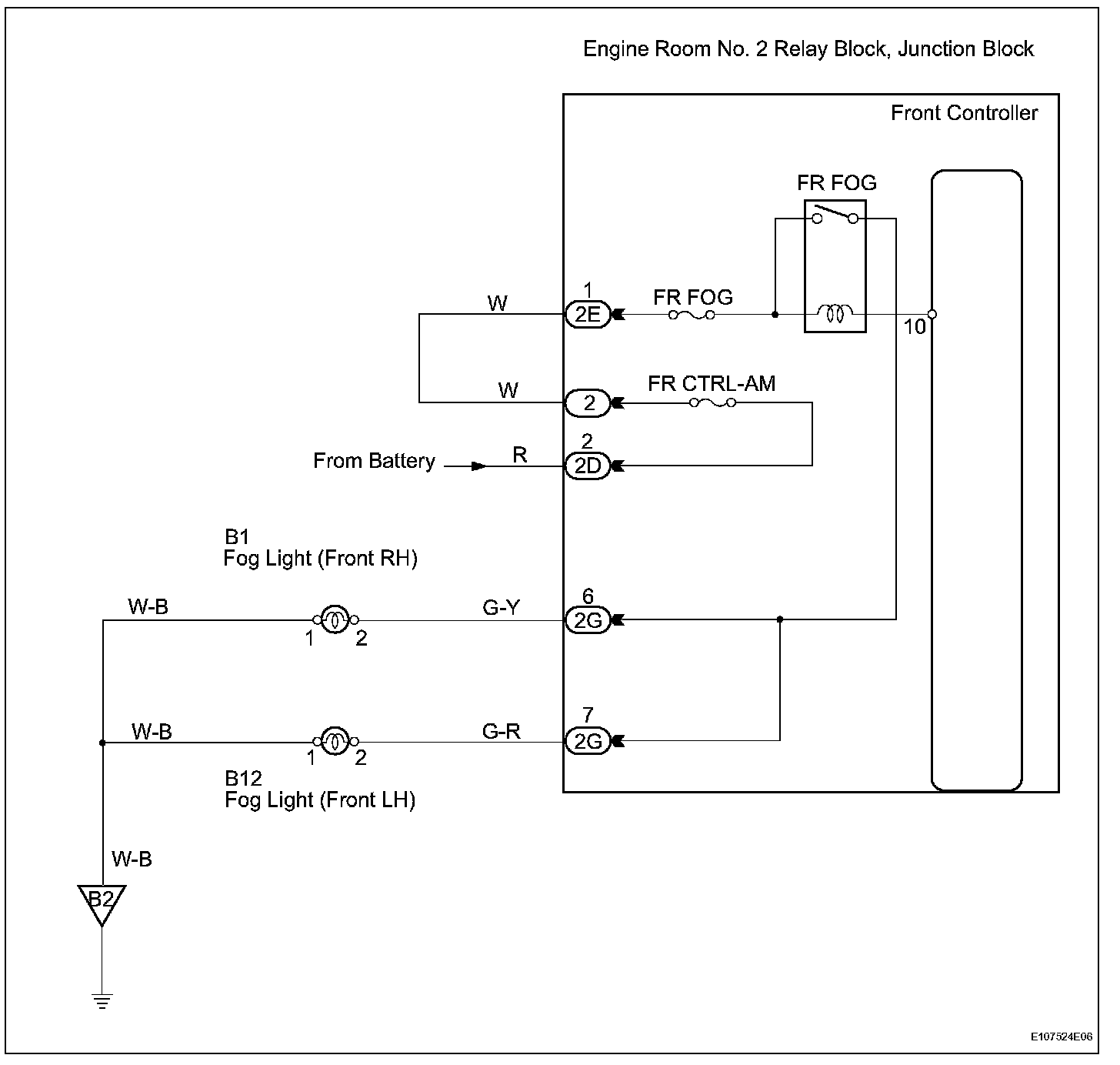

Wiring Diagram:
INSPECTION PROCEDURE

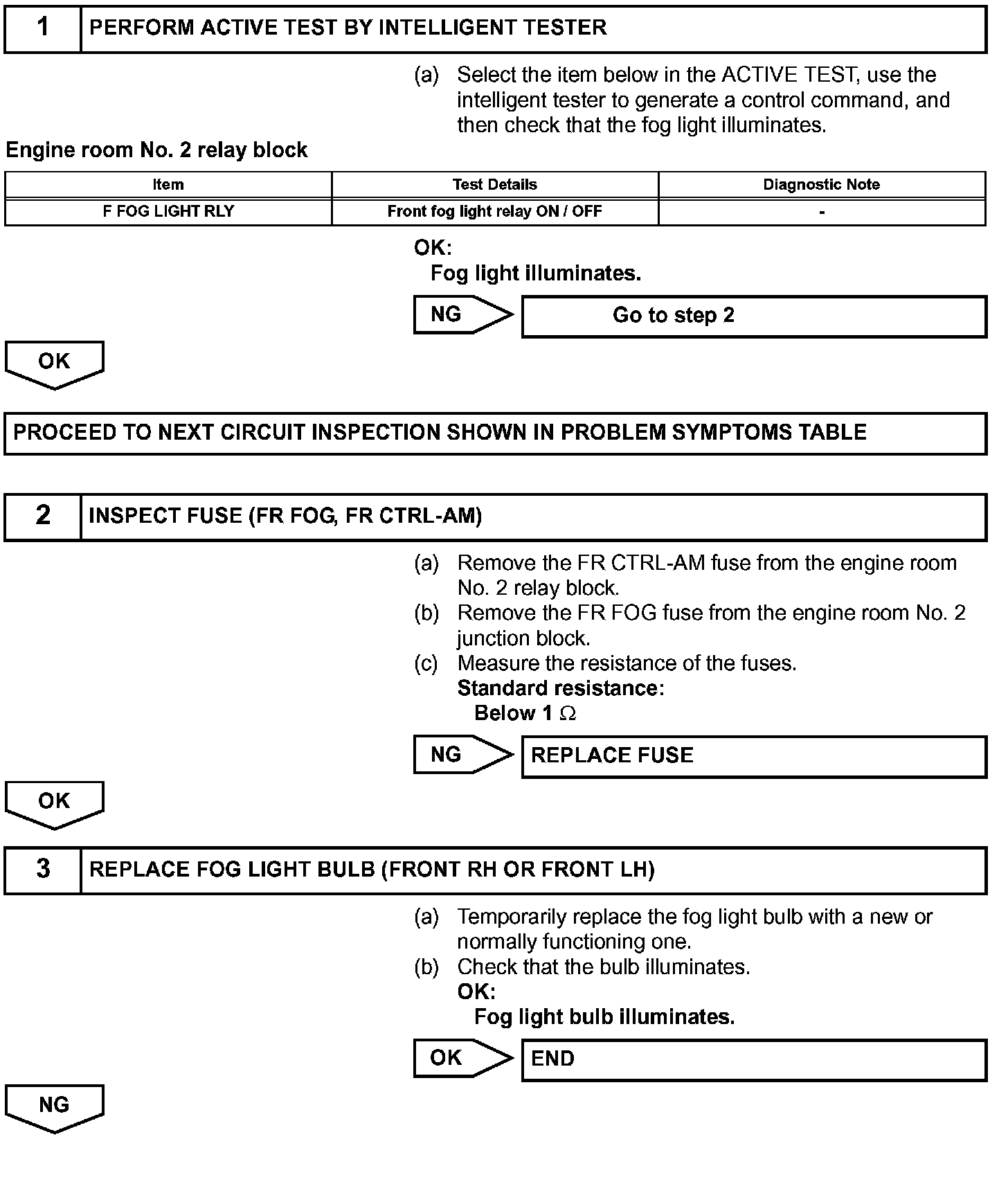

Step 1-3:

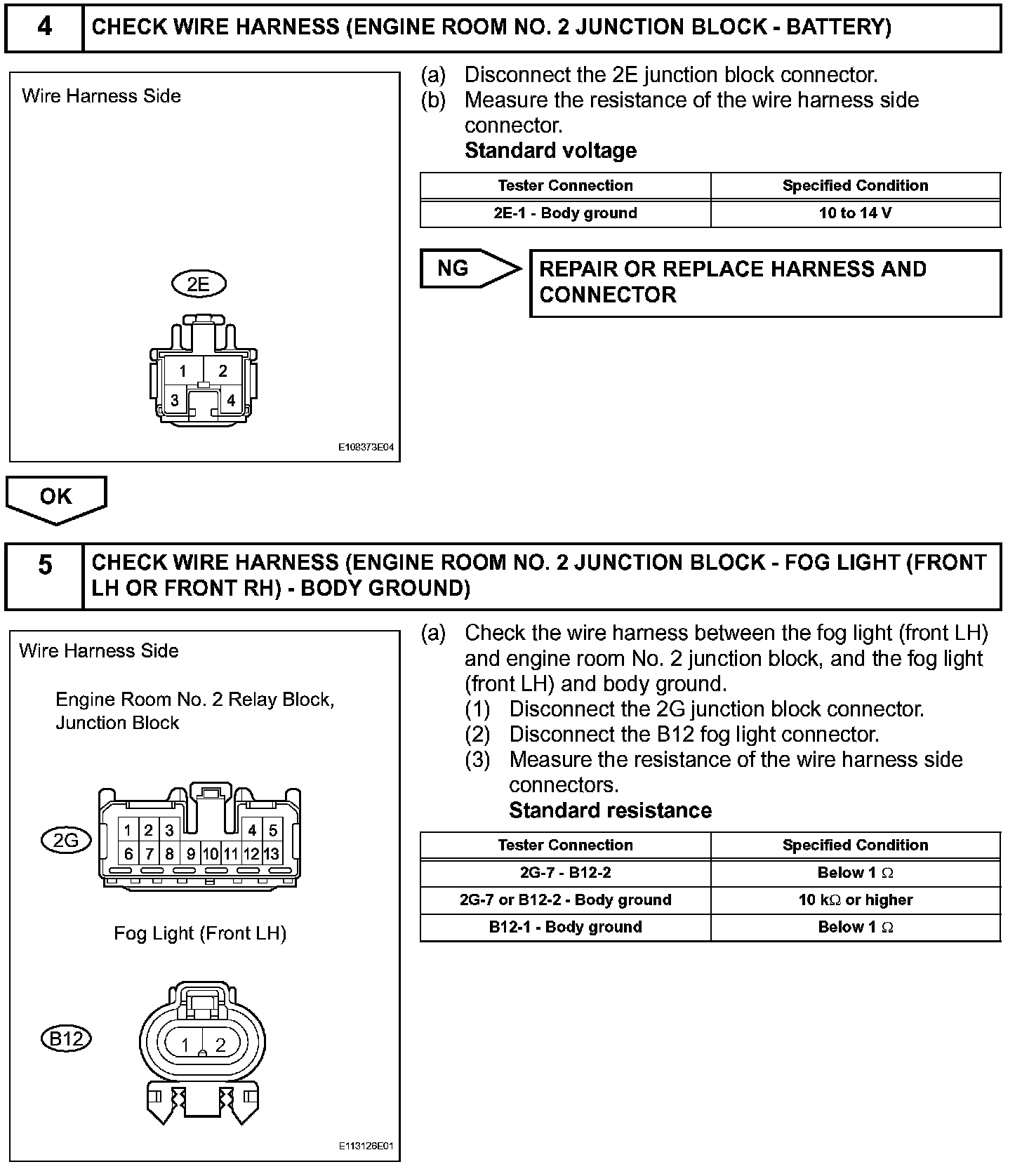

Step 4-5:

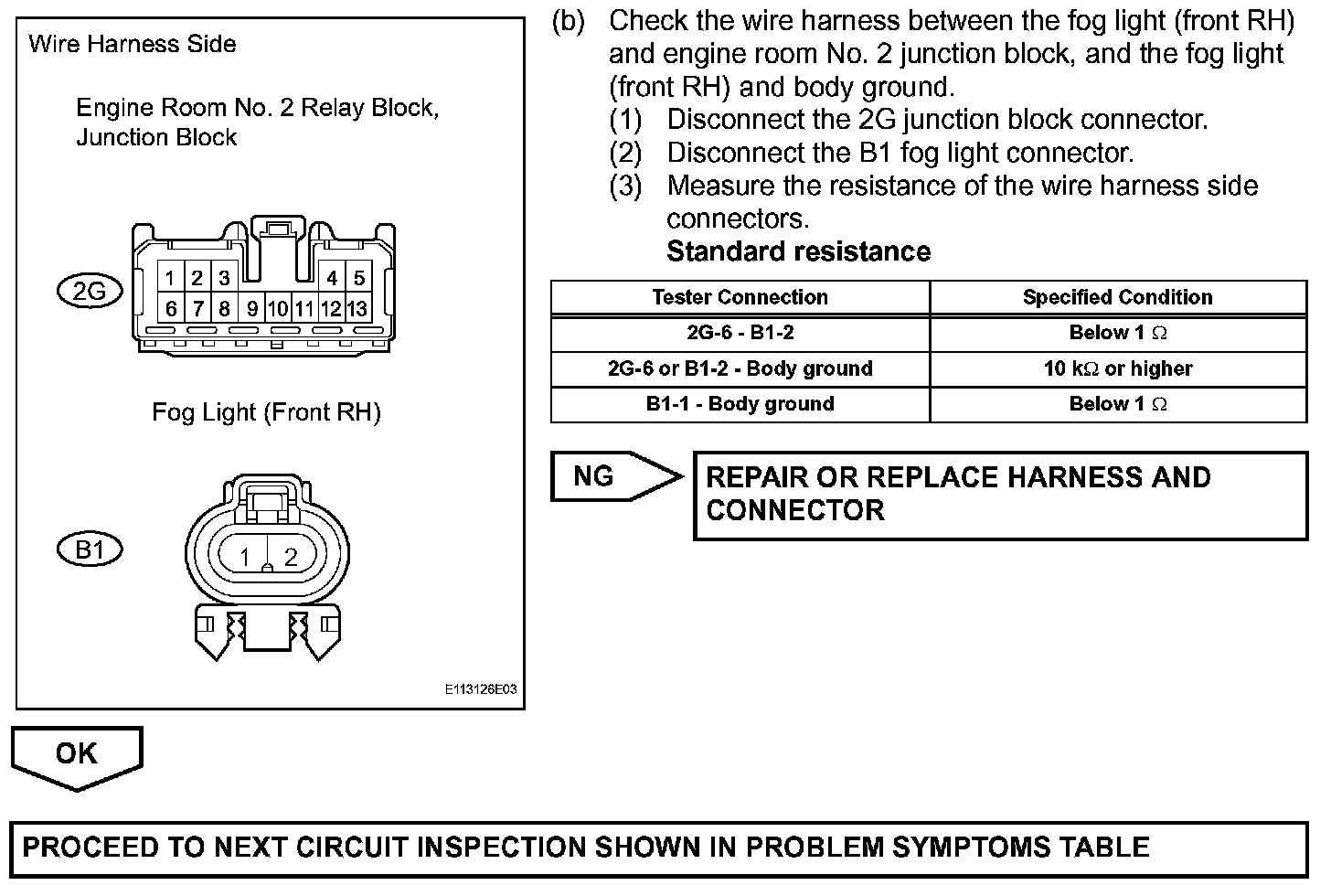

Step 5 (Continued):
