Interior Lighting Relay: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE INTEGRATION RELAY
a. Remove the engine room No. 1 relay block cover.

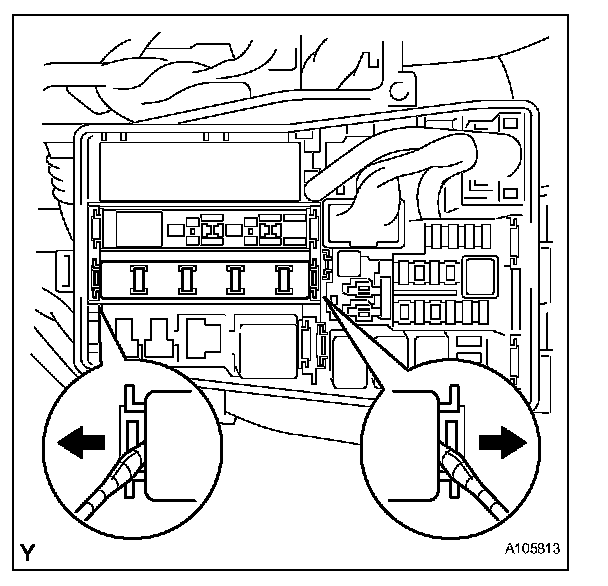

b. Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room No. 2 relay block.




c. Disconnect the 3 connectors.

INSTALLATION

1. INSTALL INTEGRATION RELAY
a. Connect the 3 connectors.
b. Attach the integration relay to the engine room No. 2 relay block.
c. Install the engine engine room No. 1 relay block cover.

2. INSTALL ENGINE ROOM SIDE COVER LH
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
