Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

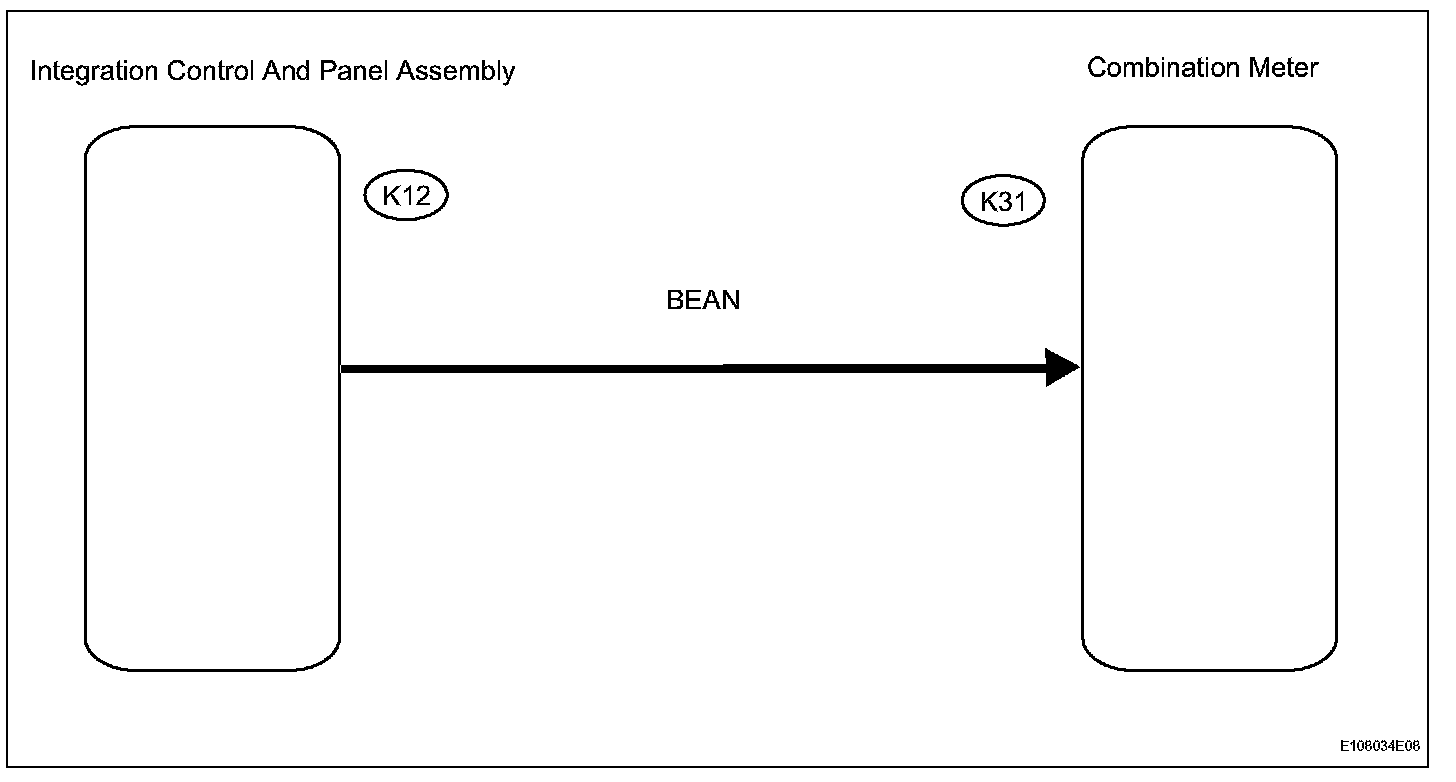

Wiring Diagram:





INSPECTION PROCEDURE

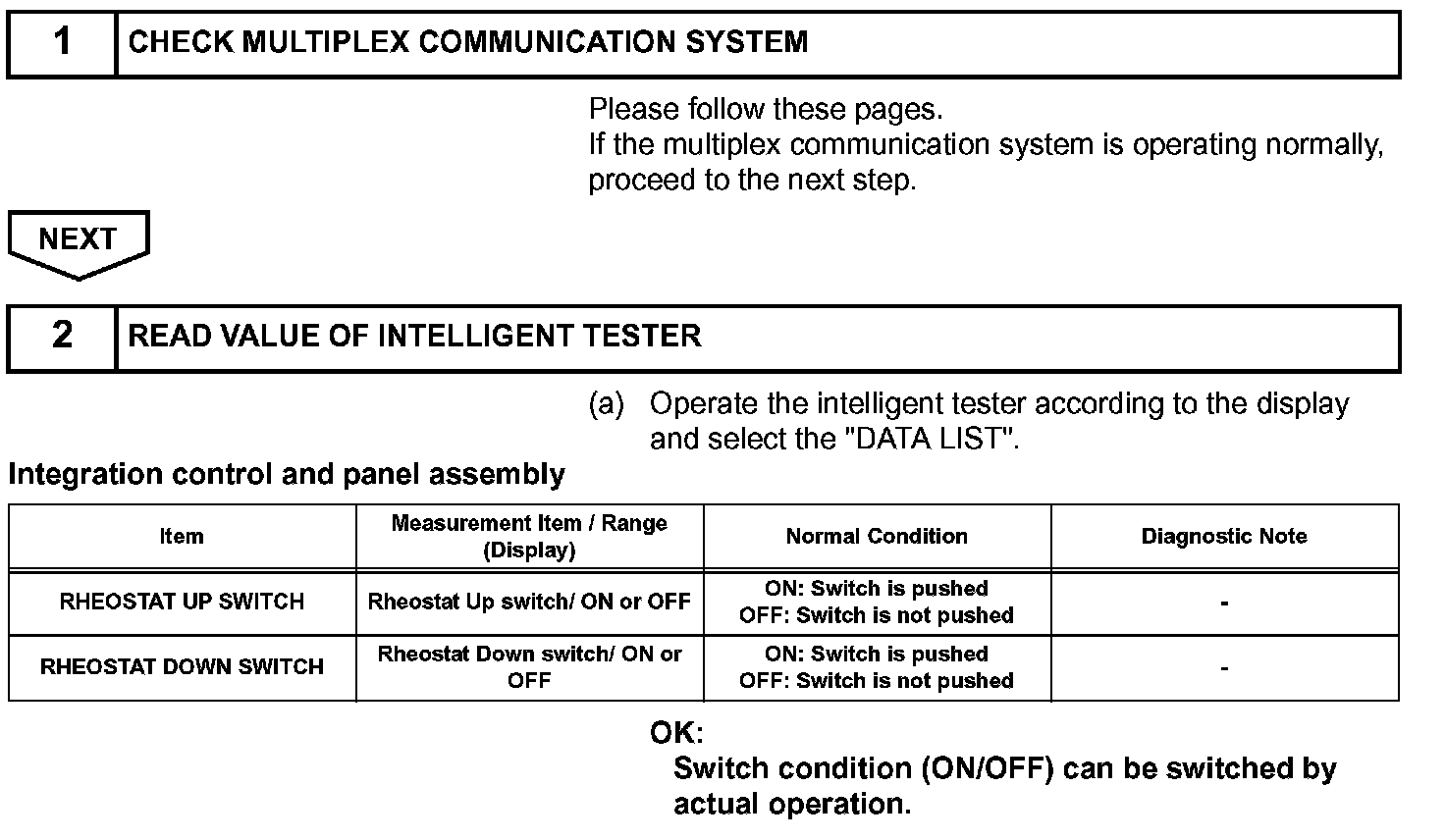

Step 1-2:

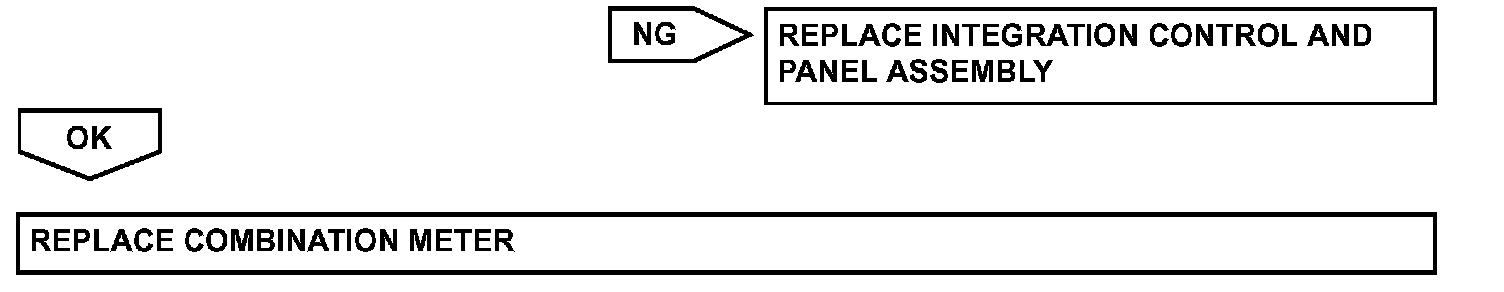

Step 2 (Continued):
