Cluster Glass Does Not Become Tinted

Cluster Glass does not Become Tinted

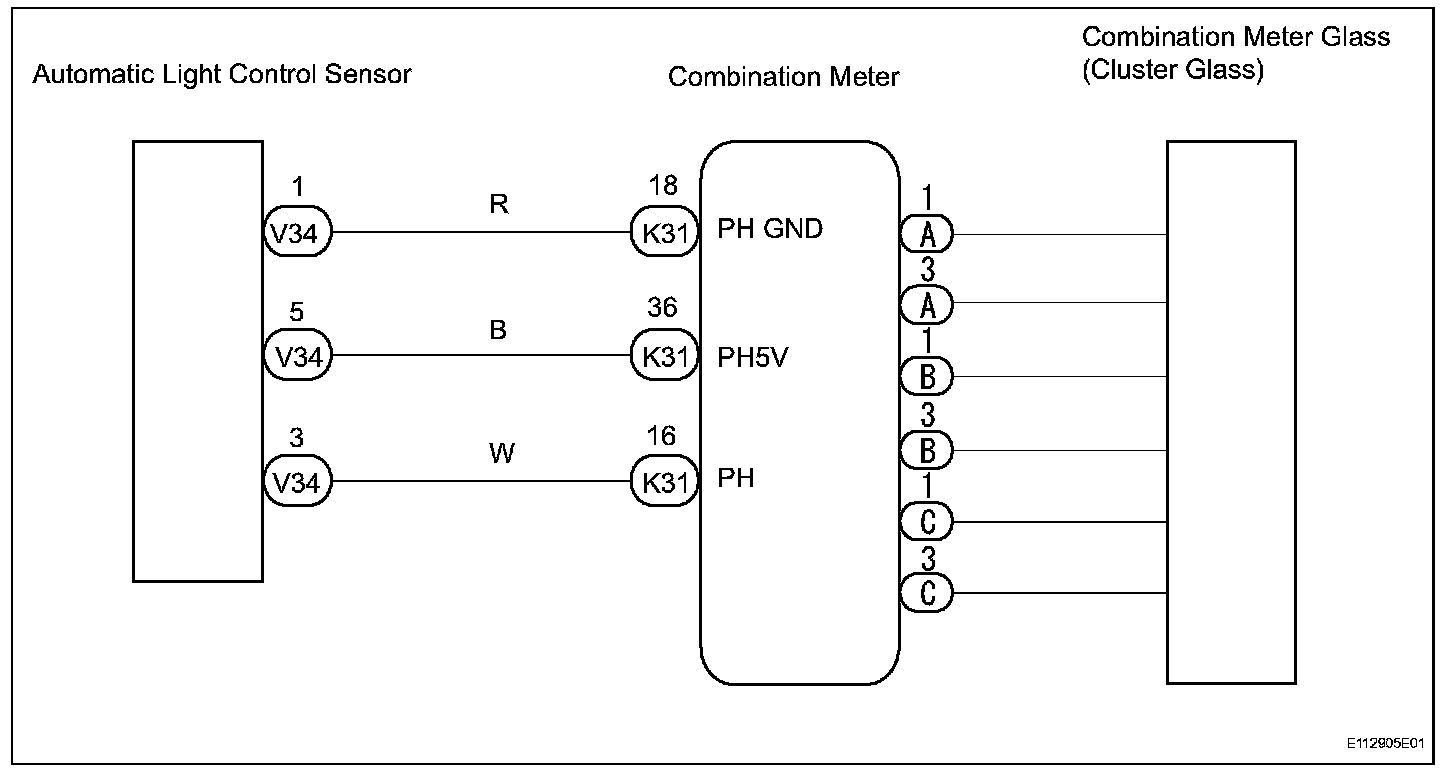

Wiring Diagram:





INSPECTION PROCEDURE

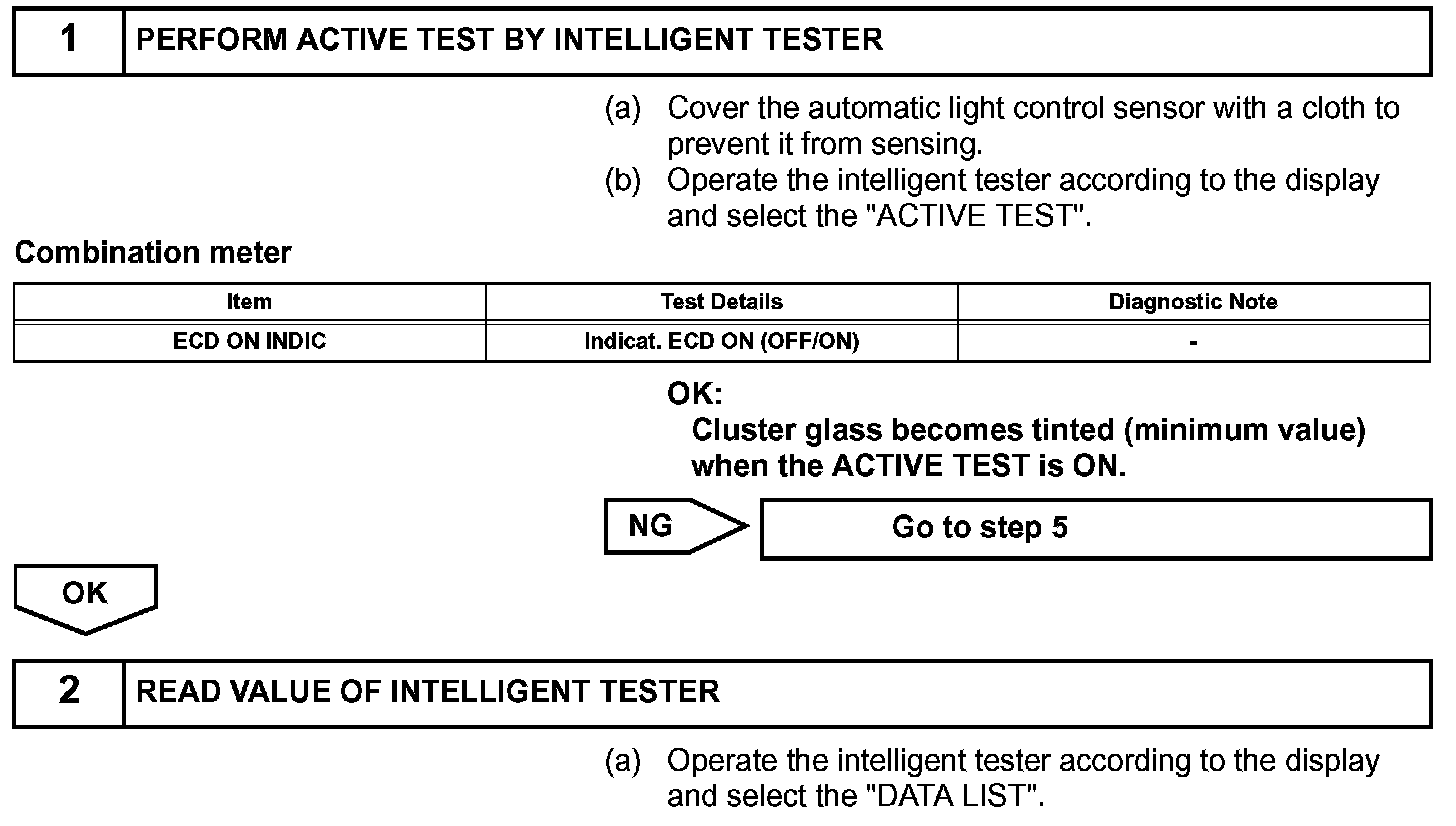

Step 1-2:

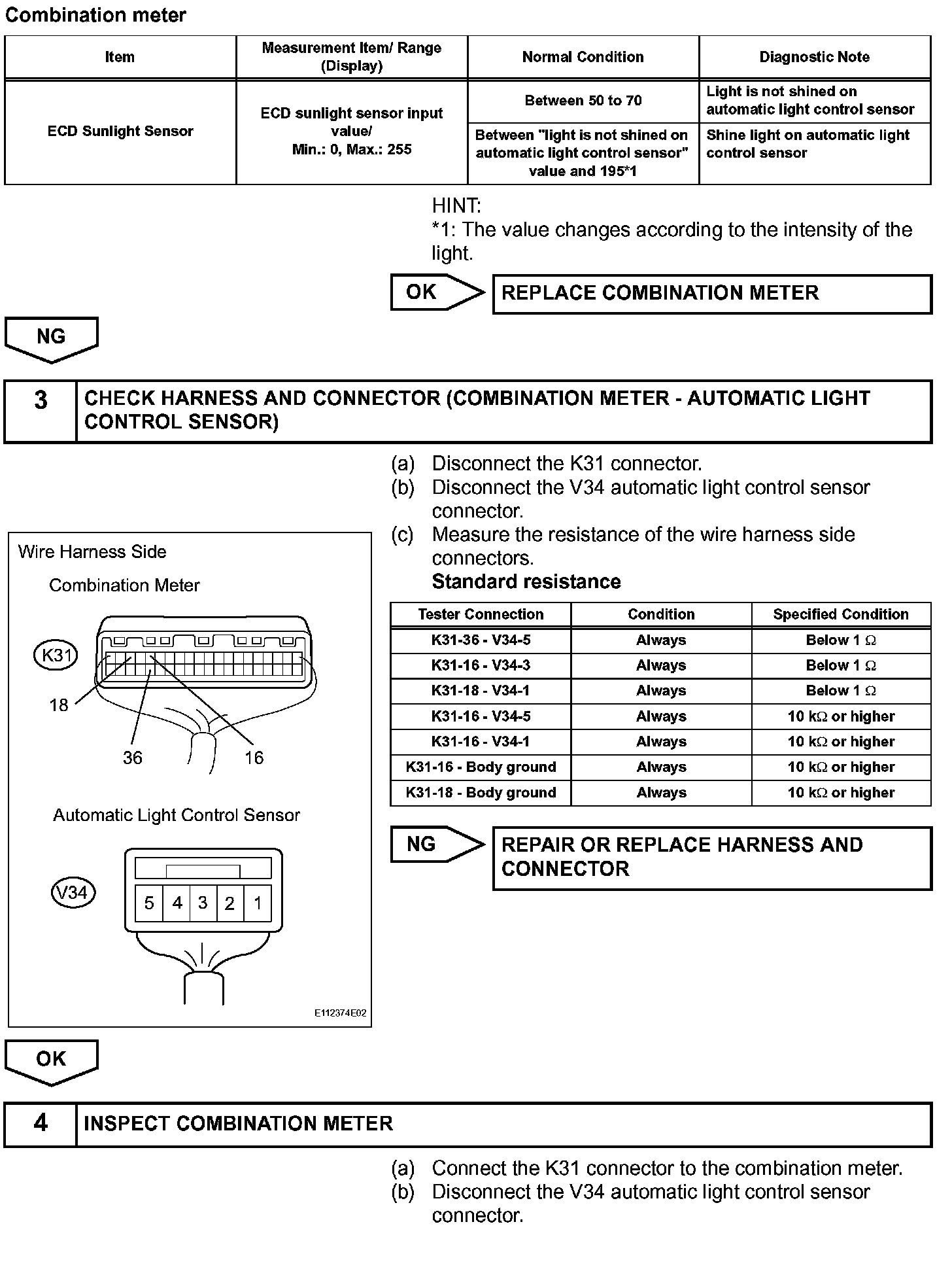

Step 2 (Continued)-4:

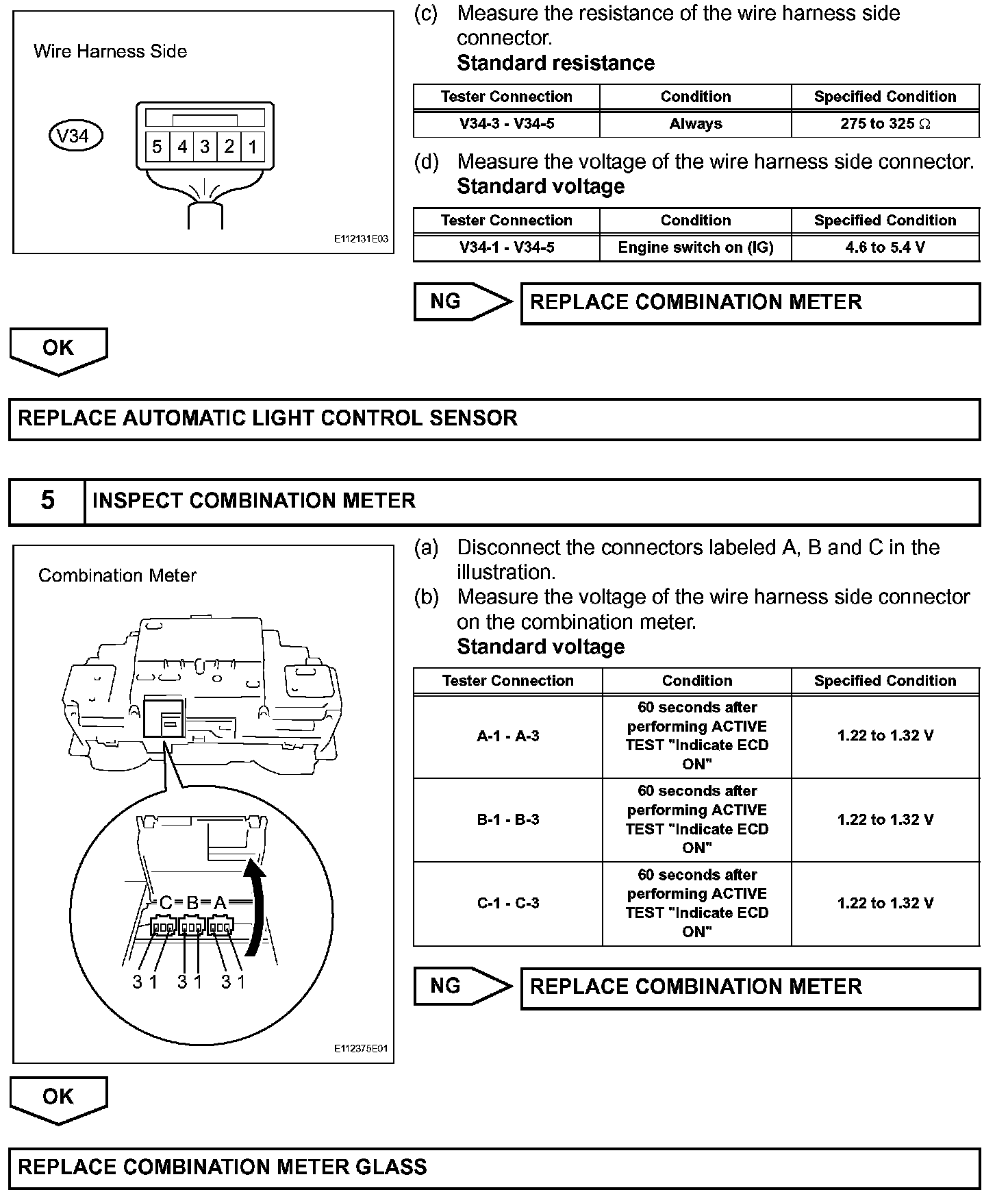

Step 4 (Continued)-5:
