Fail Safe Chart

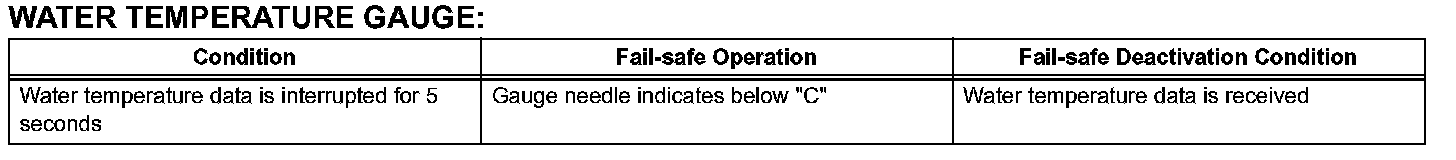

Water Temperature Gauge:

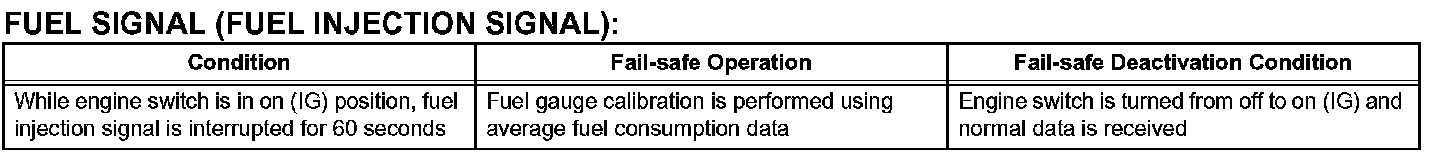

Fuel Signal (Fuel Injection Signal):

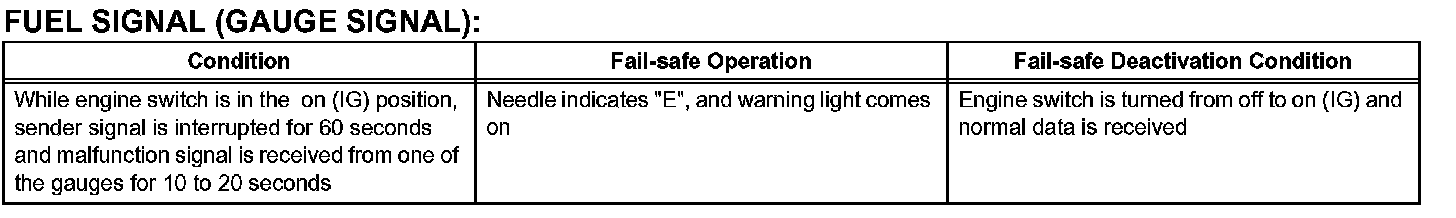

Fuel Signal (Gauge Signal):

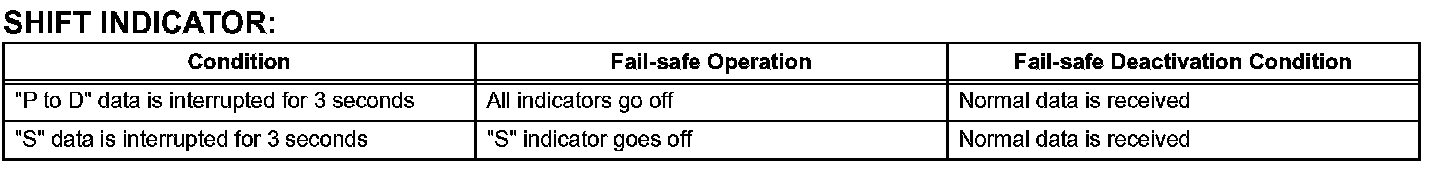

Shift Indicator:

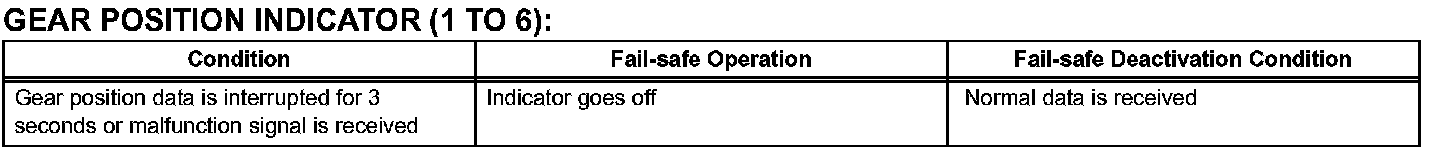

Gear Position Indicator (1 To 6):

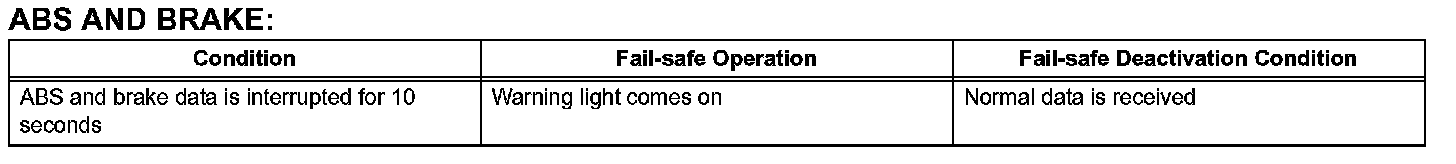

ABS And Brake:

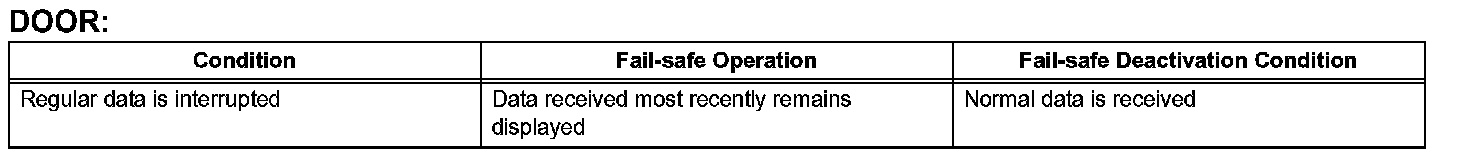

Door:

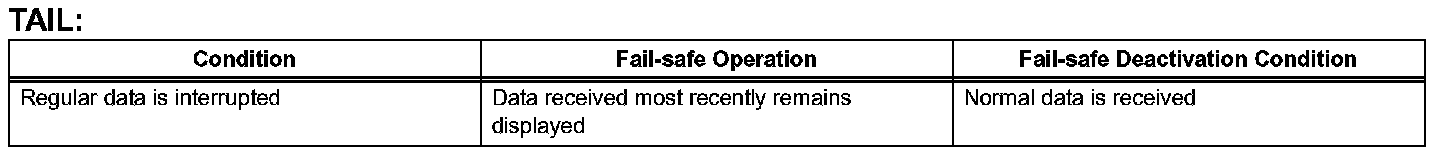

Tail:

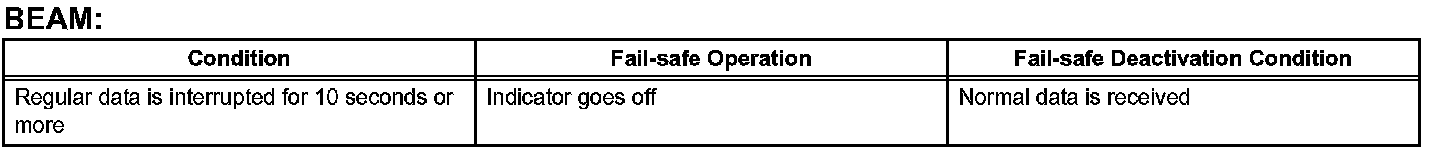

Beam:

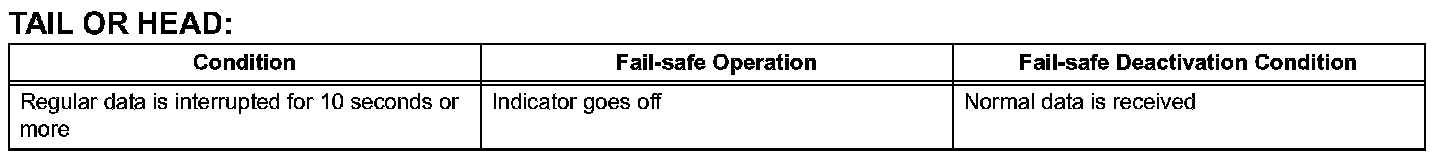

Tail Or Head:

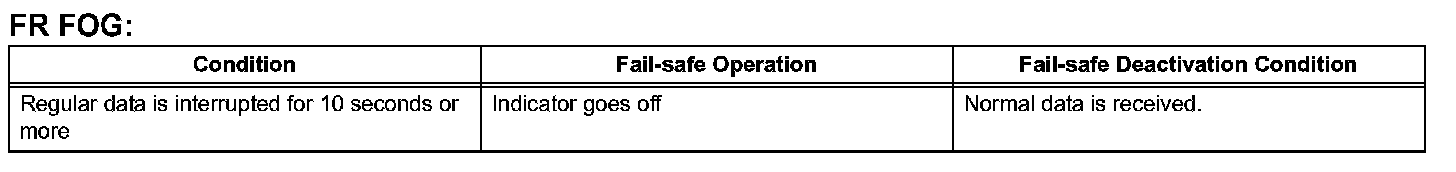

FR Fog:

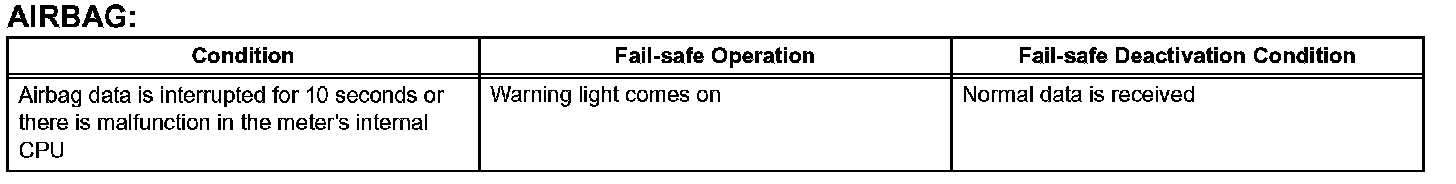

Airbag:

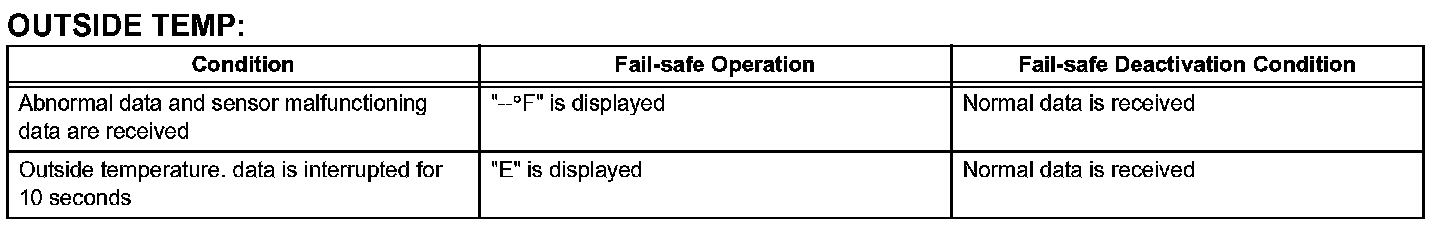

Outside Temp:

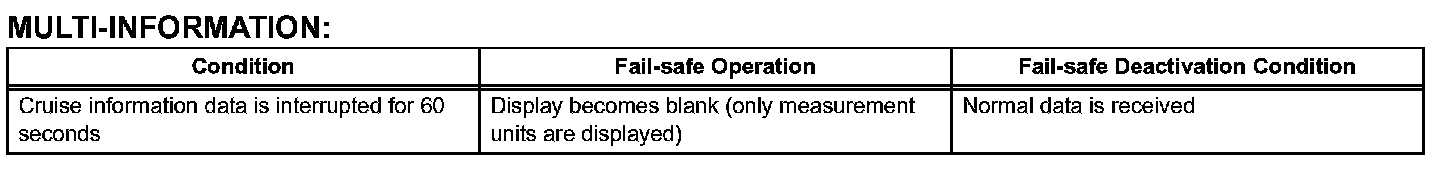

Multi-Information:

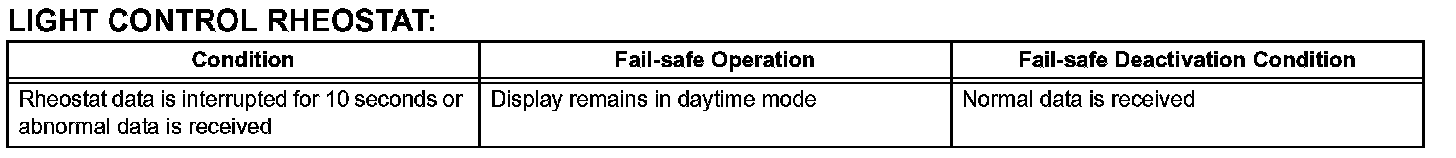

Light Control Rheostat:
