ODO / Trip Switch Malfunction

Odo / Trip Switch Malfunction

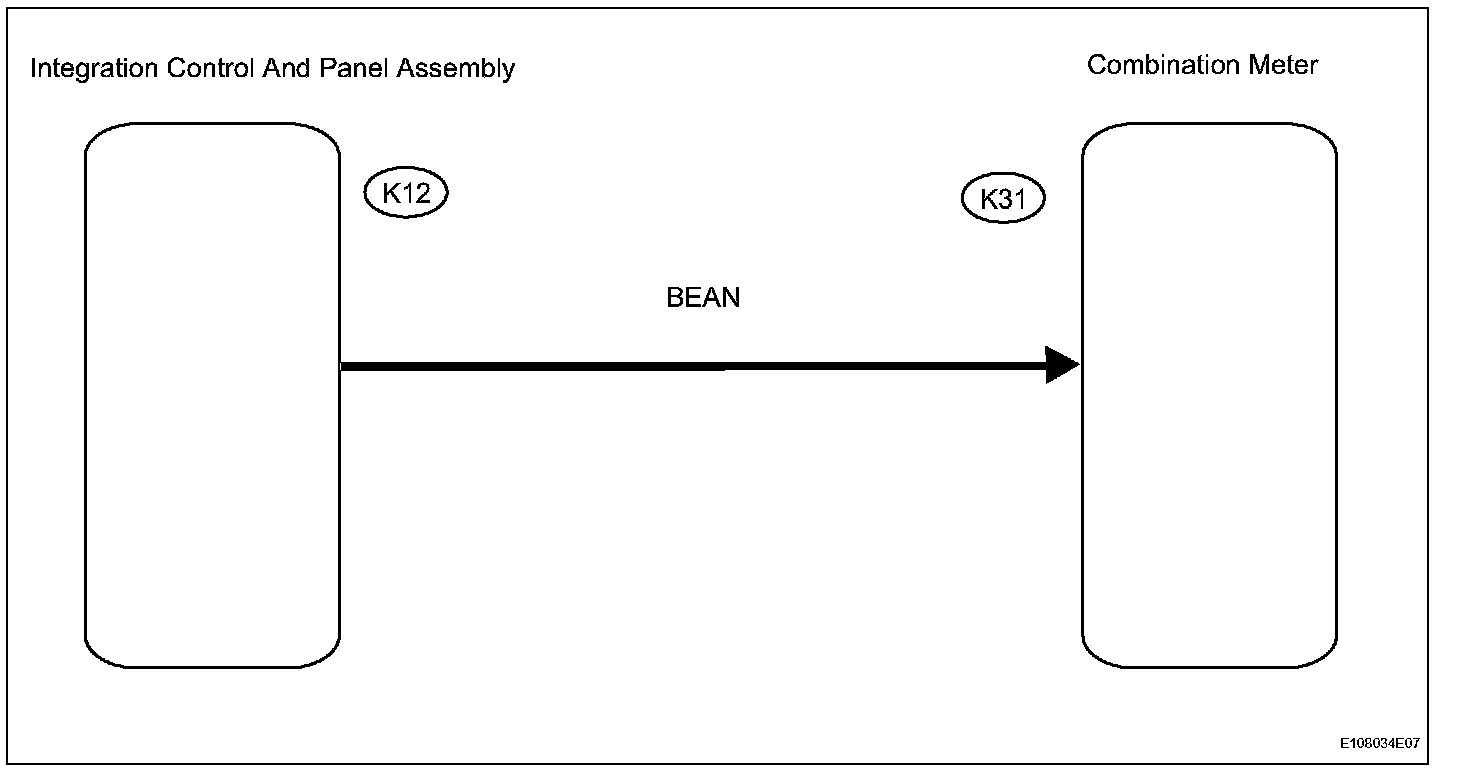

Wiring Diagram:





INSPECTION PROCEDURE

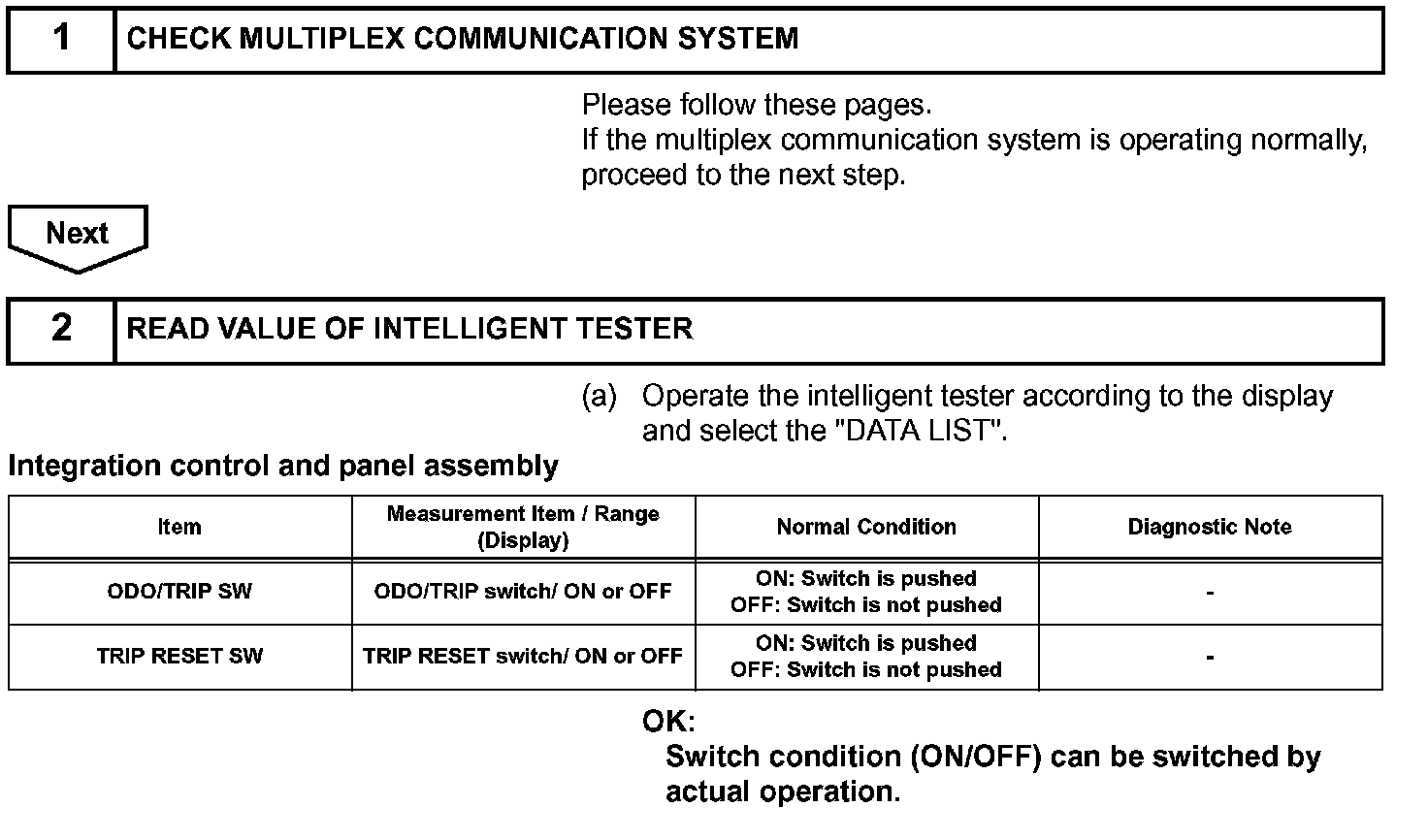

Step 1-2:

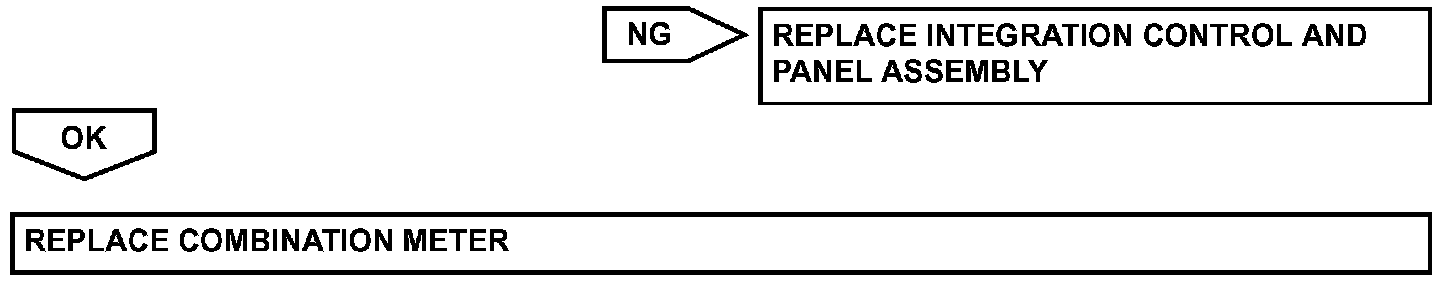

Step 2 (Continued):
